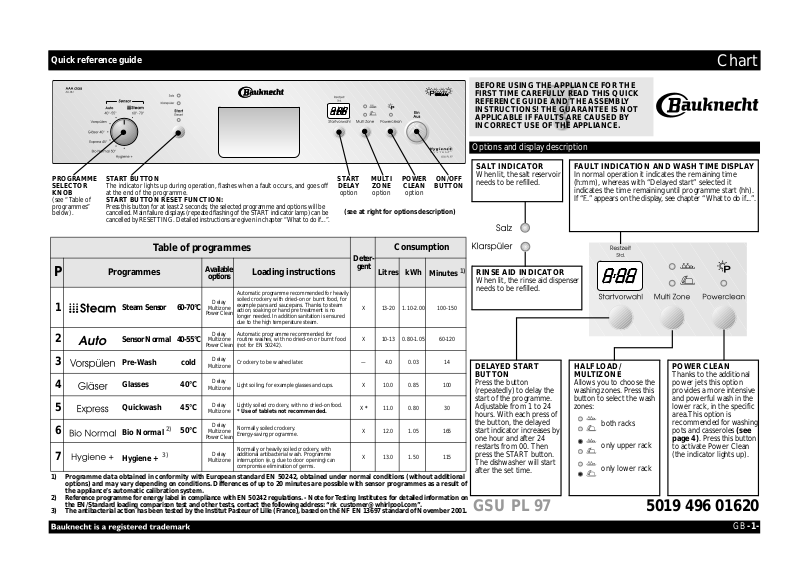

Whirlpool GSU PL 9719 IN PROGRAM CHART
Quick reference guide
PROGRAMME
SELECTOR
KNOB
(see “Table of
programmes”
below).
START BUTTON
The indicator lights up during operation, flashes when a fault occurs, and goes off
at the end of the programme.
START BUTTON RESET FUNCTION:
Press this button for at least 2 seconds; the selected programme and options will be
cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be
cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.
START
MULTI
ZONE
option
POWER
CLEAN
option
DELAY
option
(see at right for options description)
ON/OFF
BUTTON
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME CAREFULLY READ THIS QUICK
REFERENCE GUIDE AND THE ASSEMBLY
INSTRUCTIONS! THE GUARANTEE IS NOT
APPLICABLE IF FAULTS ARE CAUSED BY
INCORRECT USE OF THE APPLIANCE.
Options and display description
SALT INDICATOR
When lit, the salt reservoir
needs to be refilled.
FAULT INDICATION AND WASH TIME DISPLAY
In normal operation it indicates the remaining time
(h:mm), whereas with “Delayed start” selected it
indicates the time remaining until programme start (hh).
If “F..” appears on the display, see chapter “What to do if...”.
Chart
Table of programmes
Deter-
gent
X*11.0 0.80 30
50°C
Available
options
Delay
Multizone
Power Clean
Delay
Multizone
Power Clean
Delay
Multizone
Delay
Multizone
Delay
Multizone
Delay
Multizone
Power Clean
Delay
Multizone
Loading instructions
Automatic programme recommended for heavily
soiled crockery with dried-on or burnt food, for
example pans and saucepans. Thanks to steam
action, soaking or hand pre treatment is no
longer needed. In addition sanitation is ensured
due to the high temperature steam.
Automatic programme recommended for
routine washes, with no dried-on or burnt food
(not for EN 50242).
Crockery to be washed later. — 4.0 0.03 14
Light soiling, for example glasses and cups. X 10.0 0.85 100
Lightly soiled crockery, with no dried-on food.
* Use of tablets not recommended.
Normally soiled crockery.
Energy-saving programme.
Normally or heavily soiled crockery, with
additional antibacterial wash. Programme
interruption (e.g. due to door opening) can
compromise elimination of germs.
P
1
2
3
4
5
6
7
1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional
options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of
the appliance’s automatic calibration system.
2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on
the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.
Programmes
Steam Sensor 60-70°C
Sensor Normal 40-55°C
Pre-Wash cold
Glasses 40°C
Quickwash 45°C
Bio Normal
Hygiene +
3)
2)
Consumption
Litres kWh
X 13-20 1.10-2.00 100-150
X 10-13 0.80-1.05 60-120
X 12.0 1.05 165
X 13.0 1.50 115
Minutes
1)
RINSE AID INDICATOR
When lit, the rinse aid dispenser
needs to be refilled.
DELAYED START
BUTTON
Press the button
(repeatedly) to delay the
start of the programme.
Adjustable from 1 to 24
hours. With each press of
the button, the delayed
start indicator increases by
one hour and after 24
restarts from 00. Then
press the START button.
The dishwasher will start
after the set time.
HALF LOAD/
MULTIZONE
Allows you to choose the
washing zones. Press this
button to select the wash
zones:
both racks
only upper rack
only lower rack
5019 496 01620GSU PL 97
POWER CLEAN
Thanks to the additional
power jets this option
provides a more intensive
and powerful wash in the
lower rack, in the specific
area.This option is
recommended for washing
pots and casseroles (see
page 4). Press this button
to activate Power Clean
(the indicator lights up).
GB
-1-
How to set detergent type: powder/gel/tablet (if option is available)
First time use
In order to always ensure the best cleaning
results, you NEED to set:
DETERGENT type and WATER HARDNESS.
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
1.
Select 3rd programme
(see Table of programmes
- page 1)
2.
Press START button
for 7 seconds
3a.
Check your
detergent type...
Detergent
types
Powder or gel
(factory setting)
Tablet 2 in 1
Tablet 3 in 1
Tablet All in 1
For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.
How to set water hardness
Switch on the appliance
* only before the first wash or if
the water hardness has been
changed
1.
Ask your water supply company what the
German
degrees °dH
0 - 5 0 - 9 0 - 6.3 Soft 1 1x
6 - 10 10 - 18 7 - 12.6 Medium 2 2x
11 - 15 19 - 27 13.3 - 18.9 Average 3 3x
16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 4x
22 - 28 38 - 50 26.6 - 35 Hard 5 5x
29 - 35 51 - 63 35.7 - 44.1 Very hard 6 6x
36 - 60 64 - 107 44.8 - 74.9
French
degrees °fH
English
degrees °eH
- Select the 2nd programme “P2” - consult the table of programmes.
- Press the START button for at least 5 seconds until the START indicator lamp flashes.
- The water hardness setting is shown on the display (if present) or the START button flashes.
- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.
- The appliance must be switched off to memorise the new setting.
water hardness
is...2....enter this value on your
dishwasher
Water
hardness
Extremely
hard
Dishwasher
with display:
insert value in
the display
7 7x
3b.
...and set it on your dishwasher
using the START button
(as per table below)
Dishwasher models
model without
display
3h 6h 9h
Dishwasher
without
display: count
START button
led flashes
model with display
Suggestions for detergent use
Gel or Powder
(rinse aid and
salt)
go to step 1
(see “Daily
check”)
4.
Remember to use salt and rinse
aid when needed (as indicated
below)
no symbol add salt add rinse aid
add salt
salt
Tablets
rinse aid
rinse aid
Water hardness level is factory set for
medium hard water (a number “4” is
shown on the display or the START
indicator lamp flashes 4 times).
if extra salt is
needed go to
step 1
(see “Daily
check”)
Even if you use tablets which include salt,
you must still add salt since such
detergents are not effective enough at
softening hard water.
5.
Switch off and switch on
again to save setting
GB
-2-
1
Filling the salt reservoir -
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Daily check
The salt level indicator lamp may remain lit for the duration of several wash cycles. If the
water hardness level falls within category (soft),
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
2
Rinse aid indicator (depending on model)
Only use rinse aids recommended for use in domestic dishwashers.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly d ry : incr e a s e the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid
setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend
to form excess suds.
Adding detergent -
3
S
E
L
Visual indicator
(depending
on model).
Unscrew cap.
Visual
indicator
If required,
open the cover
B (press right
button).
no
salt is required.
The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE
ADDED.
Immediately
Fill the salt
reservoir with
water before the
first wash only.
S
E
L
Salt indicator
(depending on
the model)
Add rinse aid
to the max.
line ~150 ml
wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.
The indicator lamp on the control panel lights
up when SALT NEEDS TO BE ADDED.
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations
Tablet / gel / powder
Use only one tablet per one
Open the cover A
(press left button).
Only fill the
detergent dispenser
prior to starting a
wash programme.
cycle, only placed in detergent
dispenser.
All types of tablets can be
used, but for 2 in 1 type
adding of salt is mandatory.
S
Add salt
(never add
detergent!).
min. 1.5 kg
S
max. 2 kg
E
L
orange: OK. clear: NEEDS TO BE ADDED
The rinse aid dosage can be adjusted to the
detergent used. The lower the setting,
the less rinse aid is dispensed
(factory setting: position 4).
Press the button to open the cover B. Using a
coin or similar object, turn the arrow to the
desired setting. After adjusting the rinse aid
setting, shut the cover again.
dark: OK. clear: NEEDS TO BE ADDED
By pressing
dedicated ribs
shut the cover.
E
L
Visual indicator (depending
on model). Screw on the cap.
Salt residues around cap
need to be removed.

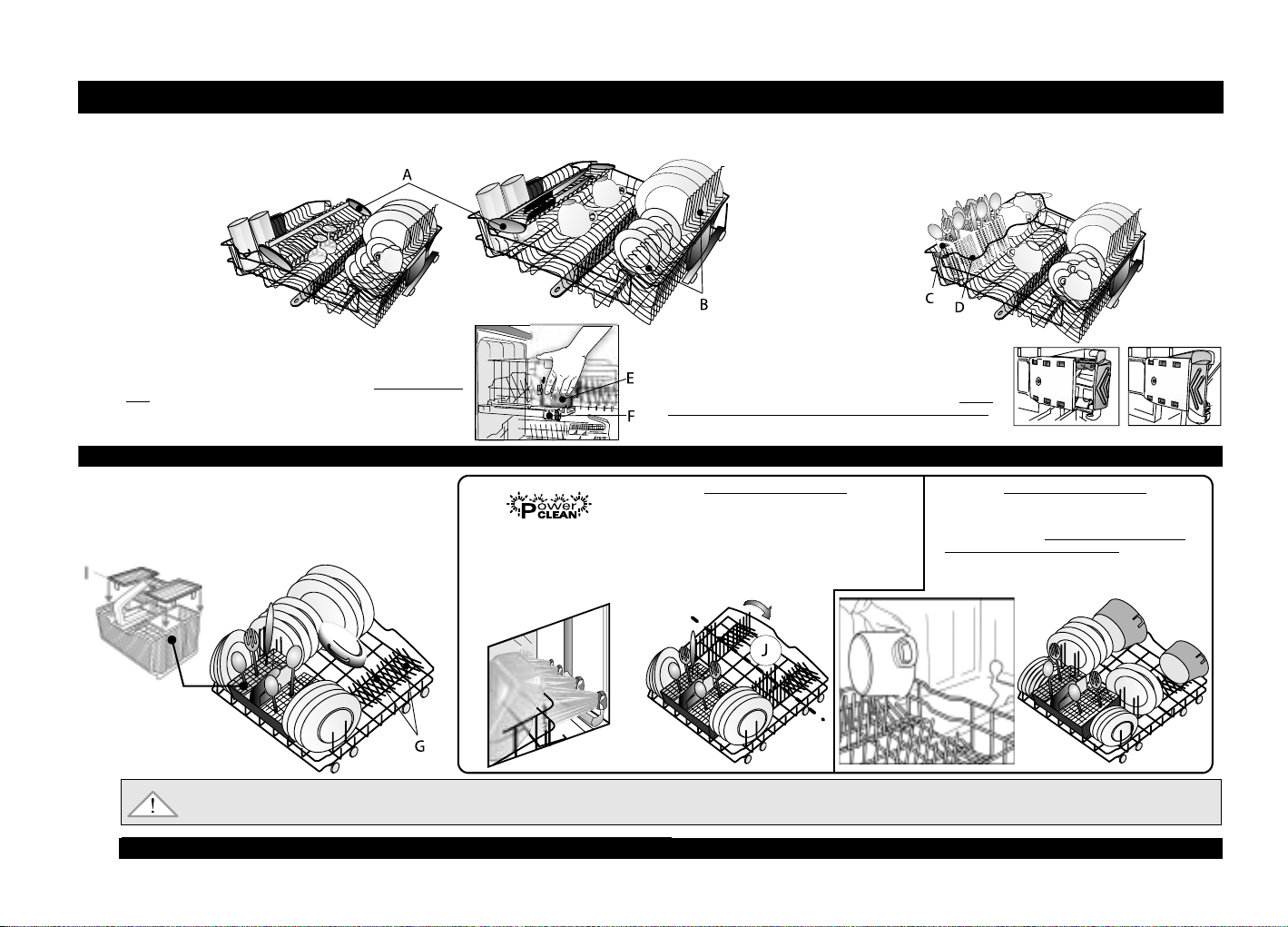

Daily use
GB
-3-
