Whirlpool GSIP 110 POWER PT PROGRAM CHART

Before using the dishwasher, read the installation and maintenance instructions carefully!

GB GSIP 110 POWER

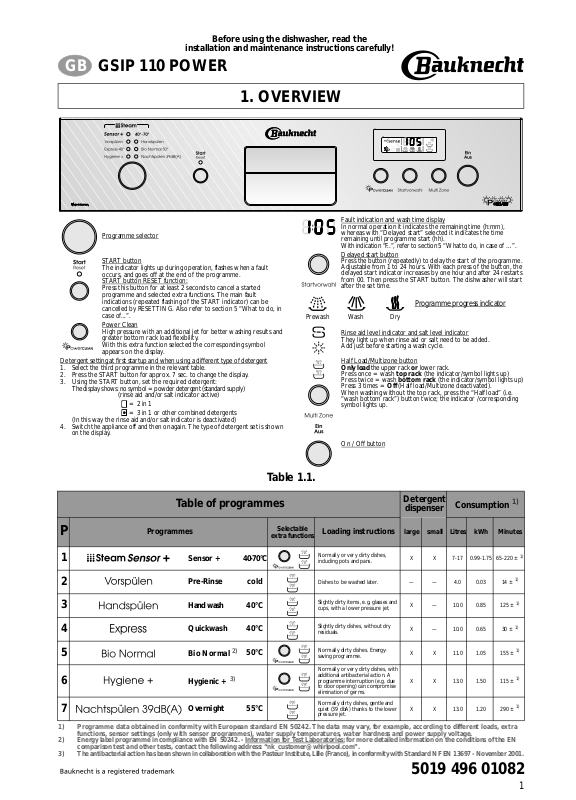

1. OVERVIEW

		Fault indication and wash time display
		In normal operation it indicates the remaining time (h:mm),
Programme selector		whereas with “Delayed start” selected it indicates the time
		remaining until programme start (hh).
		With indication “F..”, refer to section 5 “What to do, in case of …”.
START button		Delayed start button
		Press the button (repeatedly) to delay the start of the programme.
The indicator lights up during operation, flashes when a fault		Adjustable from 1 to 24 hours. With each press of the button, the
occurs, and goes off at the end of the programme.		delayed start indicator increases by one hour and after 24 restarts
START button RESET function:		from 00. Then press the START button. The dishwasher will start
Press this button for at least 2 seconds to cancel a started		after the set time.
programme and selected extra functions. The main fault
indications (repeated flashing of the START indicator) can be			Programme progress indicator
cancelled by RESETTING. Also refer to section 5 “What to do, in
case of...”.	Prewash	Wash	Dry
Power Clean
High pressure with an additional jet for better washing results and		Rinse aid level indicator and salt level indicator
greater bottom rack load flexibility.		They light up when rinse aid or salt need to be added.
With this extra function selected the corresponding symbol		Add just before starting a wash cycle.

appears on the display.

Detergent setting at first startup and when using a different type of detergent

1.Select the third programme in the relevant table.

2.Press the START button for approx. 7 sec. to change the display.

3.Using the START button, set the required detergent:

The display shows: no symbol = powder detergent (standard supply) (rinse aid and/or salt indicator active)

= 2 in 1

= 3 in 1 or other combined detergents (In this way the rinse aid and/or salt indicator is deactivated)

4.Switch the appliance off and then on again. The type of detergent set is shown on the display.

Half Load/Multizone button

Only load the upper rack or lower rack.

Press once = wash top rack (the indicator/symbol lights up) Press twice = wash bottom rack (the indicator/symbol lights up) Press 3 times = Off (Half load/Multizone deactivated).

When washing without the top rack, press the “Half load” (i.e. “wash bottom rack”) button twice; the indicator /corresponding symbol lights up.

On / Off button

Table 1.1.

Table of programmes

Detergent

Consumption 1)

dispenser

P

Programmes

Selectable

Loading instructions

large

small

Litres

kWh

Minutes

extra functions

1

Sensor +

40-70°C

Normally or very dirty dishes,

X

X

7-17

0.99-1.75

65-220 ±

1)

including pots and pans.

2

Pre-Rinse

cold

Dishes to be washed later.

—

—

4.0

0.03

14 ± 1)

3

Hand wash

40°C

Slightly dirty items, e.g. glasses and

X

—

10.0

0.85

125 ±

1)

cups, with a lower pressure jet.

4

Quickwash

40°C

Slightly dirty dishes, without dry

X

—

10.0

0.65

30 ±

1)

residuals.

5

Bio Normal 2)

50°C

Normally dirty dishes. Energy-

X

X

11.0

1.05

155 ± 1)

saving programme.

Normally or very dirty dishes, with

6

Hygienic + 3)

additional antibacterial action. A

X

X

13.0

1.50

115 ± 1)

programme interruption (e.g. due

to door opening) can compromise

elimination of germs.

7

Overnight

55°C

Normally dirty dishes, gentle and

X

X

13.0

1.20

290 ± 1)

quiet (39 dbA) thanks to the lower

pressure jet.

1)Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness and power supply voltage.

2)Energy label programme in compliance with EN 50242. - Information for Test Laboratories: for more detailed information on the conditions of the EN comparison test and other tests, contact the following address: “[e-mail]”.

3)The antibacterial action has been shown in collaboration with the Pasteur Institute, Lille (France), in conformity with Standard NF EN 13697 - November 2001.

5019 496 01082

1

2. QUICK REFERENCE GUIDE

Detailed instructions are given on the following pages; also see section “5. What to do, in case of...”

1.Switch on the appliance

2.Select a programme

3.Select the type of detergent

Press the ON/OFF button.

Press the button “Select programme” or the programme selector to display the selected programme. If required, select possible options.

The detergent selection procedure varies depending on the dishwasher model. Chapter “1. Overview” provides instructions for selecting detergent type.

4. Fill in the detergent		4a. Powder/gel/tabs
		Fill the detergent dispenser compartments in	A B	C
		accordance with the wash programme selected.
		Large compartment A for every wash cycle, additional
		small compartment B for programmes with pre-wash
		(see table 1.1.).
		4b. Combined action detergents (2 in 1/3 in 1/... etc.)
		Place the detergent in compartment A, as per the
		manufacturer's recommendations.

5.Check the rinse aid level

6.Check the salt level

7.Load the racks

8.Open the water tap and close the door

9.Start the appliance

Wash cycle

Visual indicator in dispenser C

dark		sufficient rinse aid present,
clear		add rinse aid (approx. 150 ml).

The indicator lamp on the control panel lights up when rinse aid needs to be added. Not all models are equipped with such an indicator.

Depending on the model:

window in salt reservoir cap on bottom of appliance inside

orange		when sufficient salt is present,
clear		when salt needs to be added.

The indicator lamp on the control panel lights up when salt needs to be added. Even once salt has been added, the indicator lamp only switches off after several wash cycles!

Make sure that the spray arms can turn freely and are not impeded by crockery or cutlery in the racks.

Detailed instructions on loading the racks are given in chapter “3. How to use the appliance”, under “How to load the racks”.

Press the START button.

If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted. Care must be taken when opening the door, as steam will escape!

Changing the programme in progress:

-Keep the START button pressed for about 2 seconds until the START indicator goes off.

-(Water drains for up to 60 seconds).

-Select the programme again.

-Press the Start button.

	10.End of programme		The START indicator lamp switches off at the end of the programme.
	11.Switch off the		Press the OFF button. All the indicator lamps switch off.
	appliance
	12.Turn off the water		Unload the appliance, starting from the lower rack in order to avoid any
	tap, unload the racks		residual drips of water falling onto crockery below.

2

max

button 2

button 1

Small compartment B

Large compartment A

3. HOW TO USE THE APPLIANCE

PROGRAMME SELECTION

Press the button “Select programme” or the programme selector to display the selected programme. The appliance must be switched on. If required, select possible options. The corresponding indicator lights up. The correct programme and the selectable functions are given in table 1.1 on page 1.

Programme times stated in the table were obtained under normal conditions and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance's automatic calibration system.

HOW TO FILL THE DETERGENT DISPENSER

Only fill the detergent dispenser prior to starting a wash programme. Only use detergents specially recommended for dishwashers, observing the manufacturer's recommended dosage. Observe the manufacturer's safety warnings!

Open the detergent dispenser compartments by pushing the left button (button 1) of the dispenser. a. Powder/gel/tabs

Fill the detergent dispenser compartments in accordance with the wash programme selected (table 1.1). Programmes without pre-wash:

pour the entire recommended dosage into compartment A. Programmes with pre-wash:

pour 2/3 of the recommended dosage into the large compartment A and 1/3 into the small compartment B.

Dishwasher tabs should be placed, according to the manufacturer's recommendations, in compartment A.

If the “Half load” option is selected, detergent dosage should be

reduced by approximately 1/3. b. Combined action detergents (2 in 1/3 in 1/... etc.)

Combined action detergents should be placed, according to the manufacturer's recommendations, in compartment A.

Firmly close and press the detergent compartment lid shut after filling.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

The guarantee is not applicable if faults are caused by the use of these products.

HOW TO CHECK/FILL/ADJUST RINSE AID

Not necessary when using a combined action detergent.

a. How to check the rinse aid level

Check the visual indicator C on the rinse aid dispenser: dark = sufficient rinse aid, clear = add rinse aid. In the case of appliances with an electric indicator on the

control panel, the rinse aid indicator lamp	lights up red		Indicator C
when rinse aid needs to be added.

b. How to fill the rinse aid dispenser

Open the rinse aid dispenser by pressing the right button (button 2) of the dispenser.

Fill the dispenser with rinse aid up to the “max” line (approx. 150 ml).

Shut the lid again.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

3
