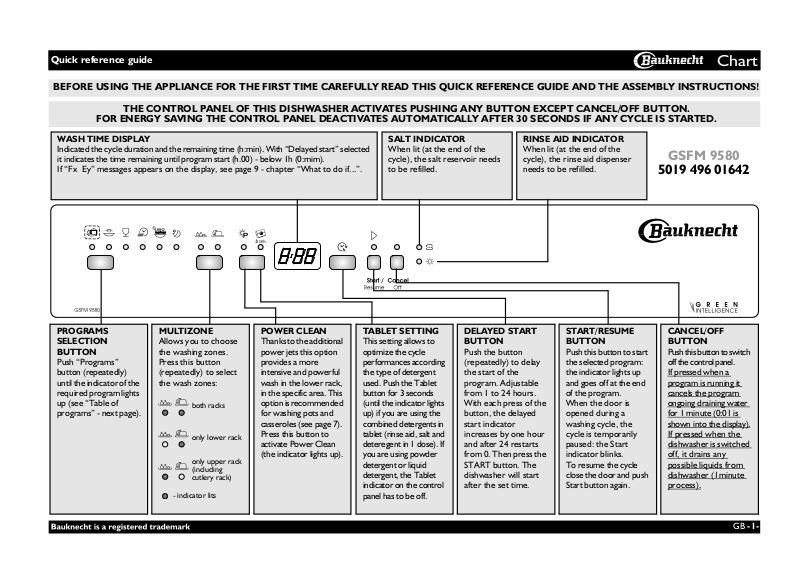

Quick reference guide |
Chart |
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!
THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY BUTTON EXCEPT CANCEL/OFF BUTTON.
FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES AUTOMATICALLY AFTER 30 SECONDS IF ANY CYCLE IS STARTED.
WASH TIME DISPLAY
Indicated the cycle duration and the remaining time (h:min). With “Delayed start” selected it indicates the time remaining until program start (h.00) - below 1h (0:mim).
If “Fx Ey” messages appears on the display, see page 9 - chapter “What to do if...”.
SALT INDICATOR
When lit (at the end of the cycle), the salt reservoir needs to be refilled.
RINSE AID INDICATOR
When lit (at the end of the cycle), the rinse aid dispenser needs to be refilled.
GSFM 9580 5019 496 01642
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PROGRAMS |
|
MULTIZONE |
|
POWER CLEAN |
|||
SELECTION |
|
Allows you to choose |
|
Thanks to the additional |
|||
BUTTON |
|
the washing zones. |
|
power jets this option |
|||
Push “Programs” |
|
Press this button |
|
provides a more |
|||
button (repeatedly) |
|
(repeatedly) to select |
|
intensive and powerful |
|||
until the indicator of the |
|
the wash zones: |
|
wash in the lower rack, |
|||
required program lights |
|
|
|
|
in the specific area. This |
||
up (see “Table of |
|
both racks |
|
option is recommended |
|||
programs” - next page). |
|
|
|
|
for washing pots and |
||
|
|
|
|
|
|

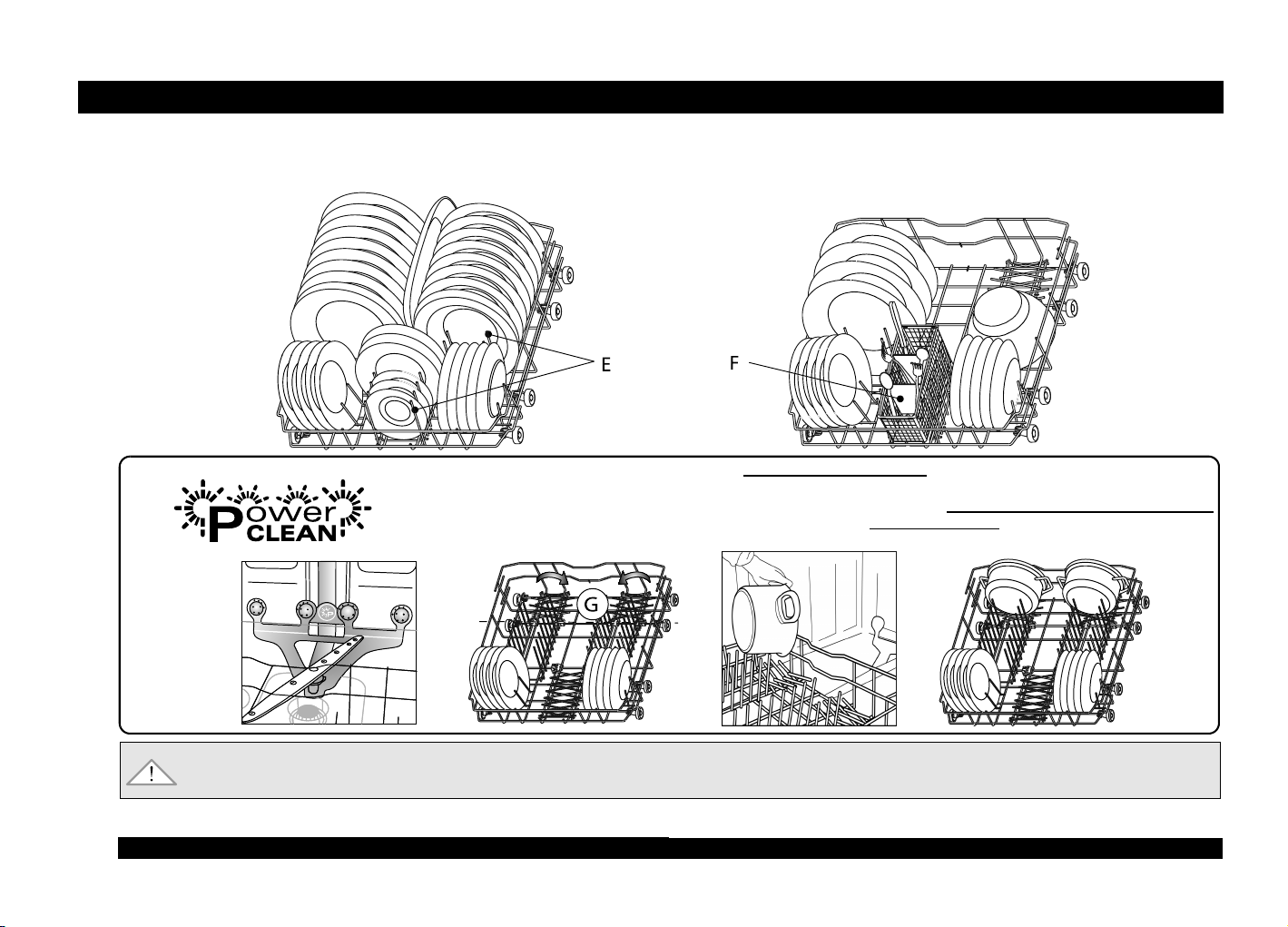

casseroles (see page 7). |
|
|
|
|
only lower rack |
|
Press this button to |
||
|
|
|
|
activate Power Clean |
|||
|
|
|
|
|
|
||
|
|
|
only upper rack |
|
(the indicator lights up). |
||
|
|
|
|
|
|
||
|
|
|
(including |
|
|
|
|
|
|
|
cutlery rack) |
|
|
|
|
|
|
|
- indicator lits |
|
|
|
|
|
|
|
|
|
|
|
|
TABLET SETTING
This setting allows to optimize the cycle performances according the type of detergent used. Push the Tablet button for 3 seconds (until the indicator lights up) if you are using the combined detergents in tablet (rinse aid, salt and deteregent in 1 dose). If you are using powder detergent or liquid detergent, the Tablet indicator on the control panel has to be off.
DELAYED START BUTTON
Push the button (repeatedly) to delay the start of the program. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 0. Then press the START button. The dishwasher will start after the set time.
START/RESUME BUTTON
Push this button to start the selected program: the indicator lights up and goes off at the end of the program.
When the door is opened during a washing cycle, the cycle is temporarily paused: the Start indicator blinks. To resume the cycle
close the door and push Start button again.
CANCEL/OFF BUTTON
Push this button to switch off the control panel.
If pressed when a program is running it cancels the program ongoing draining water for 1 minute (0:01 is shown into the display). If pressed when the dishwasher is switched off, it drains any possible liquids from dishwasher (1minute process).
GB -1-
|
Quick reference guide |
|
|
|
|
|
|
Chart |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table of programs |
Deter- |
|
Consumption |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P |
|
|
|
|
Programs |
|
Available |
Loading instructions |
gent |
Litres |
kWh |
Minutes 1) |
|
|
|
|
|
|
|
options |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Soaking or hand pre-treatment is no longer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
needed on any kind of items. Steam is used to |
|
|
|
|
|
|
|
|
|
|
|
|
|
Delay |
soften soil and its action is particularly effective |
|
|
|
|
|
|
1 |
|
|
|
|
Sensor |
40-70°C |
on coffee, tea and lipstick stain on glasses and |
|
|
|
|
|
|
|
|
|
|
|
Multizone |
X |
7-14 |
0.99-1.80 |
70-185 |
|
||||
|
|
|
|
|
cups. Furthermore, thanks to the combination |
|
||||||||
|
|
|
|
|
|
|
|
Power Clean |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
with 6th Sense, optimization of time, energy and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
water is guaranteed because it adapts the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
washing cycle to the level of soil. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
Pre-Wash |
cold |
Delay |
Crockery to be washed later. |
— |
4.0 |
0.03 |
14 |
|
|
|
|
|
|
Multizone |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
Glasses |
40°C |
Delay |
Light soiling, for example glasses and cups. |
X |
10.0 |
0.85 |
100 |
|
|
|
|
|
|
Multizone |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
Quickwash |
45°C |
Delay |
Lightly soiled crockery, with no dried-on food. |
X |
11.0 |
0.80 |
30 |
|
|
|
|
|
|
Multizone |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
Bio Normal 2) |
50°C |
Delay |
Normally soiled crockery. Energy-saving |
|
|
|
|
|
|
|
|
|
|
Multizone |
X |
11.0 |
0.98 |
170 |
|
||||
|
|
|
|
|
program. |
|
||||||||
|
|
|
|
|
|
|
|
Power Clean |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
|
Overnight |
55°C |
Delay |
Normally soiled crockery, gentle and quiet |
X |
13.0 |
1.20 |
290 |
|
|
|
|
|
|
Multizone |
thanks to the lower spray pressure (39dbA). |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.
2)Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
GB -2-
How to set water hardness in order to always assure the best cleaning results |
First time use |
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10spray arms
Water hardness should be set only before the first wash or if water hardness has been changed
Water hardness level is factory set for medium-hard water (level 4).
Even if you use tablets which include salt functionality, you must still add regeneration salt since such detergents are not effective enough at softening hard water.
-Press and hold together Programs and CANCEL/Off buttons for minimum 3 seconds.
-The current water hardness setting will be visible on the display.
-Press the Programs button to increase setting. Value range goes from 1 to 7 (when the level reaches 7, the next press of the start button will set the level back to 1).
-Wait 30 seconds (control panel switches off) or press Start/Resume button to save setting.
1. Ask your water supply company what the water hardness is... |
2. ...enter this value |
Suggestions for detergent use |
|||||||
|
|
|
|
|
|
on your dishwasher |
|||
|
|
|
|
|
|
|
|
||
German |
French |
English |
Water hardness |
Insert value is shown |
Gel or Powder |
Tablets |
|||
degrees °dH |
degrees °fH |
degrees °eH |
level |
in the display |
(rinse aid and salt) |
||||
|
|||||||||
0 |
- 5 |
0 |
- 9 |
0 - 6.3 |
Soft |
1 |
|
|
|
|
|
|
|
|
|
|
|
||
6 - 10 |
10 |
- 18 |
7 - 12.6 |
Medium |
2 |
|
|
||
|
|
|
|
|
|
|
|
|
|
11 |
- 15 |
19 |
- 27 |
13.3 - 18.9 |
Average |
3 |
go to step 1 |
|
|
|
|
|
|
|
|
|
|
||
16 |
- 21 |
28 |
- 37 |
19.6 - 25.9 |
Medium-hard |
4 |
if water is |
||
(see “Daily |
|||||||||
|
|
|
|
|
|
|
check”) |
HARD extra salt |
|
22 |
- 28 |
38 |
- 50 |
26.6 - 35 |
Hard |
5 |
|||
needs to be |
|||||||||
|
|
|
|
|
|
|
|
||
29 |
- 35 |
51 |
- 63 |
35.7 - 44.1 |
Very hard |
6 |
|
added |
|
|
|
|
|
|
|
|
|
(go to step 1, |
|
36 |
- 50 |
64 |
- 90 |
44.8 - 62.4 |
Extremely hard |
7 |
|
||
|
“Daily check”) |
||||||||
|
|
|
|
|
|
|
|
|
At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).
Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!) |
Daily check |
|
1 |
Visual indicator |
Screw on the cap. |
(depending |
Salt residual |
|
on the model). |
around the cap |
|
|
Unscrew cap. |
need to be |
|
|
removed. Some |
|
|
salt reservoir have |
|
|
a level indicator |
|
|
integrated in the |
|
|
cap (see below |
|
|
how to check). |
|
Fill the salt reservoir with water |
Add salt (never add detergent!) |
|
||
|
before the first wash only. |
min. 0.8 kg/max. 1 kg |
|
||
|
(depending on the model) |
|
|
|
|
The salt level indicator lamp may remain lit Salt indicator on the control panel |
Salt indicator on the salt reservoir cap |
||||
at the end of several wash cycles. If the |
The indicator lamp lights up when SALT |
|
clear: NEEDS TO |
||
water hardness level falls within category |
green: OK. |
||||
NEEDS TO BE ADDED. |
BE ADDED |
||||
(soft), no salt is required. |
|
||||
|
|
|
|
GB -3-
Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator
Daily check
2 |
Visual |
|
indicator |
|
|
|
|
|
|
If required, |
|
|
open the |
|
|
cover B |
Add rinse |
|
(press the |
aid to the |
|
dedicated |
max. line |
|
button). |
~150 ml |
The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.
Check the rinse aid indicator to check the level into the dispenser.
(depending on the model) |
|
|
|
|
|
Rinse aid indicator on the control panel |
Rinse aid indicator on the dispenser |
||||
The indicator lamp lights up when |
|
|
dark: OK. |
|
clear: NEEDS TO BE ADDED |
|
|
|
|||
RINSE AID NEEDS TO BE ADDED. |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.
Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations |
Daily use |
|
|
||
Open the cover A |
Insert detergent: Tablet / powder / liquid |
Shut the cover |
(press the dedicated button). |
into the big chamber. |
by pressing dedicated ribs. |
3 |
Only fill the |
Use only one tablet per one cycle, |
detergent |
only placed in detergent |
|
|
dispenser prior to |
dispenser. |
|
starting a wash |
|
|
program. |
All types of tablets can be used, |
|
|
but for 2 in 1 type adding of salt is |
|
|
mandatory. |
