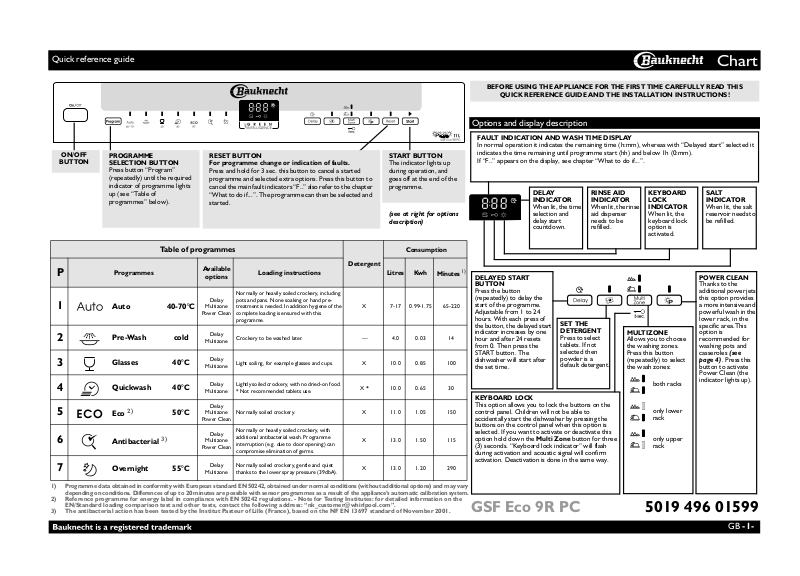

Whirlpool GSF ECO 9R PC PROGRAM CHART

Quick reference guide	Chart

ON/OFF		PROGRAMME
BUTTON		SELECTION BUTTON
		Press button “Program”
		(repeatedly) until the required
		indicator of programme lights
		up (see “Table of
		programmes” below).

RESET BUTTON

For programme change or indication of faults.

Press and hold for 3 sec. this button to cancel a started programme and selected extra options. Press this button to cancel the main fault indicators “F..” also refer to the chapter “What to do if...”. The programme can then be selected and started.

START BUTTON

The indicator lights up during operation, and goes off at the end of the programme.

(see at right for options description)

Table of programmes

Consumption

Detergent

P

Available

Programmes

Loading instructions

Litres

Kwh

Minutes 1)

options

Normally or heavily soiled crockery, including

1

Auto

40-70°C

Delay

pots and pans. None soaking or hand pre-

Multizone

treatment is needed. In addition hygiene of the

X

7-17

0.99-1.75

65-220

Power Clean

complete loading is ensured with this

programme.

2

Pre-Wash

cold

Delay

Crockery to be washed later.

—

4.0

0.03

14

Multizone

3

Glasses

40°C

Delay

Light soiling, for example glasses and cups.

X

10.0

0.85

100

Multizone

4

Quickwash

40°C

Delay

Lightly soiled crockery, with no dried-on food.

X *

10.0

0.65

30

Multizone

* Not recommended tablets use.

5

Eco 2)

50°C

Delay

Multizone

Normally soiled crockery.

X

11.0

1.05

150

Power Clean

6

Delay

Normally or heavily soiled crockery, with

Antibacterial

3)

additional antibacterial wash. Programme

Power Clean

X

13.0

1.50

115

interruption (e.g. due to door opening) can

Multizone

compromise elimination of germs.

7

Overnight

55°C

Delay

Normally soiled crockery, gentle and quiet

X

13.0

1.20

290

Multizone

thanks to the lower spray pressure (39dbA).

1)Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.

2)Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the

EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

3)The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE INSTALLATION INSTRUCTIONS!

Options and display description

FAULT INDICATION AND WASH TIME DISPLAY

In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until programme start (hh) and below 1h (0:mm).

If “F..” appears on the display, see chapter “What to do if...”.

DELAY

RINSE AID

KEYBOARD

SALT

INDICATOR

INDICATOR

LOCK

INDICATOR

When lit, the time

When lit, the rinse

INDICATOR

When lit, the salt

selection and

aid dispenser

When lit, the

reservoir needs to

delay start

needs to be

keyboard lock

be refilled.

countdown.

refilled.

option is

activated.

DELAYED START BUTTON

Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 resets from 0. Then press the START button. The dishwasher will start after the set time.

SET THE DETERGENT

Press to select tablets. If not selected then powder is a default detergent.

KEYBOARD LOCK

This option allows you to lock the buttons on the control panel. Children will not be able to accidentally start the dishwasher by pressing the buttons on the control panel when this option is selected. If you want to activate or deactivate this option hold down the Multi Zone button for three

(3) seconds. “Keyboard lock indicator” will flash during activation and acoustic signal will confirm activation. Deactivation is done in the same way.

MULTIZONE

Allows you to choose the washing zones. Press this button (repeatedly) to select the wash zones:

both racks

only lower rack

only upper rack

POWER CLEAN

Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area.This option is recommended for washing pots and casseroles (see page 4). Press this button to activate Power Clean (the indicator lights up).

GSF Eco 9R PC	5019 496 01599
	GB -1-

How to set water hardness in order to always assure the best cleaning results

First time use

1- salt reservoir

2- rinse aid dispenser

3- detergent dispenser

4- racks system

5,6,7,8- available functions on the panel

9- filters

10spray arms

* only before the first wash or if the water hardness has been changed

Switch on the appliance

-Select the 2nd programme “P2” - consult the table of programmes.

-Press the START button for at least 5 seconds until the water hardness setting is shown on the display.

-With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

-The appliance must be switched off to memorise the new setting.

	1. Ask your water supply company what the water hardness is...						2. ...enter this value	Suggestions for detergent use
							on your
							dishwasher
	German		French		English	Water	Insert value is shown	Gel or Powder	Tablets
	degrees °dH		degrees °fH		degrees °eH	hardness	in the display	(rinse aid and salt)
	0	- 5	0	- 9	0 - 6.3	Soft	1
	6 - 10		10	- 18	7 - 12.6	Medium	2
	11	- 15	19	- 27	13.3 - 18.9	Average	3		if extra salt is
	16	- 21	28	- 37	19.6 - 25.9	Medium-hard	4	go to step 1	needed go to
								(see “Daily check”)	step 1
	22	- 28	38	- 50	26.6 - 35	Hard	5		(see “Daily check”)
	29	- 35	51	- 63	35.7 - 44.1	Very hard	6
	36	- 60	64 - 107		44.8 - 74.9	Extremely hard	7

Water hardness level is factory set for medium hard water (a number “4” is shown on the display).

Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.

	Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)							Daily check
1				Visual indicator				Visual indicator
				(depending				(depending on
				on model).				model). Screw
								on the cap. Salt
								residues around
								cap need to be
								removed.
					Fill the salt reservoir	Add salt
					with water before the	(never add detergent!).
					first wash only.	min. 1.5 kg
						max. 2 kg
		The salt level indicator lamp may remain lit for the Salt indicator (depending on the model)
		duration of several wash cycles. If the water			The indicator lamp on the control panel lights up		orange: OK.	clear: NEEDS TO
		hardness level falls within category (soft), no salt is						BE ADDED
					when SALT NEEDS TO BE ADDED.
		required.

GB -2-

Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily check

	2	Visual	Add rinse aid
			to max.
		indicator B
			line ~100 ml

If required, open the cover (press lever).

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the lever to open the cover. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

Rinse aid indicator (depending on model)	The indicator lamp on the control panel lights up when RINSE AID NEEDS		dark: OK.		clear: NEEDS TO BE ADDED
	TO BE ADDED.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Daily use

	3		Tablet / gel / powder
		Only fill the	Use one tablet per one cycle, only placed in
	Open the cover A
	(press lever).	detergent dispenser	detergent dispenser.
		prior to starting a	All types of tablets can be used, but for 2 in 1
		wash programme.
			type adding of salt is mandatory.
