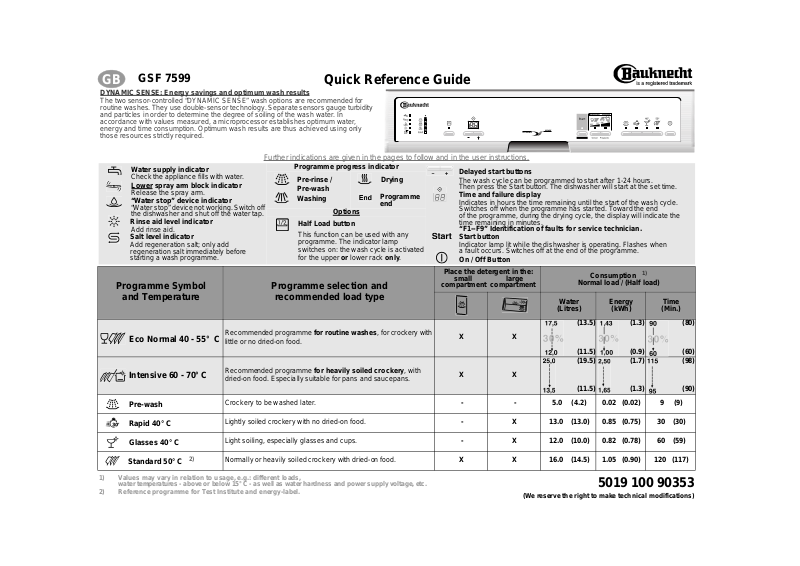

Whirlpool GSF 7599 TW-WS PROGRAM CHART
GB
DYNAMIC SENSE: Energy savings and optimum wash results
The two sensor-controlled “DYNAMIC SENSE” wash options are recommended for
routine washes. They use double-sensor technology. Separate sensors gauge turbidity
and particles in order to determine the degree of soiling of the wash water. In
accordance with values measured, a microprocessor establishes optimum water,
energy and time consumption. Optimum wash results are thus achieved using only
those resources strictly required.
GSF 7599
Quick Reference Guide
Water supply indicator
Check the appliance fills with water.
Lower
spray arm block indicator
Release the spray arm.
“Water stop” device indicator
“Water stop” device not working. Switch off
the dishwasher and shut off the water tap.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.
Programme Symbol
and Temperature
Eco Normal 40 - 55° C
Intensive 60 - 70° C
Pre-wash
Rapid 40° C
Recommended programme
little or no dried-on food.
Recommended programme
dried-on food. Especially suitable for pans and saucepans.
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
Further indications are given in the pages to follow and in the user instructions.
Programme progress indicator
Pre-rinse /
Pre-wash
Washing
Options
Half Load button
This function can be used with any
programme. The indicator lamp
switches on: the wash cycle is activated
for the upper or lower rack
Drying
Programme
end
Programme selection and
only
.
Delayed start buttons
The wash cycle can be programmed to start after 1-24 hours.
Then press the Start button. The dishwasher will start at the set time.
Time and failure display
Indicates in hours the time remaining until the start of the wash cycle.
Switches off when the programme has started. Toward the end
of the programme, during the drying cycle, the displa y will indicate the
time remaining in minutes.
“F1--F9” Identification of faults for service technician.
Start button
Indicator lamp lit while the dishwasher is operating. Flashes when
a fault occurs. Switches off at the end of the programme.
On / Off Button
Place the detergent in the:
small large
compartment compartment
recommended load type
for routine washes
for heavily soiled crockery
, for crockery with
, with
X X
X X
- - 5.0 (4.2) 0.02 (0.02) 9(9)
- X 13.0 (13.0) 0.85 (0.75) 30 (30)
Consumption
Normal load / (Half load)
Water
(Litres)
(13.5)
(11.5)
(19.5)
(11.5)
Energy
(kWh)
(1.3)
(0.9)
(1.7)
(1.3)
1)
Time
(Min.)
(80)
(60)
(98)
(90)
Glasses 40° C
Standard 50° C
1) Values may vary in relation to usage, e.g.: different lo ads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage, etc.
2) Reference programme for Test Institute and energy-label.
2)
Light soiling, especially glasses and cups.
Normally or heavily soiled crockery with dried-on food.
- X 12.0 (10.0) 0.82 (0.78) 60 (59)
X X 16.0 (14.5) 1.05 (0.90) 120 (117)
5019 100 90353
(We reserve the right to make technical modifications)
A
A
C
B
C
D
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. Press the On/Off button to switch the
dishwasher on.
indicator lamps will switch on.
3. Select the desired programme by
pressing the corresponding button.
The corresponding indicator lamp
lights up.
supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be
altered by pressing the programme
selector buttons.
once the Start buttonhas been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start
button for about 5 seconds
the Start indicator lamp
switches off.
programme and press the Start
button.
if the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the
wash cycle from where it was
interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
5. To indicate the end of the programme,
steam.
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
One of the programme
If required, select options (if
The Start
Once set,
, until
Select a new
(for about 30 min.)
.
6. Once the Start indicator lamp has
switched off press the On/Off bu tton to
switch the dishwasher off.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the
Upper rack
B
Half Load:
If the upper rack
the cutlery basket
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.To lower: pull out the
side handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
is to be loaded, place
only
in the upper rack.
“B”
side handles
two
two
• The rack must be level on both
sides.
Crockery holders:
• Down: cups and long-stemmed
glasses.
•
Up: plates.
“Vario Organizer” multi-purpose
support:
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
(arrange knives
Glass holder:
Upper and lower rack
Half Load:

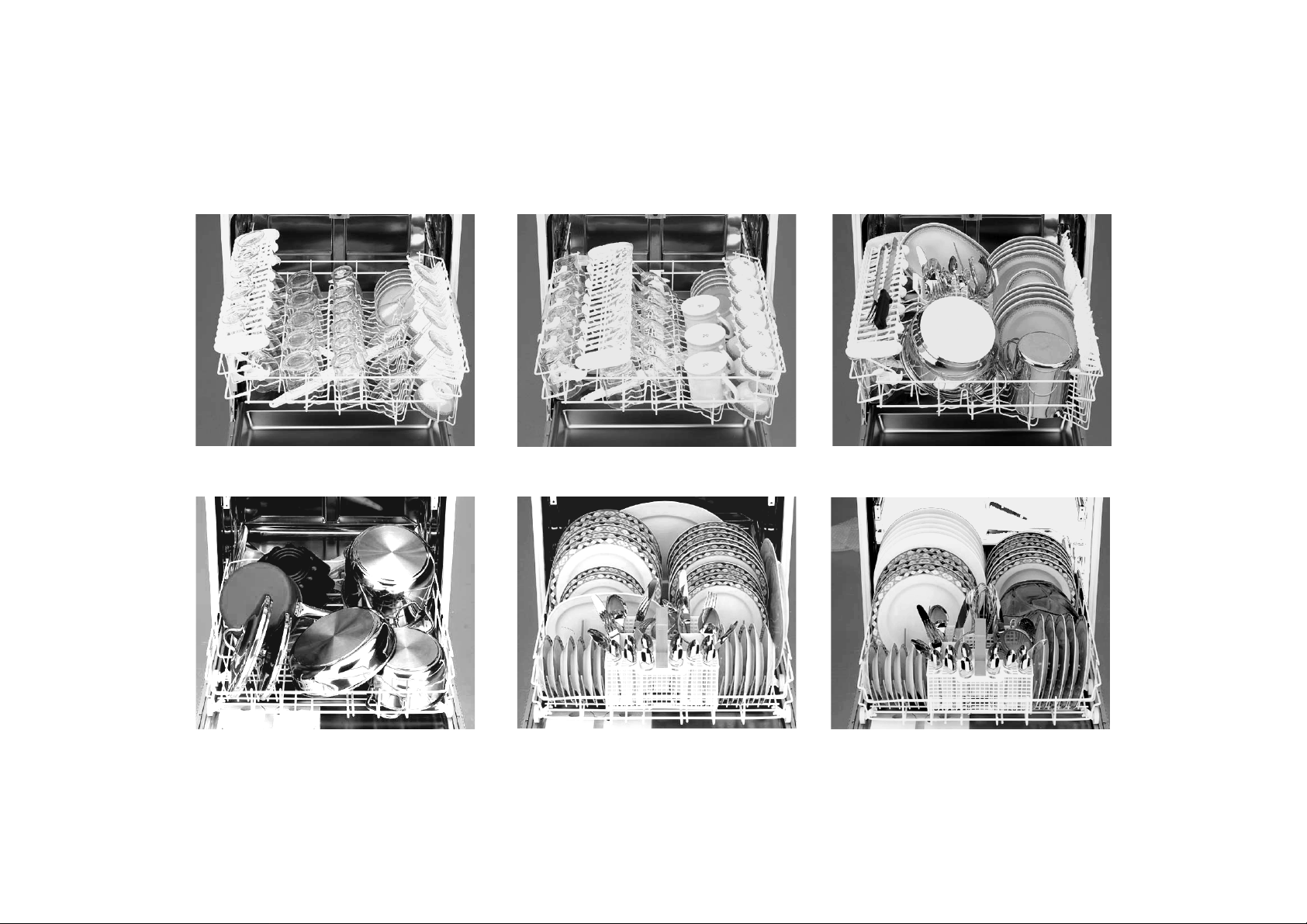

Loading the lower rack
greater washing power, especially for
plates and saucepans.
Plate holders:
• May be lowered to increase
available space (A).
A
Cutlery basket:
• The cutlery basket (
can be removed
to increase available space.
• Some models are provided with a
grid (D) that can be fitted onto the
cutlery basket.
Lower rack
only
B + C
gives
)
Please read the user instructions carefully.
