Page 1
GB
DYNAMIC SENSE: Energy savings and optimum wash results
The two sensor-controlled “DYNAMIC SENSE” wash options are recommended
for routine washes. They use double-sensor technology. Separate sensors gauge
turbidity and particles in order to determine the degree of soiling of the wash water.
In accordance with values measured, a microprocessor establishes optimum
water, energy and time consumption. Optimum wash results are thus achieved
using only those resources strictly required.

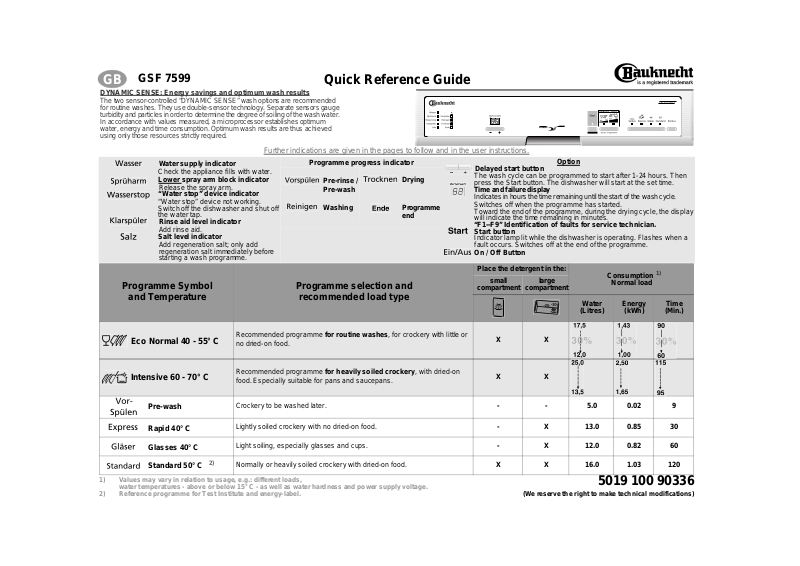

GSF 7599
Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions.
Water supply indicator
Check the appliance fills with water.
Lower
spray arm block indicator
Release the spray arm.
“Water stop” device indicator
“Water stop” device not working.
Switch off the dishwasher and shut off
the water tap.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.
Programme Symbol
and Temperature
Programme progress indicator
Pre-rinse /
Pre-wash
Washing
Programme selection and
recommended load type
Drying
Programme
end
large
Option
Water
(Litres)
Consumption
Normal load
Energy
(kWh)
1)
Time
(Min.)
Delayed start button
The wash cycle can be programmed to start after 1-24 hours. Then
press the Start button. The dishwasher will start at the set time.
Time and failure display
Indicates in hours the time remaining until the start of the wash cycle.
Switches off when the programme has started.
Toward the end of the programme, during the drying cycle, the display
will indicate the time remaining in minutes.
“F1--F9” Identification of faults for service technician.
Start button
Indicator lamp lit while the dishwasher is operating. Flashes when a
fault occurs. Switches off at the end of the programme.
On / Off Button
Place the detergent in the:
small
compartment
compartment
Eco Normal 40 - 55° C
Intensive 60 - 70° C
Pre-wash
Rapid 40° C
Glasses 40° C
Standard 50° C
1) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage.
2) Reference programme for Test Institute and energy-label.
Recommended programme
no dried-on food.
Recommended programme
food. Especially suitable for pans and saucepans.
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
Light soiling, especially glasses and cups.
2)
Normally or heavily soiled crockery with dried-on food.
for routine washes
for heavily soiled crockery
, for crockery with little or
, with dried-on
X X
X X
- - 5.0 0.02 9
- X 13.0 0.85 30
- X 12.0 0.82 60
X X 16.0 1.03 120
5019 100 90336
(We reserve the right to make technical modifications)
Page 2
A
A
C
B
C
D
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. Press the On/Off button to switch the
dishwasher on.
indicator lamps will switch on.
3. Select the desired programme by
pressing the corresponding button.
corresponding indicator lamp ligh ts
If required, select options (if supplied).
up.
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be
altered by pressing the programme
selector buttons.
Once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start button
for about 5 seconds
indicator lamp switches off.
Select a new programme and
press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the
wash cycle from where it was
interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and the End indicator lamp (if fitted)
lights up
One of the programme
The Start
, until the Start
(for about 30 min.)
The
Once set,
.
6. Once the Start indicator lamp has
switched off press the On/Off bu tton to
switch the dishwasher off.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be chan ged
when loaded.
Upper and lower rack
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both sides.
Crockery holders:
• Down:
cups and long-stemmed glasses.
•
Up: plates.
“Vario Organizer” multi-purpose
support:
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
(arrange knives
Glass holder:
side
two
side handles
two
Lower rack
Plate holders:
• May be lowered to increase
available space (A).
A
Cutlery basket:
• The cutlery basket can be removed to
increase (C) available space.
• Some models are provided with a
grid (D) that can be fitted onto the
cutlery basket
Please read the user instructions carefully.
Page 3
• Arrange crockery so that items do not
touch each other. Arrange large
crockery in the lower rack and smaller
crockery in the upper rack.
• Load cups at an angle to facilitate
water drainage.
• Generally speaking, place cutlery in the
basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispenser and check
the salt and rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher,
for example: wooden items, aluminium,
plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If a fault occurs or you wish to change the
current programme, press the “START”
button for about 5 seconds until the Start
indicator lamp switches off.
• If regeneration salt is to be added,
Tips and advice
immediately
in order to eliminate any residual salt
(rinsing alone is not sufficient).
• Sometimes
even though the regeneration sal t
container has been filled, the
corresponding indicator lamp (if fitted)
will light up during the first wash cycle
after filling with salt.
start a wash programme
• Before starting a wash programme,
make sure that the spray arms can turn
freely and are not impeded by crockery
or cutlery.
Switch off the dishwasher once the
•
“Start” indicator lamp has switched off.
If you switch off the dishwasher during a
wash cycle, when switched on again the
dishwasher resumes the cycle from
where it was interrupted without having to
start it again
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Has the Start button been pressed?
• Has the delayed start timer been set (if
fitted)?
• Is the water supply tap on?
• Is the flow of water obstructed by impurities?
If so, close the water supply tap, detach the
water hose and clean the filter. Then reconnect the water hose to the tap and open
the water tap once again.
• Are the filters clogged? (See “Care and
Maintenance” chapter in the user
instructions).
• Is the door closed properly?
• Is a fault indicated?
(The Start indicator lamp flashes).
Start the programme again from the
beginning: press the Start button for
about 5 seconds, until the Start indicator
lamp switches off. Select a new
programme and press the Start button.
.
Troubleshooting Guide
Crockery still dirty after washing:
• Was the crockery loaded properly?
• Crockery must be loaded facing
downwards; this is important, especially
for large items of crockery.
• The water jets must spray the entire
surface of all items.
• Make sure that crockery and cutlery are
arranged properly.
• Have you selected the correct programme?
• Did you use too much or too little
detergent? (The use of poor quality
detergents may result in less effective
washing).
• Are the filters clogged or incorrectly
assembled? (See “Care and
Maintenance” chapter in the user
instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenance”
chapter in the user instructions).
• Is the lower spray arm correctly fitted?
• Is the salt container cap (water softening
system) screwed down?
Marked crockery:
• Is the water hardness level selector not
properly adjusted? See (“Filling the salt
container” in the user instructions).
• Is the salt container empty? (See “Filling
the salt container” in the user
instructions).
• Was insufficient detergent used? (See
“Filling the detergent dispenser” in the
user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used? (See
“Filling the rinse aid dispenser” in the user
instructions).
Note:
with some models, when the Start button
is pressed a pre-wash cycle precedes the
actual wash programme; this regenerates the
water softening system.
AFTER-SALES
SERVICE
If, after carrying out the above checks . the
fault persists or reoccurs, switch off the
appliance and close the water tap. then
contact our After-Sales Service (see
warranty). Please specify:
• The nature of the fault.
• The appliance type and model.
• The service code (the number after the
word Service on the adhesive rating plate)
inside the door on the right-hand side.
Your full address and telephone number.
•
Please read the user instructions carefully.
Page 4

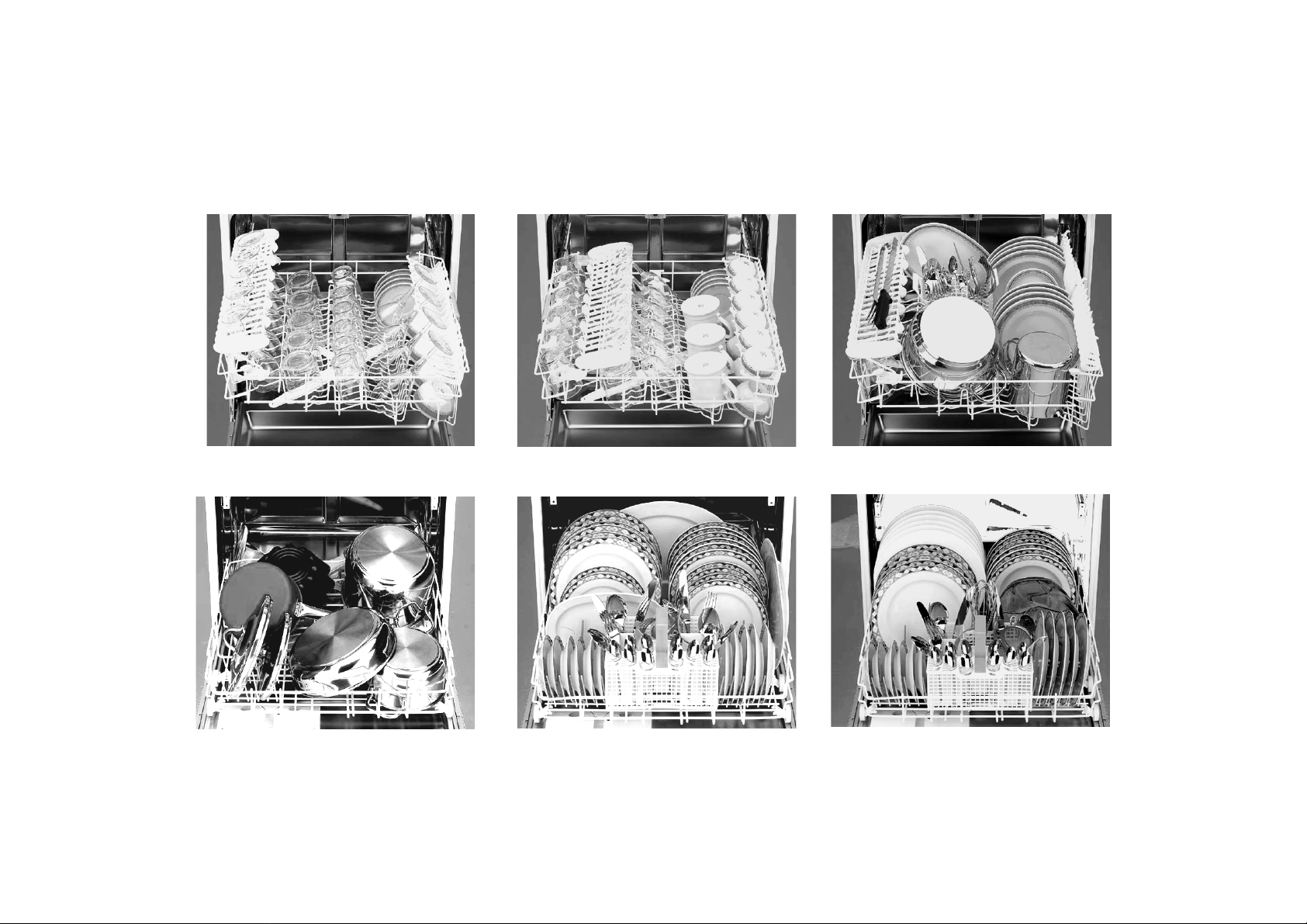

Dishwasher loading instructions
UPPER RACK
LOWER RACK
Depending on the model, rack features may vary (see “Upper and lower rack” description).
