Whirlpool GSF 7397 TW-WS PROGRAM CHART

GB

DYNAMIC SENSE: Energy savings and optimum wash results

The two sensor-controlled “DYNAMIC SENSE” wash options are
recommended for routine washes. They use double-sensor
technology. Separate sensors gauge turbidity and particles in order to
determine the degree of soiling of the wa sh w a ter. In accordance with
values measured, a microprocessor establishes optimum water,
energy and time consumption. Optimum wash results are thus
achieved using only those resources strictly required.

GSF 7397

Further indications are given in the pages to follow and in the user instructions.

Water supply indicator

Check the appliance fills with water.

spray arm block indicator

Lower

Release the spray arm.

“Water stop” device indicator

“Water stop” device not working.
Switch off the dishwasher and
shut off the water tap.

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.

Programme Symbol

and Temperature

Programme progress indicator

Pre-rinse /
Pre-wash

Washing

Delayed start buttons

The wash cycle can be programmed to
start after 1-24 hours. Then press the
Start button. The dishwasher will
start at the set time.

Programme selection and

recommended load type

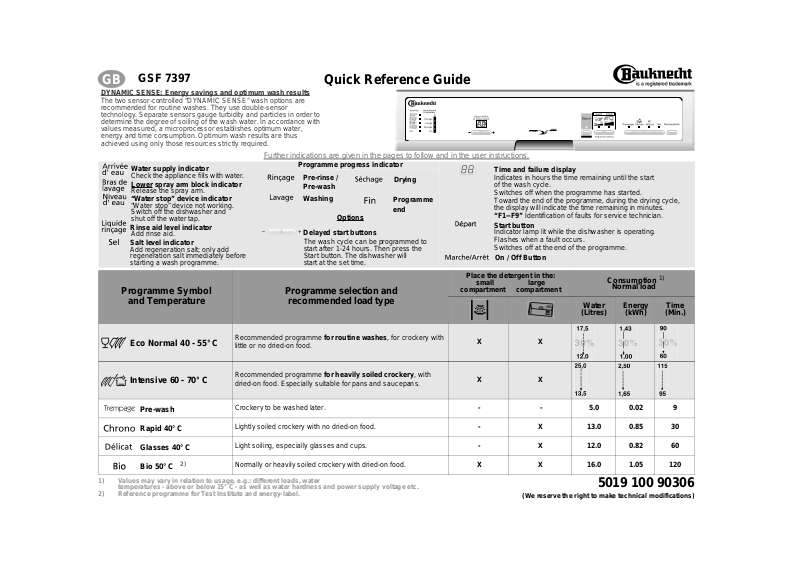

Quick Reference Guide

Drying

Programme
end

Options

compartment compartment

Time and failure display

Indicates in hours the time remaining until t he start
of the wash cycle.
Switches off when the programme has started.
Toward the end of the programme, during the drying cycle,
the display will indicate the time remaining in minu tes .

Identification of faults for service technician.

“F1--F9”
Start button

Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.

On / Off Button

Place the detergent in the:

small large

Consumption

Normal load

Water

(Litres)

Energy

(kWh)

1)

Time

(Min.)

Eco Normal 40 - 55° C

Intensive 60 - 70° C

Pre-wash

Rapid 40° C

Glasses 40° C

Bio 50° C

1) Values may vary in relation to usage, e.g.: different loads, water
temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.

2) Reference programme for Test Institute and energy-label.

2)

Recommended programme
little or no dried-on food.

Recommended programme
dried-on food. Especially suitable for pans and saucepans.

Crockery to be washed later.

Lightly soiled crockery with no dried-on food .

Light soiling, especially glasses and cups.

Normally or heavily soiled crockery with dried-on food.

for routine washes

for heavily soiled crockery

, for crockery with

, with

X X

X X

- - 5.0 0.02 9

- X 13.0 0.85 30

- X 12.0 0.82 60

X X 16.0 1.05 120

5019 100 90306

(We reserve the right to make technical modifica tions)

A

A

C

C

D

How to use the dishwasher

1. After loading the dishwasher, close the
door properly and open the water
supply tap.

2. Press the On/Off button to switch the
dishwasher on.

indicator lamps will switch on.

3. Select the desired programme by
pressing the corresponding button.

The corresponding indicator lamp
lights up.

(if supplied).

4. Press the Start button to start the
selected programme.

indicator lamp will light up.

the programmed data cannot be
altered by pressing the programme
selector buttons.

once the Start button has been

Note:

pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.

To change the selected
programme, press the Start button
for about 5 seconds

indicator lamp switches off.

Select a new programme using the
programme selector knob and
press the Start button.

if the dishwasher is switched off

Note:

during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.

Only open the dishwasher door if
strictly necessary during a wash cycle
and exercise maximum caution.
Danger of scalding from steam.

5. To indicate the end of the programme,
the Start indicator lamp switches off
and

the End (Fin) indicator lamp
(if fitted)
30 min.)

One of the programme

If required, select options

The Start

Once set,

, until the Start

switches on

.

(for about

6. Once the Start indicator lamp has
switched off press the On/Off bu tton to
switch the dishwasher off.

indicator lamps switch off.

7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.

All the

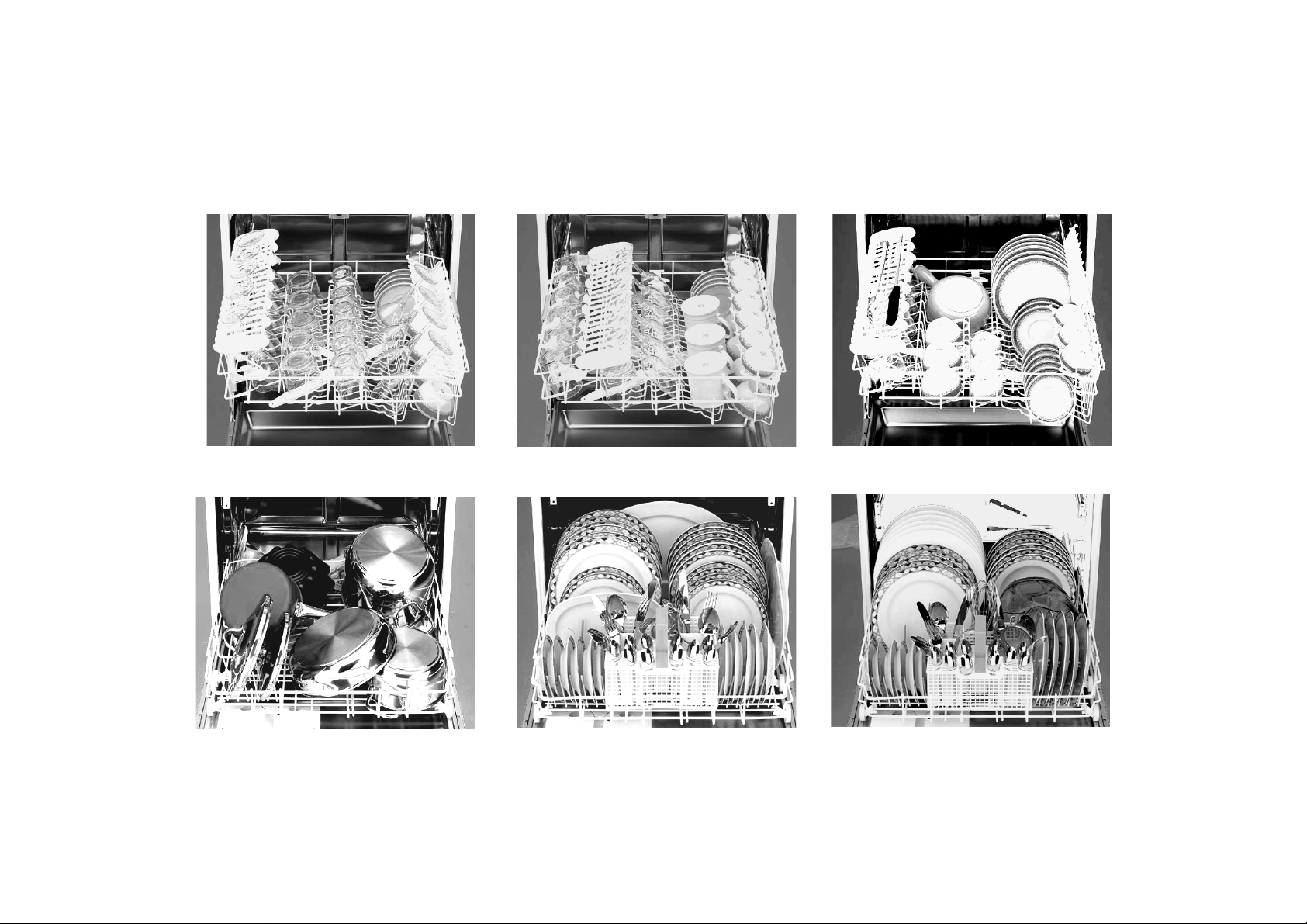

Upper rack

Rack height adjustment:

(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be chan ged
when loaded.

Upper and lower rack

• To lower: pull out the
handles and gently lower the rack.

• To raise: pull up the
until the rack clicks into place.

• The rack must be level on both
sides.

Crockery holders:

• Down: cups and long-stemmed glasses.

•

Up: plates.

“Vario Organizer” multi-purpose
support:

• To be used, for example,
for long-handled utensils

knives with the blade facing
downwards),

• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).

1. Upon the left-hand side of the rack.

2. Upside-down, towards the centre of
the rack.

3. Upside-down, towards the left side.

cups and glasses.

Glass holder:

two

side handles

two

side

(arrange

Lower rack

Plate holders:

• May be lowered to increase
available space (A).

A

Cutlery basket:

• The cutlery basket can be removed
to increase (C) available space.

• Some models are provided with
a grid (D) that can be fitted onto
the cutlery basket.

Please read the user instructions carefully.
