GB
DYNAMIC SENSE: Energy savings and optimum wash results
The two sensor-controlled “DYNAMIC SENSE” wash option s are
recommended for routine washes. They use double-sensor
technology. Separate sensors gauge turbidity and particles in order
to determine the degree of soiling of the wash water. In accordance
with values measured, a microprocessor establishes optimum water,
energy and time consumption. Optimum wash results are thus
achieved using only those resources strictly required.
GSF 7294
Further indications are given in the pages to follow and in the user instructions.
Water supply indicator
Check the appliance fills with water.
Lower spray arm block indicator
Release the spray arm.
“Water stop” device indicator
“Water stop” device not working.
Switch off the dishwasher and shut off the water tap.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add regeneration salt
immediately before starting a wash programme.
Programme Symbol
and Temperature
Programme selection and
recommended load type

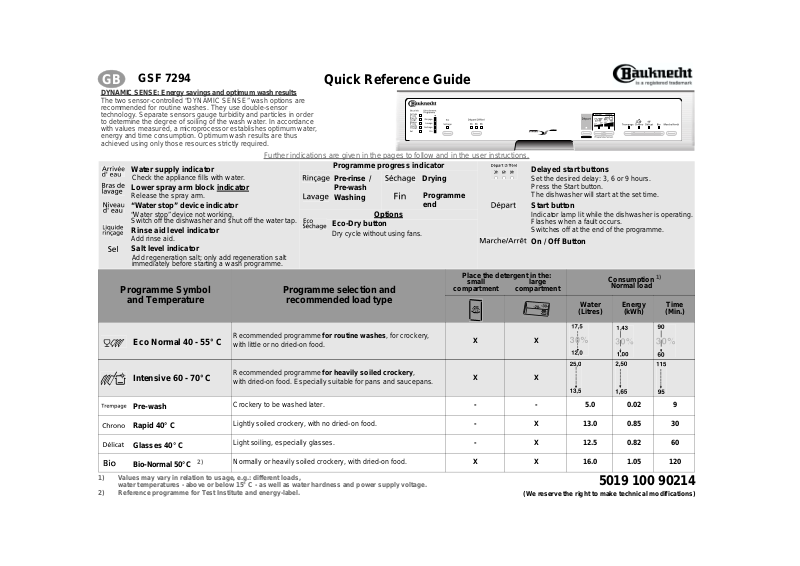

Quick Reference Guide
Programme progress indicator
Pre-rinse /
Pre-wash
Washing
Options
Eco-Dry button
Dry cycle without using fans.
Drying
Programme
end
Place the detergent in the:
compartment compartment
Delayed start buttons
Set the desired delay: 3, 6 or 9 hours.
Press the Start button.
The dishwasher will start at the set time.
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
On / Off Button
small large
Water
(Litres)
Consumption
Normal load
Energy
(kWh)
1)
Time
(Min.)
Eco Normal 40 - 55° C
Intensive 60 - 70° C
Pre-wash
Rapid 40° C
Glasses 40° C
Bio-Normal 50° C
1) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage.
2) Reference programme for Test Institute and energy-label.
2)
Recommended programme
with little or no dried-on food.
Recommended programme
with dried-on food. Especially suitable for pans and saucepans.
Crockery to be washed later.
Lightly soiled crockery, with no dried-on food.
Light soiling, especially glasses.
Normally or heavily soiled crockery, with dried-on food.
for routine washes
for heavily soiled crockery
, for crockery,
,
X X
X X
- - 5.0 0.02 9
- X 13.0 0.85 30
- X 12.5 0.82 60
X X 16.0 1.05 120
5019 100 90214
(We reserve the right to make technical modifications)
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. Press the On/Off button to switch the
dishwasher on.
indicator lamps will switch on.
3. Select the desired programme by
pressing the corresponding button.
The corresponding indicator lamp
lights up.
(if supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be
altered by pressing the programme
selector buttons.
Once the Start button has been
Note:
pressed, the dishwasher memorises
the last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start button
for about 5 seconds,
Start indicator lamp switches
off.
using the programme selector
knob and press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
switches on
One of the programme
If required, select options
The Start
Once set,
until the
Select a new programme
(for about 30 min.)
.
6. Once the Start indicator lamp has
switched off press the On/Off bu tton to
switch the dishwasher off.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be chan ged
when loaded.
Upper and lower rack
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
Crockery holders:
• Down: cups and long-stemmed glasses.
•
Up: plates.
“Vario Organizer” multi-purpose
support:
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
(arrange knives
two
side handles
two
side
Glass holder:
Lower rack
Plate holders:
• May be lowered to increase
available space (A).
• May be removed to increase
available space (B).
To remove: pull the handle up.
B
A
Cutlery basket:
The cutlery basket can be removed to
increase (C) available space.
Please read the user instructions carefully.
