Whirlpool GSF 5476 TW-WS(6910), GSF 5476/1 TW-WS PROGRAM CHART
GB
GSF 5476
Water supply indicator
Check the appliance fills with water.
Lower spray arm block indicator
Release the spray arm.
“Water stop” device indicator
“Water stop” device not working.
Switch off the dishwasher and shut off
the water tap.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.
Programme Symbol
and Temperature

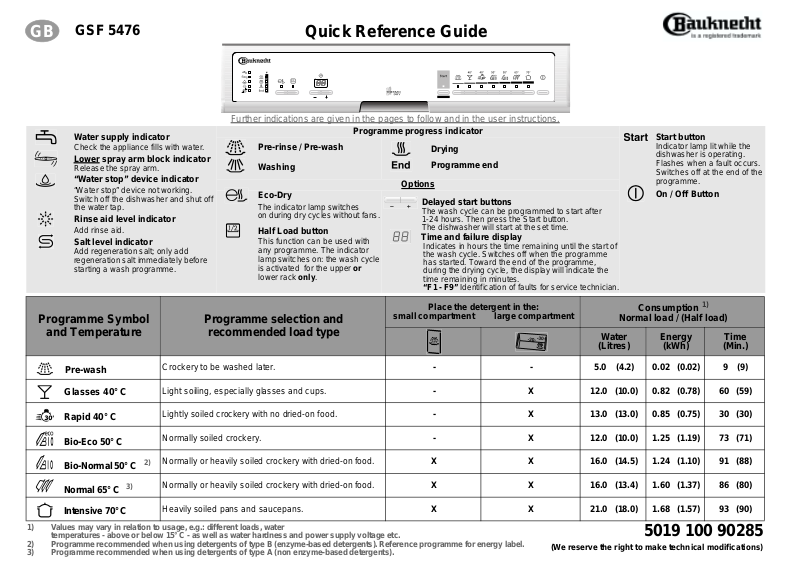

Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions.
Programme progress indicator
Pre-rinse / Pre-wash
Washing
Eco-Dry
The indicator lamp switches
on during dry cycles without fans.
Half Load button
This function can be used with
any programme. The indicator
lamp switches on: the wash cycle
is activated for the upper
lower rack
only
.
Programme selection and
recommended load type
or
small compartment large compartment
Drying
Programme end
Options
Delayed start buttons
The wash cycle can be programmed to start after
1-24 hours. Then press the Start button.
The dishwasher will start at the set time.
Time and failure display
Indicates in hours the time remaining until the start of
the wash cycle. Switches off when the programme
has started. Toward the end of the programme,
during the drying cycle, the display will indicate the
time remaining in minutes.
Identification of faul ts for s erv ic e tech ni ci an.
“F1 - F9”
Place the detergent in the:
Start button
Indicator lamp lit while the
dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the
programme.
On / Off Button
Consumption
Normal load / (Half load)
Water
(Litres)
Energy
(kWh)
1)
Time
(Min.)
Pre-wash
Glasses 40° C
Rapid 40° C
Bio-Eco 50° C
Bio-Normal 50° C
Normal 65° C
Intensive 70° C
1) Values may vary in relation to usage, e.g.: di fferent loads, water
temperatures - above or below 15° C - as well as water hardness and power su pply voltage etc.
2) Programme recommended when using detergents of type B (enzy me-based dete rgents). Reference p rogramme for energ y label.
3) Programme recommended when using deter gents of t ype A (no n enzyme-ba sed detergen ts).
3)
Crockery to be washed later.
Light soiling, especially glasses and cu ps.
Lightly soiled crockery with no dried-on food.
Normally soiled crockery.
Normally or heavily soiled crockery with dried-on food.
2)
Normally or heavily soiled crockery with dried-on food.
Heavily soiled pans and saucepans.
- - 5.0 (4.2) 0.02 (0.02) 9(9)
- X 12.0 (10.0) 0.82 (0.78) 60 (59)
- X 13.0 (13.0) 0.85 (0.75) 30 (30)
- X 12.0 (10.0) 1.25 (1.19) 73 (71)
X X 16.0 (14.5) 1.24 (1.10) 91 (88)
X X 16.0 (13.4) 1.60 (1.37) 86 (80)
X X 21.0 (18.0) 1.68 (1.57) 93 (90)
5019 100 90285
(We reserve the right to make technical modifications)
B
A
C
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. Press the On/Off button to switch the
dishwasher on.
indicator lamps will switch on.
3. Select the desired programme by
pressing the corresponding button.
The corresponding indicator lamp
lights up.
(if supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be
altered by pressing the programme
selector buttons.
once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start
button for about 5 seconds,
the Start indicator lamp
switches off.
programme using the
programme selector knob and
press the Start button.
if the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
One of the programme
If required, select options
The Start
Once set,
Select a new
(for about 30 min.)
.
6. Once the Start indicator lamp has
switched off press the On/Off button to
switch the dishwasher off.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
Upper rack
Half Load:
If the upper rack
remove the cultery basket from the lower
rack and place it in the upper one.
until
is to be filled,
only
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
two
Please read the user instructions carefully.
All the
side
two
side handles
Upper and lower rack
• The rack must be level on both
sides.
Crockery holders:
• Down: cups and long-stemmed
glasses.
•
Up: plates.
“Vario Organizer” multi-purpose
support:
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
Glass holder:
(arrange knives
Lower rack
B
A
Half Load:

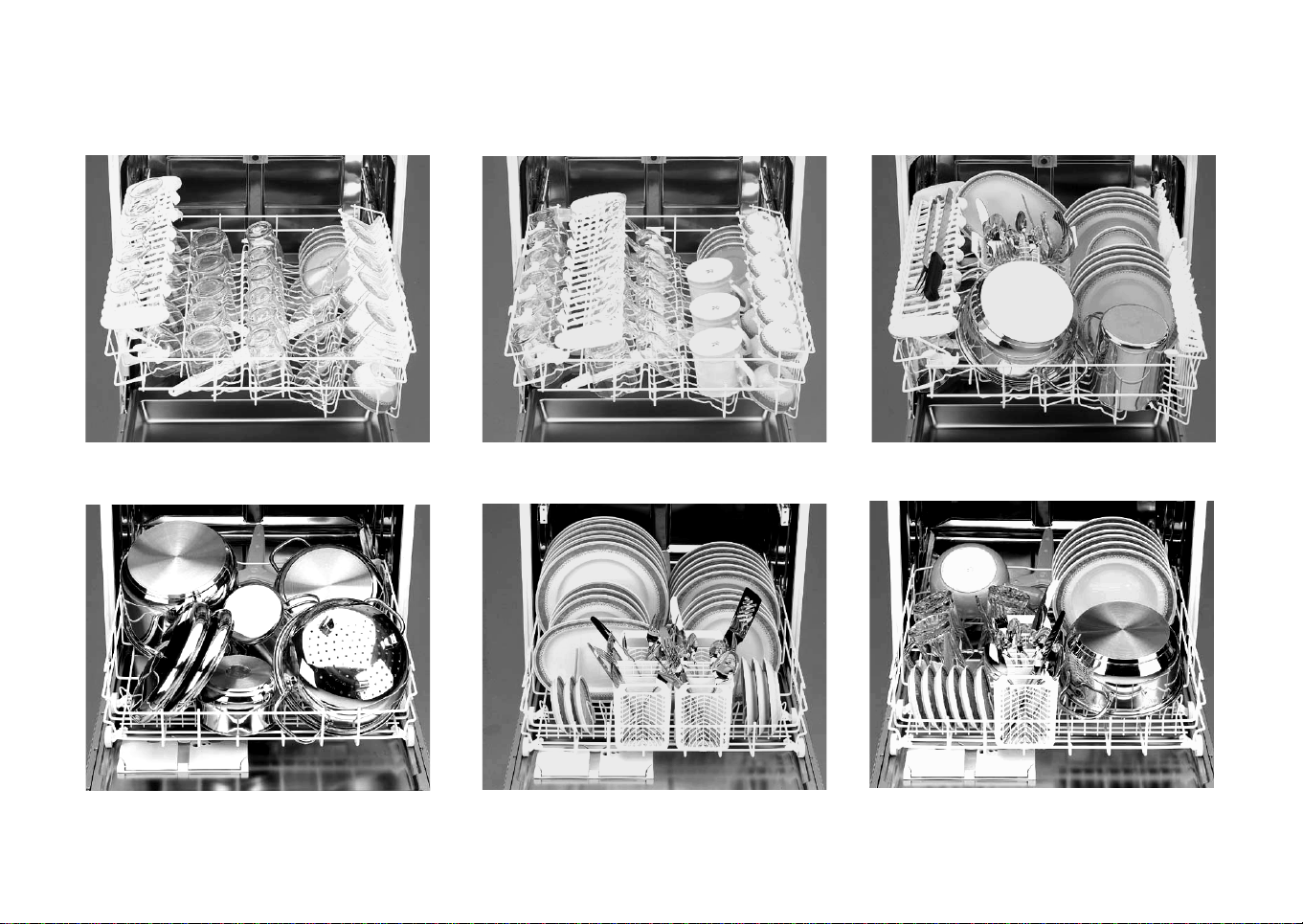

Loading the lower rack
greater washing power, especially for
plates and saucepans.
only
gives
Plate holders:
• May be lowered to increase
available space (A).
• May be removed to increase
available space (B). To remove:
pull the handle up.
Cutlery basket:
The cutlery basket can be removed to
increase (C) available space.
C
