Whirlpool GSF 5467 TW-WS PROGRAM CHART

GSF 5467

Water supply indicator

Check the appliance fills with water.

Lower

spray arm block indicator

Release the spray arm.

“Water stop” device indicator

“Water stop” device not working. Switch off the dishwasher and shut off the water tap.

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt; only add regeneration salt immediately before starting a wash programme.

Programme Symbol

and Temperature

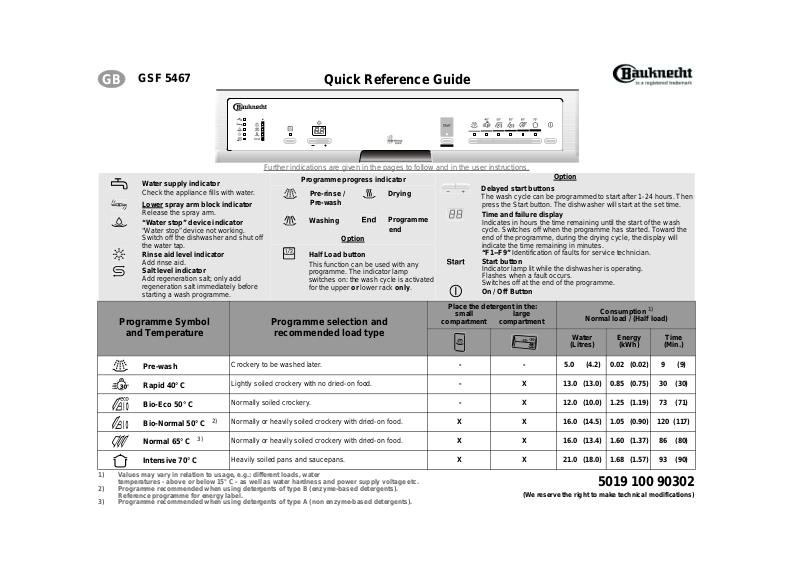

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

Programme progress indicator

Pre-rinse / Pre-wash

Washing

Option

Half Load button

This function can be used with any programme. The indicator lamp switches on: the wash cycle is activated for the upper or lower rack

Programme selection and

recommended load type

Drying

Programme end

only

Place the detergent in the:

compartment compartment

Delayed start buttons

The wash cycle can be programmed to start after 1-24 hours. Then press the Start button. The dishwasher will start at the set time.

Time and failure display

Indicates in hours the time remaining until the start of the wash cycle. Switches off when the programme has started. Toward the end of the programme, during the drying cycle, the display will indicate the time remaining in minutes.

“F1--F9” Start button

Indicator lamp lit while the dishwasher is oper ating. Flashes when a fault occurs. Switches off at the end of the programme.

On / Off Button

small large

Identification of faults for service technician.

Option

Consumption

Normal load / (Half load)

Water

(Litres)

Energy

(kWh)

Time

(Min.)

Pre-wash

Rapid 40° C

Bio-Eco 50° C

Bio-Normal 50° C

Normal 65° C

Intensive 70° C

1) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

Crockery to be washed later.

Lightly soiled crockery with no dried-on food.

Normally soiled crockery.

Normally or heavily soiled crockery with dried-on food.

Heavily soiled pans and saucepans.

- - 5.0 (4.2) 0.02 (0.02) 9(9)

- X 13.0 (13.0) 0.85 (0.75) 30 (30)

- X 12.0 (10.0) 1.25 (1.19) 73 (71)

X X 16.0 (14.5) 1.05 (0.90) 120 (117)

X X 16.0 (13.4) 1.60 (1.37) 86 (80)

X X 21.0 (18.0) 1.68 (1.57) 93 (90)

5019 100 90302

(We reserve the right to make technical modifications)

How to use the dishwasher

1. After loading the dishwasher, close the door properly and open the water supply tap.

2. Press the On/Off button to switch the dishwasher on.

indicator lamps will switch on.

3. Select the desired programme by pressing the corresponding button.

The corresponding indicator lamp lights up.

supplied).

4. Press the Start button to start the selected wash programme.

indicator lamp will light up.

the programmed data cannot be altered by pressing the programme selector buttons.

once the Start button has been

Note:

pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected programme, press the Start button for about 5 seconds,

lamp switches off.

programme using the programme selector knob and press the Start button.

if the dishwasher is switched off

Note:

during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.

5. To indicate the end of the programme, the Start indicator lamp switches off and

the End indicator lamp (if fitted)

lights up

One of the programme

If required, select options (if

The Start

Once set,

until the Start indicator

(for about 30 min.)

Select a new

6. Once the Start indicator lamp has switched off press the On/Off bu tton to switch the dishwasher off.

indicator lamps switch off.

7. Open the door (warning: beware of hot steam). Unload the lower rack before the upper one. Close the water tap.

All the

Upper rack

Half Load:

If the upper rack the cutlery basket from the lower rack and place it in the upper one.

is to be filled, remove

only

Rack height adjustment:

(The dishwasher is delivered with the upper rack in the top position). The rack height can also be chan ged when loaded.

• To lower: pull out the handles and gently lower the rack.

two

side

Upper and lower rack

• To raise: pull up the until the rack clicks into place.

• The rack must be level on both sides.

Crockery holders:

• Down: cups and long-stemmed glasses.

•

Up: plates.

“Vario Organizer” multi-purpose support:

• To be used, for example, for longhandled utensils

with the blade facing downwards),

cups and glasses.

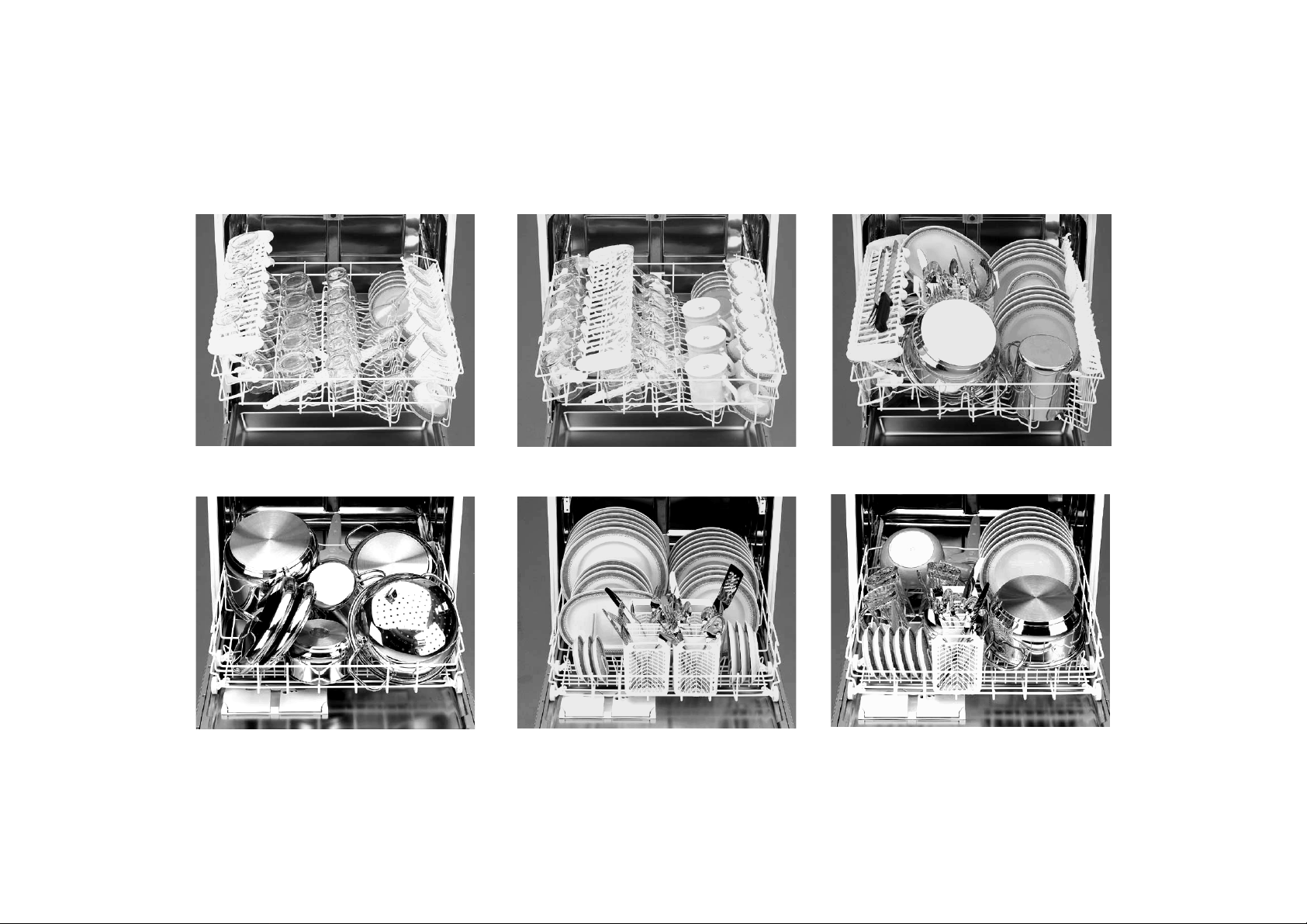

• May be used in three different positions (see also “Dishwasher loading instructions” on Page 4).

1. Upon the left-hand side of the rack.

2. Upside-down, towards the centre of the rack.

3. Upside-down, towards the left side.

Glass holder:

side handles

two

(arrange knives

Lower rack

Half Load:

Loading the lower rack greater washing power, especially for plates and saucepans.

only

gives

Plate holders:

• May be lowered to increase available space (A).

• May be removed to increase available space (B). To remove: pull the handle up.

Cutlery basket:

• The cutlery basket can be removed to increase (C) available space.

Please read the user instructions carefully.
