Whirlpool GSF 5454 TW-WS, GSF 5454 TW-BR PROGRAM CHART

GSF 5454

Further indications are given in the pages to follow and in the user instructions.

Water supply indicator

Check the appliance fills with water.

Lower spray arm block indicator

Release the spray arm.

“Water stop” device indicator

“Water stop” device not working. Switch off the dishwasher and shut off the water tap.

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt; only add regeneration salt immediately before starting a wash programme.

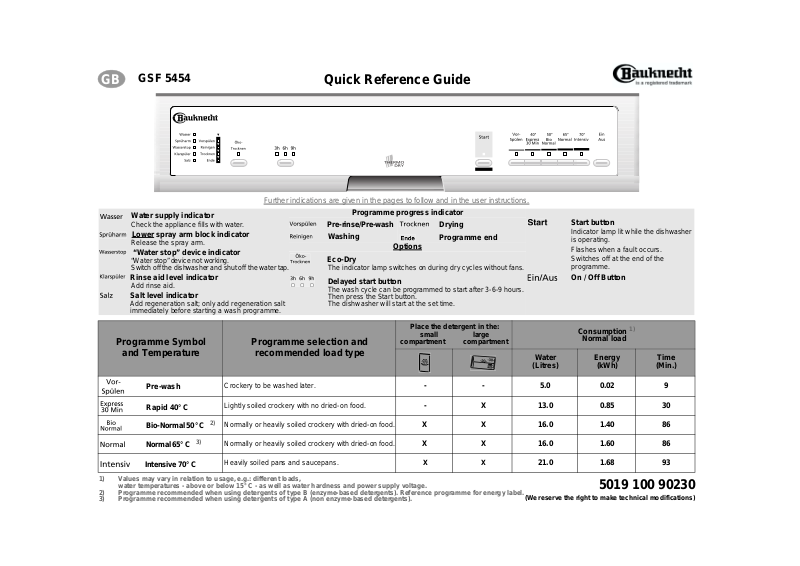

Quick Reference Guide

Programme progress indicator Pre-rinse/Pre-wash Washing

Options

Eco-Dry

The indicator lamp switches on during dry cycles without fans.

Delayed start button

The wash cycle can be programmed to start after 3-6-9 hours. Then press the Start button. The dishwasher will start at the set time.

Drying Programme end

Start button

Indicator lamp lit while the dishwasher is operating.

Flashes when a fault occurs. Switches off at the end of the

programme.

On / Off Button

Place the detergent in the:

small large

Programme Symbol

and Temperature

Pre-wash

Rapid 40° C

Bio-Normal 50° C

Normal 65° C

Intensive 70° C

1) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15° C - as well as water hardness and power supply voltage.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

Programme selection and

recommended load type

Crockery to be washed later.

Lightly soiled crockery with no dried-on food.

Normally or heavily soiled crockery with dried-on food.

Heavily soiled pans and saucepans.

compartment compartment

- - 5.0 0.02 9

- X 13.0 0.85 30

X X 16.0 1.40 86

X X 16.0 1.60 86

X X

Consumption

Normal load

Water

(Litres)

21.0 1.68 93

Energy

(kWh)

Time

(Min.)

5019 100 90230

(We reserve the right to make technical modifications)

How to use the dishwasher

1. After loading the dishwasher, close the door properly and open the water supply tap.

2. Press the On/Off button to switch the dishwasher on.

indicator lamps will switch on.

3. Select the desired programme by pressing the corresponding button.

corresponding indicator lamp lights

If required, select options (if

up.

supplied).

4. Press the Start button to start the selected wash programme.

indicator lamp will light up.

the programmed data cannot be alte red by pressing the programme selector buttons.

once the Start button has been

Note:

pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected programme, press the Start button for about 5 seconds, until

Start indicator lamp switches off.

using the programme selector knob and press the Start button.

If the dishwasher is switched off

Note:

during a wash programme, when switched on again it will resum e the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.

5. To indicate the end of the programme, the Start indicator lamp switches off and the

End indicator lamp (if fitted)

(for about 30 min.)

One of the programme

The Start

Once set,

the

Select a new programme

lights

6. Once the Start indicator lamp has switched off press the On/Off bu tton to switch the dishwasher off.

indicator lamps switch off.

7. Open the door (warning: beware of hot steam). Unload the lower rack before the upper one. Close the water tap.

The

Upper rack

Rack height adjustment:

(The dishwasher is delivered with the upper rack in the top position). The rack height can also be chan ged when loaded.

• To lower: pull out the handles and gently lower the rack.

• To raise: pull up the until the rack clicks into place.

two

Please read the user instructions carefully.

All the

side

side handles

• The rack must be level on both sides.

Crockery Holders:

• Down: cups and long-stemmed glasses.

•

Up: plates.

“Vario Organizer” multi-purpose support:

• To be used, for example, for long-handled utensils

knives with the blade facing downwards),

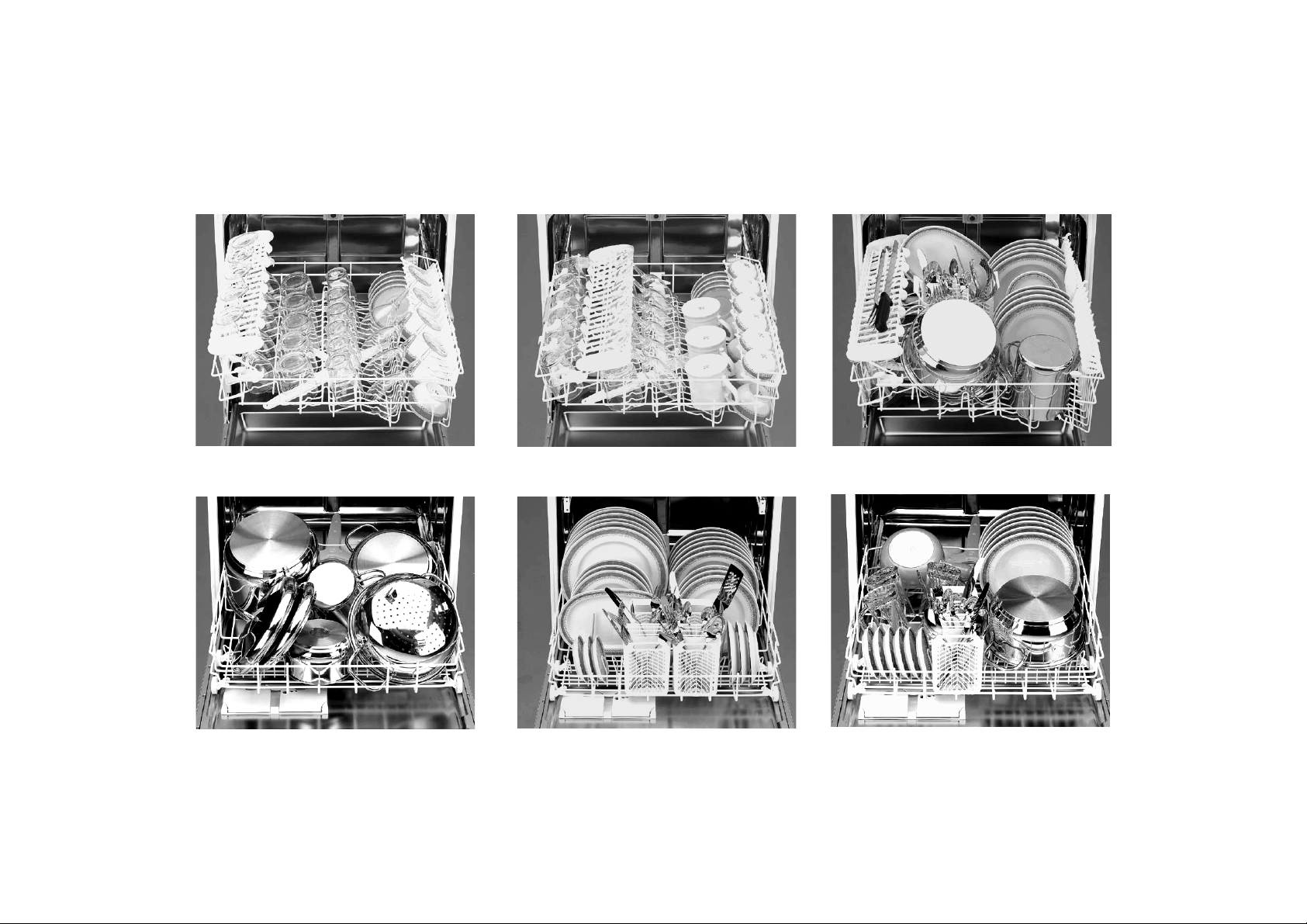

• May be used in three different positions (see also “Dishwasher loading instructions” on Page 4).

1. Upon the left-hand side of the rack.

2. Upside-down, towards the centre of the rack.

3. Upside-down, towards the left side.

cups and glasses.

Glass holder:

Upper and lower rack

Plate holders:

(arrange

• May be lowered to increase available space (A).

• May be removed to increase available space (B). To remove: pull the handle up.

Cutlery basket:

The cutlery basket can be removed to increase (C) available space.

Lower rack
