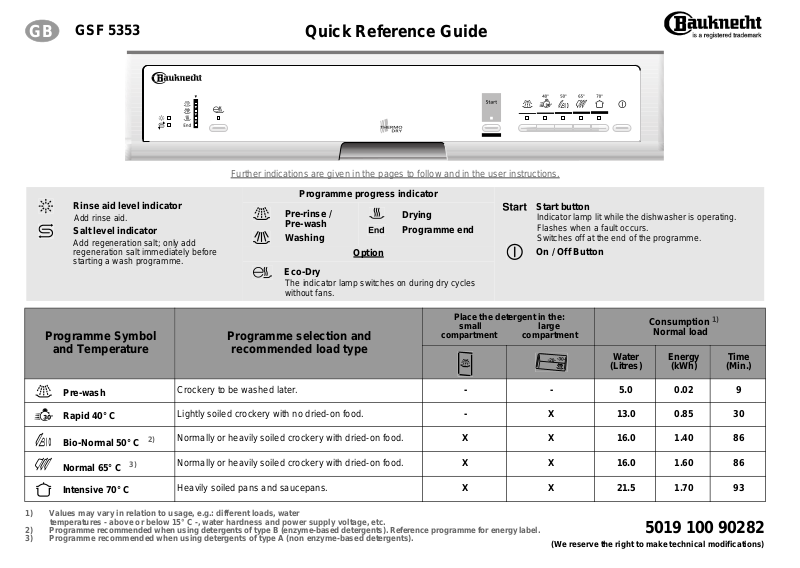

GB GSF 5353

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

Programme progress indicator

Rinse aid level indicator

Pre-rinse /

Drying

Start button

Add rinse aid.

Indicator lamp lit while the dishwasher is operating.

Salt level indicator

Pre-wash

Programme end

Flashes when a fault occurs.

Washing

Add regeneration salt; only add

Switches off at the end of the programme.

regeneration salt immediately before

Option

On / Off Button

starting a wash programme.

Eco-Dry

The indicator lamp switches on during dry cycles

without fans.

Place the detergent in the:

Consumption 1)

small

large

Programme Symbol

Programme selection and

Normal load

compartment

compartment

and Temperature

recommended load type

Water

Energy

Time

(Litres)

(kWh)

(Min.)

Pre-wash

Crockery to be washed later.

-

-

5.0

0.02

9

Rapid 40° C

Lightly soiled crockery with no dried-on food.

-

X

13.0

0.85

30

Bio-Normal 50° C 2)

Normally or heavily soiled crockery with dried-on food.

X

X

16.0

1.40

86

Normal 65° C 3)

Normally or heavily soiled crockery with dried-on food.

X

X

16.0

1.60

86

Intensive 70° C

Heavily soiled pans and saucepans.

X

X

21.5

1.70

93

1)Values may vary in relation to usage, e.g.: different loads, water

temperatures - above or below 15° C -, water hardness and power supply voltage, etc.

2)Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3)Programme recommended when using detergents of type A (non enzyme-based detergents).

5019 100 90282

(We reserve the right to make technical modifications)

How to use the dishwasher

Upper and lower rack

1.After loading the dishwasher, close the door properly and open the water supply tap.

2.Press the On/Off button to switch the dishwasher on. One of the programme indicator lamps will switch on.

3.Select the desired programme by pressing the corresponding button.

The corresponding indicator lamp lights up. If required, select options (if supplied).

4.Press the Start button to start the selected programme. The Start indicator lamp will light up. Once set, the programmed data cannot be altered by pressing the programme selector buttons.

Note: once the Start button has been pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected

programme, press the Start button for about 5 seconds,until the Start indicator lamp switches off.

Select a new programme using the programme selector knob and press the Start button.

Note: if the dishwasher is switched off during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.

5.To indicate the end of the programme, the Start indicator lamp switches off and the End indicator lamp (if fitted) lights up (for about 30 min.).

6.Once the Start indicator lamp has switched off press the On/Off button to switch the dishwasher off. All the indicator lamps switch off.

7.Open the door (warning: beware of hot steam). Unload the lower rack before the upper one. Close the water tap.

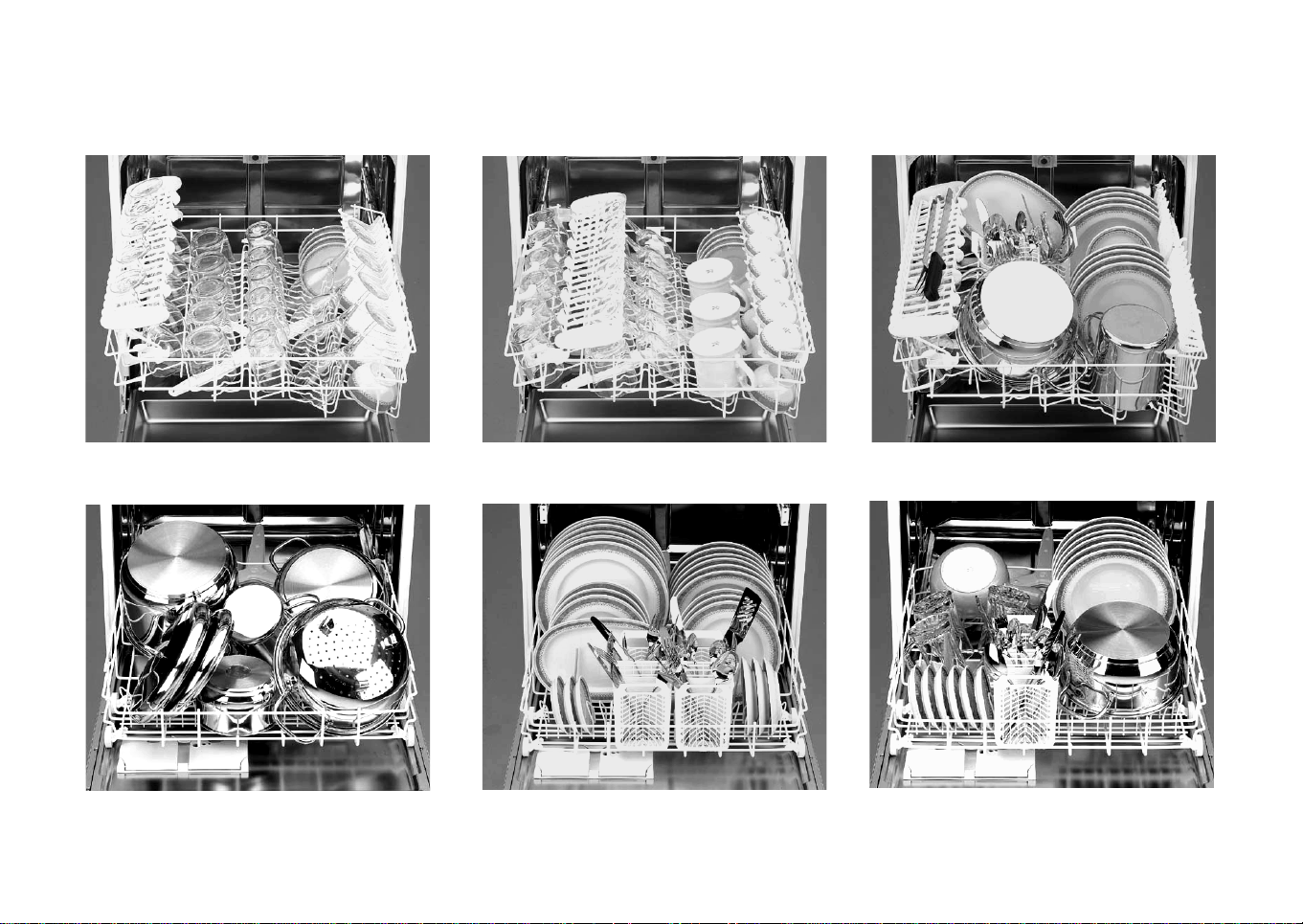

Upper rack

Rack height adjustment:

(The dishwasher is delivered with the upper rack in the top position).

The rack height can also be changed when loaded.

•To lower: pull out the two side handles and gently lower the rack.

•To raise: pull up the two side handles until the rack clicks into place.

•The rack must be level on both sides.

Crockery holders:

•Down: cups and long-stemmed glasses.

•Up: plates.

“Vario Organizer” multi-purpose support:

•To be used, for example, for longhandled utensils (arrange knives with the blade facing downwards), cups and glasses.

•May be used in three different positions (see also “Dishwasher loading instructions” on Page 4).

1.Upon the left-hand side of the rack.

2.Upside-down, towards the centre of the rack.

3.Upside-down, towards the left side.

Glass holder:

Lower rack

B

A

C

Plate holders:

•May be lowered to increase available space (A).

•May be removed to increase available space (B). To remove: pull the handle up.

B

A

Cutlery basket:

The cutlery basket can be removed to increase (C) available space.

C

Please read the user instructions carefully.
