Whirlpool GSF 5351 TW-WS PROGRAM CHART

GB

GSF 5351

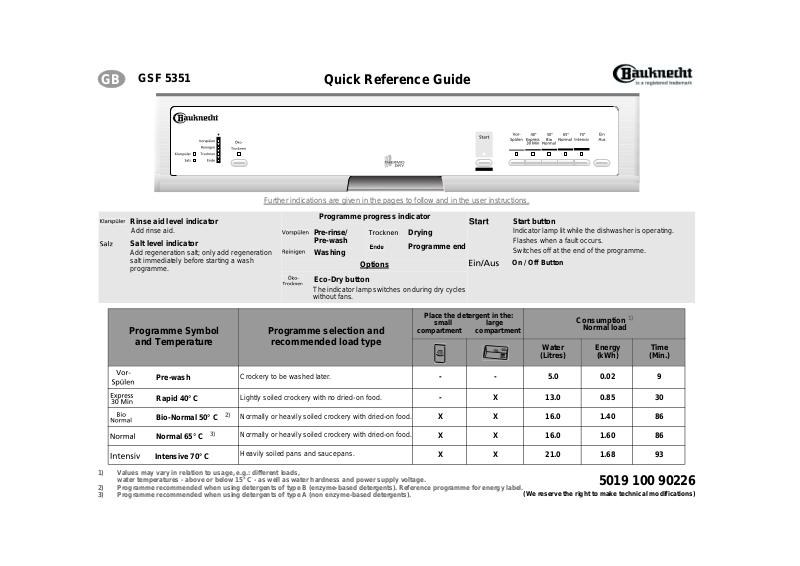

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt; only add regeneration
salt immediately before starting a wash
programme.

Programme Symbol

and Temperature

Pre-wash

Rapid 40° C

Bio-Normal 50° C

Normal 65° C

Intensive 70° C

1) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

2)

3)

Programme selection and

recommended load type

Crockery to be washed later.

Lightly soiled crockery with no dried-on food.

Normally or heavily soiled crockery with dried-on food.

Normally or heavily soiled crockery with dried-on food.

Heavily soiled pans and saucepans.

Programme progress indicator

Pre-rinse/
Pre-wash

Washing

Options

Eco-Dry button

The indicator lamp switches on during dry cycles
without fans.

Drying
Programme end

Place the detergent in the:

small large

compartment compartment

- - 5.0 0.02 9

- X 13.0 0.85 30

X X 16.0 1.40 86

X X 16.0 1.60 86

X X 21.0 1.68 93

Start button

Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.

On / Off Button

1)

Time

(Min.)

Water

(Litres)

Consumption

Normal load

Energy

(kWh)

5019 100 90226

(We reserve the right to make technical modifications)

B

A

C

C

How to use the dishwasher

1. After loading the dishwasher, cl ose the
door properly and open the water
supply tap.

2. Press the On/Off button to switch the
dishwasher on.

indicator lamps will switch on.

3. Select the desired programme by
pressing the corresponding button.

The corresponding indicator lamp
lights up.

supplied).

4. Press the Start button to start the
selected wash programme.

indicator lamp will light up.

the programmed data cannot be
altered by pressing the programme
selector buttons.

once the Start button has been

Note:

pressed, the dishwasher memorises
the last programme selected. This
information remains in the memory
even during interruption of the power
supply.

To change the selected
programme, press the Start
button for about 5 seconds,

the Start indicator lamp
switches off.

programme using the programme
selector knob and press the Start
button.

If the dishwasher is switched off

Note:

during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.

Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.

5. To indicate the end of the programme,
the Start indicator lamp switches off
and

the End indicator lamp (if fitted)

lights up

One of the programme

If required, select options (if

The Start

Once set,

Select a new

(for about 30 min.)

.

6. Once the Start indicator lamp has
switched off press the On/Off bu tton to
switch the dishwasher off.

indicator lamps switch off.

7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.

Upper rack

until

Rack height adjustment:

(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.

• To lower: pull out the
handles and gently lower the rack.

• To raise: pull up the
until the rack clicks into place.

• The rack must be level on both sides.

two

Please read the user instructions carefully.

All the

side

two

side handles

Crockery Holders:

• Down: cups and long-stemmed glasses.

•

Up: plates.

“Vario Organizer” multi-purpose support:

• To be used, for example, for long­handled utensils

with the blade facing downwards),

cups and glasses.

• May be used in three different
positions (see also “Dishwasher

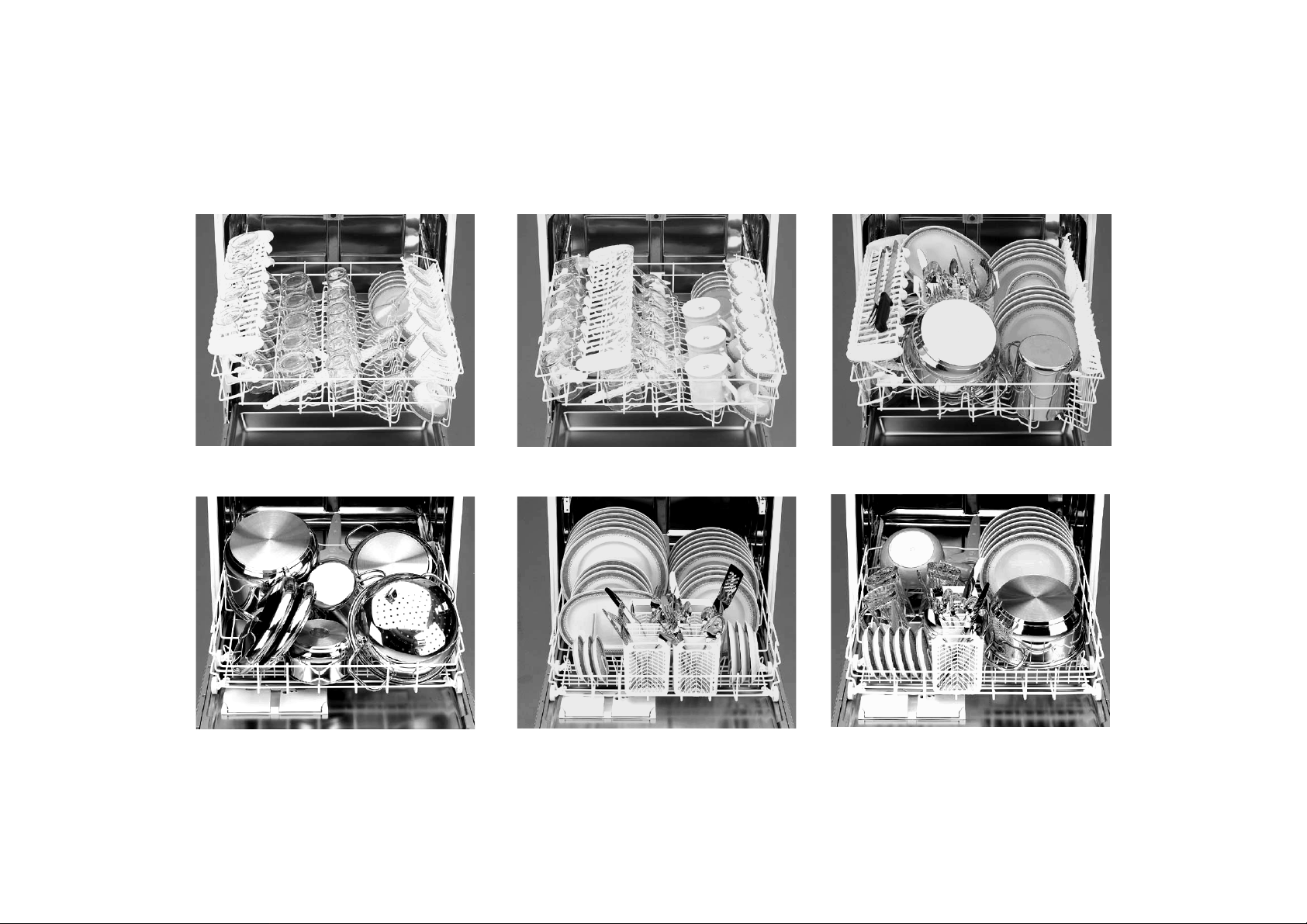

loading instructions” on Page 4).

1. Upon the left-hand side of the rack.

2. Upside-down, towards the centre of
the rack.

3. Upside-down, towards the left side.

Glass holder:

Upper and lower rack

(arrange knives

Plate holders:

Cutlery basket:

The cutlery basket can be removed to
increase (C) available space.

Lower rack

• May be lowered to increase
available space (A).

• May be removed to increase
available space (B). To remove:
pull the handle up.

B

A
