GB
GSF 5343
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.

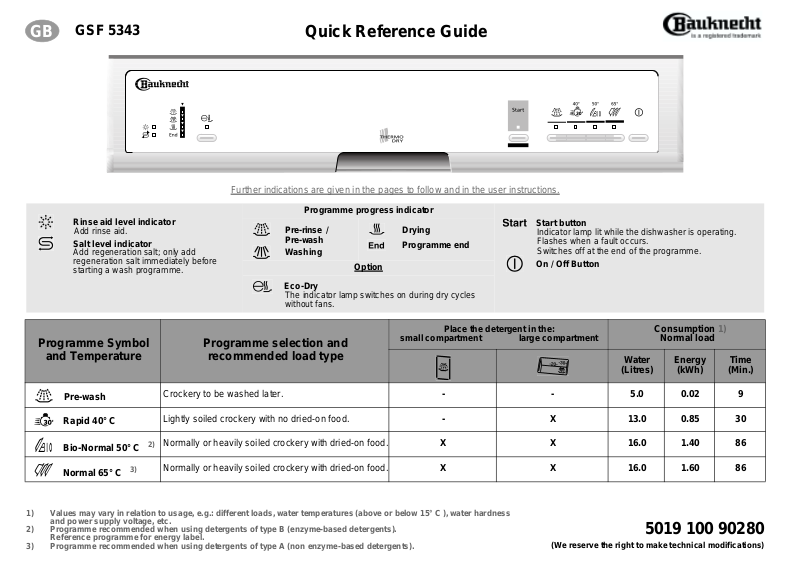

Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions.
Programme progress indicator
Pre-rinse /
Pre-wash
Washing
Option
Eco-Dry
The indicator lamp switches on during dry cycles
without fans.
Drying
Programme end
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
On / Off Button
Programme Symbol
and Temperature
Pre-wash
Rapid 40° C
Bio-Normal 50° C
Normal 65° C
1) Values may vary in relation to usage, e.g.: different loads, water temperatures (above or below 15° C ), water hardness
and power supply voltage, etc.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
Normally or heavily soiled crockery with dried-on food.
2)
Normally or heavily soiled crockery with dried-on food.
3)
Programme selection and
recommended load type
small compartment large compartment
Place the detergent in the:
- - 5.0 0.02 9
- X 13.0 0.85 30
X X 16.0 1.40 86
X X 16.0 1.60 86
Consumption 1)
Normal load
Water
(Litres)
Energy
(kWh)
Time
(Min.)
5019 100 90280
(We reserve the right to make technical modifications)
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. Press the On/Off button to switch the
dishwasher on.
programme indicator lamps will
switch on.
3. Select the desired programme by
pressing the corresponding button.
The corresponding indicator lamp
lights up.
(if supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
set, the programmed data cannot be
altered by pressing the programme
selector buttons.
Once the Start button has been
Note:
pressed, the dishwasher memorises
the last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start button
for about 5 seconds,
Start indicator lamp switches
off.
using the programme selector
knob and press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
One of the
If required, select options
The Start
Once
until the
Select a new programme
(for about 30 min.)
.
6. Once the Start indicator lamp has
switched off press the On/Off button to
switch the dishwasher off.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
two
side handles
two
side
Please read the user instructions carefully.

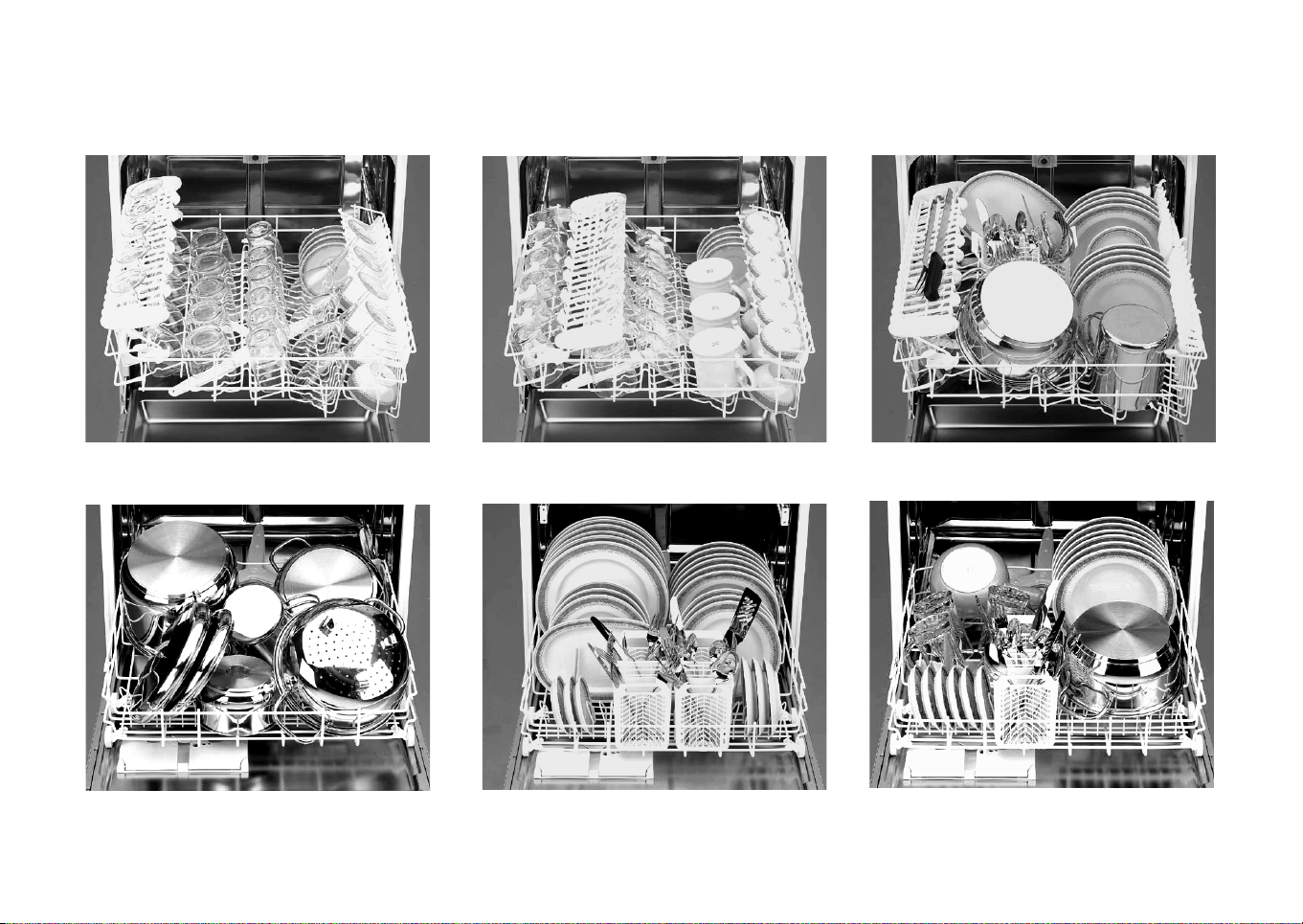

Upper and lower rack
Crockery holders:
•Down:
cups and long-stemmed glasses.
•
Up: plates.
“Vario Organizer” multi-purpose
support :
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
Glass holder:
(arrange knives
Lower rack
B
A
Plate holders:
• May be lowered to increase
available space (A).
• May be removed to increase available
space (B). To remove: pull the handle
up.
Cutlery basket:
The cutlery basket can be removed to
increase (C) available space.
C
