Whirlpool GSF 5341 W-WS PROGRAM CHART

GB

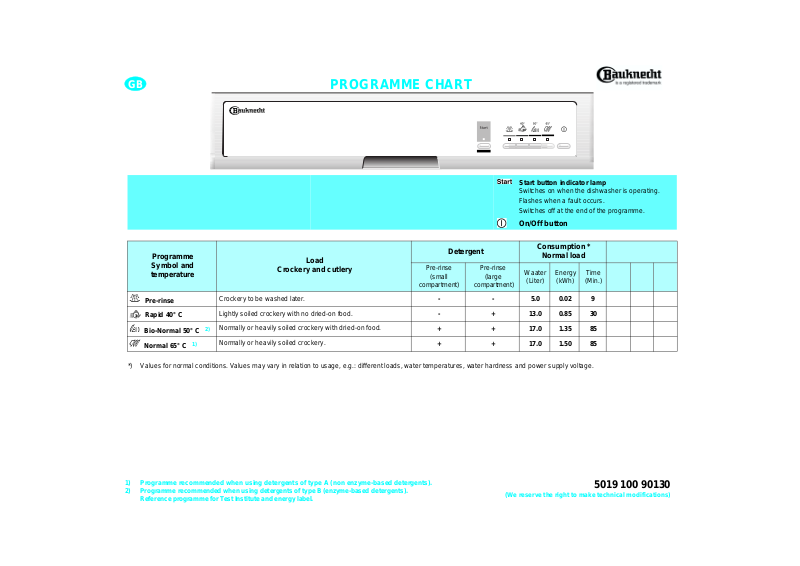

PROGRAMME CHART

Start button indicator lamp

Switches on when the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.

On/Off button

Programme
Symbol and

temperature

Pre-rinse
Rapid 40° C

Bio-Normal 50° C
Normal 65° C

*) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.

1) Programme recommended when using detergents of type A (non enzyme-based detergents).

2) Programme recommended when usingdet ergen tsof type B (enzyme-based detergents).
Reference programmefor Test Institute and energy label.

Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
Normally or heavily soiled crockery with dried-on food.

2)

Normally or heavily soiled crockery.

1)

Crockery and cutlery

Load

compartment)

Detergent

Pre-rinse

(small

--5.00.029

- + 13.0 0.85 30
+ + 17.0 1.35 85
+ + 17.0 1.50 85

Pre-rinse

(large

compartment)

(We reserve the right to make technical modifications)

Consumption *

Normal load

Waater

(Liter)

Energy

(kWh)

Time

(Min.)

5019 100 90130

Quick Reference Guide

GB

Daily check list

1. Arrange crockery so that items do
not touch each other.

2. Load cups at an inclination to
facilitate water circulation.

3. Generally speaking, place cutlery in
the basket with the handles
positioned downwards, but ensure
that any sharp knives and forks that
might cause injury are placed in the
basket with the handles positioned
upwards.

4. Make sure the water je t can reach
all loaded items and that the spray
arms turn freely.

5. Turn on the water supply tap before
starting the dishwasher.

Important

• Switch off the dishwasher: once the
“Start” indicator lamp has

switched off. If the dishwasher is
turned off during the washing
programme, it will start again from
the same point in the programme
when it is turned back on.

• If a fault occurs or you wish to
change the current programme,
press the “START” button fo r about
5 seconds until the Start indicator
lamp switches off ! Refer to the
"Troubleshooting Guide” in these
user instructions to remedy any
problems.

• If a regeneration salt is to be
added, IMMEDIATELY

start a
washing programme, in
order to eliminate any
residual salt.

Crockery holders:

• Down: cups and long-stemmed
glasses.

• Raised: plates.

Glass holder:

• The glass holder can be moved
sideways.

• Below: small glasses.

• Above: long-stemmed glasses.

Upper rack

Height adjustment:

(The dishwasher is delivered with the
upper rack in the top position).

The rack height can also be changed
when loaded.

• To lower: pull out the two side
handles and gently lower the rack.

• To raise: pull up the two side
handles until the rack clicks into
place.

• The rack must be level on both
sides.

Lower rack

Cutlery basket:

The cutlery basket can be removed to
increase available space.
