Page 1
GB
GSF 4062
“Water stop” device indicator
“Water stop” device not working.
Switch off the dishwasher and shut off the
water tap.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.
Programme Symbol
and Temperature

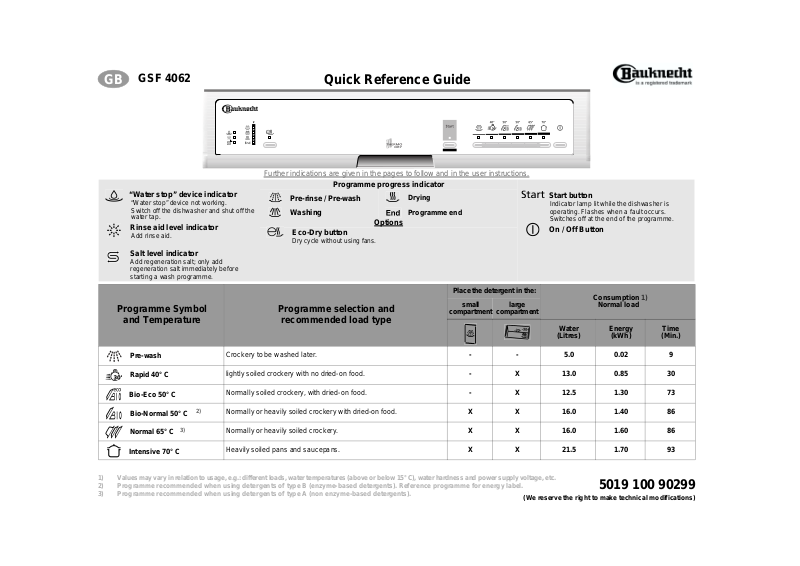

Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions.
Programme progress indicator
Pre-rinse / Pre-wash
Washing
Options
Eco-Dry button
Dry cycle without using fans.
Programme selection and
recommended load type
Drying
Programme end
Place the detergent in the:
compartment
small
large
compartment
Start button
Indicator lamp lit while the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the progra mme.
On / Off Button
Consumption 1)
Normal load
Water
(Litres)
Energy
(kWh)
Time
(Min.)
Pre-wash
Rapid 40° C
Bio-Eco 50° C
Bio-Normal 50° C
Normal 65° C
Intensive 70° C
1) Values may vary in relation to usage, e.g.: different loads, water temperatures (above or below 15° C), water hardness and power supply voltage, etc.
2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
2)
3)
Crockery to be washed later.
lightly soiled crockery with no dried-on food.
Normally soiled crockery, with dried-on food.
Normally or heavily soiled crockery with dried-on food.
Normally or heavily soiled crockery.
Heavily soiled pans and saucepans.
- - 5.0 0.02 9
- X 13.0 0.85 30
- X 12.5 1.30 73
X X 16.0 1.40 86
X X 16.0 1.60 86
X X 21.5 1.70 93
(We reserve the right to make technical modifications)
5019 100 90299
Page 2
C
C
A
B
C
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. Press the On/Off button to switch the
dishwasher on.
indicator lamps will switch on.
3. Select the desired programme by
pressing the corresponding button.
The corresponding indicator lamp
lights up.
supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be
altered by pressing the programme
selector buttons.
Once the Start button
Note:
has been pressed, the dishwasher
memorises the last programme selected.
This information remains in the memory
even during interruption of the power
supply.
To change the selected
programme, press the Start button
for about 5 seconds,
indicator lamp switches off.
Select a new programme using the
programme selector knob and
press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again the dishwasher
resumes the wash cycle from where it
was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
5. To indicate the end of the programme,
steam.
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
switches on
One of the programme
If required, select options (if
The Start
Once set,
until the Start
(for about 30 min.)
.
6. Once the Start indicator lamp has
switched off press the On/Off bu tton to
switch the dishwasher off.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be chan ged
when loaded.
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
Crockery Holders:
• Down:
cups and long-stemmed glasses.
•
Up: plates.
Glass holder:
• The glass holder can be moved
sideways.
• Below: small glasses.
• Above: long-stemmed glasses.
Upper and lower rack
side
two
side handles
two
Plate holders:
• May be lowered to increase
available space (A).
• May be removed to increase
available space(B).
To remove: pull the handle up.
Cutlery basket (C):
The cutlery basket can be removed to
increase (C) available space.
Lower rack
B
A
Please read the user instructions carefully.
Page 3
• Arrange crockery so that items do not
touch each other. Arrange large
crockery in the lower rack and smaller
crockery in the upper rack.
• Load cups at an angle to facilitate water
drainage.
• Generally speaking, place cutlery in the
basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause injury
are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispenser and check
the salt and rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher, for
example: wooden items, aluminium,
plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If a fault occurs or you wish to change the
current programme,
press the “START” button for ab out 5
seconds until the Start indicator lamp
switches off.
• If regeneration salt is to be added
Tips and advice
immediately
in order to eliminate any residual salt
(rinsing alone is not sufficient).
• Sometimes even after the regeneration
salt container has been filled, the
corresponding indicator lamp (if
present) may light up during the first
wash cycle.
start a wash programme
• Before starting a wash programme,
make sure that the spray arms can turn
freely and are not impeded by crockery
or cutlery.
• Only switch off the dishwasher once the
“Start” indicator lamp has switched off.
If the dishwasher is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted without having to start it
again.
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Has the Start button been pressed?
• Has the delayed start timer been set
(if fitted)?
• Is the water supply tap on?
• Is the flow of water obstructed by impurities?
If so, close the water supply tap, detach the
water hose and clean the filter. Then reconnect the water hose to the tap and open
the water tap once again.
• Are the filters clogged? (See “Care and
maintenance” chapter in the user
instructions).
• Is the door closed properly?
• Is a fault indicated?
(The Start indicator lamp flashes).
Start the programme again from the
beginning: Press the Start button for
about 5 seconds, until the Start indicator
lamp switches off.
Select a new programme and press the
Start button.
Troubleshooting Guide
Crockery still dirty after washing:
• Was the crockery loaded properly?
• Crockery must be loaded facing
downwards; make sure, especially for
large crockery.
• The water jets must spray the entire
surface of all items.
• Make sure that crockery and cutlery are
arranged properly.
• Have you selected the correct
programme?
• Did you use too much or too little
detergent? (The use of poor quality
detergents result in less effective
washing).
• Are the filters clogged or incorrectly
assembled?
(See “Care and Maintenance” chapter in
the user instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenance”
chapter in the user instructions).
• Is the lower spray arm correctly fitted?
• Is the salt container cap (water softening
system) screwed down?
Marked crockery:
• Is the water hardness level selector not
properly adjusted? See (“Filling the salt
container” in the user instructions).
• Is the salt container empty?
(See “Filling the salt container” in the user
instructions).
• Was insufficient detergent used? (See
“Filling the detergent dispenser” in the
user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used?
(See “Fill ing the rinse aid dispenser” in the
user instructions).
Note:
With some models, when the Start
button is pressed a pre-wash cycle precedes
the actual wash programme; This
regenerates the water softening system.
AFTER-SALES
SERVICE
If, after carrying out the above checks the
malfunction persists or appears again,
turn the appliance off and turn off the
water supply tap, then call our After-Sales
Service (see guarantee). Please specify:
• The nature of the fault.
• The appliance type and model.
• The service code (the number after
the word Service on the
adhesive rating plate) inside the door on
the right-hand side.
Your full address and telephone number.
•
Please read the user instructions carefully.
Page 4

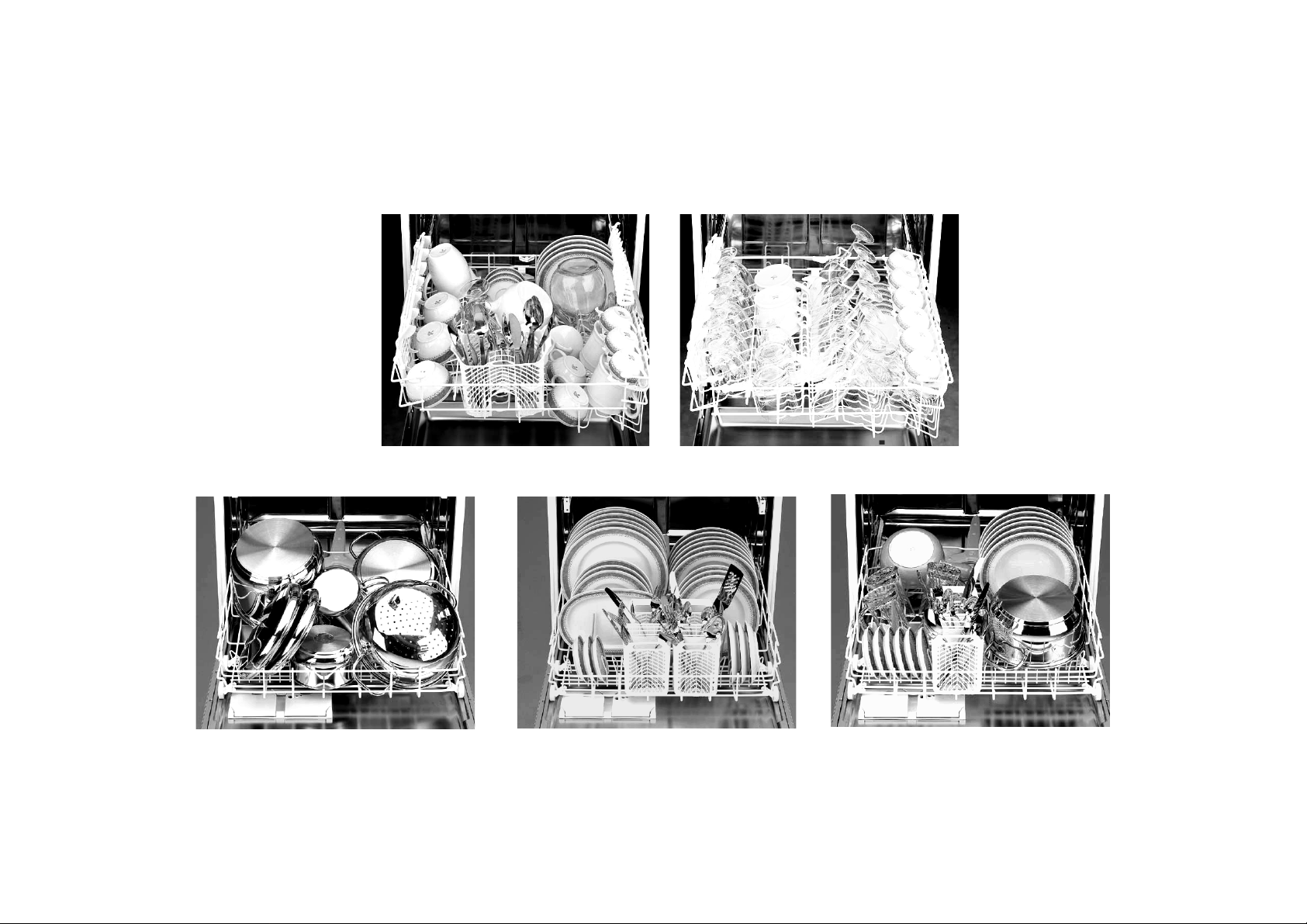

Dishwasher loading instructions
UPPER RACK
LOWER RACK
Depending on the model, rack features may vary (see “Upper and lower rack” description).
