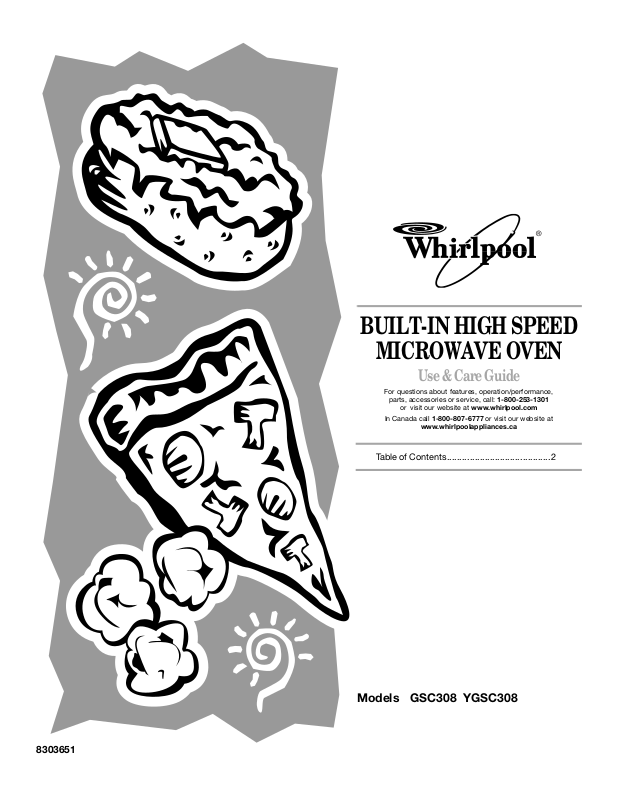

BUILT-IN HIGH SPEED

MICROWAVE OVEN

Use & Care Guide

For questions about features, operation/performance,

parts, accessories or service, call: 1-800-253-1301

or visit our website at www.whirlpool.com

In Canada call 1-800-807-6777 or visit our website at

Table of Contents.........................................2

www.whirlpoolappliances.ca

8303651

Models GSC308 YGSC308

Page 2

TABLE OF CONTENTS

TABLE OF CONTENTS ..................................................................2

MICROWAVE OVEN SAFETY........................................................3

Electrical Requirements ...............................................................5

PARTS AND FEATURES................................................................5

Grids............................................................................................. 5

Crisper Pan and Handle...............................................................5

ELECTRONIC OVEN CONTROL...................................................6

Displays........................................................................................6

Start/Add a Minute......................................................................6

Off/Cancel ....................................................................................6

Clock ............................................................................................7

Tones............................................................................................7

Fahrenheit and Celsius.................................................................7

Timer.............................................................................................7

Control Lock.................................................................................7

Number Codes.............................................................................7

Help Prompts ...............................................................................7

HIGH SPEED COOKING ................................................................8

High Speed Cooking Chart..........................................................8

MICROWAVE OVEN USE ............................................................12

Food Characteristics..................................................................12

Cooking Guidelines....................................................................12

Cookware and Dinnerware ........................................................13

Aluminum Foil and Metal ...........................................................13

Cooking Power...........................................................................13

Cooking ......................................................................................14

Cooking in Stages......................................................................14

Crisper Pan Frying......................................................................14

Reheating ...................................................................................15

Defrost........................................................................................15

Popcorn......................................................................................16

Keeping Food Warm ..................................................................17

Crisp ...........................................................................................17

Broil ............................................................................................17

Convection Cooking...................................................................18

OVEN CARE..................................................................................21

General Cleaning........................................................................21

TROUBLESHOOTING ..................................................................22

ASSISTANCE OR SERVICE.........................................................23

In the U.S.A. ...............................................................................23

In Canada ...................................................................................23

WARRANTY ..................................................................................24

Page 3

MICROWAVE OVEN SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock,

fire, injury to persons, or exposure to excessive microwave energy:

■ Read all instructions before using the microwave oven.

■ Read and follow the specific “PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section.

■ The microwave oven must be grounded. Connect only to

properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section.

■ Install or locate the microwave oven only in accordance

with the provided Installation Instructions.

■ Some products such as whole eggs in the shell and sealed

containers – for example, closed glass jars – may explode and should not be heated in the microwave oven.

■ Use the microwave oven only for its intended use as

described in this manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

■ Oversized foods or oversized metal utensils should not be

inserted in the microwave oven as they may create a fire or risk of electric shock.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■ Do not clean with metal scouring pads. Pieces can burn off

the pad and touch electrical parts involving a risk of electric shock.

■ Do not store any materials, other than manufacturer's

recommended accessories, in this oven when not in use.

■ Do not operate the microwave oven if it has a damaged

cord or plug, if it is not working properly, or if it has been damaged or dropped.

■ Do not deep fry in oven. Microwavable utensils are not

suitable and it is difficult to maintain appropriate deep frying temperatures.

■ Do not use paper products when appliance is operated in

the “PAN BROWN” mode.

■ Do not cover racks or any other part of the oven with metal

foil. This will cause overheating of the oven.

■ As with any appliance, close supervision is necessary

when used by children.

■ The microwave oven should be serviced only by qualified

service personnel. Contact nearest authorized service company for examination, repair, or adjustment.

■ Do not cover or block any openings on the microwave

oven.

SAVE THESE INSTRUCTIONS

Page 4

IMPORTANT SAFETY INSTRUCTIONS

■ Liquids, such as water, coffee, or tea are able to be

overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

– Do not overheat the liquid. – Stir the liquid both before and halfway through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the

Amicrowave oven for a short time before removing the container.

– Use extreme care when inserting a spoon or other utensil

into the container.

■ Do not store the microwave oven outdoors. Do not use this

product near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.

■ See door surface cleaning instructions in the “Oven Care”

section.

■ To reduce the risk of fire in the oven cavity:

– Do not overcook food. Carefully attend the microwave

oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

– Remove wire twist-ties from paper or plastic bags before

placing bags in oven.

– If materials inside the oven should ignite, keep oven door

closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.

– Do not use the cavity for storage purposes. Do not leave

paper products, cooking utensils, or food in the cavity when not in use.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open

since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and

the door or allow soil or cleaner residue to accumulate on sealing surfaces.

important that the oven door close properly and that there is no damage to the:

(1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone

except properly qualified service personnel.

Page 5

Electrical Requirements

H I

Observe all governing codes and ordinances.The microwave oven is connected to a 110-volt side of the 240-volt circuit required for the lower oven. If the incoming voltage to the microwave oven is less than 110 volts, cooking times may be longer. Have a qualified electrician check your electrical system.

This device complies with Part 18 of the FCC Rules.

PARTS AND FEATURES

This manual covers different models. The oven you have purchased may have some or all of the parts and features listed. The location and appearance of the features shown here may not match those of your model.

Grids

■ Grids will become hot. Always use oven mitts or pot holders

when handling.

■ Do not allow the grids to touch the inside cavity walls, ceiling

or floor.

■ Always use the turntable.

■ Do not store the grids in the oven. Damage to the oven could

result if someone accidentally turns on the microwave oven.

■ Do not use another metal object with the grids.

■ Two-level cooking is not recommended.

■ Do not place popcorn bags on the grids.

■ The grids are designed specifically for this oven. Do not

attempt to use any other grid or rack in this oven.

■ See “Assistance or Service” section to reorder.

Broiling Grid (long legs)

The broiling grid places food close to the broil element, making it ideal for fast browning of small amounts of food. Use for broiling only.

Convection Grid (short legs)

The convection grid provides optimal heat circulation for highspeed cooking and convection cooking.

Crisper Pan and Handle

The crisper pan is ideal for rapidly browning and crisping the bottom of the food, such as cookies and pizza.

A. Light (inaccessible, in ceiling) B. Convection element and fan

(hidden behind back panel) C. Turntable D. Turntable support

(under turntable) E. Metal shielded window

F. Door handle

G. Lower oven (on combination

models, see separate Use and

Care Guide)

H. Oven control

I. Door safety lock system

J. Broil element

(hidden in ceiling)

K. Dual microwave emission

L. Cooking guide labels

Parts and Features not shown

Broiling grid Convection grid Crisper pan and handle

This unit must be connected to a 240-volt circuit.

The material coating the bottom absorbs microwaves and transfers the heat to the pan and food. The crisper pan reaches 436°F (210°C) in approximately 3 minutes, at which time it stops absorbing microwaves and holds this optimal frying temperature.

■ The crisper pan will become hot. Always use the handle and

oven mitts or pot holders when handling. Place gripping end on the edge of pan, squeeze handle, and lift pan.

■ Do not allow the crisper pan or handle to touch the inside

cavity walls, ceiling or floor.

■ Always use the turntable.

■ Do not use another metal object with the crisper pan.

■ The crisper pan is designed specifically for this oven. Do not

use it in any other oven.

■ Use only wooden or plastic cooking utensils to help prevent

scratches.

■ See “Assistance or Service” section to reorder.

Page 6

ELECTRONIC OVEN CONTROL

A. Lower oven display B. Number pads C. Upper oven display D. Timer E. Clock

F. Lower oven selectors

(see separate Use and Care Guide)

G. Quantity H. Microwave popcorn

I. Microwave cooking power

J. Microwave reheating

K. Broiling

Displays

When power is first supplied to the appliance, everything on both displays will light up for 5 seconds. Then, “PF id = 27” or “PF id = 30” will appear on the lower oven display. Touch

OFF/CANCEL to clear display. If “PF id = 27” or “PF id = 30” appears at any other time, a power

failure has occurred. Touch OFF/CANCEL and reset the clock if needed.

Lower Oven Display

When the lower oven is in use, this display shows the lower oven temperature, heat source(s) and start time.

During lower oven Timed Cooking, this display also shows a vertical bar and minute time countdown and the stop time (if entered).

If “Err” appears on the display, an invalid pad was touched. Touch OFF/CANCEL and retry the entry.

When the lower oven is not in use, this display is blank.

Upper Oven Display

When the upper oven is in use, this display shows the upper oven heat source(s), cooking power, quantities, weights and/or help prompts.

If “RETRY” flashes on the display for 1 second, an invalid pad was touched. Retry the entry.

When the upper oven is not in use, this display shows the time of day or Timer countdown.

L. Microwave defrosting

M. Crisping

N. Convection cooking O. High-Speed cooking P. S t a rt Q. Upper oven off/cancel

Start/Add a Minute

Starting

The START/ADD A MINUTE pad begins any upper oven function except the Timer. If not touched within 5 seconds after touching a pad, “START?” will appear on the upper oven display as a reminder. If not touched within 5 minutes after touching a pad, the oven display will return to the time of day mode and the programmed function will be canceled. If cooking is interrupted, touching START/ADD A MINUTE will resume the preset cycle.

Adding Minutes

During High Speed Cooking, Crisping and Broiling, touching START/ADD A MINUTE while the oven is operating will add cook time in 1-minute increments.

During Microwave Cooking, touching START/ADD A MINUTE while the oven is operating, or at the end of a cycle, will add cook time at 100% cook power in 1-minute increments.

During Convection Cooking, touching START/ADD A MINUTE will not add minutes.

Off/Cancel

The upper oven OFF/CANCEL pad stops any upper oven function except for the Clock, Timer and Control Lock.

The oven will also turn off when the door is opened. When the door is opened, the element(s) and fan will turn off, but the upper oven light will remain on. Close the door and touch START/ADD A MINUTE to resume the cycle.

Page 7

Clock

This is a 12-hour clock and does not show a.m. or p.m.

To S et :

Before setting, make sure the ovens, Timer and Timed Cooking are off.

1. Touch CLOCK.

2. Touch the number pads to set the time of day.

3. Touch CLOCK, START or START/ADD A MINUTE. To remove the time of day from the display: Touch and hold

CLOCK for 5 seconds. To return the time of day to the display: Touch CLOCK. The

time should not have to be reset.

Ton es

Tones are audible signals, indicating the following:

One tone

■ Valid pad touch

■ Oven is preheated

■ Function has been entered

Three tones

■ Invalid pad touch

Four tones

■ End of cycle

■ Reminder, repeating each minute after the end-of-cycle tones

All Tones

All of the above tones are preset on, but can be turned off. To Turn Off/On: Touch and hold STOP TIME for 5 seconds. A

tone will sound, and “Snd oFF” will appear on the lower oven display for 3 seconds. Repeat to change back to “Snd on.”

Ton e Volum e

The volume is preset at high, but can be changed to low. To C ha nge : Touch and hold the number pad “7” for 5 seconds. A

tone will sound, and “Snd Lo” will appear on the lower oven display for 3 seconds. Repeat to change back to “Snd HI.”

Reminder Tones

The Timer arnd Timed Cooking reminder tones are preset on, but can be turned off. Reminder tones do not include end-of-cycle tones. If “All Tones” have been turned off, the reminder tones cannot be turned on independently.

Timer

To Tu rn Ton es O ff/ On : Touch and hold TIMER SET until a tone

sounds. Repeat to turn back on.

Timed Cooking

To Tu rn Ton es O ff/ On : Touch and hold COOK TIME until a tone

sounds and the lower oven display returns to inactive mode (blank). Repeat to turn back on.

Fahrenheit and Celsius

The temperature is preset at Fahrenheit, but can be changed to Celsius.

To Change: Touch and hold CUSTOM BROIL for 5 seconds. A tone will sound, and “C” will appear on the display. Repeat to change back to Fahrenheit. To remove, touch UPPER OFF, LOWER OFF or OFF/CANCEL.

Timer

The Timer can be set in minutes and seconds or hours and minutes, and counts down the set time. The Timer does not start or stop the oven.

To S et :

1. Touch TIM E R SE T.

Touch again to switch between MIN/SEC and HR/MIN. If no action is taken after 1 minute, the upper oven display will

return to the time of day mode.

2. Touch the number pads to set length of time.

3. Touch TIMER SET or START/ADD A MINUTE.

If not touched within 5 seconds, the display will return to the time of day mode and the programmed function will be canceled.

When the set time ends, if enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

4. Touch TIMER OFF anytime to cancel the Timer and/or stop

reminder tones. Remember, touching the Off/Cancel pads will turn off the

respective oven. The time can be reset during the countdown by repeating the

above steps.

Control Lock

The Control Lock shuts down the control panel pads to prevent unintended use of the ovens.

When the control is locked, only the CLOCK, TIMER SET and TIMER OFF pads will function.

The Control Lock is preset unlocked, but can be locked. To Lock/Unlock Control: Before locking, make sure the ovens,

Timer and Timed Cooking are off. Touch and hold START until 3 tones sound and “CONTROL LOCK” and a picture of a lock appear on the lower oven display, about 3 seconds. Repeat to unlock and remove “CONTROL LOCK” from display.

Number Codes

The oven is preset with shortcut number codes for High Speed and Microwave Cooking. A number code includes one or more of the following; cooking power, cook time and food quantity or weight. See the code charts in the “High Speed Cooking,” “Custom Reheating,” “Custom Defrosting” and “Popcorn” sections for additional information.

Help Prompts

Help prompts are visible messages that appear on the upper oven display.

Before turning help prompts on/off, both ovens, the Minute Timer and any lower oven Timed Cooking must be off.

To Turn Off/On: Press and hold the number pad “2” for 5 seconds. A tone will sound, and either “HELP OFF” or “HELP ON” will flash on the upper oven display for 3 seconds. Repeat for desired option.

Page 8

HIGH SPEED COOKING

■ When roasting, meats and poultry will spatter. Plastic oven

bags designed for conventional oven use can be used for easier cleanup. Follow manufacturer’s recommendations.

■ When using the crisper pan or convection grid, place them

directly on the turntable.

■ Select tender cuts of meat for optimal cooking results.

■ Arrange pieces of food in a single layer on the crisper pan or

baking dish.

A. Broil element B. Convection element and fan C. Dual microwave emission

High Speed Cooking uses the broil element, convection element and fan and microwaves. All cycle on and off in intervals.

■ Bakeware and the interior oven surfaces, including the door,

will become hot.

■ Always use an instant read meat thermometer to determine

doneness of meat and poultry.

■ Use nonmetallic, ovenproof glass, ceramic or plastic

approved for conventional oven use.

■ Covers are not necessary unless recommended in recipe.

If recommended, use a casserole dish and its lid for optimal results.

■ Do not use covers or containers made of foil, paper, waxed

paper or plastic not recommended for use in a conventional oven.

To U se :

Before High Speed Cooking, put food in the oven and close the door. Preheating is not necessary.

1. Press SPEED COOK.

2. Press the number pads to enter the food code from the chart.

If “WGT” or “QTY” appears on the upper oven display, Press the number pads to enter the quantity or weight from the chart or press 0 QUANTITY to increase the weight in increments from the chart.

3. Press START/ADD A MINUTE or wait 5 seconds for oven to

turn on automatically. The upper oven display will count down the cook time.

When the cycle ends, “End” will appear in the upper oven display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

4. Press upper oven OFF/CANCEL or open the upper oven door

when finished to clear the upper oven display.

High Speed Cooking Chart

Preset cooking times have been determined, however individual tastes vary. If cooking results are not desirable after the cycle is over, code number 69 will add 2 additional minutes of cook time. It can be used multiple times. Also, check the food a few minutes after the cycle has ended, to help avoid overcooking.

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS

BISCUITS AND ROLLS

Biscuits, Large, Refrigerated 60 5 or 8. Arrange on crisper pan. Place on turntable.

Biscuits, Small, Refrigerated 59 6 or 12. Arrange on crisper pan. Place on turntable.

Cinnamon Rolls, Large, Refrigerated 62 No quantity entry required. Arrange on crisper pan. Place on turntable.

Cinnamon Rolls, Small, Refrigerated 61 5 or 8. Arrange on crisper pan. Place on turntable.

Orange Sweet Rolls, Refrigerated 63 No quantity entry required. Arrange on crisper pan. Place on turntable.

CASSEROLES

Casserole, Freshly Made 27 4-10 cups (1-2.5 L) in 1 cup (250 mL) increments. Place in casserole dish. Place

convection grid on turntable, then casserole dish on grid.

Entrée, Frozen 29 10-45 oz (283 g-1.3 kg) in 0.5 oz (14 g) increments. Loosen plastic film covering.

Place convection grid on turntable, then entrée on grid.

Lasagna, Freshly Made 28 No quantity entry required. Use recipe that makes about 8 cups (2 L) and an

11" x 7" (28 x 18 cm) baking dish. Place convection grid on turntable, then baking dish on grid.

Page 9

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS

CONVENIENCE FOODS, FROZEN

Chicken Breast Tenders 54 5 to 20 pieces. Arrange on crisper pan. Place on turntable.

Chicken Nuggets 55 6 to 26 pieces. Arrange on crisper pan. Place on turntable.

Chicken Wings, Buffalo Hot 49 0.5-1.5 lbs (227-680 g) in 0.25 lb (113 g) increments. Place in baking dish. Place

Dinners 43 6.5-16.5 oz (184-468 g) in 0.5 oz (14 g) increments. Follow package instructions

Egg Rolls 47 1 to 8 pieces, 3 oz (85 g) each. Place egg rolls directly on convection grid, then

Egg Rolls, Mini 48 6 to 24 pieces. Place egg rolls on crisper pan and crisper pan on turntable.

Entrée 29 10-45 oz (283 g-1.3 kg) in 0.5 oz (14 g) increments. Loosen plastic film covering.

Fish Portions, Battered 41 2 to 8 pieces, about 2 oz (57 g) each. Arrange on crisper pan. Place on turntable.

Fish Sticks, Breaded 42 No quantity entry required. Use 4 to 18 pieces. Arrange on crisper pan. Place on

French Fries 44 3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

Onion Rings 57 4-16 oz (113-454 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

Pizza 40 6", 9" and 12" (15, 23 and 30 cm) diameter. Arrange on crisper pan. Place on

convection grid on turntable, then baking dish on grid.

for venting of plastic film. Place convection grid on turntable, then dinner on grid.

grid on turntable.

Place convection grid on turntable, then entrée on grid.

turntable.

Pizza Rolls, Mini 53 6 to 24 pieces. Arrange on crisper pan. Place on turntable.

Potato Nuggets 46 3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

Potato Wedges 45 3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

DESSERTS

Baked Apples 37 2 to 8 pieces. Place in baking dish. Place convection grid on turntable, then

Bread Pudding 39 No quantity entry required. Place in 2 qt (2 L) casserole dish. Place convection

Brownies 51 No quantity entry required. Use amount of batter for a 9" x 13" (23 x 33 cm) dish.

Cake 50 No quantity entry required. Use amount of batter for a 9" x 13" (23 x 33 cm) dish.

Cookies, Refrigerated Dough 64 No quantity entry required. Drop rounded teaspoonful (5 mL) of cookie dough on

Fruit Crisp 38 2 or 3 qts (2 or 3 L). Place in baking dish. Place convection grid on turntable, then

turntable.

baking dish on grid.

grid on turntable, then baking dish on grid.

Spray crisper pan with nonstick cooking spray and dust with dry bread crumbs. Spread batter into crisper pan. Place crisper pan on turntable.

crisper pan. Pan will hold 12 cookies at a time. Place crisper pan on turntable.

baking dish on grid.

Page 10

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS

MEATS

Beef

Beef Roast, Boneless 16 1.5-5 lbs (680-2268 g) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Meatballs 20 No quantity entry required. Shape meat mixture into 20, 1¹⁄₂" (4 cm) meatballs.

Meat Loaf 18 1.5-2 lbs (680-907 g) of meat in 0.25 lb (113 g) increments. Place meat loaf in a

Meat Loaf and 6 Potatoes 19 No quantity entry required. Place meat loaf made with 1.5 lbs (680 g) of meat in

Swiss Steak 17 1-2 lbs (454 g-1 kg) in 0.25 lb (113 g) increments. Follow recipe instructions,

Lamb

Leg of Lamb, Boneless 26 1-2.5 lbs (454 g-1 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Pork

oven bag. Put roast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Place in baking dish. Place convection grid on turntable, then baking dish on grid.

glass baking dish. Small in a 8.5" x 4.5" (21.5 x 11 cm) dish. Large in a 9" x 5" (23 x 13 cm) dish. Place convection grid on turntable, then baking dish on grid.

an 8¹⁄₂" x 4¹⁄₂" (21.5 x 11 cm) baking dish. Place convection grid on turntable, then baking dish on grid. Prick skins of potatoes and arrange on grid around the meat loaf dish.

browning meat in a skillet. Place meat in baking dish. Add other recipe ingredients to dish. Place convection grid on turntable, then baking dish on grid.

oven bag. Put leg of lamb in bag and close with plastic tie. Cut 6 small slits in top of bag. Place convection grid on turntable, then baking dish on grid.

Ham, Fully Cooked, Boneless 25 1-4.5 lbs (454 g-2 kg) in 0.1 lb (45 g) increments . Shake 1 tbs (15 mL) of flour in

Pork Chops, Bone-in, ³⁄₄" (2 cm) thick 23 0.4-1.5 lbs (181-680 g) in 0.1 lb (45 g) increments. Place in baking dish. Place

Pork Chops, Boneless, ³⁄₄" (2 cm) thick 24 0.3-1.6 lbs (136 g-2 kg) in 0.1 lb (45 g) increments. Place in baking dish. Place

Pork Roast, Bone-in 21 2.5-4.5 lbs (1-2 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Pork Roast, Boneless 22 1-5 lbs (454 g-2 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Poultry

Chicken Breasts, Boneless, Skinless 12 0.2-2 lbs (91-907 g) in 0.1 lb (45 g) increments. Place in baking dish. Place

Chicken Breast Tenders, Frozen 54 5 to 20 pieces. Arrange on crisper pan. Place on turntable.

Chicken Nuggets, Frozen 55 6 to 26 pieces. Arrange on crisper pan. Place on turntable.

oven bag. Put ham and 0.5 cup (125 mL) water in bag. Close with plastic tie and cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

convection grid on turntable, then baking dish on grid.

oven bag. Put pork roast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

convection grid on turntable, then baking dish on grid.

Chicken Pieces, Bone-in, with Skin 11 0.5-2 lbs (227-907 g) in 0.1 lb (45 g) increments. Place in baking dish. Place

convection grid on turntable, then baking dish on grid.

Page 11

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS

Chicken Wings, Buffalo Hot, Frozen 49 0.5-1.5 lbs (227-680 g) in 0.25 lb (113 g) increments. Place in baking dish. Place

Chicken, Whole 10 3-5.5 lbs (1.3-2.5 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Cornish Hens 15 1.5-4.5 lbs (680 g-2 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Turkey Breast, Bone-in 14 2-6.5 lbs (907 g-3 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Turkey, Whole, Unstuffed 13 10-12 lbs (4.5-5.5 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in

Seafood

Fish Fillets, ³⁄₄" (2 cm) thick 67 0.4-1.2 lbs (181-544 g) in 0.1 lb (45 g) increments. Spray crisper pan with

Fish Portions, Battered, Frozen, about 2 oz (57 g) each

41 2 to 8 pieces. Arrange on crisper pan. Place on turntable.

convection grid on turntable, then baking dish on grid.

oven bag. Put chicken in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

oven bag. Put hen(s) in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable and baking dish on grid.

oven bag. Put breast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid. If dish with turkey is too tall, do not use grid.

oven bag. Put turkey in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid. If dish with turkey is too tall, do not use grid.

nonstick cooking spray. Place fish on crisper pan and crisper pan on turntable.

Fish Steaks, 1" (2.5 cm) thick 68 0.3-1.3 lbs (136-590 g) in 0.1 lb (45 g) increments. Spray crisper pan with

Fish Sticks, Breaded, Frozen 42 No quantity entry required. Use 4 to 18 pieces. Arrange on crisper pan. Place on

Shrimp, Raw, Shelled 52 0.25-1 lbs (113-454 g) in 0.25 lb (113 g) increments. Spray crisper pan with

VEGETABLES

Baked Potatoes, Large, White 30 1 to 8 potatoes. Pierce skins. Place on convection grid and grid on turntable.

Baked Potatoes, Small-Medium, White

Baked Sweet Potatoes, Large 32 1 to 6 potatoes. Cut off thin, dried ends. Pierce skins. Place on convection grid

Baked Sweet Potatoes, Small-Medium

French Fries, Frozen 44 3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

Onion Rings, Frozen 57 4-16 oz (113-454 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

31 1 to 8 potatoes. Pierce skins. Place on convection grid and grid on turntable.

33 1 to 6 potatoes. Cut off thin, dried ends. Pierce skins. Place on convection grid

nonstick cooking spray. Place fish on crisper pan and crisper pan on turntable.

turntable.

nonstick cooking spray. Place shrimp on crisper pan and crisper pan on turntable.

and grid on turntable.

turntable.

Potato Mixes, Dry, Scalloped or Au Gratin

Potato Nuggets, Frozen 46 3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

35 No quantity entry required. Follow package directions. Place convection grid on

turntable, then baking dish on grid.

turntable.

Page 12

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS

Potato Skins 65 No quantity entry required. Bake 1.5 lbs (680 g) potatoes. Scoop out insides

Potato Wedges, Frozen 45 3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on

Roasted Potatoes, Coating Mix, 3¹⁄₂ cups (875 mL) cubed potatoes

Roasted Vegetables 36 2-8 cups (500 mL-2 L) in 1 cup (250 mL) increments. Cut fresh vegetables in bite-

MISCELLANEOUS

Cook 2 minutes longer 69 No quantity entry required. Gives 2 more minutes of cooking time. Use this code

Hot Dogs 56 2 to 10 pieces, 0.1 lb (45 g) each. Arrange on crisper pan. Place on turntable.

Nachos 58 No quantity entry required. Use 8 oz (227 g) chips, salsa, cheese and other

Pizza Reheat 66 1 to 4 pieces. Place pizza slices on crisper pan and crisper pan on turntable.

34 No quantity entry required. Follow coating mix package directions. Place in

leaving a 3/8" (1 cm) shell. Brush both sides with butter. Place skins on crisper pan and crisper pan on turntable. With 1 minute of cooking time remaining, add toppings if desired.

turntable.

baking dish. Place convection grid on turntable, then baking dish on grid.

size pieces. Toss with olive or cooking oil and seasonings. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

to finish cooking foods not done to your liking. May be used more than once.

toppings to create your own nachos. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

MICROWAVE OVEN USE

A magnetron in the oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food.

■ Do not lean on or allow children to swing on the microwave

oven door.

■ Do not operate microwave oven when it is empty.

■ The turntable must be in place and correct side up when

microwave oven is in use. Do not use if turntable is chipped or broken. See “Assistance or Service” section to reorder.

■ Baby bottles and baby food jars should not be heated in

microwave oven.

■ Clothes, flowers, fruit, herbs, wood, gourds, paper, including

brown paper bags and newspaper, should not be dried in microwave oven.

■ Do not use the microwave oven for canning, sterilizing or

deep frying. The microwave oven cannot maintain appropriate temperatures.

■ Paraffin wax will not melt in the microwave oven because it

does not absorb microwaves.

■ Use oven mitts or pot holders when removing containers from

microwave oven.

■ Do not overcook potatoes. At the end of the recommended

cook time, potatoes should be slightly firm. Let potatoes stand for 5 minutes. They will finish cooking while standing.

■ Do not cook or reheat whole eggs inside the shell. Steam

buildup in whole eggs may cause them to burst. Cover poached eggs and allow a standing time.

Food Characteristics

When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results.

Amount of Food

The more food heated at once, the longer the cook time. Check for doneness and add small increments of time if necessary.

Size and Shape

Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food.

Starting Temperature

Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods.

Composition and Density

Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake.

Cooking Guidelines

Covering

Covering food helps retain moisture, shorten cook time and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam.

Page 13

Condensation on the door and cavity surfaces is normal during heavy cooking.

MATERIAL RECOMMENDATIONS

Stirring and Turning

Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top.

Arranging

If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty.

Piercing

Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent.

Shielding

Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and fish tail. See “Aluminum Foil and Metal” first.

Standing Time

Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food.

Cookware and Dinnerware

Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using.

MATERIAL RECOMMENDATIONS

Straw, Wicker, Wooden Containers

Wax Paper Acceptable for use.

Do not use in microwave oven.

To Test Cookware or Dinnerware for Microwave Use:

1. Put cookware or dinnerware in microwave oven with 1 cup

(250 mL) of water beside it.

2. Cook at 100% cooking power for 1 minute. Do not use cookware or dinnerware if it becomes hot and the

water stays cool.

Aluminum Foil and Metal

Always use oven mitts or pot holders when removing dishes from the microwave oven.

Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven.

OK for Use

Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines:

■ Do not allow aluminum foil or metal to touch the inside cavity

walls, ceiling or floor.

■ Always use the turntable.

■ Do not allow contact with another metal object during

cooking.

Do Not Use

Aluminum Foil, Metal

Browning Dish Bottom must be at least ³⁄₁₆" (5 mm)

Ceramic Glass, Glass

China, Earthenware

Melamine Follow manufacturer’s recommendations.

Paper: Towels, Dinnerware, Napkins

Plastic: Wraps, Bags, Covers, Dinnerware, Containers

Pottery and Clay Follow manufacturer’s recommendations.

Styrofoam* Do not use in microwave oven.

See “Aluminum Foil and Metal” section.

above the turntable. Follow manufacturer’s recommendations.

Acceptable for use.

Follow manufacturer’s recommendations.

Use nonrecycled and those approved by the manufacturer for microwave oven use.

Use those approved by the manufacturer for microwave oven use.

Metal cookware and bakeware, gold, silver, pewter, nonapproved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven.

Cooking Power

Many recipes for microwave cooking specify which cooking power to use by percent, name or number. For example, 70%=7=Medium-High.

Use the following chart as a general guide for the suggested cooking power of specific foods.

PERCENT/ NAME

100%, High (default setting)

90% 9 Cooking small, tender pieces of

NO. USE

10 Quick heating convenience foods

and foods with high water content, such as soups, beverages and most vegetables.

meat, ground meat, poultry pieces and fish fillets.

Heating cream soups.

Page 14

PERCENT/ NAME

80% 8 Heating rice, pasta or casseroles.

70%, Medium-High

NO. USE

Cooking and heating foods that need a cook power lower than high. For example, whole fish and meat loaf.

7 Reheating a single serving of food.

To Change Cook Time: Tou ch MI CRO POW ER on ce. En ter the new cook time within 5 seconds. Touch START/ADD A MINUTE, or wait 5 seconds and the change will be entered automatically.

To Change Cooking Power: Touch MICRO POWER twice. Enter the new cook power within 5 seconds. Touch START/ADD A MINUTE, or wait 5 seconds and the change will be entered automatically.

Cooking in Stages

The microwave oven can be set to cook at different cooking powers for various lengths of time, up to 3 stages.

60% 6 Cooking sensitive foods such as

50%, Medium 5 Cooking ham, whole poultry and

40% 4 Melting chocolate.

30%, MediumLow, Defrost

20% 2 Softening butter, cheese, and ice

10%, Low 1 Taking chill out of fruit.

cheese and egg dishes, pudding and custards.

Cooking non-stirrable casseroles, such as lasagna.

pot roasts. Simmering stews.

Heating bread, rolls and pastries.

3 Defrosting bread, fish, meats,

poultry and precooked foods.

cream.

To Set a Cooking Power other than 100%:

1. Touch the number pads to set a length of time to cook.

2. Touch MICRO POWER.

3. Touch the number pad using the Cooking Power chart

4. Touch START/ADD A MINUTE.

The display will count down the cook time. When the cycle ends, “End” will appear in the display, 4 end-

of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

Cooking

To U se :

1. Touch the number pads to set a length of time to cook.

Touch MICRO POWER to set a cooking power other than 100%. Touch the number pad(s) using the Cooking Power chart.

2. Touch START/ADD A MINUTE.

The display will count down the cook time. When the cycle ends, “End” will appear in the display, 4 end-

of-cycle tones will sound, and then reminder tones will sound every minute.

3. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

The cook time and cooking power can be changed after touching START/ADD A MINUTE without interrupting cooking.

To Cook in Stages:

1. Touch the number pads to set a length of cook time for the

first stage.

2. Touch MICRO POWER and then enter a cook power (if other

than 100%) from the Cook Power Chart.

3. Touch MICRO POWER to start programming next stage.

4. Repeat the above steps for second and third stage

programming. The numbers “1,” “2” and/or “3” will appear in the upper oven

display during programming.

5. Touch START/ADD A MINUTE when cook times and cook

powers have been entered. The upper oven display will count down each of the cook

times. The numbers “1,” “2” or “3” will appear in the display during their respective stages.

When the cycle ends, “End” will appear in the display, 4 end of cycle tones will sound, and then reminder tones will sound every minute.

Cook time may be changed during any cycling stage by touching MICRO POWER once, and then entering the new time within 5 seconds. Time may be added in 1-minute increments by touching START/ADD A MINUTE during the cycling stage.

6. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

Crisper Pan Frying

When the crisper pan is used with microwaves, it is like a frying pan or griddle, ideal for French toast, burgers, eggs, stir-frying and sautéing. See “Crisper Pan and Handle” section first before using.

To U se :

Before crisper pan frying, brush crisper pan with ¹⁄₂ tsp (3 mL) of oil or spray with nonstick cooking spray. Arrange food on crisper pan. Place pan on turntable.

1. Touch the number pads to set a length of time to cook.

2. Touch START/ADD A MINUTE.

The upper oven display will countdown the cook time. When the cycle ends, “End” will appear in the upper oven

display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

3. Touch upper oven OFF/CANCEL or open the upper oven

door to clear the display and/or stop reminder tones.

Page 15

CRISPER PAN FRYING CHART

Times are approximate and may be adjusted for individual tastes.

FOOD COOKTIME INSTRUCTIONS

Bacon, Canadian 2¹⁄₄" (6 cm) thick slices

Eggs, scrambled 2

French Toast, Pancakes, Waffles, 4 Frozen

Ground Beef, 1 lb (454 g)

Ground Beef Patties, two 4 oz (113 g) patties

Pizza Dough, uncooked

9 and 12" (23 and 30 cm)

Vegetables, stir-fry, 2 cups (500 mL)

1 minute Turn slices over on

45 sec. to 1 min. 2 to 3 minutes

3 to 4 minutes Turn halfway

6 to 7 minutes Crumble meat

Side1: 2 minutes Side 2: 2 to 4 min.

4 to 5 minutes Sprinkle with corn

4 minutes Cut vegetables in

crisper pan after cooking.

Mix 1 tbs (15 mL) of water per egg and pour into preheated pan.

through cooking.

before cooking. Stir halfway through cooking. Make sure no pink center.

Cook completely, no pink center.

meal. Press dough into pan. After precooking dough, add sauce and toppings.

equal sizes. Stir after 2 minutes.

Reheating

Times and cooking powers have been preset for reheating 8 food types. Use the following chart as a guide.

FOOD CODE QUANTITY

Dinner Plate 1 1 to 2 servings

Bread 2 1 to 6 slices

Meats 3 1 to 6 servings

*Cheese Dip 4 1 to 3 cups (250 - 750 mL)

*Soup 5 1 to 4 cups (250 mL-1 L)

*Sauce 6 1 to 3 cups (250 - 750 mL)

Pizza 7 1 to 2 servings

Beverage 8 Serving Temperature

1 Coffee 2 Tea 3 Hot Chocolate

1 Warm 2 Hot 3 Very Hot

*Four tones will sound at the midpoint of the reheat cycle, and

“STIR” will appear in the display. Stir food if desired, close door, and touch START/ADD A MINUTE.

To Reheat Foods:

1. Touch REH EAT.

Touch number pad to select food type from the Reheat chart.

Touch REHEAT repeatedly to scan and select food settings. For example, to select the Bread setting, REHEAT must be touched twice.

2. Touch number pads to enter quantity (in servings, strips or

cups)

Touch QUANTITY (number pad “0”) to scan and select quantities. For example, to select the quantity of 2 servings, QUANTITY must be touched twice.

3. Touch START/ADD A MINUTE or wait 5 seconds, and the

microwave oven will start automatically. The upper oven display will count down the reheat time.

When the cycle ends, “END” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute.

4. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

To R eheat Be ve ra ges:

1. Touch REH EAT.

2. Touch number pad “8”

Touch REHEAT repeatedly until the Beverages setting, “BEVRG-8” is reached.

3. Touch number pad from chart to select beverage type.

4. Touch number pad from chart to select serving temperature.

5. Touch START/ADD A MINUTE or wait 5 seconds and the

microwave oven will start automatically. The upper oven display will count down the reheat time.

When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute.

IMPORTANT: Heated liquids can splash out during and after heating. A wooden stir stick placed in the cup or bowl during heating may help avoid this.

6. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

For more information on reheating different foods using the manual microwave function, see “Microwave Reheat Chart” at the end of the “Microwave Oven Use” section.

Defrost

The Defrost feature can be used, or the microwave oven can be manually set to defrost by using 30% cook power.

■ Food should be 0°F (-18°C) or colder at defrosting for optimal

results.

■ Unwrap foods and remove lids (from fruit juice) before

defrosting.

■ Shallow packages will defrost more quickly than deep blocks.

■ Separate food pieces as soon as possible during or at the

end-of-cycle for more even defrosting.

Page 16

■ Foods left outside the freezer for more than 20 minutes or

frozen ready-made food should not be defrosted using the Custom Defrost feature, but should be defrosted manually.

■ Use small pieces of aluminum foil to shield parts of food such

as chicken wings, leg tips and fish tails. See “Aluminum Foil and Metal” first.

DEFROST CHART

The Custom Defrost system has six categories: Meat, Poultry, Fish, Bagel, Fruit Juice, and Roll/Muffin. Use the following chart as a guide.

FOOD SETTING

*Meats 1 0.1 to 6.6 lbs (45 g to 3 kg)

CODE WEIGHT OR QUANTITY

MEAT, POULTRY AND FISH DEFROST PREPARATION

Use the following chart as a guide when defrosting meat, poultry, or fish. When setting the Custom Defrost cycle, the net weight must be entered in pounds and tenths of pounds.

MEAT

Beef: ground, steaks, roast, stew

Lamb: stew and chops

Pork: chops, ribs, roasts,

sausage

The narrow or fatty areas of irregular shaped cuts should be shielded with foil before defrosting.

Do not defrost less than ¹⁄₄ lb (113 g) or two 4oz(113g) patties.

Place all meats in microwavable baking dish.

*Poultry 2 0.1 to 6.6 lbs (45 g to 3 kg)

*Fish 3 0.1 to 4.4 lbs (45 g to 1.34 kg)

**Bagel 4 1 to 6 pieces

Fruit Juice 5 6, 12 or 16 oz (170, 340 or 454 g)

Roll/Muffin 6 1 to 6 pieces

*See Preparation chart at end of “Defrost” section for cuts, sizes,

and instructions.

**Bagel quantity settings 1 and 2 may appear to have longer

defrost times than necessary; however, longer times use less cooking power.

To use Defrost:

1. Touch DEFROST.

2. Touch the number pad from the Defrost chart to select food

Touch DEFROST repeatedly to scroll through foods.

3. Touch number pads from the Defrost chart to select the

weight or quantity

Touch QUANTITY (number pad “0”) repeatedly to select quantity.

4. Touch START/ADD A MINUTE or wait 5 seconds and the

microwave oven will start automatically. The display will count down the defrost time. For better

results, a preset standing time is included in the defrosting time. This may make the defrosting time seem longer than expected.

When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

The cook time can be changed during the defrosting cycle without interrupting cooking.

POULTRY

Chicken: whole and cut up Place in microwavable

baking dish, chicken breast

Cornish hens

side up. Remove giblets from whole

Tur ke y: breast

chicken.

FISH

Fillets, Steaks, Whole, Shellfish

Place in microwavable baking dish.

Popcorn

■ Do not use regular paper bags or glass utensils.

■ Pop only one package of popcorn at a time.

■ Follow manufacturer’s instructions when using a microwave

popcorn popper.

■ Listen for popping to slow to 1 pop every 1 or 2 seconds.

Do not repop unpopped kernels.

■ Use fresh bags of popcorn for optimal results.

■ Cooking results may vary by brand and fat content.

Popping time has been preset based on commercially packaged microwave popcorn. The oven is preset for the 3.5 oz (99 g) size, but can be changed. Use the following chart as a guide.

BAG SIZE CODE TOUCH PAD

3.5 oz (99 g) 1 Once

3.0 oz (85 g) 2 Twice

1.75 oz (50 g) 3 Three times

To Pop Popcorn:

1. Touch POPCORN (3 SIZES).

The microwave oven will be set to automatically begin the pop setting for the 3.5 oz (99 g) bag size.

Touch POPCORN (3 SIZES) repeatedly to scan and select bag size

Touch number pad from chart to manually select bag size.

Page 17

2. Touch START/ADD A MINUTE or wait 5 seconds for the

popping to begin automatically. The upper oven display will count down the popping time.

Time may be added to popping time by touching START/ADD A MINUTE during or after popping.

When the popcorn cycle ends, “End” will appear in the display, 4 end-of-cycle tones will sound, and then reminder tones will sound every minute.

3. Touch upper oven OFF/CANCEL or open the door to clear the

display and/or stop reminder tones.

Keeping Food Warm

3. Touch START/ADD A MINUTE.

The upper oven display will count down the crisp time. Time may be added during cooking by touching START/ADD

A MINUTE. When the cycle ends, “End” will appear in the display, 4 end-

of-cycle tones will sound, and then reminder tones will sound every minute.

4. Touch upper oven OFF/CANCEL or open the door to clear the

display.

CRISPING CHART

Times are approximate and may be adjusted for individual tastes.

FOOD COOK TIME PREPARATION

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Hot cooked food can be kept warm in the microwave oven. Foods that are cooked covered and complete meals on dinner

plates should be covered while being kept warm. Pastry items such as pies and turnovers should be uncovered while being kept warm.

To Keep Food Warm:

1. Touch number pads to set length of warm time.

2. Touch MICRO POWER.

3. Touch number pad “1” to set cook power at 10%.

4. Touch START/ADD A MINUTE.

The upper oven display will count down the warm time. When the cycle ends, “End” will appear in the display, 4 end-

of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch upper oven OFF/CANCEL or open the door to clear the

display.

To program keep-warm at the end of a cooking cycle, set the time and the cook power (10%) as the last cooking stage. See “Cooking in Stages” section.

Crisp

The Crisp feature uses the broil element and microwaves to crisp and brown foods. Crisp can be used to saute meats and vegetables, pan-fry bacon and eggs, and to crisp and brown pizza and cheese sandwiches. Always use the crisper pan. See the “Crisper Pan and Handle” section before using.

To C risp:

Before Crisping, brush crisper pan with ¹⁄₂ tsp (3 mL) of oil or spray with nonstick cooking spray. Arrange food on crisper pan, and place pan on turntable.

1. Touch CRISP.

2. Touch the number pads to enter a length of time to cook in

minutes and seconds. The time can be set up to 90 minutes.

Pizza, refrigerated or fresh

12" (30 cm) 9" (23 cm)

Puff Pastry Fruit Tur no ve rs , 4 Frozen

Turkey Breast, boneless

9 minutes 7 minutes

10 to 12 minutes

10 to 12 minutes per 1 lb (454 g)

Sprinkle crisper pan with corn meal. Add additional time for thick crust and reduce time for thin crust.

Place turkey in center of crisper pan. Internal temperature should be 170°F(77°C).

Broil

The Broil feature uses the broil element to cook and brown 1 to 4 small pieces of food at a time. Always use the broiling grid. The Crisper Pan may be used with the Broil function to catch drippings from the food. See “Grids” section before using.

■ Avoid opening the door often.

■ For even browning, turn food over halfway through cooking.

To Broil:

Before broiling, remove turntable hub. See “Parts and Features” for location. Replace turntable in oven. Turntable must be in place during broiling, but will not rotate. Then preheat broil element for 2 to 3 minutes. Place all food on half of broiling grid. Place grid on turntable, and position it so that the food is directly under the broil element.

1. Touch BROIL.

2. Touch the number pads to enter a length of time to cook in

minutes and seconds.

3. Touch START/ADD A MINUTE.

The upper oven display will count down the broil time. Time may be added during cooking by touching START/ADD

A MINUTE. When the cycle ends, “End” will appear in the display, 4 end-

of-cycle tones will sound, and then reminder tones will sound every minute.

4. Touch upper oven OFF/CANCEL or open the door to clear the

display.

Page 18

BROILING CHART

Times are approximate and may be adjusted for individual tastes.

FOOD COOK TIME PREPARATION

Garlic Toast or

2 to 3 minutes Open Face Sandwiches

Steaks, 2 top sirloin, ³⁄₄" (2 cm) thick, 8 oz (227 g) portions

Medium doneness

Side 1: 10 minutes

Side 2: 8 minutes

Trim excess fat and score edges. Let stand 1 minute before serving.

Convection Cooking

B C

A. Broil element B. Convection fan C. Convection element

(on some models)

D. Convection grid

Convection Cooking uses the convection element (on some models) and the fan. The Broil element will also cycle on and off. Hot air is circulated throughout the oven cavity by the fan. The constantly moving air surrounds the food to heat the outer portion quickly.

The Convect function may be used to cook small amounts of food on a single rack.

■ Always use the Convection Grid.

■ Do not cover Turntable or Convection Grid with aluminum foil.

■ Do not use light plastic containers, plastic wrap or paper

products. All heatproof cookware or metal utensils can be used in convection cooking, but metal utensils cannot be used in microwave cooking. Round pizza pans are excellent for convection cooking.

■ Use convection cooking for items such as souffles, breads,

cookies, angel food cakes, pizza, and most meats and fish.

■ No special techniques are needed to adapt standard oven

recipes to convection cooking, although some temperatures might need to be reduced, and some cooking times might need to be shortened.

■ This oven may be preheated in the same way that standard

oven is preheated. (Most recipes for baked goods call for preheating.)

To Convect Cook with Preheat:

1. Position convection grid on turntable in microwave oven and

close the door.

2. Touch CONVECT twice.

“PREHEAT” will appear in the upper oven display. Touch the number pads to set a temperature other than

325°F (162°C). The cook temperature setting may be changed as desired from 170°F to 450°F (77°C to 232°C).

Celsius temperatures below 100°C must have a “0” at the beginning of their entries. For example, 77°C must be entered as 0-7-7.

3. Touch START/ADD A MINUTE.

The upper oven display will show the “TIME” prompt.

4. Touch number pads to enter length of time to cook, in hours

and minutes, up to 4 hours.

5. Touch START/ADD A MINUTE.

“Lo” will appear in the upper oven display until the temperature reaches 170°F (77°C). When that temperature is reached, the display will show the preheating temperature in 5°F (-15°C) increments until the set cooking temperature is reached.

When preheating is complete, one tone will sound, and the display will show the set cook time.

6. Place food or bakeware on convection grid and close the

door.

7. Touch START/ADD A MINUTE.

The upper oven display will count down the cook time. Each time the door is opened during cooking, the START/

ADD A MINUTE pad must be touched to restart cooking. When the cycle ends, “End” will appear in the display, 4 end-

of-cycle tones will sound, and then reminder tones will sound every minute.

8. Touch upper oven OFF/CANCEL or open the door to clear the

display.

To Convect Cook without Preheat:

1. Position convection grid on turntable in microwave oven,

place food or bakeware on convection grid, and close the door.

2. Touch CONVECT PREHEAT once.

Touch the number pads to set a temperature other than 325°F (162°C). The cook temperature setting may be changed as desired from 170°F to 450°F (77°C to 232°C).

Celsius temperatures below 100°C must have a “0” at the beginning of their entries. For example, 77°C must be entered as 0-7-7.

3. Touch START/ADD A MINUTE.

The upper oven display will show the “TIME” prompt.

4. Touch number pads to enter length of time to cook, in hours

and minutes, up to 4 hours.

5. Touch START/ADD A MINUTE.

The upper oven display will count down the cook time. Each time the door is opened during cooking, the START/

ADD A MINUTESTART/ADD A MINUTE pad must be touched to restart cooking.

When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute.

6. Touch upper oven OFF/CANCEL or open the door to clear the

display.

Page 19

MICROWAVE COOK CHART

These times are approximate and may need to be adjusted to suit individual taste.

FOOD COOK TIME (in min and sec) COOK POWER

Meats, Poultry, Fish, Seafood

Bacon (per slice) 0:45-1:15 per slice 100%

Ground Beef for Casseroles (1 lb [0.45 kg]) 4:00-6:00 100%

Ground Beef Patties (2) Ground Beef Patties (4)

Meat Loaf (1¹⁄₂ lbs [0.7 kg]) 13:00-19:00 70%

Chicken Pieces Internal temperature should be 185ºF (85ºC) after standing.

Tur key Breast Internal temperature should be 185ºF (85ºC) after standing.

Fish Fillets (1 lb [0.45 kg]) 5:00-6:00 100%

Scallops and Shrimp (1 lb [0.45 kg]) 3:30-5:30 100%

Vegetables

Beans, Green or Yellow (1 lb [0.45 kg]) 6:00-12:00 100%

Broccoli (1 lb [0.45 kg]) 6:00-10:00 100%

Carrots (1 lb [0.45 kg]) 8:00-12:00 100%

Cauliflower (medium head) 6:00-9:00 100%

Corn on the Cob (2) Corn on the Cob (4)

Side 1: 2:00, Side 2: 1:30-2:00 Side 1: 2:30, Side 2: 2:00-3:00

6:00-9:00 per 1 lb (454 g) 100%

5:00, then 8:00-12:00

4:00-9:00 6:00-16:00

100% 100%

100%, 70%

100% 100%

Potatoes, Baked (4 medium) 13:00-19:00 100%

Summer Squash (1 lb [0.45 kg]) 3:00-8:00 100%

Other

Applesauce (4 servings) 7:00-9:00 100%

Baked Apples (4) 4:00-6:00 100%

Chocolate (melt 1 square) 1:00-2:00 50%

Eggs, Scrambled (2) Eggs, Scrambled (4)

Hot Cereals (1 serving) Hot Cereals (4 servings)

Nachos (large plate) 1:30-2:30 50%

Water for Beverage (1 cup [250 mL]) Water for Beverage (2 cups [500 mL])

1:15-1:45 2:00-3:00

1:30-5:00 4:30-7:00

2:30-4:00 4:30-6:00

100% 100%

Page 20

MICROWAVE REHEAT CHART

These times are approximate and may need to be adjusted to suit individual taste. If using Broil to reheat, do not cover food.

FOOD/STARTING TEMPERATURE COOK TIME (in min and

Meat (Chicken pieces, chops, hamburgers,

meat loaf slices) 1 serving, refrigerated 2 servings, refrigerated

Meat Slices (Beef, ham, pork, turkey) 1 or more servings, room temperature 1 or more servings, refrigerated

Stirrable Casseroles and Main Dishes

1 serving, refrigerated 2 servings, refrigerated 4-6 servings, refrigerated

Non-stirrable Casseroles and Main Dishes

1 serving, refrigerated 2 servings, refrigerated 4-6 servings, refrigerated

Soup, Cream

1 cup (250 mL), refrigerated 1 can (10 oz [284 mL]), room temperature

Soup, Clear

1 cup (250 mL), refrigerated 1 can (10 oz [284 mL]), room temperature

sec)

1:00-2:00 2:30-4:30

0:45-1:00 per serving 1:00-3:00 per serving

2:00-4:00 4:00-6:00 6:00-8:00

5:00-8:00 9:00-13:00 13:00-16:00

3:00-4:30 5:00-7:00

2:30-3:30 4:00-5:30

COOK POWER PREPARATION

Cover loosely.

70% 70%

Cover with gravy or wax paper.

50% 50%

100% 100% 100%

50% 50% 50%

50% 50%

100% 100%

Check after 30 sec per serving.

Cover. Stir after half the time.

Cover with wax paper.

Cover. Stir after half the time.

Pizza (Medium slice)

1 slice, room temperature 2 slices, room temperature 1 slice, refrigerated 2 slices, refrigerated

Vegetables

1 serving, refrigerated 2 servings, refrigerated

Baked Potato

1, refrigerated 2, refrigerated

Breads (Dinner or breakfast roll)

1 roll, room temperature 2 rolls, room temperature 4 rolls, room temperature

Pie

Whole, refrigerated 1 slice, refrigerated

0:15-0:25 0:30-0:40 0:30-0:40 0:45-0:55

0:45-1:30 1:30-2:30

1:00-2:00 2:00-3:00

0:08-0:12 0:11-0:15 0:18-0:22

5:00-7:00 0:30

100% 100% 100% 100%

100% 100%

50% 50%

50% 100% 100%

70% 100%

Cover. Stir after half the time.

Cut lengthwise, then several times crosswise. Cover with wax paper.

Wrap single piece in paper towel. Place several pieces on paper towel, then cover with another paper towel.

Page 21

OVEN CARE

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and the oven is cool. Always follow label instructions on cleaning products.

Soap, water and a soft cloth or sponge are suggested first unless otherwise noted.

STAINLESS STEEL (on some models)

Cleaning Method:

Rub in direction of grain to avoid damaging.

■ Stainless Steel Cleaner & Polish Part Number 31464 (not

included): See “Assistance or Service” section to order.

■ Liquid detergent or all-purpose cleaner: Rinse with clean

water and dry with soft, lint-free cloth.

■ Vinegar for hard water spots.

Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel-wool pads, gritty washcloths or some paper towels. Damage may occur.

OVEN DOOR EXTERIOR

■ Glass cleaner and paper towels or nonabrasive plastic

scrubbing pad: Apply glass cleaner to soft cloth or sponge, not directly on panel.

■ All-Purpose Appliance Cleaner Part Number 31662 (not

included): See “Assistance or Service” section to order.

Heavy soil

■ Mild, nonabrasive soaps and detergents:

Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth.

Odors

■ Lemon juice or vinegar:

Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in oven.

Microwave Inlet Cover

The microwave inlet cover (see “Parts and Features”) should be kept clean to avoid arcing and oven damage.

■ Wipe with wet cloth.

Do not use soap-filled scouring pads, abrasive cleaners, steelwool pads, gritty washcloths or some recycled paper towels. Damage may occur.

TURNTABLE

Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place.

■ Mild cleanser and scouring pad

■ Dishwasher

GRIDS

OVEN CAVITY

Cleaning Method:

On stainless steel models, rub in direction of grain to avoid damaging.

The area where the oven door and frame touch when closed should be kept clean.

Average soil

■ Mild, nonabrasive soaps and detergents:

Rinse with clean water and dry with soft, lint-free cloth.

■ Steel-wool pad

■ Dishwasher

CRISPER PAN

■ Mild cleanser and scouring sponge

■ Dishwasher

Page 22

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Nothing will operate

■ Has a household fuse blown, or has the circuit breaker

tripped?

Replace the fuse or reset the circuit breaker. If problem continues, call an electrician.

■ Is the appliance wired properly?

See Installation Instructions.

Oven will not operate

■ Is the door completely closed?

Firmly close door.

■ Is the electronic oven control set correctly?

See “Electronic Oven Control” section.

■ On some models, is the Control Lock set?

See “Control Lock” section.

■ On some models, is the Sabbath Mode set?

See “Sabbath Mode” section.

■ On combination oven models, is the lower oven self-

cleaning?

The upper oven will not work during the lower oven SelfCleaning Cycle.

■ Is the magnetron working properly?

Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, call for service. See “Assistance or Service” section.

Oven makes humming noise

■ This is normal and occurs when the transformer in the

magnetron cycles on.

Oven door looks wavy

■ This is normal and will not affect performance.

Turntable will not operate

■ Is the turntable properly in place?

Make sure turntable is correct side up and is sitting securely on the turntable support.

■ Is the turntable support operating properly?

Remove turntable. Remove and replace turntable support. Replace turntable. Place 1 cup (250 mL) of water on the turntable, then restart oven. If it still is not working, call for service. See “Assistance or Service” section. Do not operate the oven without turntable and turntable support working properly.

Turntable rotates both directions

■ This is normal and depends on motor rotation at beginning of

cycle.

Display shows messages

■ Is the display showing “PF”, “PF id=27” or “PF id=30”?

There has been a power failure. Clear the display. See “Display(s)” section. On some models, reset the clock, if needed. See “Clock” section.

■ Is the display showing a letter followed by a number?

Clear the display. See “Display(s)” section. If it reappears, call for service. See “Assistance or Service” section.

Display shows time countdown, but is not operating

■ Is the Timer in use?

See “Timer” section.

Tones are not sounding

■ Are tones disabled?

See “To n es ” section.

Smoke is coming from oven vent during broiling

■ Some smoke is normal and occurs just as in conventional

broiling.

Sparking during broiling

■ This is normal and occurs as fat burns off from past cooking.

Sparking will stop once fat is completely burned off.

Cooking times seem too long

■ Is the cooking power set properly?

See “Cooking Power” in “Microwave Oven Use” section.

■ Are large amounts of food being heated?

Larger amounts of food need longer cooking times.

■ Is the incoming voltage less than that specified in “Parts

and Features”?

Have a qualified electrician check the electrical system of the house.

Page 23

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only FSP right and work right because they are made with the same precision used to build every new WHIRLPOOL

To locate FSP nearest Whirlpool designated service center.

Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.

■ Installation information.

■ Use and maintenance procedures.

■ Accessory and repair parts sales.

■ Specialized customer assistance (Spanish speaking, hearing

impaired, limited vision, etc.).

■ Referrals to local dealers, repair parts distributors, and

service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

replacement parts. FSP

replacement parts in your area, call us or your

replacement parts will fit

appliance.

In the U.S.A.

Accessories U.S.A.

To order accessories, call the Whirlpool Customer eXperience Center toll free at 1-800-442-9991 and follow the menu prompts. Or visit our website at www.whirlpool.com and click on “Buy Accessories Online.”

Stainless Steel Cleaner & Polish

(stainless steel models) Order Part #4396095

In Canada

Please call the Whirlpool Canada LP Customer Interaction Centre toll free: 1-800-807-6777

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.

■ Use and maintenance procedures.

■ Accessory and repair parts sales.

■ Referrals to local dealers, repair parts distributors, and

service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at:

Customer Interaction Centre Whirlpool Canada LP 1901 Minnesota Court Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

For further assistance

If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Page 24

WHIRLPOOL® HIGH SPEED AND MICROWAVE OVEN WARRANTY

FULL ONE-YEAR WARRANTY

For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for FSP

correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON MAGNETRON TUBE

From the second through fifth year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for FSP

microwave magnetron tube if defective in materials or workmanship.

Whirlpool Corporation or Whirlpool Canada LP will not pay for:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or

correct house wiring, or to replace owner-accessible light bulbs.

2. Repairs when your appliance is used in other than normal, single-family household use.

3. Pickup and delivery. Your appliance is designed to be repaired in the home.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God or use of products not

approved by Whirlpool Corporation or Whirlpool Canada LP.

5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

6. Replacement parts or repair labor costs for units operated outside the United States or Canada.

7. In Canada, travel or transportation expenses for customers who reside in remote areas.

8. Any labor costs during the limited warranty period.

replacement parts and repair labor costs to

replacement parts for the

WHIRLPOOL CORPORATION OR WHIRLPOOL CANADA LP SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES.

Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state or province to province.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling the Whirlpool Customer eXperience Center, 1-800-422-1230 (toll-free), from anywhere in the U.S.A. In Canada, contact your Whirlpool designated service company or call 1-800-807-6777.

3/05

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial

Dealer name____________________________________________________

Address ________________________________________________________

Phone number __________________________________________________

Model number __________________________________________________

Serial number __________________________________________________

number label/plate, located on your appliance as shown in the “Parts and Features” section.

Purchase date __________________________________________________

8303651

® Registered Trademark/TM Trademark of Whirlpool, U.S.A., Whirlpool Canada LP licensee in Canada

*Styrofoam is a Registered Trademark of The Dow Chemical Company.

Printed in U.S.A.

4/05
