Whirlpool GS395LEHS7 Installation Guide
L2_3 L_,_J .....
[ Sackcover] If range doesnot operate
[ Sacksever] If you need assistance/service
[ Sack cever I Moving [he range

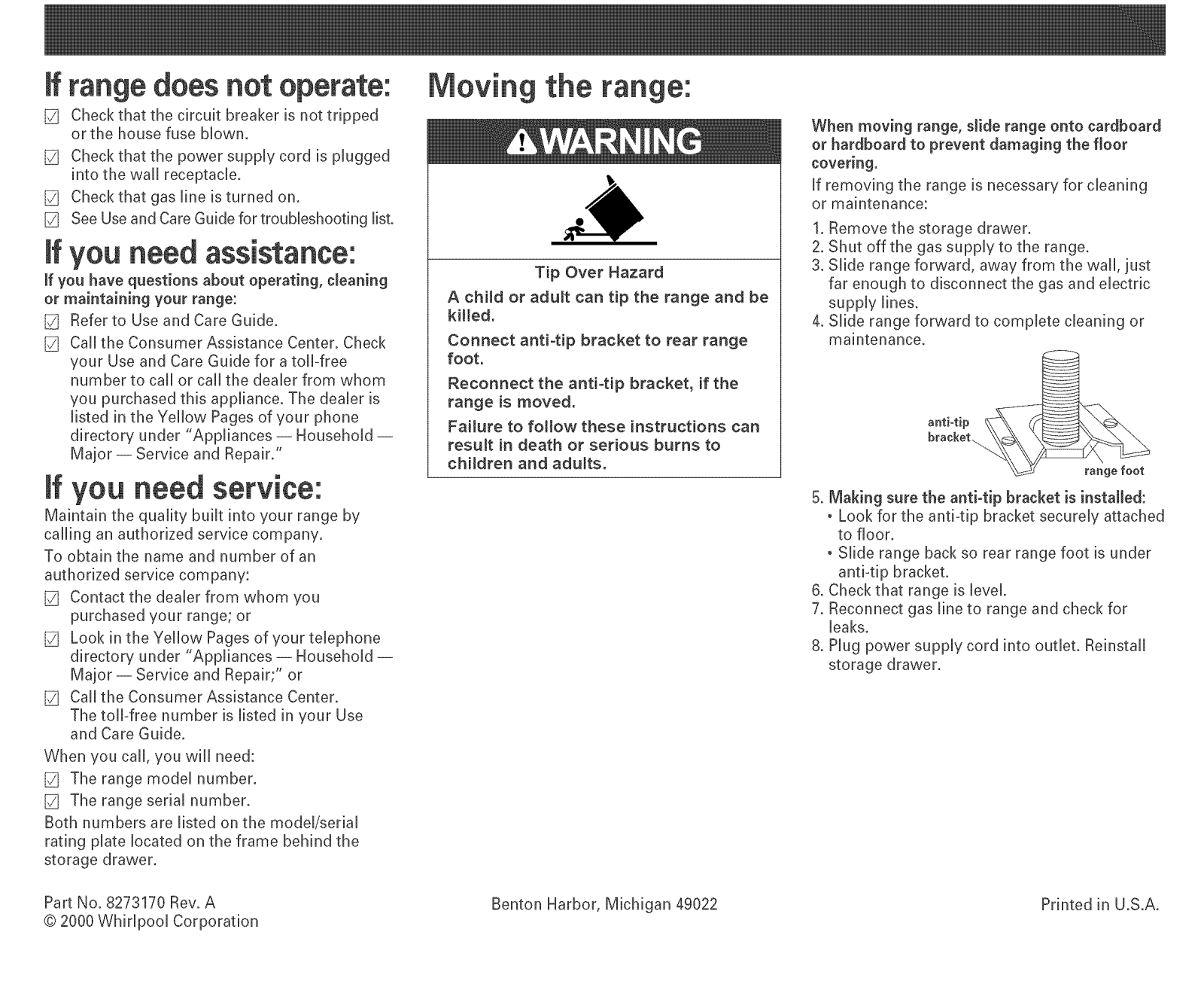

if you need assistance:
Checkyour Useand CareGuide for a tolFfree nut
the dealer from whom you purchasedthis range,
in the Yellow Pagesof your phone directory under
\
\
Tip OverHazard
Achild or adult cart tip the rangeand be
kille_.
Connectanti41pbracket to rearrangefeo_;,
Reconnecttheanti°tip bracket,if the range
ismoved.
Failureto follow these instructions can
result in death or serious burns to _hildren
and adults.
Household -- Ma or -- Serviceand Repar. '
Callwhen you:
Havequestions about range installation or operat
_ Needto obtain the name and number of an autho=
servicecornpan,/,
When you call, you will need:
Therange model number.
Therange serial number_
Bothnumbers are listed on the model/serial rating plate I
the frame behind the storage drawer,
Your safety and the safety of
others are very important.
We have provided many important safety
message in this manual and on your
appliance.
Always read and obey all safety messages.
This is the safety abrt symbok
This symbol abrts you to potential
hazards that can kill or hurt you and
others.
All safety messages will be preceded by the
safety alert symbol and the word "DANGER"
or "WARNING". These words mean:
You can be killed or seriously injured if
you don't follow instructions.
All safety messages will tell you what the
potential hazard is, tell you how to reduce
the chance of injury, and tell you what can
happen ifthe instructionsare not followed.
Grounded electrica!
outlet is required. See
"EbctdcaU requirements,"
Page 3.
Proper gas supply
connection must be
availabUe.See "Gas
suppUyrequirements,"
Page 3.
27=I/8" depth/
with handte
@@ @@
29=7/8"width
WARNING: ff the information in
this manuam is not followed
exactly, a fire or expmosion may
resumt causing property damage,
persona_ injury or death.
m Do not store or use gasoline or
other flammabme vapors and
_iquids in the vicinity of this or
any other appliance.
WHAT TO DO iF YOU SMELL
GAS
o Do not try to _ight any
appliance.
o Do not touch any e_ectrica_
switch.
o Do not use any phone in your
building.
o Immediately call your gas
supplier from a neighbor's
phone. Follow the gas
supplier's instructions.
o if you cannot reach your
gas supplier, call the fire
department.
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
important: Observe all governing codes
and ordinances.
Do not obstruct flow of combustion and
ventilation air.
This installation must conform with all local
codes and ordinances, In the absence of
local codes, installation must conform with
American National Standard, National Fuel
Gas Code ANSI Z223.1 -- latest edition%
It is the customer's responsibility:
oTo contact a qualified electrical installer.
oTo assure that the electrical installation
is adequate and in conformance with
National Electrical Code, ANSl/NFPA 70
-- latest editione%
Cabinet opening dimensions shown must be
used. Given dimensions are minimum
clearances.
When installing a range under existing cabinets
and the installation does not meet the minimum
cabinet clearances, install a range hood above
the cooktop to avoid burn hazards.
Proper installation is your responsibility. A
qualified technician must install this range, Make
sure you have everything necessary for correct
installation. It is the installer's responsibility to
comply with installation clearances specified on
the gas information label. The gas information
label and model/serial rating plate are located on
the frame behind the storage drawer.
Check location where range will be installed. The range IMPORTANT: Some cabinet and buiWding materials are not
should be tocated for convenient use in the kitchen, designed to withstand the heat produced by the oven for
Recessed installations must provide complete enclosure of baking and se_f=c_eaning. Check with your builder or cabinet
the sides and rear of range, supplier to make sure that the materials used will not
ALL OPENINGS IN ]'HE WALL OR FLOORWHERE RANGE IS discolor, detaminate or sustain other damage,
TO REINSTALLED MUST RE SEALED,
_ ' / cooktop, see Note. _ee
_" width
18" rain,
clearance upper
cabinet to
countertop
countertop
space to aide
wall or other
combustible
material
Contact a qual#ied
Root covering
insta_er to check
that the floor
covering can
withstand at least
200°F.
Use an insulated pad
or 1/4" plywood
under range if
installing range over
carpeting.
Anti-tip bracket
The flooromounted antbtip bracket MUST be instalbd. To
install the antbtip bracket supplied, see Pages 4:5 and the
anti:tip bracket templatelinstruction sheet.
304/8" opening
If cabinet depth is greater
than 24", even frame must
extend beyond cabinet
fronts by 1/2" rain.
for installation of rigid gas pipe. eeeNote: 24" rain. when bottom of wood
Fle×ible gas pipe and electrical or metal cabinet is protected by not
out_et are recommended in either less than 1/4" flame retardant mi_l=
shaded area. board covered with not _ess than
recommended
No. 28 MSG sheet stee_, 0.015"
stainless stee_, 0.024" a_uminum or
0.020" copper,
the cooking platform and the bottom
of an unprotected wood or metal
cabinet.
_obile home installation
The installation of this range must conform to the
Manufactured Home Construcqon and Safety Standards,
Title 24 CFR,Part3280 (formerly the Federal Standard for
Mobile Home construction and Safety, Title 24, HUD, Part
280); or when such standard is not applicable, the Standard
for Manufactured Homes Installations (Manufactured Home
Sites, Communities and Setups), ANSI A225.1/NFPA 501A'_,
or with local codes.
When this range is installed in a mobile home, it must be
secured to the floor during transit. Any method of securing
the range is adequate as long as it conforms to the standards
listed above.
Copies of the standards listed may be obtained from:
CSA _ntemational
8501 East Pleasant VaHe,/Road
C_eve_and, Ohio 44131=5575
ee National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269
Not shown:
• literature pack
• orifice spuds (#10 x 1=1/2"}
Bracket must be securely mounted to
sub-floor. Thickness of flooring may
require longer screws to anchor
bracket to sub-floor, Longer screws
are available from your local hardware
store,
floor=mounted
anti=tip bracket
0
2 plastic
anchors
Page 2
,evel
drive
wood floor:
I!8" drff_ bit
concrete/ceramic floors:
3/16" carbide=tipped masonry
drill bit (Hammer may be
needed for anchors,)
wrenches
stainless
steel/g_ass
mirror
Materials required:
. gas line shutoff valve
.1/2" male pipe thread nipple for connection to pressure
regulator
. L,P, gas=resistant pipe=joint compound
, AGA or CSA design=certified RexibJe metal appliance
connector (4=5 feet) or rigid gas supply fine as needed
. Insulated pad or 1/4" p_ywood if range is instaffed
over carpeting
PhiJlips
screwdriver
Electrical Shock Hazard
Plug into a grounded 3=prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
tf codespermit and a separate ground wire is
used, it is recommended that a quaJified
electrician determine that the ground path is
adequate and that the outlet is correcdy
polarized.
Do Not ground to a gas pipe.
Check with a quaJified ebctrician if you are not
sure range is proper_y grounded.
A 120ovolt, 60-Hz, AC-only, 10-ampere, fused
electrical supply is required. A time-delay fuse or
circuit breaker is recommended. It is
recommended that a separate circuit serving
only this appliance be provided.
Electronic ignition systems operate within wide
voltage limits, but proper grounding and polarity
are necessary, in addition to checking that the
outlet is correctly grounded, the outlet must be
checked by a qualified electrician to see if it is
wired with correct polarity.
Important: This range is equipped with an
electronic ignition system that will not operate if
plugged into an outlet that is not properly
polarized.
A wiring diagram is included on the back of
the range.
See "Cabinet dimensions/requirements," Page 2,
for recommended location of electrical outlet.
ground method
For persona[ safety, this range isequipped with a
power supply cord having a 3-prong ground
plug. To minimize possible shock hazard, the
cord must be plugged into a mating 3°prong,
groundotype outlet, grounded in accordance with
the National Electrical Code, ANS[/NFPA 70 --
latest edition _ and all local codes and
ordinances.
if a mating outlet is not available, it is the
personal responsibility and obligation of the
customer to have a properly polarized and
grounded, 3-prong outlet installed by a qualified
electrician.
Copies of the standards listed may be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts, 02269
3=prong proper_y polarized
ground=type outlet
3=prong ground
p_ug
power supply
cord
Explosion Hazard
Use a new AGA or CSA approved gas supply
line.
install a shut-off valve.
Securely tighten all gas connections.
if connected to LP, have a qualified person
make sure gas pressure does not exceed
t3" water column. Examples of a qualified
person include licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death,
explosion, or fire.
Observe aHgoverning codes and ordinances.
This installation must conform with bcal codes
and ordinances, in the absence of local codes,
installations must conform with American
National Standard, National Fuel Gas Code ANSI
Z223.1 --latest edition_%
_nput ratings shown on the model/serial rating
plate are for elevations up to 2,000 feet. For
assistance when installing the range at higher
elevations, contact your local service company.
Type of gas: This range is design-certified by
CSA International for use with Natural gas or,
after proper conversion, for use with L P.gas.
This range is factory set for use with Natural gas.
Gas conversion instructions are provided on
pages 7-8. The model/serial rating plate located
on the frame behind the storage drawer or
broiler door has information on the type of gas
that can be used. If the type of gas listed does
not agree with the type of gas available, check
with the local gas supplier. Conversion must be
done by a qualified service technician.
Gas suppJyline: Provide a gas supply line of 3/4"
rigid pipe to the range location. With L.P.gas,
piping or tubing size can be 1/2" minimum. A
smaller size pipe on longer runs may result in
insufficient gas supply. Usually, LP. gas
suppliers determine the size and materials used
in the system.
Pipeojoint compounds made for use with LP. gas
must be used on pipe threads only.
Flexibb meta_ appliance connector:If local codes
permit, a new AGA or CSA design-certified, 1/2"
or 3/4" I.D., flexible metal appliance connector is
recommended for connecting range to the gas
supply line. A 1/2" male pipe thread nipple is
needed for connection to pressure regulator
female pipe threads. Do Not kink or damage the
flexible meta_ tubing when moving the range.
Rigid pipe connection: Requires a
combination of pipe fittings to obtain
an in-line connection to the range. All
strains must be removed from the
supply and fuel lines so range will
be level and in line.
manual shutoff valve __
"open" position y_
ly
Shutoff valve: The supply line must be equipped
with a manual shutoff valve. This valve should be
located in the same room as the range and
should be in a location that allows ease of
opening and closing. The valve is for turning on
or shutting off gas to the range. Do Not Mock
access to shutoff valve.
Pressure regulator: The gas pressure regulator
supplied with this range must be used. The inlet
pressure to the regulator should be as follows for
NATURAL GAS:
Minimum pressure: 5 inches W.C.
Maximum pressure: 14 inches W.C.
LP. GAS:
Minimum pressure: 11 inches W,C.
Maximum pressure: 14 inches W.C.
Contact local gas supplier if you are not sure
Line pressure testing above 1/2 psi gauge
(14" WCP) -- The range and its individual manual
shutoff valve must be disconnected
from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
Line pressure testing at 1/2 psi gauge
(!4" WCP) or Jower- The range must be
isolated from the gas supply piping system by
closing its individual manual shutoff valve during
any pressure testing of that system at test
pressures equal to or less than 1/2psig (3.5 kPa).
Copies of the standards listed may be obtained from:
_ CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131°5575
Page 3
Loading...
