CABINET PARTS
REFRIGERATOR
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
1−08 Litho In U.S.A. (rrm)
1
Part No. W10180452 Rev.A
Page 2

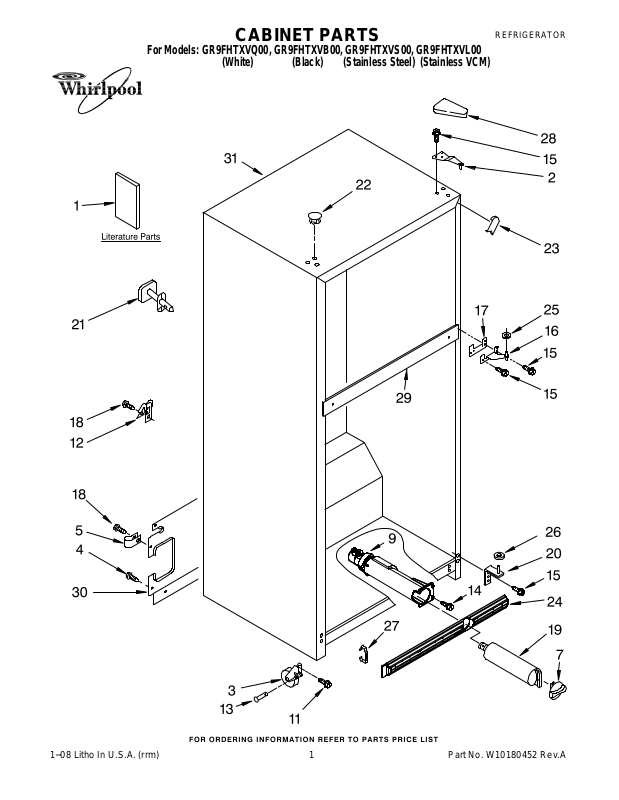

CABINET PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142144
W10178120
2225623 Modular Icemaker
W10131411
W10131419
2302485 Customer Instruct
Service &
Wiring Sheet
Energy Label
Service Sheet
Use & Care Guide
Bilingual
Trilingual
Sheet, Wtr Filter
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual, Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
Illus. Part
No. No. DESCRIPTION
4 489427 Screw
5 2208136 Clamp, Tube
(Water Supply Line)
7 Cap, Water Filter
2186494W White
2186494B Black
9 2225521 Housing,
Water Filter
11 3400504 Screw
12 549193 Clamp, Cord
13 2179826 Rivet
14 3196178 Screw
15 489497 Screw
16 2254618 Hinge, Center
17 2183852 Shim, Hinge
Center
18 8281265 Screw
19 2301705 Water Filter
20 2254473 Hinge Butt
21 Fitting, Water Tube
(NOT SERVICED)
Illus. Part
No. No. DESCRIPTION
22 Hole Plug (6)
2201012 White
2183998 Black
23 Corner Filler (2)
2201014 White
2201017 Black
24 Grille
(Includes
Illus. 27)
2301619W White
2301619B Black
25 489341 Washer, Plain
26 487576 Washer, Nylon
27 2189356 Clip, Grille (2)
28 Cover, Hinge
2213360 White
2213363 Black
29 Rail, Center
(NOT SERVICED)
30 2254578 Cover, Unit
31 Cabinet (Not a
Serviceable Part)
2
W10180452
Page 3
LINER PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
W10180452
3
Page 4
LINER PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254359 Gasket, Evaporator
Cover (2)
4 2304093 Adaptive Defrost
Control
5 2212485 Thermostat Tube
Barrier
6 488208 Screw
7 2310076 Wire Assembly,
Control Box
8 2162085 Socket, Light
9 2179858 Damper, Air
10 2315539 Fan Motor
11 2163777 Fan Blade
12 2218304 Control Box
13 2314594 Thermostat Assembly
(Includes
Illus. 5 & 18)
14 2301622 Insulation,
Water Tube
15 2213462 LED & Connector
Assembly
Illus. Part
No. No. DESCRIPTION
16 2320191 Cover, Evaporator
17 2255743 Light Bulb (2)
18 2200831 Weight, Thermal
19 1118894 Rocker Arm
Switch
W10129791
20
21 2176281 Cover, Air
22 2200863 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
26 2210390 Air Separator
27 8534009 Screw
28 2321800 Defrost Bi−metal
29 2254453 Bracket,
30 2320183 Retainer−Screw
32 2213495 Lens−LED
Wire Assembly,
Freezer Compartment
(Includes
Illus. 28)
Diffuser
Bottom
Assembly
Fan Motor
Illus. Part
No. No. DESCRIPTION
33 489478 Screw
34 2302536 Knob, Damper
35 2254454 Bracket
Evap. Fan, Rear
36 2205079 Seal, Rear
Thermostat
37 2210509 Valve
38 2300417 Housing Base
39 2187601 Wiring Harness,
Freezer Light
40 2166284 Gasket, Rear
41 2260802 Light Bulb
42 2193491 Electrical Shield,
Freezer Light
45 2204639 Shield, Heat
46 2179859 Post, Damper
47 2163810 Bracket,
Damper Knob
48 2319867 Tube, Filter Inlet
49 2225531 Cover, Tubing
50 2301621 Tube, Water Filter
51 2210563 Clip, Retainer
4
W10180452
Page 5
SHELF PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
W10180452
5
Page 6
SHELF PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mtg.
5 489478 Screw
6 3400065 Screw
7 2214912 Glass, Shelf
8 2254352 Ice Bucket
9 2314497 Crisper Cover
10 2214910 Shelf Assembly
11 2221693 Glass, Crisper
Cover
12 2214892 Frame Assembly,
Meat Shelf
13 2254458 Deflector−Air
14 2195340 Trim−Crisper Pan
(10 Inch)
(Crisper Cover)
15 2314477 Crisper, Support
16 2214908 Shelf Assembly,
Spillguard (2)
17 2176275 Shelf, Freezer
18 2218138 Pan, Crisper Assy.
(10 Inch)
(Includes
Illus. 14, 21, 22)
19 2218139 Pan, Crisper Assy.
(13 Inch)
(Includes
Illus. 21,22 & 23)
20 2218127 Pan, Meat
21 2176222 Slide, Crisper
22 2212446 Body, Humidity
Control
23 2195341 Trim, Crisper Pan
(13 Inch)
24 2176356 Trim, Meat Pan
6
W10180452
Page 7
REFRIGERATOR DOOR PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
W10180452
7
Page 8
REFRIGERATOR DOOR PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)

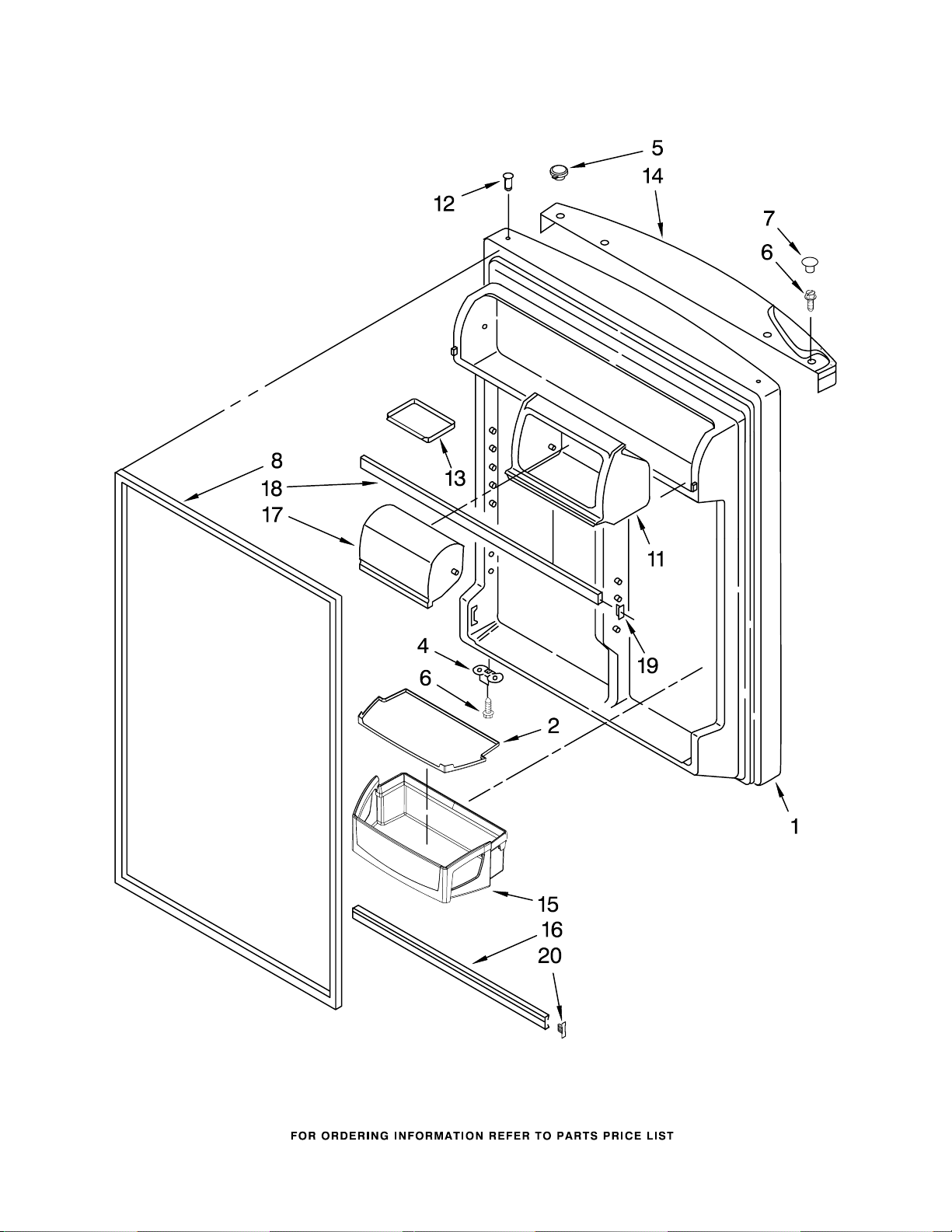

Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 8 & 12)
2205395 White
2205398 Black
2218280 Stainless Steel
2218506 Stainless VCM
2 2300430 Mat, Rubber
(Door Bin)
4 2189202 Bracket, Door
Stop
5 Hole Plug, Endcap
2204837 White
2204840 Black
6 489276 Screw, 8−18 x 3/4
7 Hole Plug
Hinge Sleeve
2212648 White
2212651 Black
8 Door Gasket,
Magnetic
2202874 Mist Beige
2202881 Black
11 2210566 Housing Compartment
12 2183003 Thimble
13 2159302 Tray, Door
14 Endcap, Handle
2212689 White
2221652 Black
15 2300447 Bin, Door Shelf (3)
16 2195949 Trim, Door Shelf
17 2218109 Door Compartment
18 2159312 Trim, Door Shelf
19 2177340 Endcap, Door Trim
20 2156006 Plug−Trim
8
W10180452
Page 9
UNIT PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
W10180452
9
Page 10
UNIT PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)

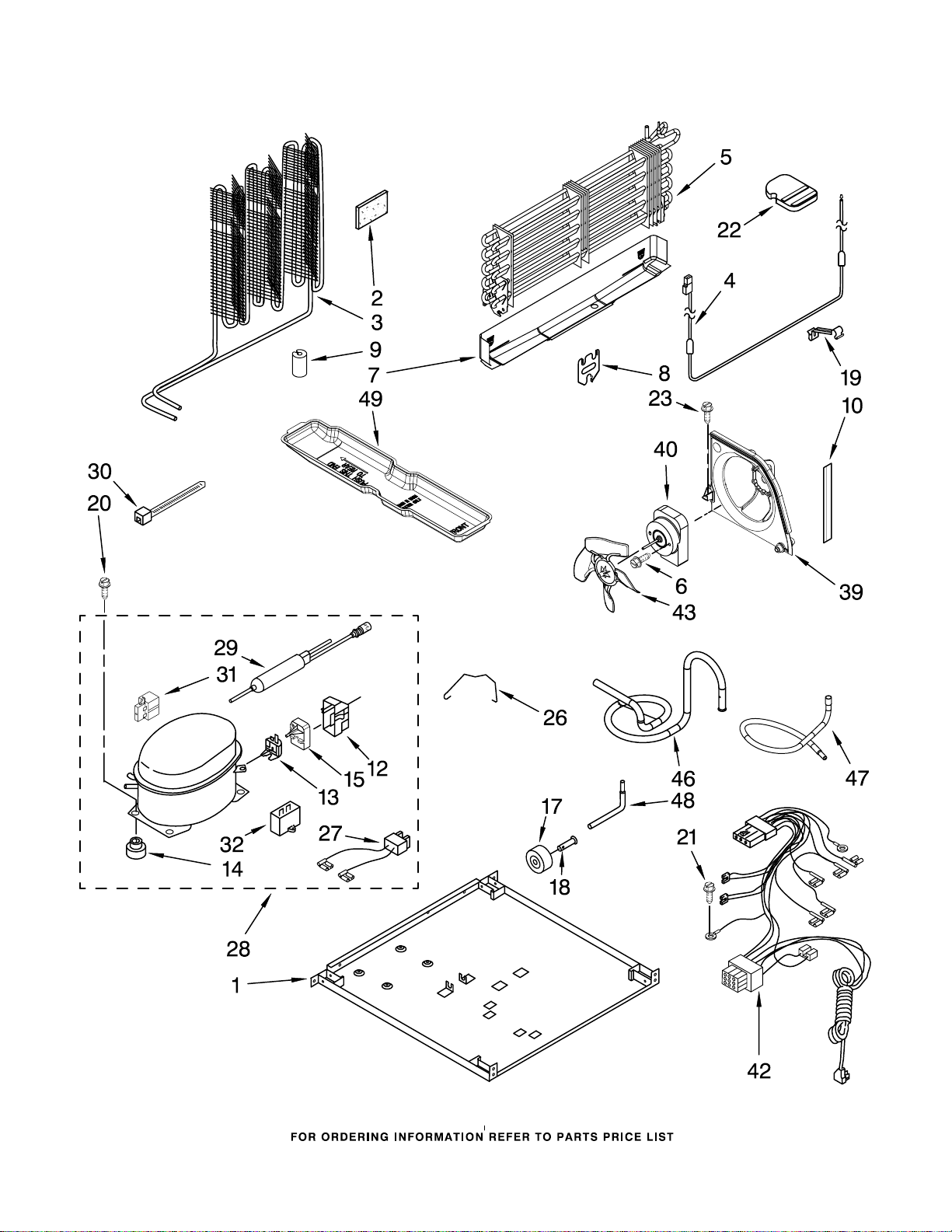

Illus. Part
No. No. DESCRIPTION
1 2320188 Plate, Unit
Mounting
2 2169104 Insulation,
Sound Dampening
3 2214960 Condenser
4 2315531 Heater, Defrost
5 2254250 Evaporator Assy.
6 8533859 Screw
7 2254294 Drain Pan
8 2176301 Bracket, Heater
9 2319835 Grommet−Cond(4)
10 2300638 Extension, Air
Baffle
12 4387731 Cover
(Service Only)
13 4390624 Overload
(Service Only)
14 Grommet (4)
1100826 Production
4387558 Service
15 2225929 Start−Device
Combination
(Start Relay and
Overload for
Production
Compressor Only)
Illus. Part
No. No. DESCRIPTION
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 488500 Screw
22 2201184 Support Block
23 3400518 Screw
26 2255113 Strap, Compressor
27 4387765 Wire Assembly
(Service Only)
28 2218968 Compressor
(Includes Items
12,13,14,27,29,
31 & 32)
29 Drier
2317845 Service
30 2155774 Wire Tie
31 2183454 Relay
(Service Only)
32 Capacitor
2264017 Production
1118576 Service
39 2315541 Air Baffle
40 2188728 Motor, Condenser
42 2310435 Wire Assy. Unit
43 2225834 Fan Blade
46 2205384 Tube, Discharge
Illus. Part
No. No. DESCRIPTION
47 2225237 Tube, Suction
48 2154109 Tube, Process
49 2254574 Evaporator Tray
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.0 Ozs.
(R134A)
10
W10180452
Page 11
ICEMAKER PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
W10180452
11
Page 12
ICEMAKER PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)

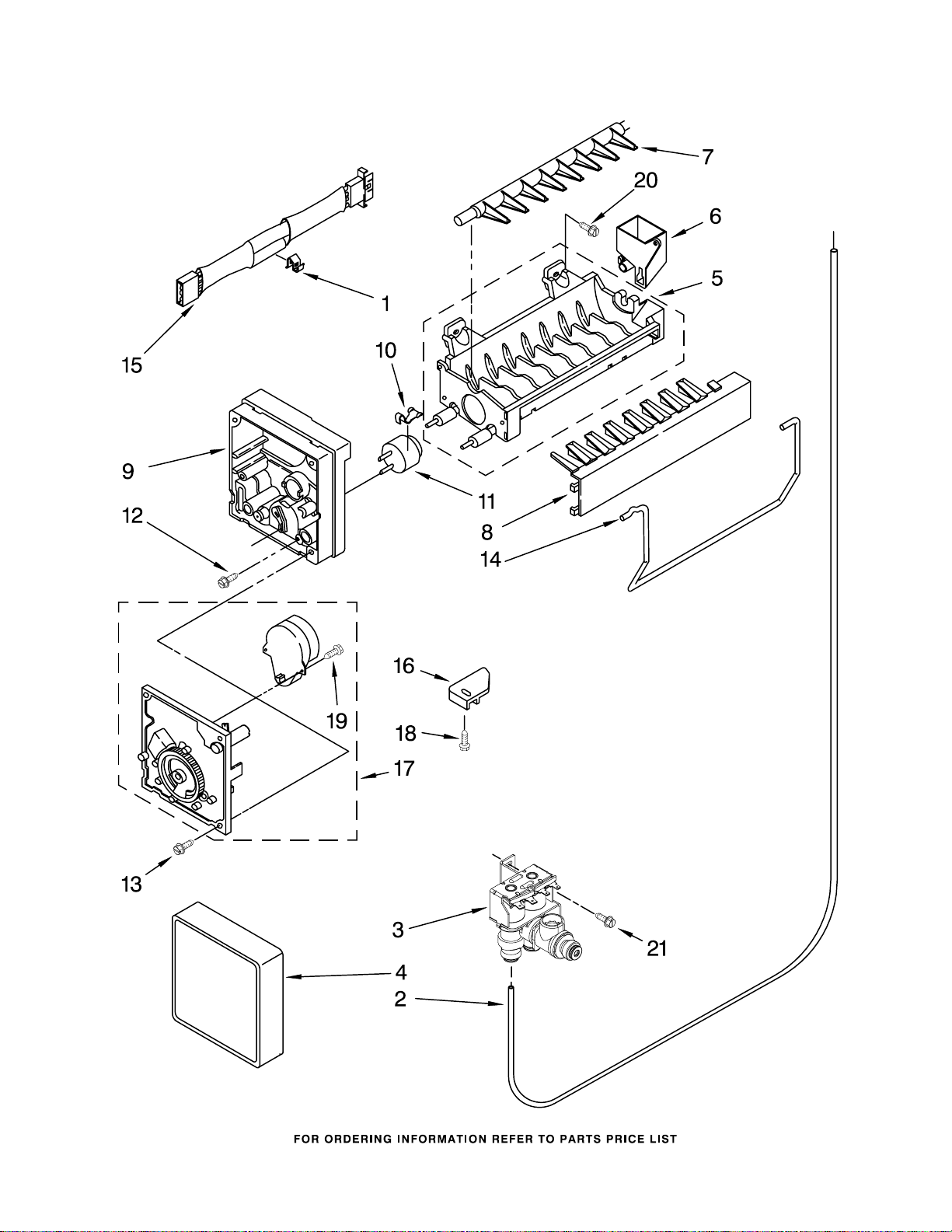

Illus. Part
No. No. DESCRIPTION
1 628379 Clip, Fuse
2 2210514 Tube, Water
3 2188808 Valve (Double),
Solenoid
4 2210484 Cover
W10122527
5
6 628515 Cup, Water Fill
7 627843 Ejector
8 2182124 Ice Striper
9 2194712 Support
10 2315522 Retainer
11 628397 Thermostat (Also
12 8533917 Screw
13 489276 Screw
14 627792 Shut Off Arm
15 2187464 Harness, Wiring
16 628320 Bracket
17 626680 Module Assembly
18 489478 Screw
19 489136 Screw,
20 488208 Screw
21 489464 Screw
W10122496
100
Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
Thermostat
Order 542369
Cement
Alumilastic)
(Includes Item 19)
Icemaker,Complete
Assembly
12
W10180452
Page 13

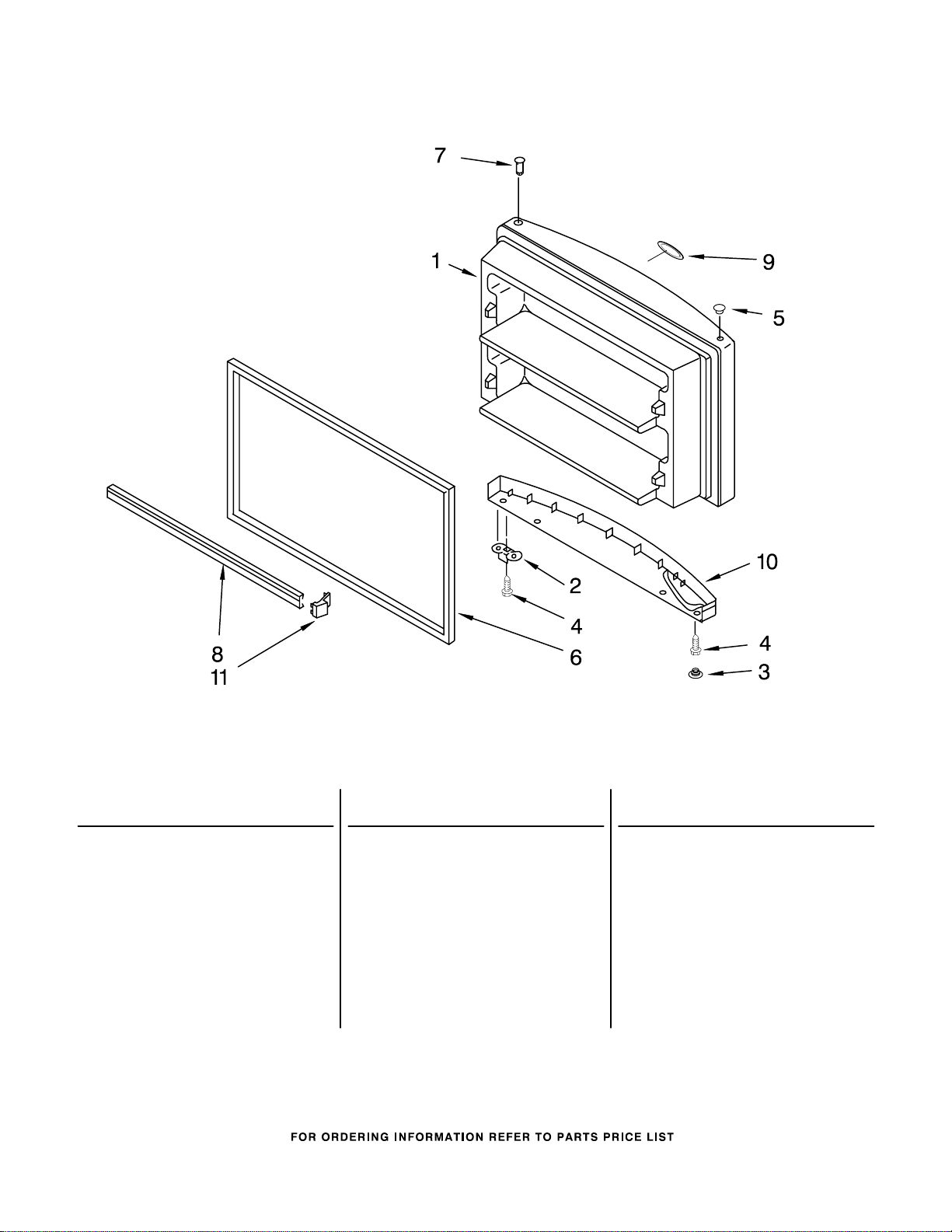

FREEZER DOOR PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes
Illus. 6 & 7)
2205399 White
2205402 Black
2212495 Stainless
2218507 Stainless VCM
2 2189202 Bracket, Door
Stop
W10180452
Illus. Part
No. No. DESCRIPTION
3 Hole Plug, Endcap
2204837 White
2204840 Black
4 489276 Screw, 8−18 x 3/4
5 Hole Plug,
Hinge Sleeve
2212648 White
2212651 Black
6 Door Gasket,
Magnetic
2214966 Mist Beige
2214968 Black
13
Illus. Part
No. No. DESCRIPTION
7 2183003 Thimble
8 2195946 Trim, Door
Shelf (2)
9 2220214 Nameplate
10 Endcap, Handle
2225090 White
2225158 Black
11 2195916 EndCap, Trim (4)
Page 14

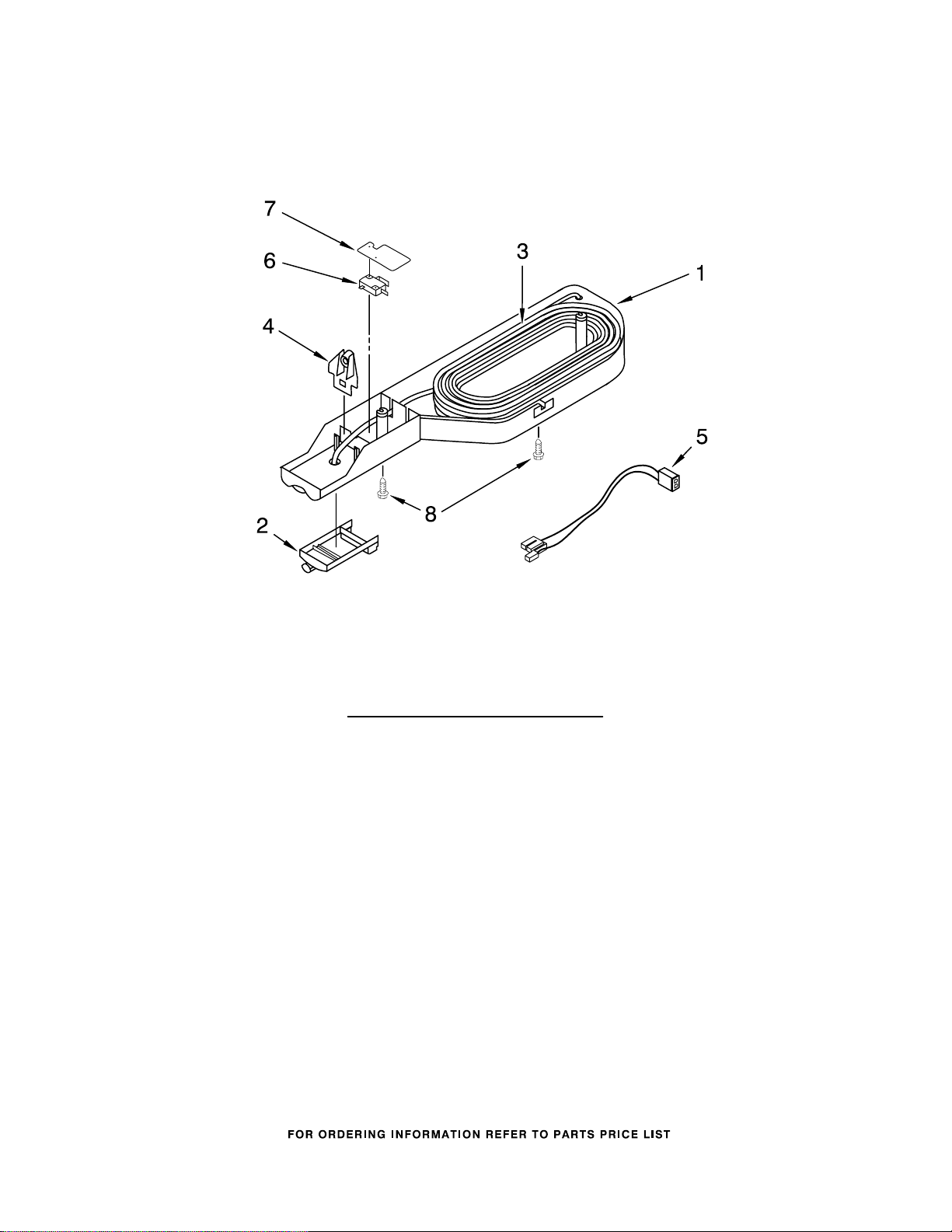

WATER DISPENSER PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 2219617 Housing, Dispenser
2 2210567 Button, Dispenser
3 2320316 Reservoir, Tube
4 2210523 Flange, Tube
5 2187291 Wire Assembly
6 2162361 Switch
7 2210547 Shield, Switch
8 489415 Screw
14
W10180452
Page 15
OPTIONAL PARTS
For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00
(White) (Black) (Stainless Steel) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Illus. Part
No. No. DESCRIPTION
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
799340 Enamel, Black
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
W10180452
15
Loading...
