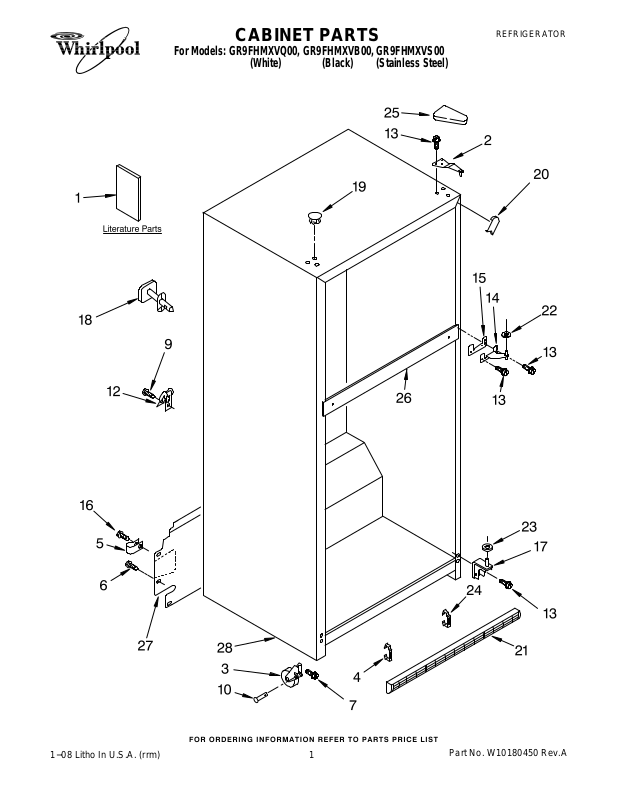

Page 1
CABINET PARTS
REFRIGERATOR
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
1−08 Litho In U.S.A. (rrm)
1
Part No. W10180450 Rev.A
Page 2
CABINET PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142143
W10178120
W10131409
W10131417
2225623 Modular Icemaker
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 2189356 Clip, Grille
5 489385 Clamp, Tube
6 489427 Screw
7 3400504 Screw
9 489442 Screw
10 2221797 Rivet
12 549193 Clamp, Cord
13 489497 Screw
14 2254618 Hinge, Center
15 2183852 Shim, Hinge
16 8281265 Screw
17 2254473 Hinge Butt
18 Fitting, Water Tube
19 Hole Plug (6)
2201012 White
2183998 Black
20 Corner Filler (2)
2201014 White
2201017 Black
21 Grille
2254386 White
2254388 Black
22 489341 Washer, Plain
23 487576 Washer, Nylon
24 2254385 Clip, Grille
25 Cover, Hinge
2213360 White
2213363 Black
26 Rail, Center
27 2254578 Cover, Unit
28 Cabinet (Not a
Service &
Wiring Sheet
Energy Label
Use & Care Guide
Bilingual
Trilingual
Service Sheet
Manual Ref./Fzr.
(Water Supply Line)
Center
(NOT SERVICED)
(Includes
Illus. 4 & 24)
(NOT SERVICED)
Serviceable Part)
2
W10180450
Page 3
LINER PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
W10180450
3
Page 4
LINER PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254359 Gasket, Evaporator
Cover (2)
4 2304099 Timer, Defrost
5 2212485 Thermostat Tube
Barrier
7 2310057 Wire Assembly,
Control Box
8 2162085 Socket, Light
9 2179858 Damper, Air
10 2315539 Fan Motor
11 2163777 Fan Blade
12 2212982 Control Box
13 2200830 Thermostat Assembly
(Includes
Illus. 5 & 18)
15 488208 Screw
16 2320191 Cover, Evaporator
Illus. Part
No. No. DESCRIPTION
17 2255743 Light Bulb (2)
18 2200831 Weight, Thermal
19 1118894 Rocker Arm (2)
Switch
W10129791
20
21 2176281 Cover, Air
22 2200863 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
25 8534009 Screw
26 2210390 Air Separator
28 2321800 Defrost, BI−Metal
29 2254453 Bracket,
Wire Assembly,
Freezer Compartment
(Includes
Illus. 28)
Diffuser
Bottom
Assembly
Fan Motor
Illus. Part
No. No. DESCRIPTION
30 2320183 Retainer−Screw
31 2204639 Shield, Heat
33 489478 Screw
34 2302536 Knob, Damper
35 2254454 Bracket
Evap. Fan, Rear
36 2205079 Seal, Rear
Thermostat
37 2300417 Housing Base
38 2187601 Wiring Harness,
Freezer Light
39 2193491 Electrical Shield,
Freezer Light
40 2260802 Light Bulb
41 2179859 Post, Damper
42 2163810 Bracket,
Damper Knob
43 2166284 Gasket, Rear
44 2210509 Valve
4
W10180450
Page 5
SHELF PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
W10180450
5
Page 6
SHELF PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mounting
4 2214912 Shelf, Glass
5 489478 Screw
6 2254352 Ice Bucket
7 2214910 Shelf, Cantilever
Meat Pan
(Complete)
8 3400065 Screw
9 2314497 Crisper Cover
11 2221693 Glass, Crisper
Cover
12 2214892 Slide, Pan
13 2314477 Crisper, Support
14 2176275 Shelf, Freezer
15 2218139 Pan, Crisper
(13−Inch)
(Includes 17,
20 & 22)
16 2218127 Pan, Meat
17 2176222 Slide, Humidity
Control
19 2218138 Pan, Crisper
(10−Inch)
(Includes 17,
20 & 21)
20 2212446 Body, Humidity
Control
21 2195340 Trim, Crisper Pan
22 2195341 Trim, Crisper Pan
23 2176356 Trim, Meat Pan
24 2214908 Shelf Assembly,
Spillguard (2)
6
W10180450
Page 7

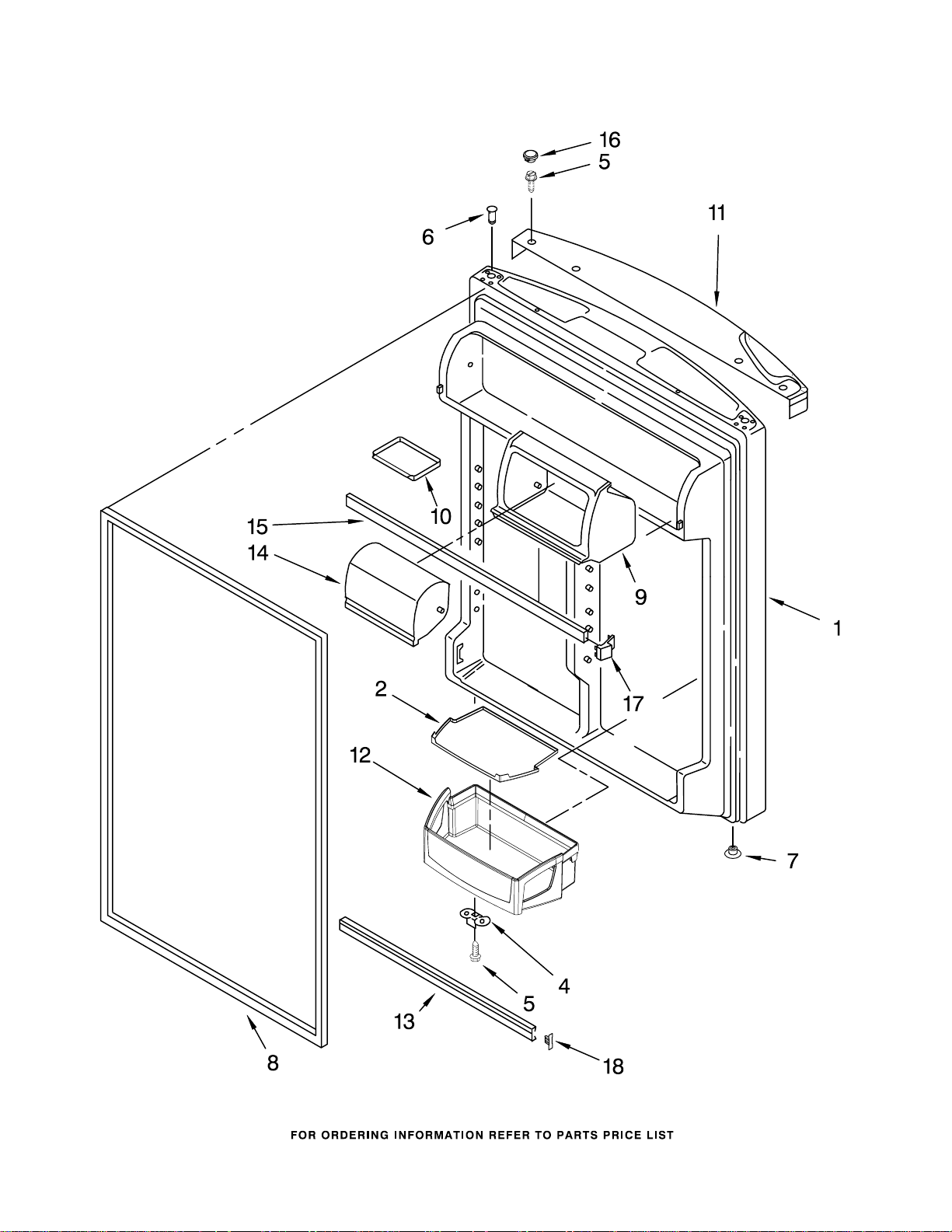

REFRIGERATOR DOOR PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
W10180450
7
Page 8
REFRIGERATOR DOOR PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 6 & 8)
2205395 White
2205398 Black
2218280 Stainless Steel
2 2300430 Mat, Door Bin
4 2189202 Bracket, Door
Stop
5 489276 Screw, 8 x 1/2
6 2183003 Thimble
7 Hole Plug, Hinge
2212648 White
2212651 Black
8 Door Gasket,
Magnetic
2202874 Mist Beige
2202881 Black
9 2210566 Housing Compartment
10 2159302 Tray, Door
11 Handle
2212689 White
2221652 Black
12 2300447 Bin, Door (3)
13 2195949 Trim, Door Shelf
14 2218109 Door Compartment
15 2159312 Trim, Door Shelf
16 Hole Plug, Handle
2204837 White
2204840 Black
17 2177340 Endcap, Door Trim
18 2156006 Plug, Trim
8
W10180450
Page 9

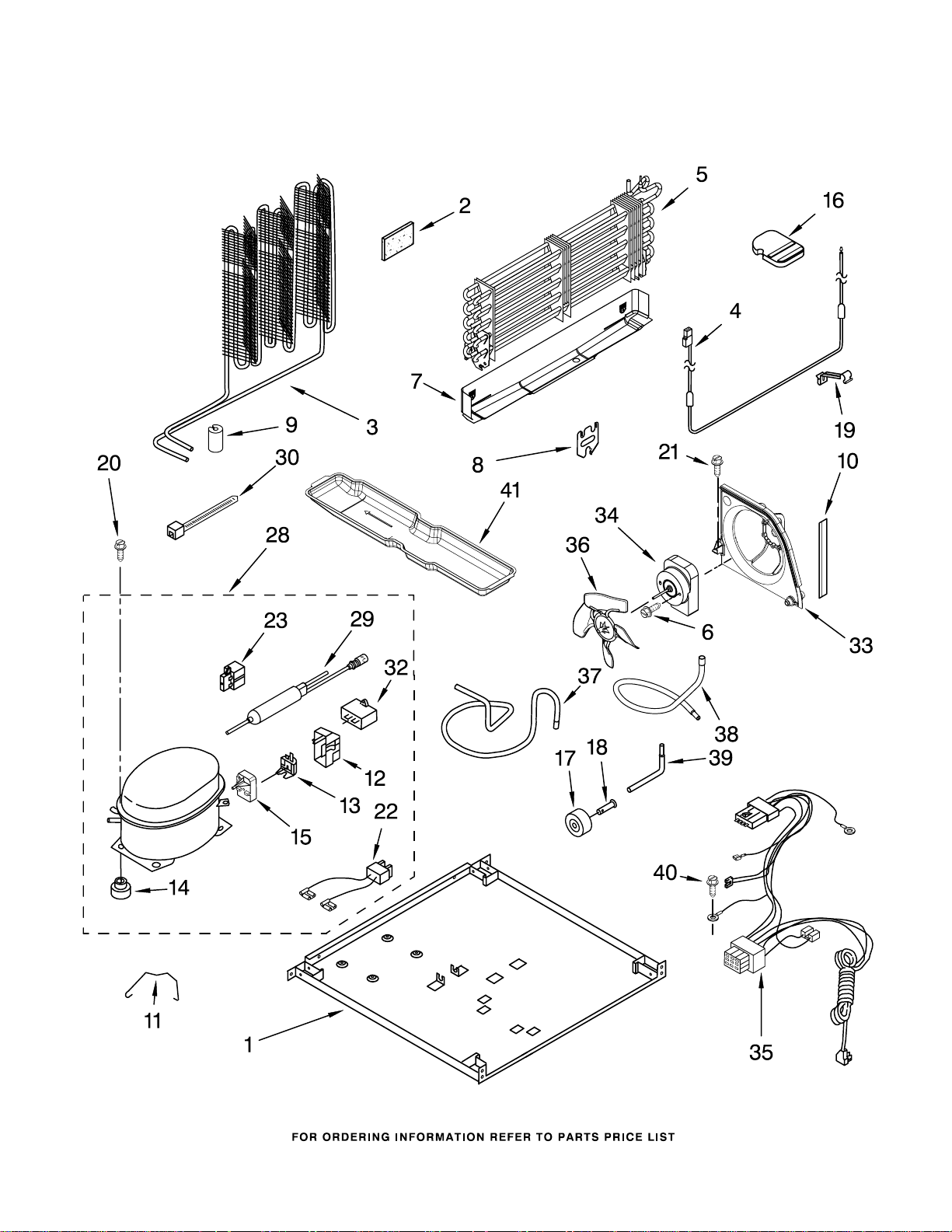

UNIT PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
W10180450
9
Page 10
UNIT PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 2320188 Plate, Unit
Mounting
2 2169104 Insulation,
Sound Dampening
3 2214960 Condenser
4 2315531 Heater, Defrost
5 2254250 Evaporator Assy.
6 8533859 Screw
7 2254294 Drain Pan
8 2176301 Bracket, Heater
9 2319835 Grommet−Cond(4)
10 2300638 Extension, Air
Baffle
11 2255113 Strap
12 4387731 Cover
(Service Only)
13 4390624 Overload
(Service Only)
14 Grommet (4)
1100826 Production
4387558 Service
15 2225929 Start−Device
Combination
(Start Relay and
Overload For
Production
Compressor Only)
16 2201184 Support Block
Illus. Part
No. No. DESCRIPTION
17 2150304 Roller (2)
18 2179826 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 3400518 Screw
22 4387765 Wire Assembly
(Service Only)
23 2183454 Relay
(Service Only)
28 2218968 Compressor
(Includes Items
12,13,14,22,
23,29 & 32)
29 Drier
2199167 Production
2317845 Service
30 2155774 Clamp
32 Capacitor
2264017 Production
1118576 Service
33 2315541 Air Baffle
34 2188728 Motor, Condenser
35 2310433 Wire Assy. Unit
36 2225834 Fan Blade
37 2205384 Tube, Discharge
38 2225237 Tube, Suction
39 2154109 Tube, Process
40 488500 Screw
41 2254574 Evaporator Tray
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.0 Ozs.
(R134A)
10
W10180450
Page 11

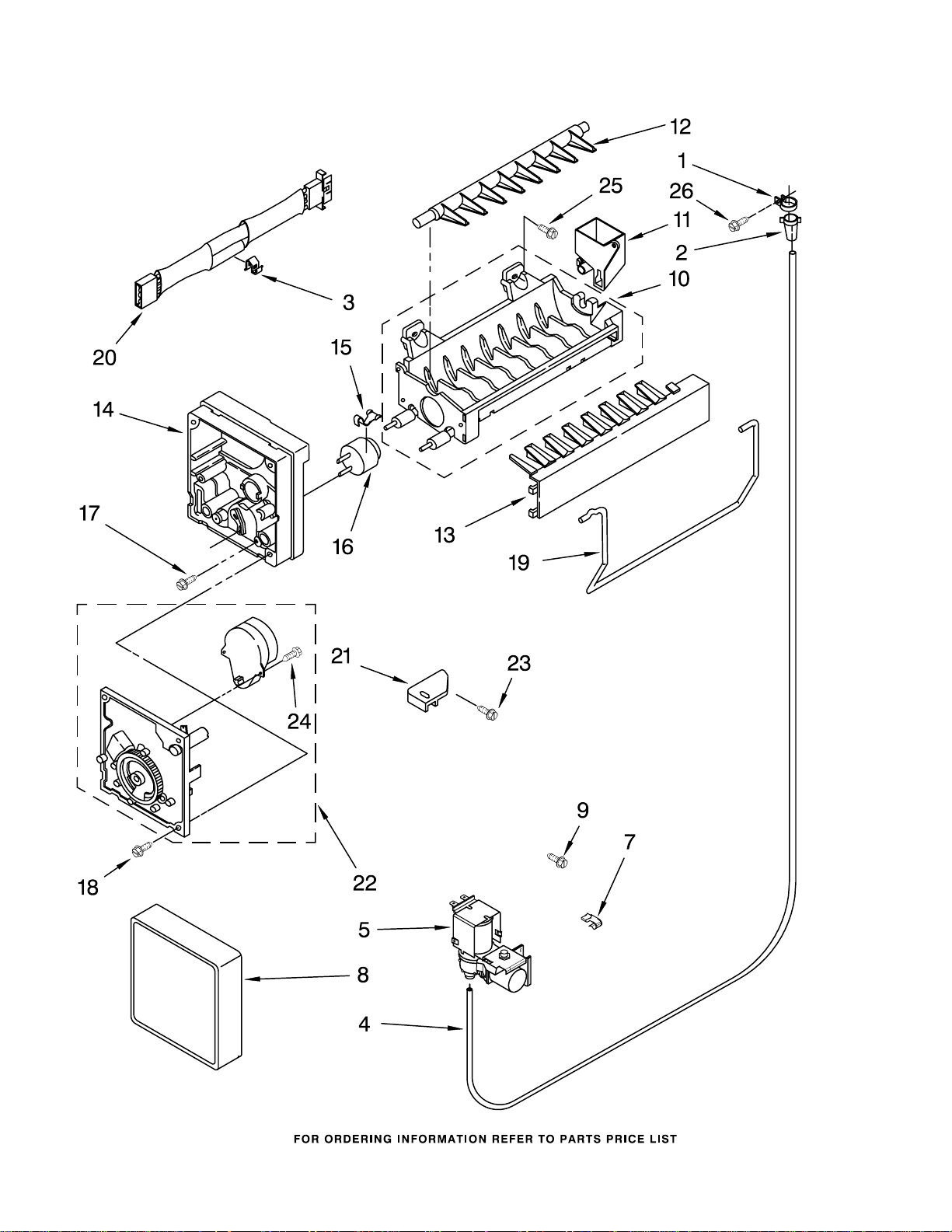

ICEMAKER PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
W10180450
11
Page 12
ICEMAKER PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 488878 Clamp, Tube
2 2181939 Insert, Tube
3 628379 Clip, Fuse
4 2181943 Tube Water
5 2315576 Valve Solenoid
(Single)
7 2210495 Clip, Water Valve
8 2210484 Cover
9 489464 Screw
W10122527
10
11 628515 Cup, Water Fill
12 627843 Ejector
13 2182124 Ice Stripper
14 2194712 Support
15 2315522 Retainer
16 628397 Thermostat (Also
17 8533917 Screw
18 489276 Screw
19 627792 Shut Off Arm
20 2187464 Harness, Wiring
21 628320 Bracket
22 626680 Module Assembly
23 489478 Screw
24 489136 Screw,
25 488208 Screw
26 488886 Screw, 8−18 x 1/2
100
W10122496
Mold & Heater
Assembly (Also
Order 542638
Sillicone Grease)
Thermostat
Order 542369
Cement
Alumilastic)
(Includes Item 24)
3−24 x 23/64
Icemaker, Complete
Assembly
12
W10180450
Page 13

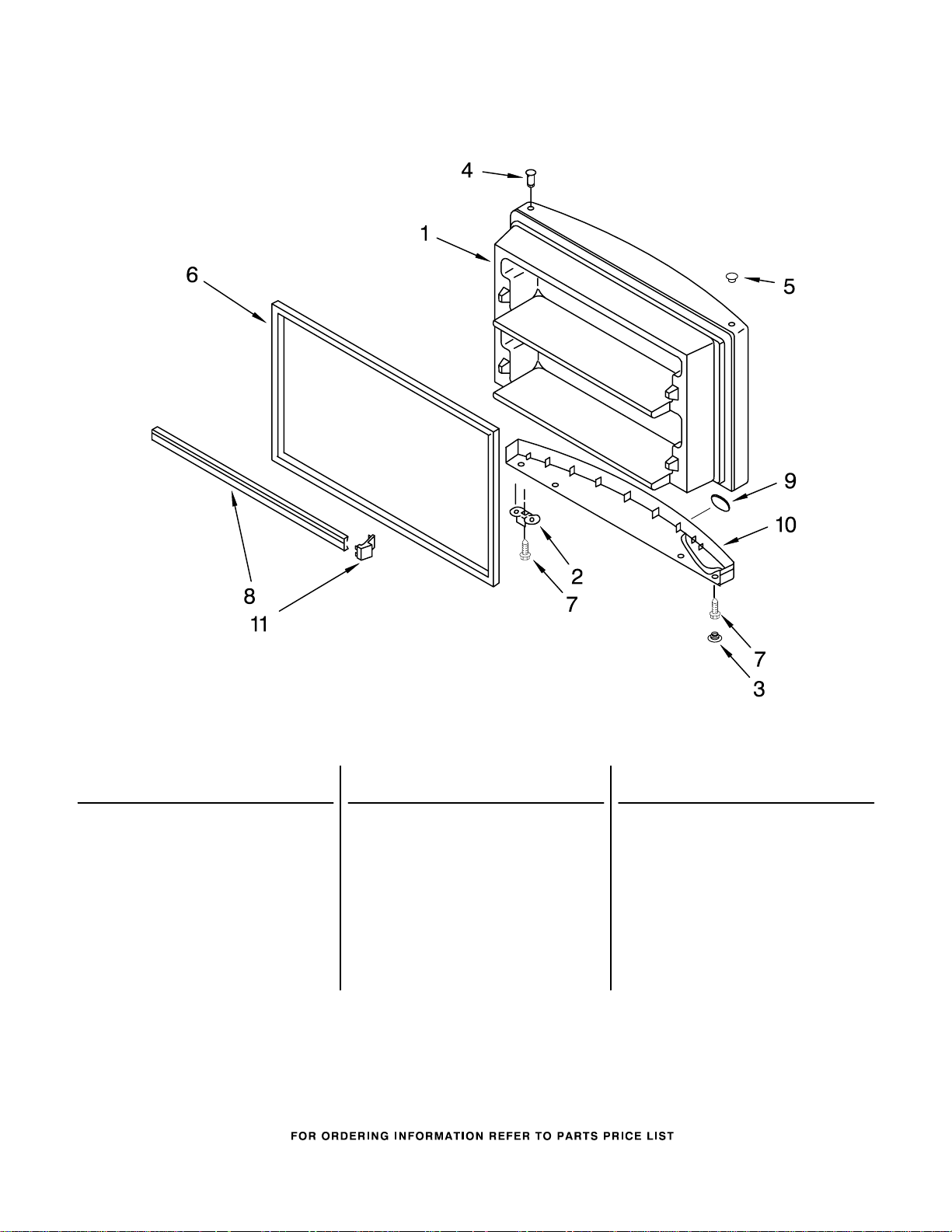

FREEZER DOOR PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes
Illus. 4 & 6)
2205399 White
2205402 Black
2212495 Stainless Steel
2 2189202 Bracket, Door
Stop
W10180450
Illus. Part
No. No. DESCRIPTION
3 Hole Plug, Handle
2204837 White
2204840 Black
4 2183003 Thimble
5 Hole Plug, Hinge
2212648 White
2212651 Black
6 Door Gasket,
Magnetic
2214966 Mist Beige
2214968 Black
13
Illus. Part
No. No. DESCRIPTION
7 489276 Screw
8 2195946 Trim, Door
Shelf (2)
9 2220214 Nameplate
10 Handle
2225090 White
2225158 Black
11 2195916 EndCap, Trim (4)
Page 14
OPTIONAL PARTS
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Illus. Part
No. No. DESCRIPTION
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
14
W10180450
