Page 1

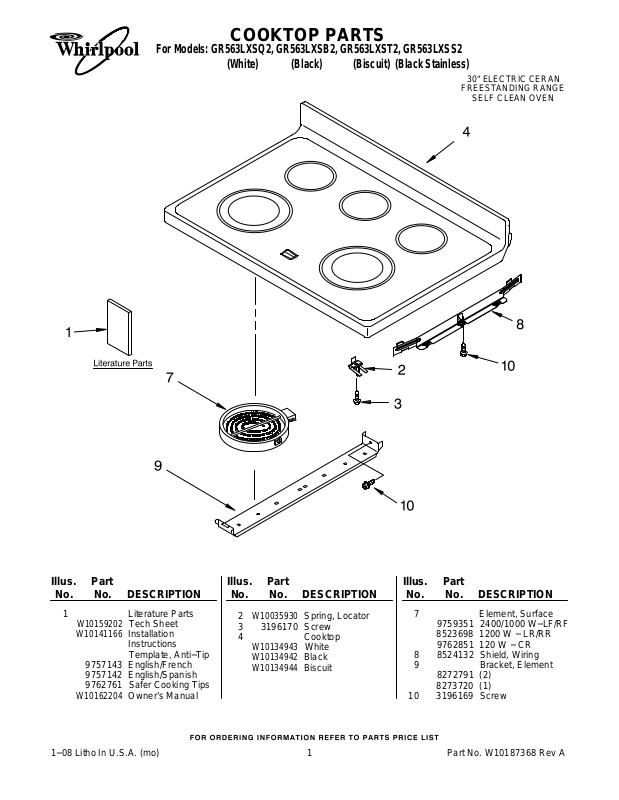

COOKTOP PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
30" ELECTRIC CERAN
FREESTANDING RANGE
SELF CLEAN OVEN
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10159202
W10141166
9757143 English/French
9757142 English/Spanish
9762761 Safer Cooking Tips
W10162204
1−08 Litho In U.S.A. (mo)
Tech Sheet
Installation
Instructions
Template, Anti−Tip
Owner’s Manual
Illus. Part
No. No. DESCRIPTION
W10035930
2 3 3196170 Screw 4 Cooktop
W10134943
W10134942
W10134944
Spring, Locator
White
Black
Biscuit
1
Illus. Part
No. No. DESCRIPTION
7 Element, Surface
9759351 2400/1000 W−LF/RF
8523698 1200 W − LR/RR
9762851 120 W − CR
8 8524132 Shield, Wiring
9 Bracket, Element
8272791 (2)
8273720 (1)
10 3196169 Screw
Part No. W10187368 Rev A
Page 2
DRAWER & BROILER PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
Illus. Part
No. No. DESCRIPTION
1
W10138079
2 9761030 Drawer, Storage
3 9758200 Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
3196813 Black
5 Panel, Drawer Frnt
8053339 White
8053341 Black
8272501 Biscuit
6 Rail, Drawer
8274191 Right Hand
8274190 Left Hand
7 3196168 Screw
8 For Stainless
9 9781235 Clip
W10133363
10
11 9762251 Handle, Drawer
12 8522669 Spacer, Glide
13 9751138 Roller (2)
14 487939 Nut (2)
15 9756711 Heat Shield,
16 8274021 Rack, Partial
17 8274022 Rack, Insert
Rack, Oven (2)
Model Only
Panel, Stainless
Drawer
2
W10187368
Page 3
CHASSIS PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
W10187368
3
Page 4
CHASSIS PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
Illus. Part
No. No. DESCRIPTION
1
W10127969
2 8273905 Support, Corner LR
3 Panel, Side (2)
8053830 White−Textured
8053832 Black−Textured
8272519 Biscuit−Textured
5 8522416 Seal, Oven Door
6 9757341 Element, Broil
7 9755770 Element, Bake
8 9757239 Rod − Door Switch
9 3196548 Fuse, Thermal
10 3195736 Support, Front (2)
11 3196037 Foot, Front (2)
13 8054068 Tray, Insulation
14 3196576 Clip, Panel (6)
15 9760314 Rail, Base (2)
W10058460
16
17 3195987 Support, Corner RR
18 9761301 Screen − Catalyst
Vent Tube Assbly
(Hidden Bake)
Foot, Rear (2)
Illus. Part
No. No. DESCRIPTION
19 3186116 Support, Oven (2)
20 3186034 Bracket, Service
21 9761958 Block, Terminal
22 8274034 Back, Main
23 9757262 Switch, Door
24 3196701 Light Socket Assy
25 311255 Bulb, Oven Light
26 9755771 Cover, Tray
27 8273902 Sensor, Oven
28 3196165 Screw
29 3196179 Screw
30 3196178 Screw
31 3400016 Screw
33 3196172 Screw
W10031780
34
35 3196566 Screw
36 3196560 Screw
37 3196174 Screw
38 9758238 Retainer, Side (2)
39 9761490 Insulation
Screw
Illus. Part
No. No. DESCRIPTION
40 9761512 Clip − Mounting
41 9761013 Latch, Door
W10078380
42
W10107820
43
44 9758701 Spacer, Door
45 3196169 Screw
46 9755769 Tray, Hidden
47 9759689 Card, Insulator
48 9758283 Cover, Box
49 112432 Nut (3)
50 9760407 Bracket−Mounting
Rod, Latch
Latch Asy, Rear
Bake Element
INSULATION
8272616 Insulation, Wrap
9755772 Insulation, Back
8272613 Insulation, Vent
4
W10187368
Page 5
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
CONTROL PANEL PARTS
(White) (Black) (Biscuit) (Black Stainless)
W10187368
5
Page 6

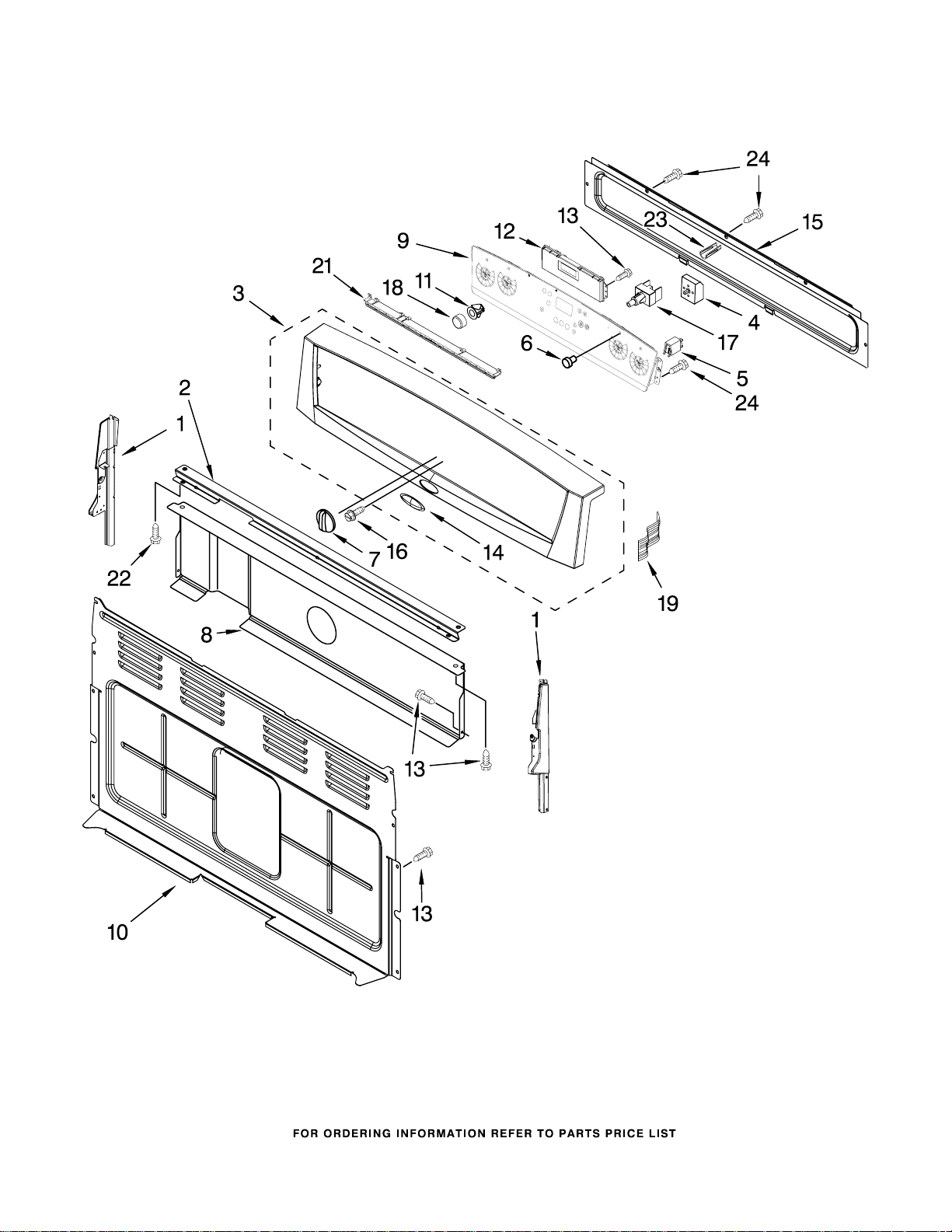

CONTROL PANEL PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009040
W10009050
W10009080
W10009090
W10009060
W10009070
2 9762095 Bracket, Console
3 Panel, Backguard
9762585 White
9762586 Black
9762587 Biscuit
9762588 Unvl Slvr for SS
4 Switch, Infinite
9758060 Left Front
3148951 Left Rear
3148951 Right Rear
9758060 Right Front
5 8523265 Light, Indicator
6 3196068 Lens, Light
7 Knob, Infinite (4)
9757132 White
9758129 Black
9757626 Biscuit
W10134247
8
9 Glss Swtch Membrn
9763545 White
9763546 Black
9763547 Biscuit
10 9756999 Cover, Rear
11 Bezel, Keep Warm
9757489 White
9758489 Black
9758488 Biscuit
12 9763681 Control, Range
13 3196178 Screw
14 9757613 Nameplate
15 9756366 Cover, Rear
16 3400882 Screw
17 8272820 Switch
18 Button
9757492 White
9758491 Black
9758490 Biscuit
19 9760080 Cnntr,Cable Flex
21 9757358 Reflector, Light
22 Screw
3196166 White
3196168 Black
8281194 Biscuit
23 9757490 Support, Glass
24 3196178 Screw
White Left Hand
White Right Hand
Black Left Hand
Black Right Hand
Biscuit Left Hand
Biscuit Right Hand
Shield, Heat
(Console)
6
W10187368
Page 7
DOOR PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
W10187368
7
Page 8

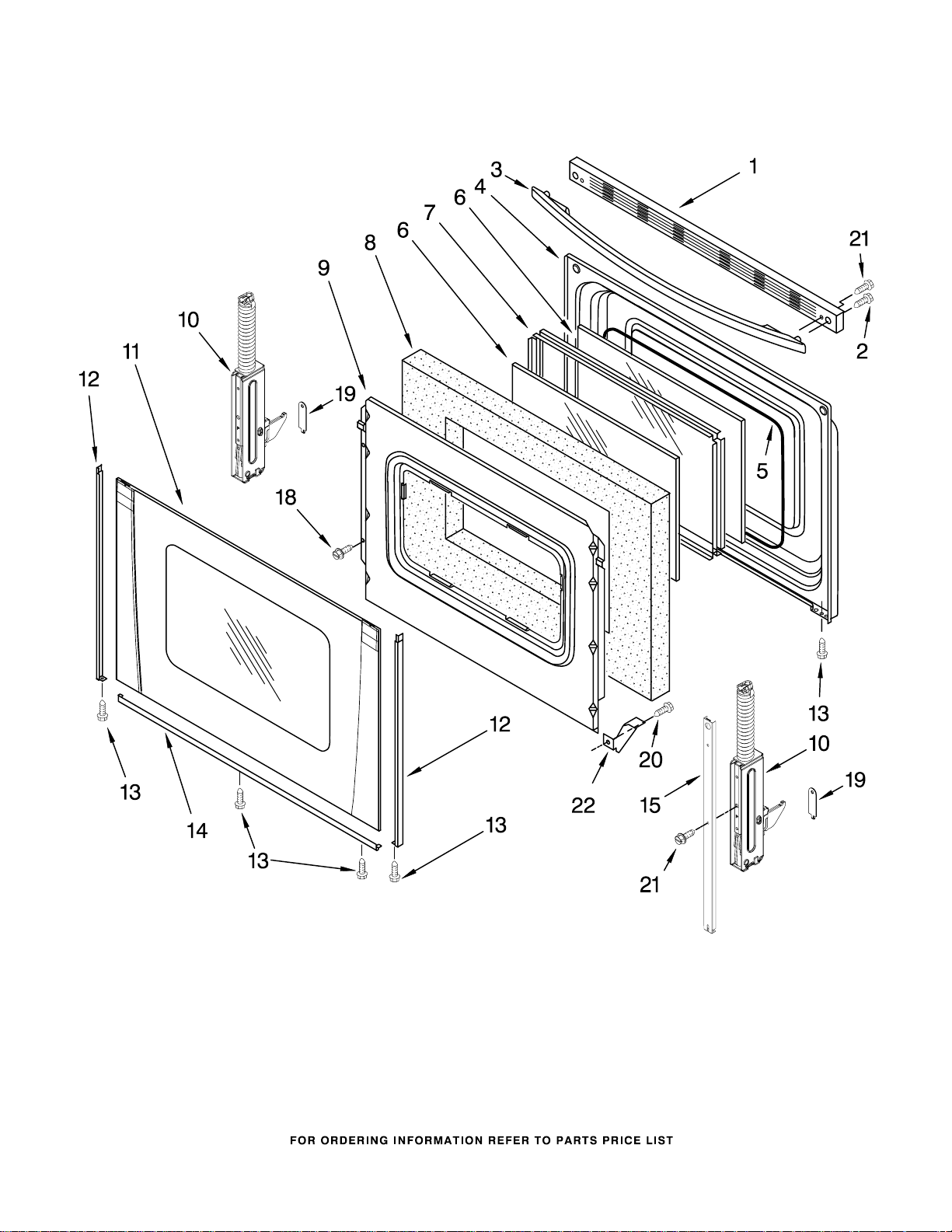

DOOR PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
9761975 White
9762391 Black
9761976 Biscuit
9761977 Stainless Steel
2 3196164 Screw
3 Handle, Door
9761978 White
9761979 Black
9761980 Biscuit
9761981 Stainless Steel
4 9761344 Liner, Door
5 8522414 Seal, Window
6 9758162 Glass, Inner (2)
7 3186289 Frame, Glass
8 8272618 Insulation, Door
9 9761357 Retainer, Insul.
10 9761496 Hinge, Door (2)
11 Glass, Outer
W10010660
W10010680
W10010670
W10145299
12 Trim, Side
8523166 White Left Hand
8523172 White Right Hand
8523171 Black Left Hand
8523165 Black Right Hand
8523167 Biscuit Left Hand
8523173 Biscuit Right Hand
W10113926
W10113925
13 3196160 Screw
14 Trim, Lower
8523175 White
8523177 Black
8523178 Biscuit
W10113759
15
W10031790
18
19 9761517 Clip, Door Mntg
20 3196165 Screw
W10031780
21
22 3196794 Bracket, Window(2)
White
Black
Biscuit
Stainless Model
Unv Slvr LH
Unv Slvr RH
Strap, Door
Screw
Screw
8
W10187368
Page 9
OPTIONAL PARTS
For Models: GR563LXSQ2, GR563LXSB2, GR563LXST2, GR563LXSS2
(White) (Black) (Biscuit) (Black Stainless)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
Illus. Part
No. No. DESCRIPTION
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3184478 Cleaner, Glass
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10111781
W10111780
W10111779
9763631 Harness,Wire
9757339 Harness, Bake
3196520 Clip, Harness
8523279 Wire, Ground
3196173 Screw, Ground
3196154 Screw
313660 Clip − Grnd Wire
Harness, Wire
(Cooktop Left)
Harness, Wire
(Cooktop Right)
Harness, Wire
(Main)
(Sensor/Dr Switch)
Element (Hidden)
W10187368
9
