CABINET PARTS
REFRIGERATOR
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
06−08 Litho In U.S.A. (rrm)(bay)
1
Part No. W10208011 Rev.A
Page 2
CABINET PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142146
W10206563
2225623 Modular Icemaker
W10131410
W10131418
2302485 Customer Instruct
Service &
Wiring Sheet
Energy Label
Service Sheet
Use & Care Guide
Bilingual
Trilingual
Sheet, Wtr Filter
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual, Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 2301705 Water Filter
Illus. Part
No. No. DESCRIPTION
5 2208136 Clamp, Tube
(Water Supply Line)
6 489427 Screw
7 Cap, Water Filter
2186494W White
2186494B Black
8 488886 Screw
9 2225521 Housing,
Water Filter
10 2200778 Insulation
11 3400504 Screw
12 549193 Clamp, Cord
13 2179826 Rivet
14 3196178 Screw
15 489497 Screw
16 2254618 Hinge, Center
17 2183852 Shim, Hinge
Center
18 489464 Screw
19 2300782 Clamp
20 2254473 Hinge Butt
22 Endcap, Grille
2300634W White
2300634B Black
Illus. Part
No. No. DESCRIPTION
24 Fitting, Water Tube
(NOT SERVICED)
25 Hole Plug (6)
2201012 White
2183998 Black
26 Corner Filler (2)
2201014 White
2201017 Black
27 Grille
(Includes
Illus. 22 & 30)
2300475W White
2300475B Black
28 489341 Washer, Plain
29 487576 Washer, Nylon
30 2189356 Clip, Grille (2)
31 Cover, Hinge
2213360 White
2213363 Black
32 Rail, Center
(NOT SERVICED)
33 2254576 Cover, Unit
34 Cabinet (Not a
Serviceable Part)
2
W10208011
Page 3
LINER PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
W10208011
3
Page 4
LINER PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254360 Gasket, Evaporator
Cover (2)
4 2304093 Adaptive Defrost
Control
5 2212485 Thermostat Tube
Barrier
6 488208 Screw
7 2310081 Wire Assembly,
Control Box
8 2162085 Socket, Light
9 2179858 Damper, Air
10 2214986 Fan Motor
11 2163777 Fan Blade
12 2300761 Control Box
13 2314594 Thermostat Assembly
(Includes
Illus. 5 & 18)
14 2214981 Insulation,
Water Tube
15 2213462 Harness, Indicator
Light
Illus. Part
No. No. DESCRIPTION
16 2320193 Cover, Evaporator
17 2255743 Light Bulb (2)
18 2200831 Weight, Thermal
19 1118894 Rocker Arm
Switch
W10129803
20
21 2176281 Cover, Air
22 2200863 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
25 2225476 Freezer Floor,
26 2212439 Air Separator
27 8534009 Screw
28 2254454 Bracket
29 2254453 Bracket,
30 2320183 Retainer−Screw
31 2321800 Defrost, BI−Metal
Wire Assembly,
Freezer Compartment
(Includes Item 31)
Diffuser
Bottom
Pullout
Assembly
Evap. Fan, Rear
Fan Motor
Illus. Part
No. No. DESCRIPTION
32 2213495 Cover, Light Lens
33 489478 Screw
34 2302536 Knob, Damper
36 2205079 Seal, Rear
Thermostat
37 2171931 Valve
38 2225473 Retainer, Freezer
Floor
39 2300418 Housing Base
40 2198768 Rear Fence,
Pull−Out Freezer
Floor
41 2187601 Wiring Harness,
Freezer Light
42 2193491 Electrical Shield,
Freezer Light
43 2260802 Light Bulb
45 2204639 Shield, Heat
46 2179859 Post, Damper
47 2163810 Bracket,
Damper Knob
48 2166284 Gasket, Rear
51 2319867 Tube, Filter Inlet
52 2225531 Cover, Tubing
53 2301621 Tube, Water
54 2210563 Clip, Retainer
4
W10208011
Page 5
SHELF PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
W10208011
5
Page 6
SHELF PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mtg.
5 489478 Screw
7 2254458 Deflector, Air
(Crisper Cover)
8 2225698 Frame Assembly,
Shelf
9 2314500 Crisper Cover
10 2314478 Crisper Support
11 2210573 Glass, Crisper
Cover
12 2205162 Frame Assembly,
Meat Shelf
13 2225721 Shelf Assembly,
Spillguard (2)
14 2184667 Shelf, Freezer
15 2218130 Pan, Crisper
(Includes
Illus. 17,18 & 19)
16 2218132 Pan, Meat
17 2176222 Slide, Crisper
18 2212446 Body, Humidity
Control
19 2195341 Trim, Crisper Pan
20 2176357 Trim, Meat Pan
21 2254352 Ice Bucket
6
W10208011
Page 7
REFRIGERATOR DOOR PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
W10208011
7
Page 8
REFRIGERATOR DOOR PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 8 & 12)
2300636W White
2300636B Black
W10141745
2 2159306 Trim, Door Shelf
3 2177340 Endcap, Door Trim
4 2189202 Bracket, Door
5 2210566 Housing,
6 2218109 Door Compartment
7 Hole Plug,
2212648 White
2212651 Black
8 Door Gasket,
2202875 Mist Beige
2202882 Black
9 2195388 Tray, Door
10 2300431 Mat, Door Bin
11 Hole Plug,
2204837 White
2204840 Black
12 2183003 Thimble
13 489276 Screw
14 Endcap, Handle
2212624 White
2221644 Black
15 2304918 Bin, Door Shelf (3)
16 2195948 Trim, Door Shelf
17 2156006 Plug, Trim
Stainless
Stop
Compartment
Hinge Sleeve
Magnetic
Endcap
8
W10208011
Page 9
UNIT PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
W10208011
9
Page 10
UNIT PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 2320187 Plate, Unit
Mounting
2 2300499 Control Box,
Dispenser
3 2214960 Condenser
4 2314157 Heater, Defrost
5 2254249 Evaporator Assy.
6 8533961 Screw
7 2254295 Drain Pan
8 2176301 Bracket, Heater
9 2300867 Power Supply,
Dispenser
10 2300638 Extension, Air
Baffle
11 2169104 Insulation,
Sound Dampening
14 Grommet (4)
1100826 Production
4387558 Service
15 2187861 Harness, Dispenser
(High)
W10174384
16
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 2319835 Grommet−Cond(4)
Bale Strap,
Compressor
Illus. Part
No. No. DESCRIPTION
22 2201185 Support Block
23
W10194431
25 2314102 Harness, Dispenser
26 2314103 Harness, Side Rail
27 2187864 Harness,
W10164016
28
29 Drier
W10177049
W10143759
30 2155774 Clamp
32 Capacitor
2264017 Production
1118576 Service
34 2315541 Air Baffle
35 2188874 Motor, Condenser
36 2187976 Wire Assy. Unit
37 2225834 Fan Blade
W10189808
38
W10189806
39
Start−Device
Combination
(Start Relay and
Overload for
Production
Compressor Only)
(Low)
Front Rail
Compressor
(Includes Items
14,29,32)
(Also Order 482801
Installation Kit
& 876765 Tube Kit)
Production
Service
Tube, Discharge
Tube, Suction
Illus. Part
No. No. DESCRIPTION
40 2154109 Tube, Process
41 488500 Screw
42 3400518 Screw
43 2254574 Evaporator Tray
44 2209709 Connector−Water
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.0 Ozs.
(R134A)
10
W10208011
Page 11
ICEMAKER PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
W10208011
11
Page 12
ICEMAKER PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 488878 Clamp, Tube
2 2181939 Insert, Tube
3 628379 Clip, Fuse
4 2320315 Tube Water
5 489478 Screw
6 2188808 Valve (Double),
Solenoid
7 2210484 Cover
8
W10122527
9 489442 Screw
10 628515 Cup, Water Fill
11 627843 Ejector
12 2182124 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
15 628397 Thermostat (Also
16 8533917 Screw
17 489276 Screw
18 627792 Shut Off Arm
19 2187464 Harness, Wiring
20 628320 Bracket
21 626680 Module Assembly
22 489136 Screw,
23 488208 Screw, 8 x 13/16
24 488886 Screw, 8−18 x 1/2
25 2198677 Connector−Water
100
W10122496
Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
Thermostat
Order 542369
Cement
Alumilastic)
(Includes Item 22)
3−24 x 23/64
Icemaker, Complete
Assembly
12
W10208011
Page 13

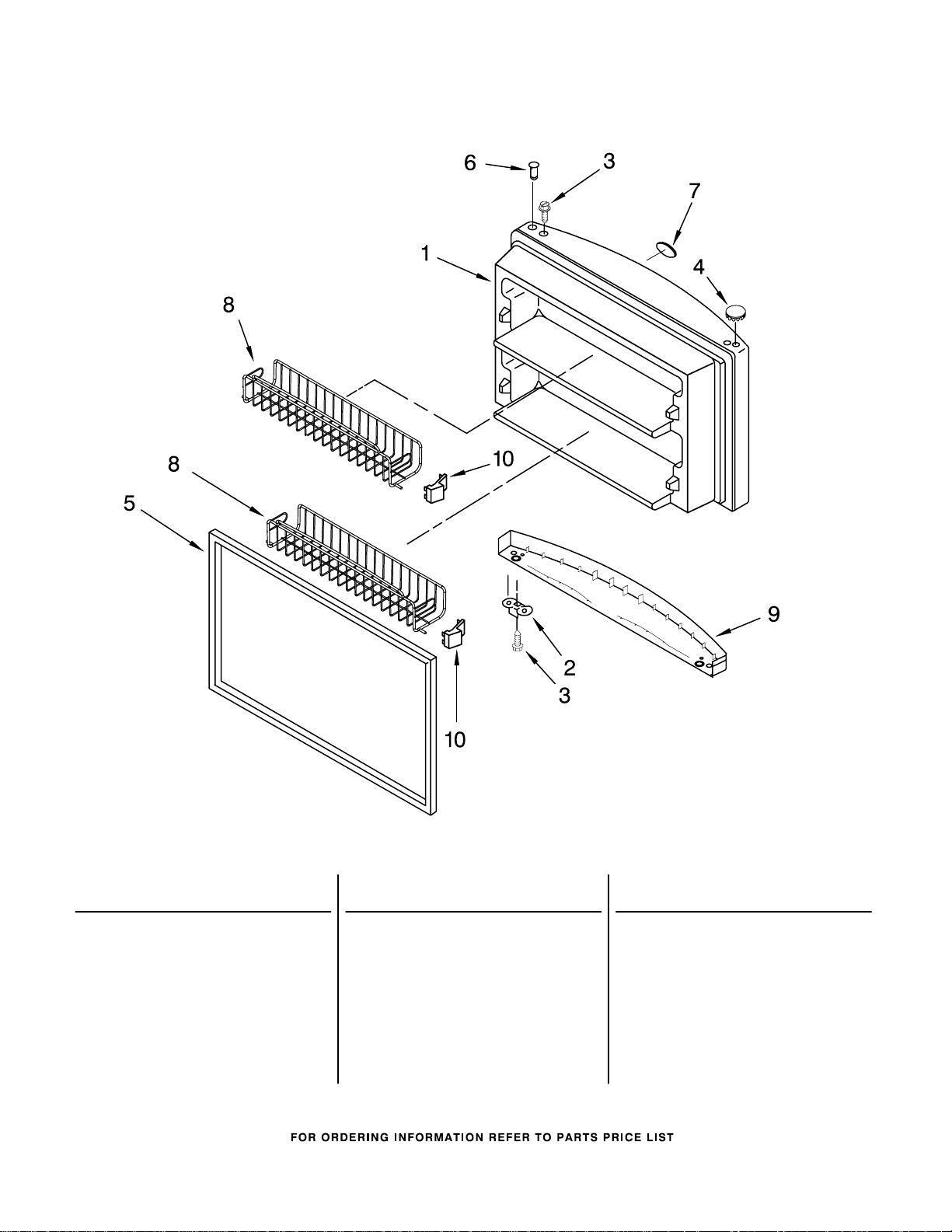

FREEZER DOOR PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes
Illus. 5 & 6)
2202520 White
2204856 Black
W10205108
2 2189202 Bracket, Door
W10208011
Stainless
Stop
Illus. Part
No. No. DESCRIPTION
3 489276 Screw
4 Hole Plug,
Hinge Sleeve
2212648 White
2212651 Black
5 Door Gasket,
Magnetic
2214967 Mist Beige
2214969 Black
13
Illus. Part
No. No. DESCRIPTION
6 2183003 Thimble
7 2220214 Nameplate
8 2300796 Basket, Door
9 Endcap, Handle
2225094 White
2225108 Black
10 Endcap, Basket
2300799 Right
2300798 Left
Page 14
DISPENSER PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2300485 Reservoir
3 2300626 Light Pipe
4 Lever, Water
Dispenser
2300471W White
2300471B Black
5 2300865 User Interface,
Dispenser
(Includes #3)
Illus. Part
No. No. DESCRIPTION
6 Overlay, Front
Cover
(Not Available
Order #10)
7 2320340 Wire Assembly
8 Front Cover,
Housing
(Not Available
Order #10)
9 Diffuser,
Dispenser
(Not Available
Order #10)
14
Illus. Part
No. No. DESCRIPTION
10 Front Cover
Assembly
(Includes Items
3,5,6,8 & 9)
2300628W White
2300628B Black
11 2300629 Switch, Toggle
12 489415 Screw
W10208011
Page 15
OPTIONAL PARTS
For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01
(White) (Black) (Stainless)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Illus. Part
No. No. DESCRIPTION
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
8171357 Enamel, Graphite
(12 oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
80051 Brush Touch−Up Kit
(Graphite)
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
799340 Enamel, Black
(1 Qt. Uncut)
8171358 Enamel, Graphite
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
W10208011
15
Loading...
