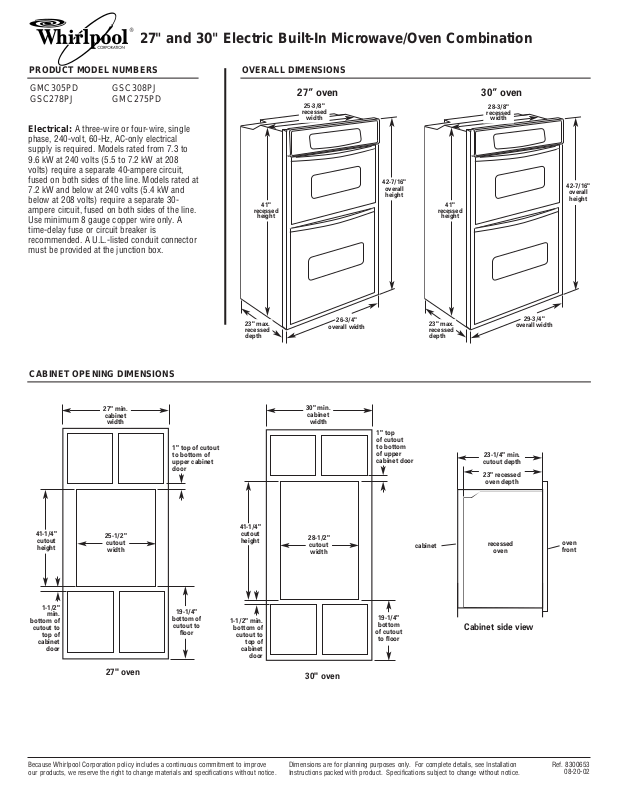

GMC305PD
27" and 30" Electric Built-In Microwave/Oven Combination
PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
GMC305PD
GSC278PJ
GSC308PJ
GMC275PD
Electrical: A three-wire or four-wire, single
phase, 240-volt, 60-Hz, AC-only electrical
supply is required. Models rated from 7.3 to
9.6 kW at 240 volts (5.5 to 7.2 kW at 208
volts) require a separate 40-ampere circuit,
fused on both sides of the line. Models rated at
7.2 kW and below at 240 volts (5.4 kW and
below at 208 volts) require a separate 30-
ampere circuit, fused on both sides of the line.
Use minimum 8 gauge copper wire only. A
time-delay fuse or circuit breaker is
recommended. A U.L.-listed conduit connector
must be provided at the junction box.
®
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8300653
08-20-02
41"
recessed
height
42-7/16"
overall
height
23" max.
recessed
depth
27” oven
41"
recessed
height
42-7/16"
overall
height
28-3/8"
recessed
width
25-3/8"
recessed
width
23" max.
recessed
depth
30” oven
26-3/4"
overall width
29-3/4"
overall width
Cabinet side view
23-1/4" min.
cutout depth
23" recessed
oven depth
recessed
oven
cabinet
oven
front
30" min.
cabinet
width
1" top
of cutout
to bottom
of upper
cabinet door
27" min.
cabinet
width
28-1/2"
cutout
width
25-1/2"
cutout
width
41-1/4"
cutout
height
19-1/4"
bottom
of cutout
to floor
1-1/2" min.
bottom of
cutout to
top of
cabinet
door
1" top of cutout
to bottom of
upper cabinet
door
1-1/2"
min.
bottom of
cutout to
top of
cabinet
door
19-1/4"
bottom of
cutout to
floor
30" oven
27" oven
41-1/4"
cutout
height
