Page 1
COOKTOP PARTS
For Models: GJD3044RB03
(Black)
30" ELECTRIC
BUILT−IN
DOWNDRDAFT COOKTOP
06−08 Litho in U.S.A. (amd)(mek)
1
Part No. W10210820 Rev. A
Page 2
COOKTOP PARTS
For Models: GJD3044RB03
(Black)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8286240 Installation
Instructions
8286343 Wiring Diagram
W10162166
9762761 English
W10065852
2
W10141010
3 3196537 Screw
4 3191387 Seal, Switch 2"
5 Element, Surface
8523698 LR 1200W
4453909 LF 2500/1200W
8285937 RR 2000/1000W
8523697 RF 1500W
6 Rail, Element
8285933 Right
8286054 Left
7 8285809 Box, Burner
8 3183956 Seal
W10169758
9
3177991 Screw
10 3190656 Drip Bowl
11 4455354 Bracket, Control
12 311865 Screw
13 4456836 Switch, Speed
14 Switch, Infinite
3191049 LR,RF
9759474 RR,LF
15 8285469 Seal, Switch
16 3192439 Seal, Limiter
17 4455917 Bracket, Mounting
8286043BL
18
8286045BL
19
20 8285115 Grille, Air
21 3192530 Filter, Grease
22 8523552 Badge
23 9759094 Spring, Locator
W10137040
24
25 8286055 Light, Hot Surface
26 3193094 Plate, Cover
27 3400093 Screw
Owners Manual
Safe Cooking Tips
French
Cooktop, Glass &
Bracket Assembly
Switch Cover
Shield, Vent
Mounting
Control
Knob, Control
Knob, Downdraft
Gasket, Vent
Shield
Indicator
2
W10210820
Page 3

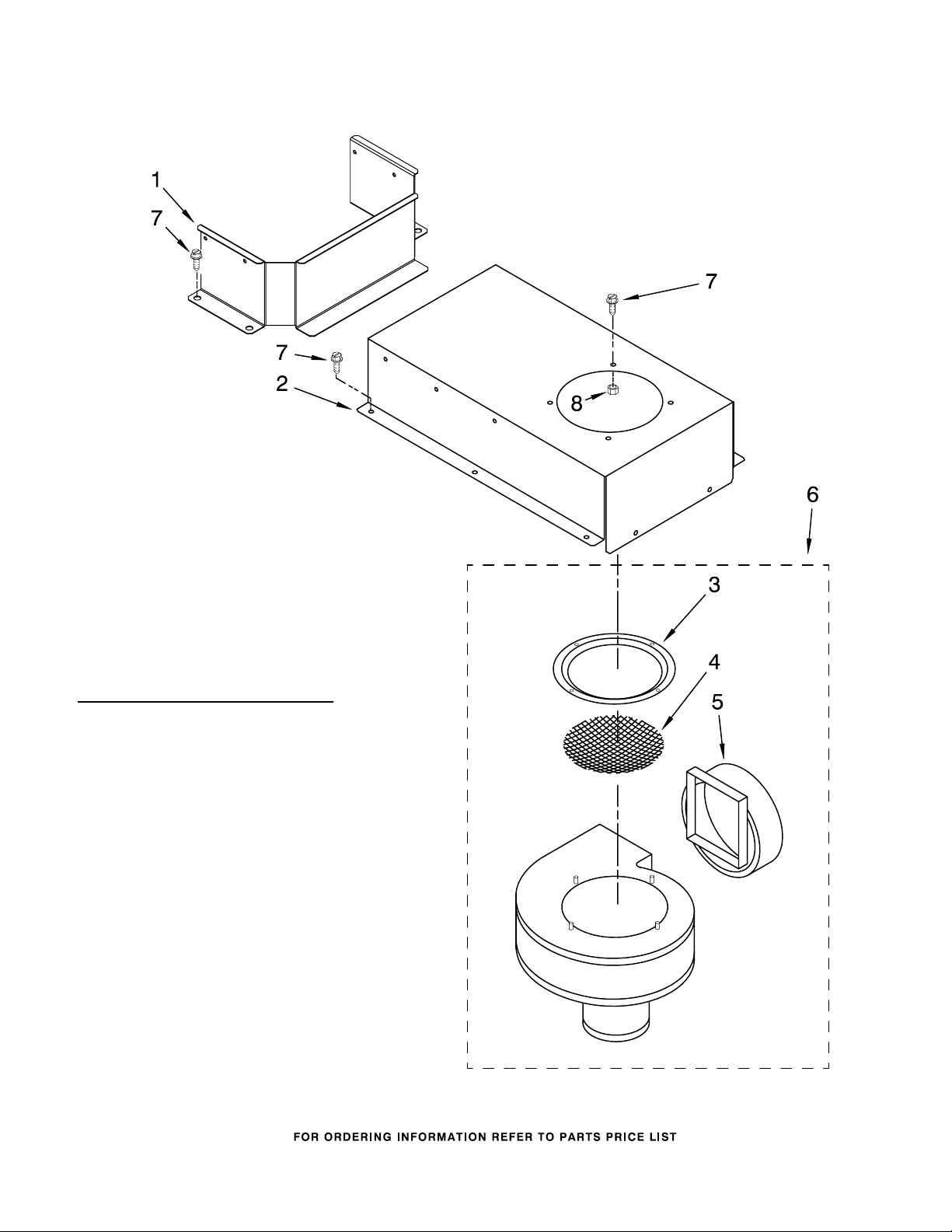

BLOWER UNIT PARTS
For Models: GJD3044RB03
(Black)
Illus. Part
No. No. DESCRIPTION
1
W10169759
2 3192403 Bracket, Blower
3 9760484 Ring, Inlet
4 9760485 Screen, Inlet
5 9760483 Vent, Adapter
W10109930
6
7 3367670 Screw
8 488130 Nut
Bracket, Shield
Mounting
Blower Motor
Assembly,(Includes
Fan Assembly)
W10210820
3
Page 4
OPTIONAL PARTS
For Models: GJD3044RB03
(Black)
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
Miscellaneous
8286642 Tape, Foam
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242820 Wire, Black
14 Ga. 150
242822 Wire, Blue
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
C
C
C
C
C
C
C
C
C
ACCESSORY PARTS
8286407 Harness, Ceran
Downdraft
4456859 Harness, Blower
Switch
98997 Clip
9760671 Strain Relief
8286416 Conduit, Downdraft
3196160 Screw
3400015 Screw
4
W10210820
