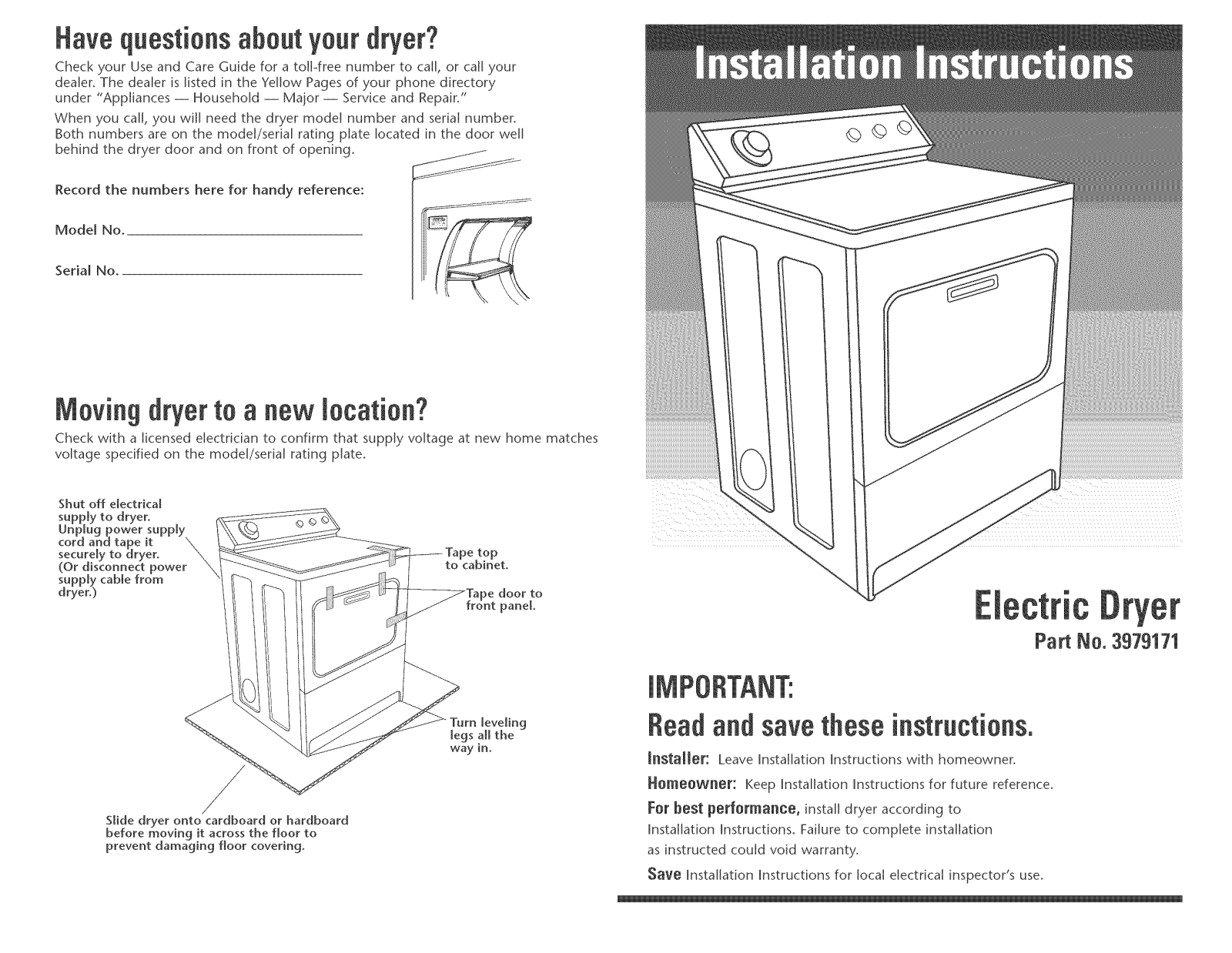

Whirlpool GEW9868KL4, GEW9868KT3, GEW9868KL3, GEW9868KL1, GEW9868KL2 Installation Guide
Havequestionsaboutyourdryer?
Check your Use and Care Guide for a toll+free number to call, or catl your
dealer. The dealer is listed in the Yellow Pages of your phone directory
under "Appliances -- Household -- Major -- Service and Repair:"
When you call, you will need the dryer model number and serial number:
Both numbers are on the model/serial rating plate located in the door well
behind the dryer door and on front of opening, +_/._
Record the numbers here for handy reference:
ModeB No+
Serial No+
Moving dryerto a newleeat+en.
Check with a licensed electrician to confirm that supply voltage at new home matches
voltage specified on the model/serial rating plate,
Shut off electrical
supply to dryer.
Unplug power supply
cord and tape it \
securely to dryer. _ _e top
(Or disconnect power \ to cabinet.
supply cable from
dryer,) _e door to
o ?
panel
/
Slide dryer onto cardboard or hardboard
before moving it across the floor to
prevent damaging floor covering.
Readand savethese instmetiens.
installer: Leave Installation Instructions with homeowner.
Hemeewner: Keep Installation Instructions for future reference.
Fer best perfermanee, install dryer according to
Installation Instructions+ Failure to complete installation
as instructed could void warranty.
Save Installation Instructions for local electrical inspector's use.
strain re[ief

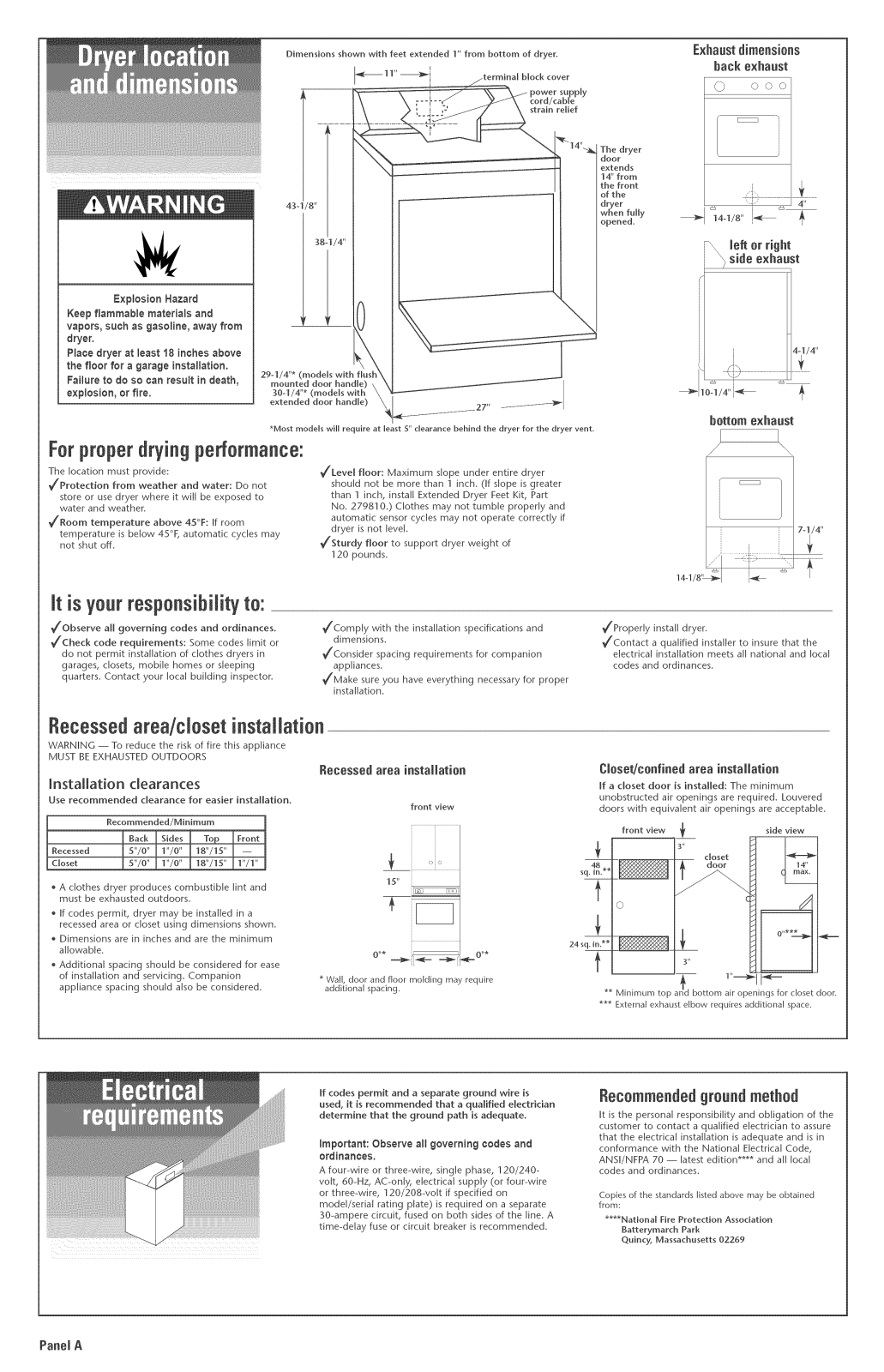

Exhaustdimensieas
back exhaast
0 r> 0
43-1/8"
Explosion Hazard
Keep flammable materials and
vapors, such as gasoline, away from
dryer,
Place dryer at [east 18 inches above
the floorfora garage installation.
Faiture to do so can result in death,
explosion, or fire,
2%1/4"* (models with flusl-
mounted door handle)
30-1/4"* (models wRh
extended door handle) _27"
*Most models will require at least 5" clearance behind the dryer for the dryer vent,
Forproperdryingperformance:
The location must provide:
_/Protection from weather and water: Do not
store or use dryer where it wii[ be exposed to
water and weather.
_'Room temperature above 45°F: Ifroom
temperature is below 45°F, automatic cycles may
not shut off.
\
_'Leve[ floor: Maximum slope under entire dryer
should not be more than 1 inch. (If slope is greater
than 1 inch, install Extended Dryer Feet Kit, Part
No. 279810.) Clothes may not tumble properly and
automatic sensor cycles may not operate correctly if
dryer is not level.
_'Sturdy floor to support dryer weight of
120 pounds.
The dryer
door
extends
14" from
the front
of the
dryer
when fully
opened.
J
/r-,_
14-1/8" [_ T
4-1/4"
bettem exhaast
/
k
7-1/4"
it isyearresponsibiJityto:
_/Observe all governing codes and ordinances.
_'Check code requirements: Some codes [imit or
do not permit instailation of clothes dryers in
garages, closets, mobile homes or sieeping
quarters. Contact your local building inspector.
Recessedarea/closet installation
WARNING -- To reduce the risk of fire this appliance
MUST BE EXHAUSTED OUTDOORS
Recessedarea iastaiiatiea
installation clearances
Use recommended clearance for easier installation.
Recommended/Minimum
Back Sides Top Front
Recessed 5"/0" 1'70" 18"/15" --
Closet 5"/0" 1"/0" 18"/15" 1"/1"
* A clothes dryer produces combustible lint and
must be exhausted outdoors.
If codes permit, dryer may be installed in a
recessed area or closet using dimensions shown.
Dimensions are in inches and are the minimum
allowable.
Additional spacing should be considered for ease
of installation and servicing. Companion
appliance spacing should also be considered.
* Wall, door and floor molding may require
_'Compiy with the installation specifications and
dimensions.
_'Consider spacing requirements for companion
appliances.
_'Make sure you have everything necessary for proper
installation.
front view
additional spacing.
_'Propedy install dryer.
_'Contact a qualified installer to insure that the
electrical installation meets all national and local
codes and ordinances.
Cleset!eeafiaed area iastaiiatiea
mfa closet door is instalied: The minimum
unobstructed air openings are required. Louvered
doors with equivalent air openings are acceptable.
side view
** Minirnurn top a bottom air openings for closet door.
*** External exhaust elbow requires additional space.
Panel A
If codes permit and a separate ground wire is
used, it is recommended that a qualified electrician
determine that the ground path is adequate.
Important: Observe a[[ governing codes and
ordinances.
A four-wire or three-wire, singie phase, 120/240-
volt, 60-Hz, AC-only, electrical supply (or four-wire
or three-wire, 120/208-volt if specified on
model/serial rating plate) is required on a separate
30-ampere circuit, fused on both sides of the line. A
time-delay fuse or circuit breaker is recommended.
Recemmendedgreundmethod
It is the personal responsibility and obligation of the
customer to contact a qualified electrician to assure
that the electrical installation is adequate and is in
conformance with the National Electrical Code,
ANSI/NFPA 70 -- latest edition .... and all local
codes and ordinances.
Copies of the standards listed above may be obtained
from:
****National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Fire Hazard
Use a heavy metal vent.
Do not use a piastB vent,
Do not use a metal foi[ vent.
Faiture to do so can result in death or fire.
Important: Observe alt governing ¢odes and
ordinances.
mtis recommended that you exhaust your dryer to
the outside for best performance. Moisture and lint
indoors may cause:
* Lint to gather around the dryer where it can be fuel
for a fire.
Moisture damage to woodwork, furniture, paint,
wallpaper, carpet, etc.
Housecleaning problems and heakh problems.
Dura Safe TM venting products are recommended
and are available from your deaJero
Fourdnch diameter vent must be used.
Use a heavy metal vent. Do Not use plastic or metal
foil vent.
o Do Not use non°meta[ flexible vent, or exhaust
hoods with magnetic Iatches.
Do Not exhaust dryer into a chimney, wail, ceiling,
furnace, coM air vent, duct, concealed space, attic
or craw[ space, or any other vent used for venting.
Do Not install flexible vent in enclosed walls,
ceilings or floors.
Rigid metal vent is recommended to prevent
crushing and kinking.
Flexible metal vent must be fully extended and
supported when the dryer is in its final position.
Remove excess flexible vent to avoid sagging and
kinking that may result in reduced air flow.
An exhaust hood should cap
the exhaust vent to prevent
rodents and insects from entering
the home.
Exhaust outlet hood must be at
least 12 inches from the ground or
any object that may be in the path
of the exhaust (such as flowers,
rocks or bushes, etc.).
If using an existing exhaust
system, clean lint from entire
length of system and make sure exhaust hood is
not plugged with lint. Replace any plastic or metal
foil vent with rigid metal or flexible metal vent.
Use damps to seal all joints. Do Not use duct tape,
screws or other fastening devices that extend into the
interior of the vent to secure vent.
M@iie heme [nstaiJatienrequirements
If codes permit, this appliance [s suitable for mobile
home installations. The instai[at[on of the dryer must
conform to Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Homes Construction and
Safety, Title 24, HUD Part 280) or latest edition.
The dryer must be exhausted outside.
outside
waJ[
,,oor kL
enclosed area
The exhaust vent must be securely fastened to a
non-combustible protion of the mobile home
structure and must not terminate beneath the
mobile home,

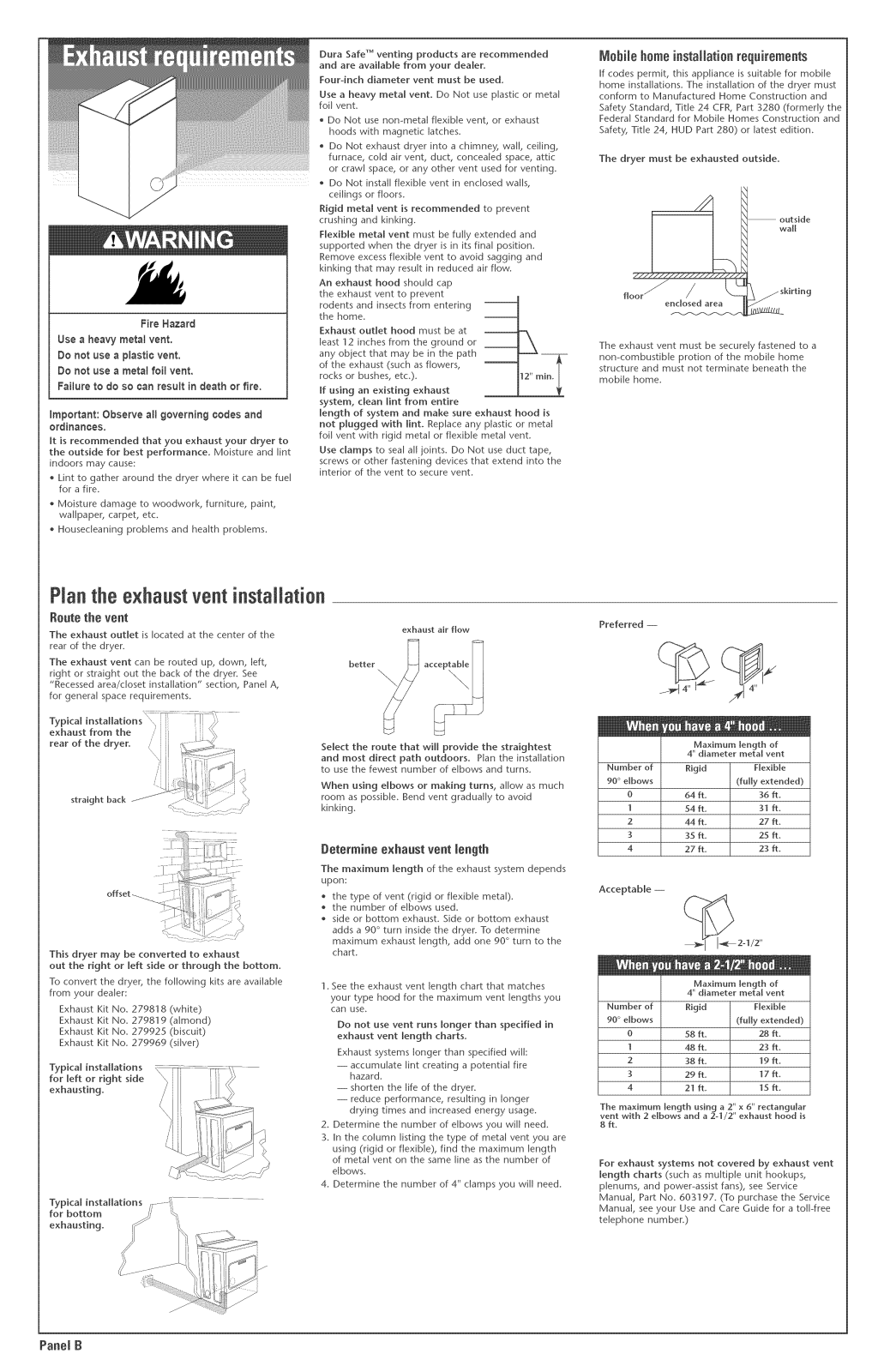

Planthe exhaustventinstaliatien
Beute the vent
The exhaust outlet is located at the center of the
rear of the dryer.
The exhaust vent can be routed up, down, [eft,
right or straight out the back of the dryer, See
"Recessed area/closet installation" section, Panel A,
for general space requirements.
rear of the dryer.
and most direct path outdoors. Plan the installation
to use the fewest number of elbows and turns.
When using eBbows or making turns, allow as much
straight back
The maximum length of the exhaust system depends
offset_
This dwer may be converted to exhaust
out the right or left side or through the bottom.
To convert the dryel, the folIowing kits are available
from your dealer:
Exhaust Kit No. 279818 (white)
Exhaust Kit No. 279819 (almond)
Exhaust Kit No. 279925 (biscuit)
Exhaust Kit No. 279969 (silver)
Typical installations
for [eft or right side
exhausting.
2_
Typical installations
for bottom
exhausting.
exhaust air flow
better
Select the route that will provide the straightest
room as possible, Bend vent gradually to avoid
kinking,
Determine exhaust vent Jength
upon:
the type of vent (rigid or flexible metal).
the number of elbows used.
• side or bottom exhaust. Side or bottom exhaust
adds a 90 ° turn inside the dryer, To determine
maximum exhaust length, add one 90 ° turn to the
chart.
1. See the exhaust vent length chart that matches
your type hood for the maximum vent lengths you
can use,
Do not use vent runs longer than specified in
exhaust vent length charts.
Exhaust systems Ionger than specified will:
-- accumulate lint creating a potential fire
hazard.
-- shorten the Iife of the dryer.
-- reduce performance, resulting in Ionger
drying times and increased energy usage.
Determine the number of elbows you will need.
3.
In the column listing the type of metal vent you are
using (rigid or flexible), find the maximum length
of metal vent on the same line as the number of
elbows.
Determine the number of 4" clamps you will need.
Preferred--
,Maximum length of
4 diameter metal vent
Number of
90° elbows
0
1
2
g
4
Acceptable --
Number of
90° elbows (fully extended)
0 58 ft. 28 ft.
1 48 ft. 23 ft.
2 38 ft. 19 ft.
3 29 ft. 17 ft,
4 21 ft. 15 ft.
The maximum length using a 2" x 6" rectangMar
vent with 2 elbows and a 2-1/2 exhaust hood is
8 ft.
For exhaust systems not covered by exhaust vent
length charts (such as multiple unit hookups,
plenums, and poweroassist fans), see Service
Manual, Part No. 60319Z (To purchase the Service
Manual, see your Use and Care Guide for a toll-free
telephone number.)
Rigid Flexible
(fully extended)
64 ft. 36 ft.
54 ft. 31 ft.
44 ft. 27 ft.
35 ft. 25 ft.
27 ft. 23 ft.
__2-1/2"
,Maximum length of
4 diameter metal vent
Rigid Flexible
PaneJB
