LOWER OVEN PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
30" BUILT−IN ELECTRIC
DOUBLE OVEN
CONVECTION−UPPER
SELF−CLEAN (GOLD LINE)
05−08 Litho in U.S.A. (amd) (psw)
1
Part No. W10203827 Rev. A
Page 2

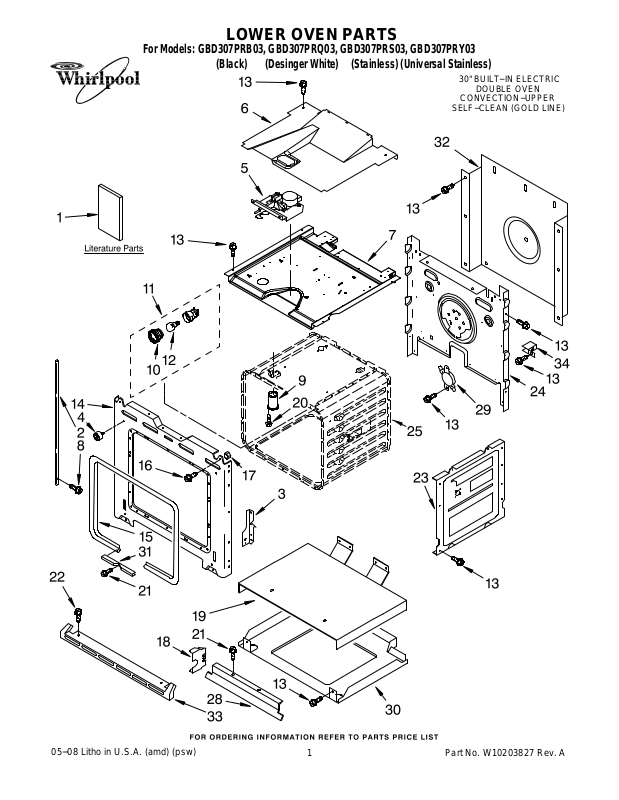

LOWER OVEN PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303647 Installation
Instructions
Use & Care Guide
W10162171
W10162172
8302068 Tech Sheet
9762761 English
W10065852
2 Trim, Side
W10136098
W10136100
W10166949
W10136099
W10136101
W10166948
8281236 Screw
English
French
Safer Cooking Tips
French
Right
Black
White
Stainless
Left
Black
White
Stainless
Illus. Part
No. No. DESCRIPTION
3 Hinge Receiver
4455605 Left
4455606 Right
W10105790
4
5 9760888 Latch, Motorized
6 8302349 Divider, Vent
7 8303099 Top, Chassis
8 Screw
8281236 Black
3400805 Silver
9 4452158 Tube, Vent
W10067870
10
W10009930
11
12 4452166 Bulb, Light
13 4449809 Screw
W10130368
14
15 4455382 Gasket, Door
16 4449040 Screw
17 4450118 Nut
18 4452152 Bracket, Mounting
19 4451478 Support, Insulation
20 3196176 Screw
21 4449154 Screw
22 3400832 Screw
23 4455641 Side, Chassis
Bumper, Door
Lens, Light
Assembly, Oven
Light
Frame, Front
Illus. Part
No. No. DESCRIPTION
W10161110
24
25 Liner, Oven
28 9760677 Deflector, Bottom
29 9759242 Thermostat (TOD)
30 9759713 Base, Chassis
31 4448933 Retainer, Gasket
32 4451747 Cover, Back
33 Vent, Bottom Trim
8303583 Black
8303584 White
8303582 Stainless
34 4449845 Support, Bracket
Back, Chassis
(Not serviceable)
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
2
W10203827
Page 3
UPPER OVEN PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
W10203827
3
Page 4
UPPER OVEN PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
Illus. Part
No. No. DESCRIPTION
1 4449809 Screw
2 4449154 Screw
3 Hinge Receiver
4455606 Right
4455605 Left
W10105790
4
5 3196176 Screw
6 8302349 Divider, Vent
7 8303099 Top, Chassis
8 4448444 Grommet
9 4452158 Tube, Vent
W10067870
10
W10009930
11
12 4452166 Bulb, Light
13 9760888 Latch, Motorized
W10130368
14
15 4455382 Gasket, Door
16 4449040 Screw
17 4450118 Nut
18 3400832 Screw
19 4451478 Support, Insulation
21 Rail, Side
8302793 Right
8302794 Left
22 4455641 Side, Chassis
W10161110
23
24 Liner, Oven
26 4452267 Vent, Center
27 9759242 Thermostat (TOD)
28 4448933 Retainer, Gasket
29 4451747 Cover, Back
30 4449845 Support, Bracket
Bumper, Door
Lens, Light
Assembly, Oven
Light
Frame, Front
Back, Chassis
(Not serviceable)
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4
W10203827
Page 5

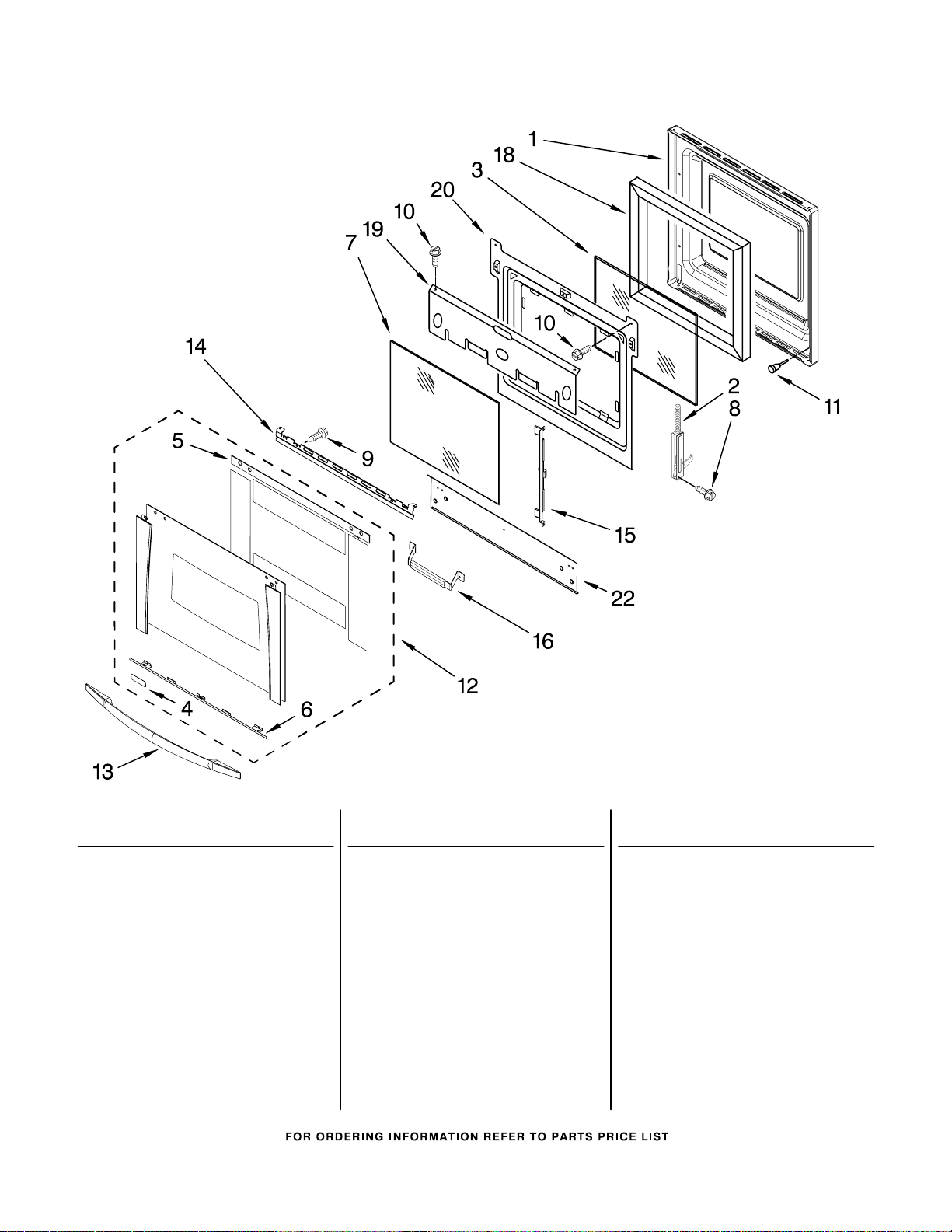

OVEN DOOR PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
Illus. Part
No. No. DESCRIPTION
1 9759413 Panel, Door
2 Hinge, Door
9760577 Right
9760578 Left
3 4449259 Glass, Inner
4 8303810 Nameplate
5 8303878 Pad, Handle
6 Clip, Door
8303389BL
8303389WH
W10166937
7 9759225 Glass, Inner
W10203827
Black
White
Stainless
Illus. Part
No. No. DESCRIPTION
8 4449743 Screw
9 4451040 Screw
10 4449809 Screw
11 4448520 Bumper, Door (3)
12 Assembly, Door
Glass
Upper
8303300 Black
8303306 White
8303288 Stainless
8304177 Silver
Lower
8303301 Black
8303307 White
8303289 Stainless
8304178 Silver
5
Illus. Part
No. No. DESCRIPTION
13 Door Handle
8302813 Black
8302814 White
8303164 Stainless
W10136473
14
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
18 4451722 Insulation, door
19 4457103 Shield, Heat
20 4457132 Retainer, Glass
22 4457114 Shield, Heat
Bracket, Handle
Page 6

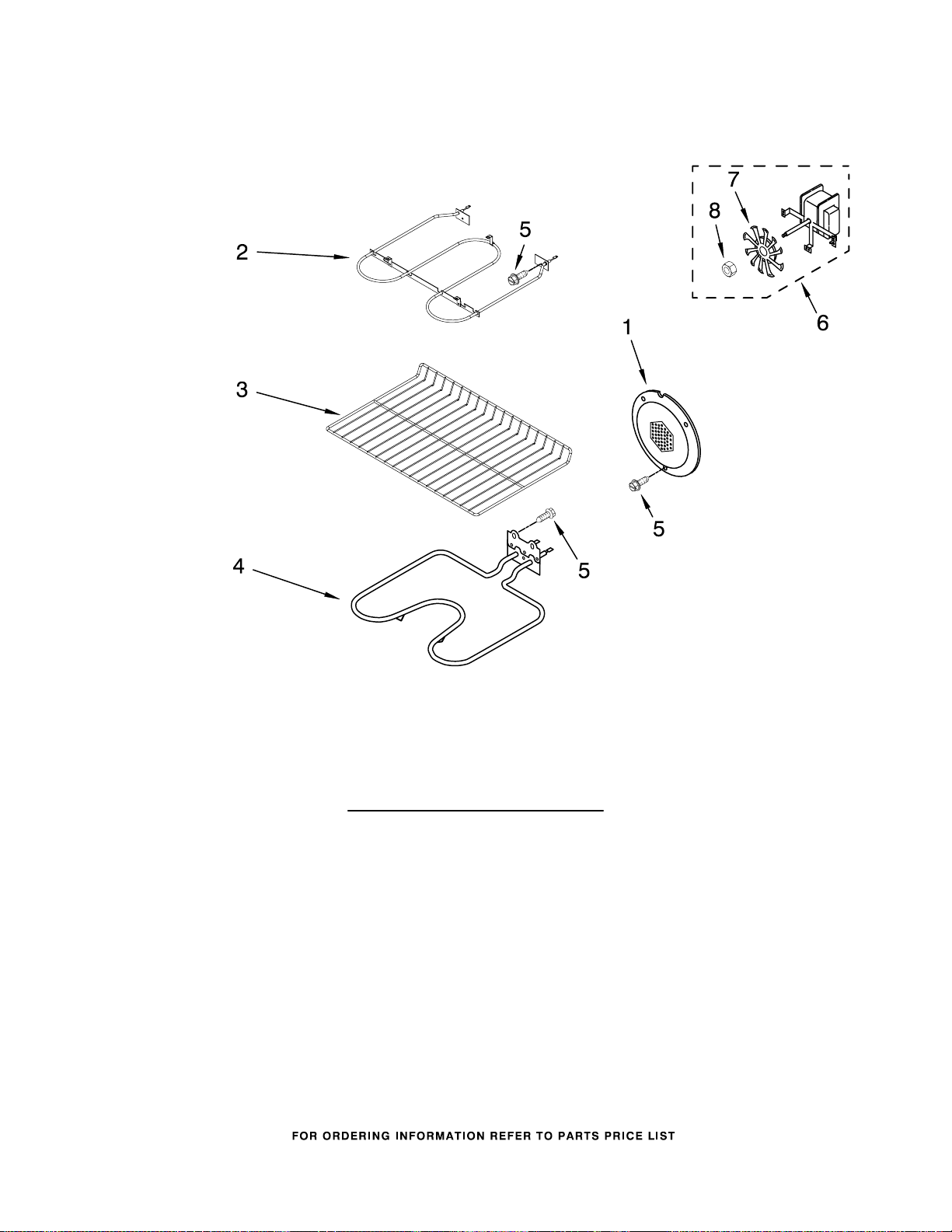

INTERNAL OVEN PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
Illus. Part
No. No. DESCRIPTION
1 4448988 Cover, Fan
2 9760771 Element, Broil
3 4448717 Rack, Oven
4 9760766 Element,
Convection Bake
5 4449154 Screw
W10116228
6
W10116351
7
8
W10116349
Motor,
Convection Fan
Blade, Fan
Nut
6
W10203827
Page 7
CONTROL PANEL PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
W10203827
Illus. Part
No. No. DESCRIPTION

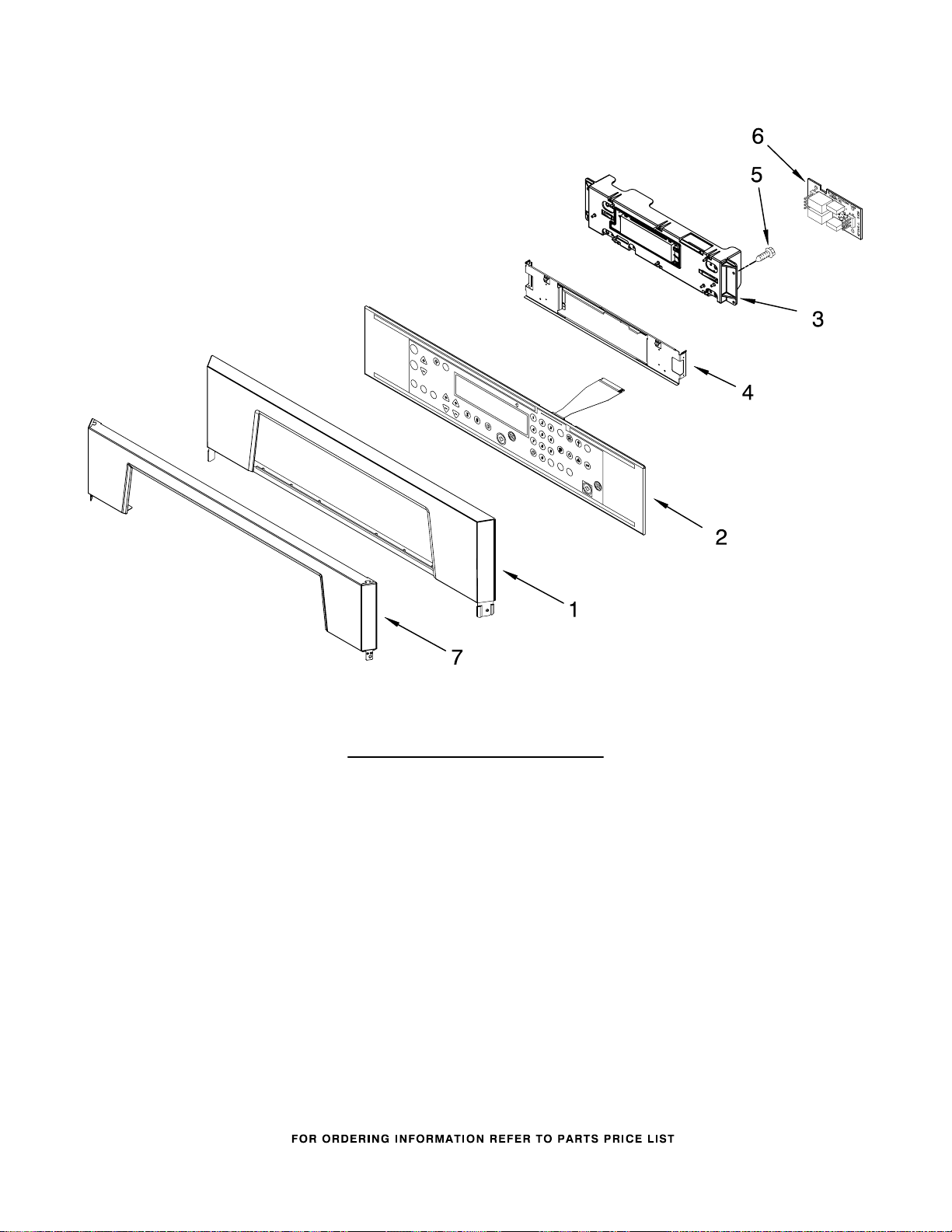

1 Control Panel
8302848 Black
8302849 White
8304153 Apollo Gray
2 Assembly, Switch
W10161676
W10161677
W10112118
3 8303883 Assembly, Control
4449745 Screw
W10153086
4
5 4449745 Screw
6 8301848 Latch, Sister
W10166944
7
Black
White
Silver
Backer, Control
Panel
Board
Cladding, Control
Panel (Stainless)
Model Only)
7
Page 8

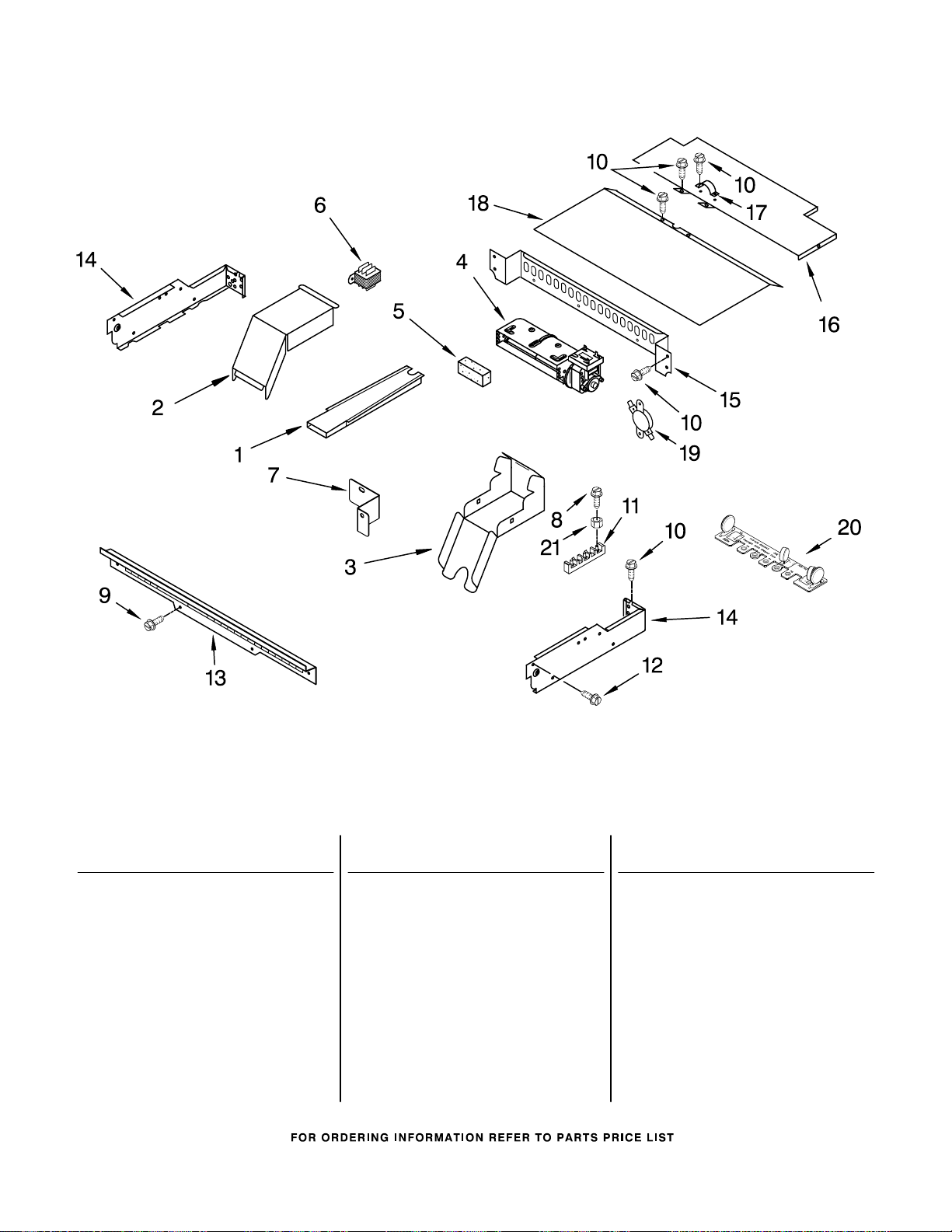

TOP VENTING PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
Illus. Part
No. No. DESCRIPTION
1 4451759 Assembly,Vent
2 4455178 Elbow, Vent Top
3 4455177 Elbow, Vent
Bottom
4 Blower
W10016550
4457289 65MM Upper Oven
4455191 Bracket
5 4451758 Foam, Block
45MM Lower Oven
Illus. Part
No. No. DESCRIPTION
6 9760587 Transformer,
Control
7 8302390 Bracket, Support
Air Stop
8 3400080 Screw
9 4450038 Screw
10 4449809 Screw
11 4449868 Block, Terminal
12 4449154 Screw
13 8303497 Vent, Control
Panel
14 Side, Control Top
4451597 Right
4451598 Left
8
Illus. Part
No. No. DESCRIPTION
15 9759135 Back, Control
16 4450551 Cover, Top Rear
17 4448664 Clamp
18 4452367 Cover, Top Front
19 9759243 Thermostat, Oven
20 8302143 Suppressor
7103P027−60
21
Nut, Terminal
Block
W10203827
Page 9
OPTIONAL PARTS
For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03
(Black) (Desinger White) (Stainless) (Universal Stainless)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
8301909 Harness, Lower
Latch
4449809 Screw
8301777 Harness, Main
4450953 Conduit, Double
4452400 Lead, Ground Wire
4450800 Screw
4448664 Clamp
4449809 Screw
98997 Clip
4452222 Spacer, Harness
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
4448950 Screw, Install (4)
W10203827
9
