Page 1
LOWER OVEN PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
30" BUILT−IN ELECTRIC
DOUBLE OVEN
CONVECTION−UPPER
SELF−CLEAN (GOLD LINE)
06−06 Litho in U.S.A. (cre)
1
Part No. 8186424 Rev.B
Page 2
LOWER OVEN PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303647 Installation
Instructions
Owners Manual
(Sgl/Dbl Oven)
8304075 English
8304076 French
8302068 Tech Sheet (Oven)
3191638 Safer Cooking Tips
9759133 Safer Cooking Tips
2 Trim, Side
8302919 RH White
8302920 LH White
8302917 RH Black
8302918 LH Black
8303209 LH S.Steel
8303210 RH S.Steel
8281236 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 4452490 Spacer, Foam
6 8302349 Divider, Vent
Illus. Part
No. No. DESCRIPTION
7 8303099 Top, Chassis
8 Screw
8281236 Black
3400805 Silver
9 4452158 Tube, Vent
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
13 4449809 Screw
14 9759060 Frame, Front
15 4455382 Gasket, Door
16 4449040 Screw
17 4450118 Nut
18 4452152 Bracket, Mounting
19 4451478 Support, Insulation
20 3196176 Screw
21 4449154 Screw
22 3400832 Screw
23 4455641 Side, Chassis
(R.H. & L.H.)
24 4452234 Back, Chassis
25 Liner, Oven
(Not serviceable)
26 4455636 Sensor
Illus. Part
No. No. DESCRIPTION
27 4452337 Insulation,
Bottom Vent
28 9760677 Deflector (Btm)
29 9759242 Thermostat (TOD)
(Temp.) SPST
30 9759713 Base, Chassis
31 4448933 Retainer, Gasket
32 4451747 Cover, Back
33 Trim, Bottom
8302948 White
8302947 Black
8302950 S.Steel
34 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
2
8186424
Page 3
UPPER OVEN PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
8186424
3
Page 4
UPPER OVEN PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 4449809 Screw
2 4449154 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 3196176 Screw
6 8302349 Divider, Vent
7 8303099 Top, Chassis
8 4448444 Grommet
9 4452158 Tube, Vent
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
14 9759060 Frame, Front
15 4455382 Gasket, Door
16 4449040 Screw
17 4450118 Nut
18 3400832 Screw
19 4451478 Support, Insulation
21 Rail, Side
8302793 Right Side
8302794 Left Side
22 4455641 Side, Chassis
(R.H. & L.H.)
23 4452234 Back, Chassis
24 Liner, Oven
(Not serviceable)
25 4455636 Sensor
26 4452267 Vent, Center
27 9759242 Thermostat (TOD)
(Temp.) SPST
28 4448933 Retainer, Gasket
29 4451747 Cover, Back
30 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4
8186424
Page 5

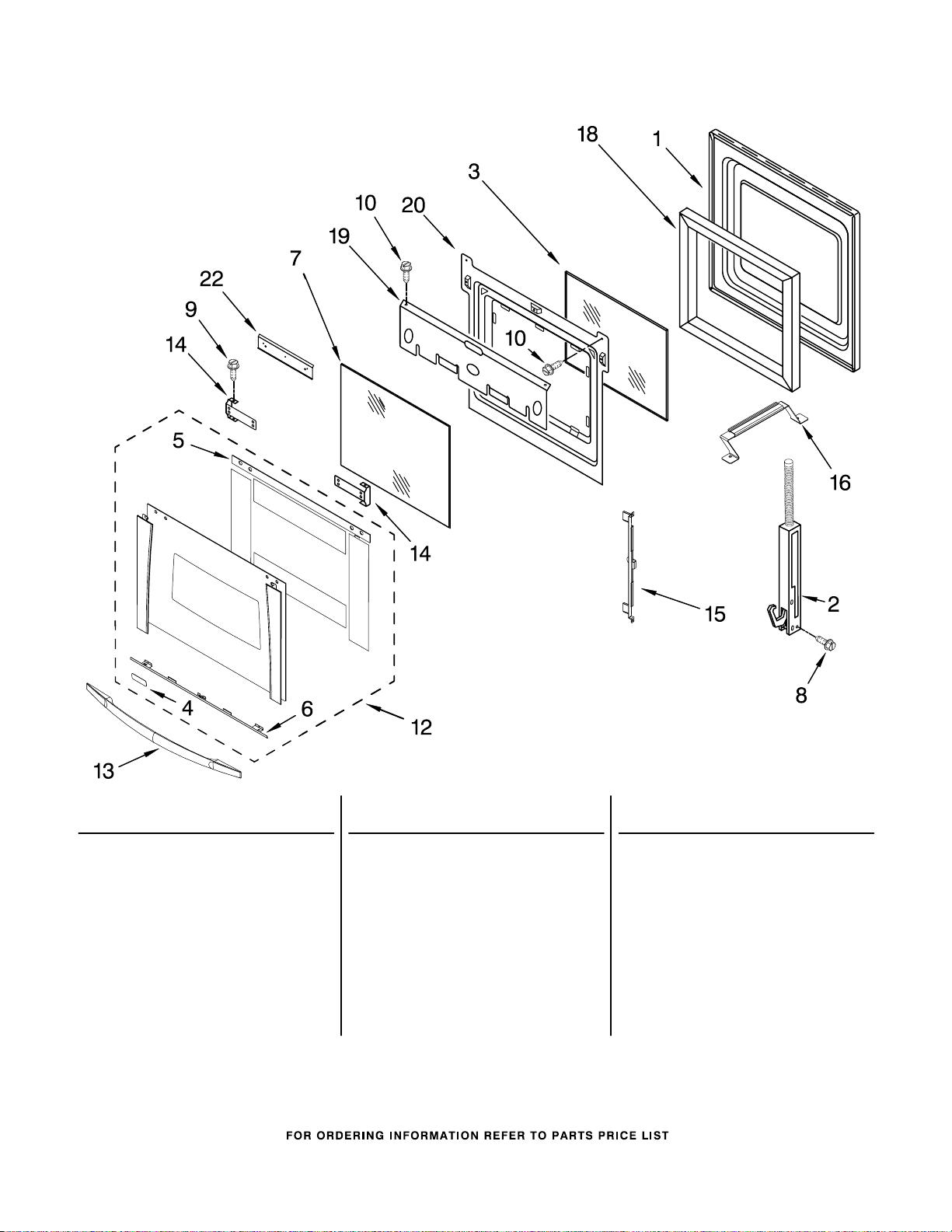

OVEN DOOR PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 8303700 Door Liner
2 Hinge, Door
9760577 R.Hand (Yellow)
9760578 L.Hand (Yellow)
3 4449259 Glass, Inner
4 8303810 Nameplate
5 8303878 Seal − Door
6 8302947 Trim, Bottom
7 9759225 Glass, Inner
8 4449743 Screw
9 4451040 Screw
10 4449809 Screw
8186424
Illus. Part
No. No. DESCRIPTION
12 Door Glass Assy
(Upper)
8303306 White
8303300 Black
8303288 S.Steel
8304177 Silver
(Lower)
8303307 White
8303301 Black
8303289 S.Steel
8304178 Silver
5
Illus. Part
No. No. DESCRIPTION
13 Door Handle
8302814 White
8302813 Black
8303164 S.Steel
14 8303167 Bracket, Handle
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
18 4451722 Insulation, door
19 4457103 Shield, Heat
20 4457132 Retainer, Glass
22 4457114 Shield, Heat
Page 6

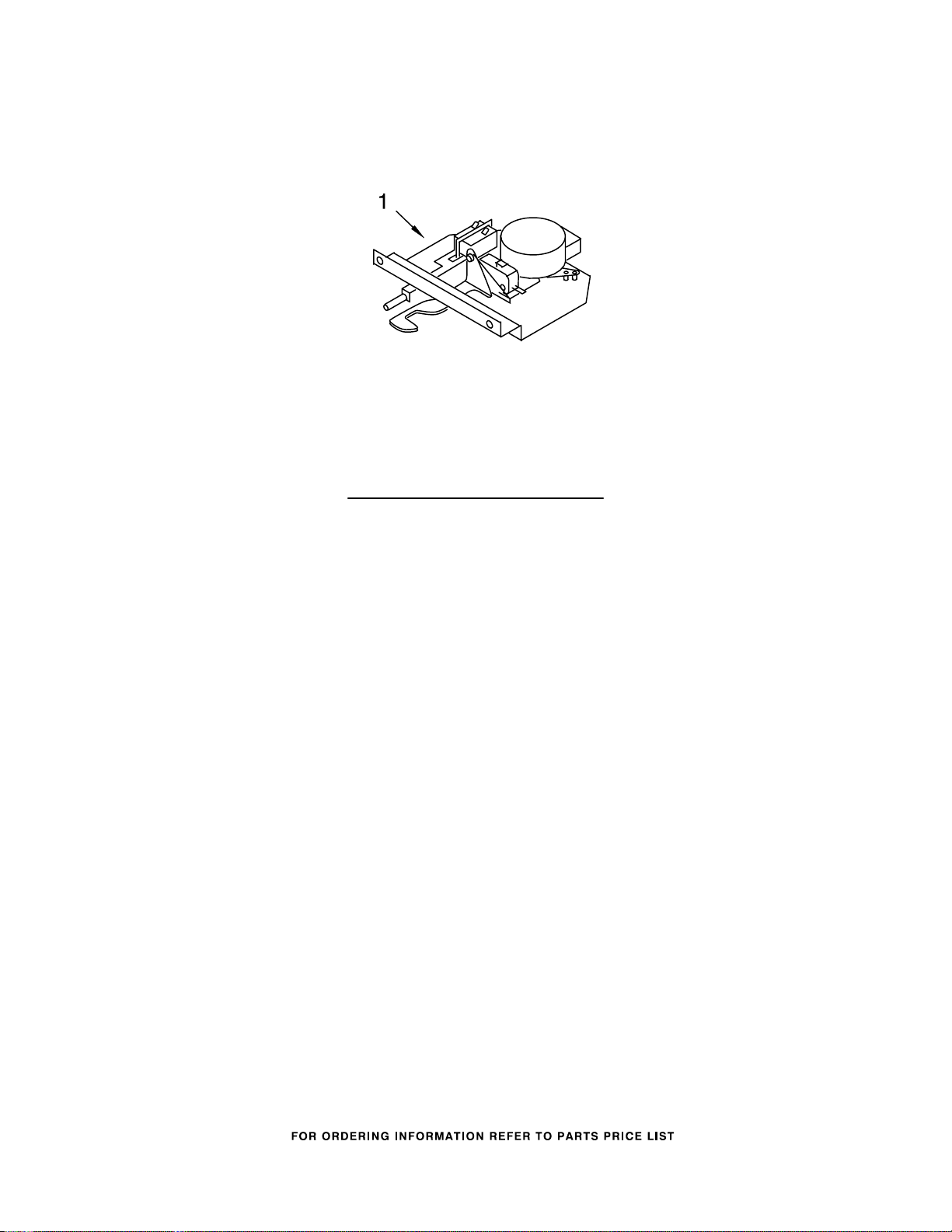

LATCH PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 9759525 Latch, Motorized
6
8186424
Page 7
INTERNAL OVEN PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 4448988 Cover, Fan
2 4456103 Element, Broil
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 4448717 Rack, Oven
7 4452153 Element, Bake
8 4449154 Screw
9 4451583 Fan, Convection
10 4452226 Blade, Fan
12 4452227 Nut
8186424
7
Page 8
CONTROL PANEL PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 Control Panel
8302849 White
8302848 Black
8304153 Apollo Gray
2 Assy, Switch
8303182 Black
8303224 White
8304151 Silver
3 8303883 Assy, Control
4449745 Screw
8301848 Latch, Sister
Board
4 8304161 Control, Basket
5 4449745 Screw
6 8301848 Latch, Sister
Board
7 8302877 Trim−Panel
(Use on S.Steel
model only)
8
8186424
Page 9

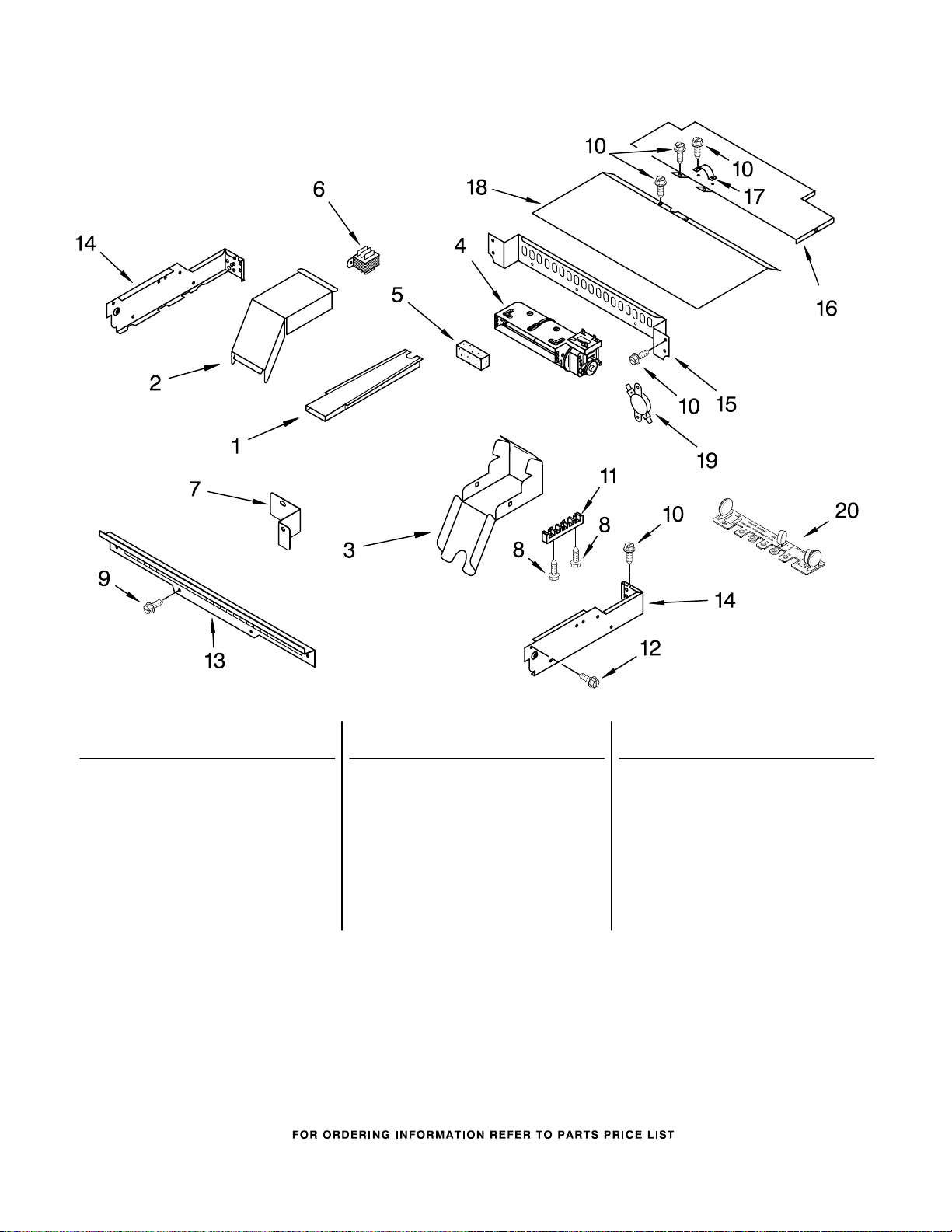

TOP VENTING PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
1 4451759 Assembly,Vent
2 4455178 Elbow, Vent Top
3 4455177 Elbow, Vent Btm
4 Blower
6610168 45MM Lower Oven
4457289 65MM Upper Oven
4455191 Bracket
5 4451758 Foam, Block
6 8300642 Transformer,
Control
8186424
Illus. Part
No. No. DESCRIPTION
7 8302390 Bracket, Support
(Air Stop)
8 3400080 Screw
9 4450038 Screw
10 4449809 Screw
11 4449868 Block, Terminal
12 4449154 Screw
13 8303497 Vent,
(Control Panel)
9
Illus. Part
No. No. DESCRIPTION
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450551 Cover, Top Rear
17 4448664 Clamp
18 4452367 Cover, Top Front
19 9759243 Thermostat, Oven
20 8302143 Suppressor
Page 10
OPTIONAL PARTS
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
8301909 Harness, Wire
(Latch, Lower)
4449809 Screw
8301777 Harness, Wire
(Main)
4450953 Conduit, Double
4452400 Lead − Grnd Wire
4450800 Screw
4448664 Clamp
4449809 Screw
112432 Nut
4452222 Spacer, Harness
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
10
8186424
