Page 1

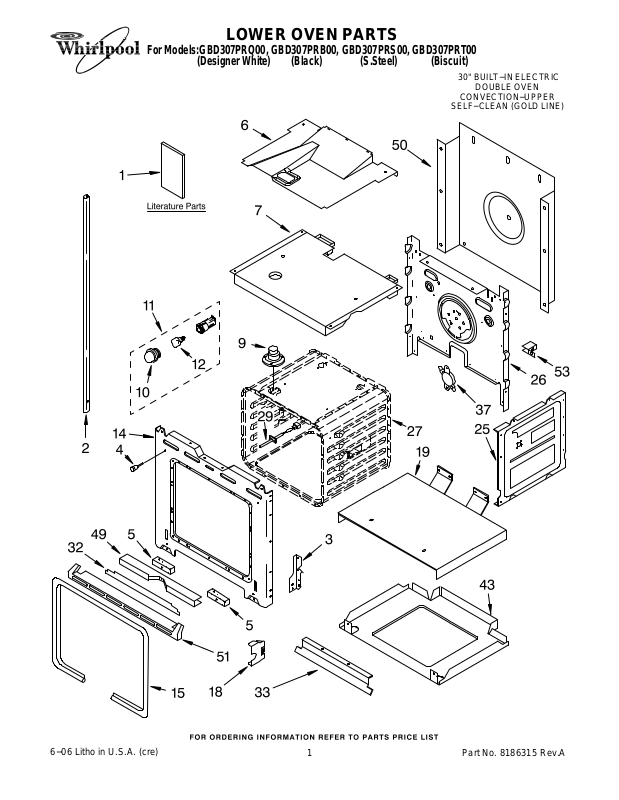

LOWER OVEN PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
30" BUILT−IN ELECTRIC
DOUBLE OVEN
CONVECTION−UPPER
SELF−CLEAN (GOLD LINE)
6−06 Litho in U.S.A. (cre)
1
Part No. 8186315 Rev.A
Page 2
LOWER OVEN PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303647 Installation
Instructions
8303645 Use & Care Guide
(Oven)
8302068 Tech Sheet (Oven)
4449237 Cookbook, WP Conv.
3191638 Safer Cooking Tips
9759133 Safer Cooking Tips
2 Trim, Side
8302919 RH White
8302920 LH White
8302921 RH Biscuit
8302922 LH Biscuit
8302917 RH Black
8302918 LH Black
8303209 LH S.Steel
8303210 RH S.Steel
8281236 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 4452490 Spacer, Foam
6 8302349 Divider, Vent
4449809 Screw
Illus. Part
No. No. DESCRIPTION
7 4455865 Top, Chassis
4449809 Screw
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
14 9759060 Frame, Front
4449040 Screw
4450118 Nut
15 4455382 Gasket, Door
18 4452152 Bracket, Mounting
19 4451478 Support, Insulation
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452234 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
32 8300154 Insulation,
Bottom Vent
33 9760677 Deflector (Btm)
4449154 Screw
Illus. Part
No. No. DESCRIPTION
37 9759242 Thermostat (TOD)
(Temp.) SPST
4449809 Screw
43 9759713 Base, Chassis
4449809 Screw
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
51 Trim, Bottom
8302948 White
8302947 Black
8302949 Biscuit
8302950 S.Steel
Screw
53 4449845 Support, Bracket
4449809 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
2
8186315
Page 3
UPPER OVEN PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
8186315
3
Page 4
UPPER OVEN PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
6 8302349 Divider, Vent
4449809 Screw
7 4455865 Top, Chassis
4449809 Screw
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
14 9759060 Frame, Front
4449040 Screw
4450118 Nut
15 4455382 Gasket, Door
19 4451478 Support, Insulation
4449809 Screw
20 4451605 Cap, Spacer
21 Rail, Side
8302793 Right Side
8302794 Left Side
4448444 Grommet
4449154 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452234 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
34 4452267 Vent, Center
3400832 Screw
37 9759242 Thermostat (TOD)
(Temp.) SPST
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
53 4449845 Support, Bracket
4449809 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4
8186315
Page 5

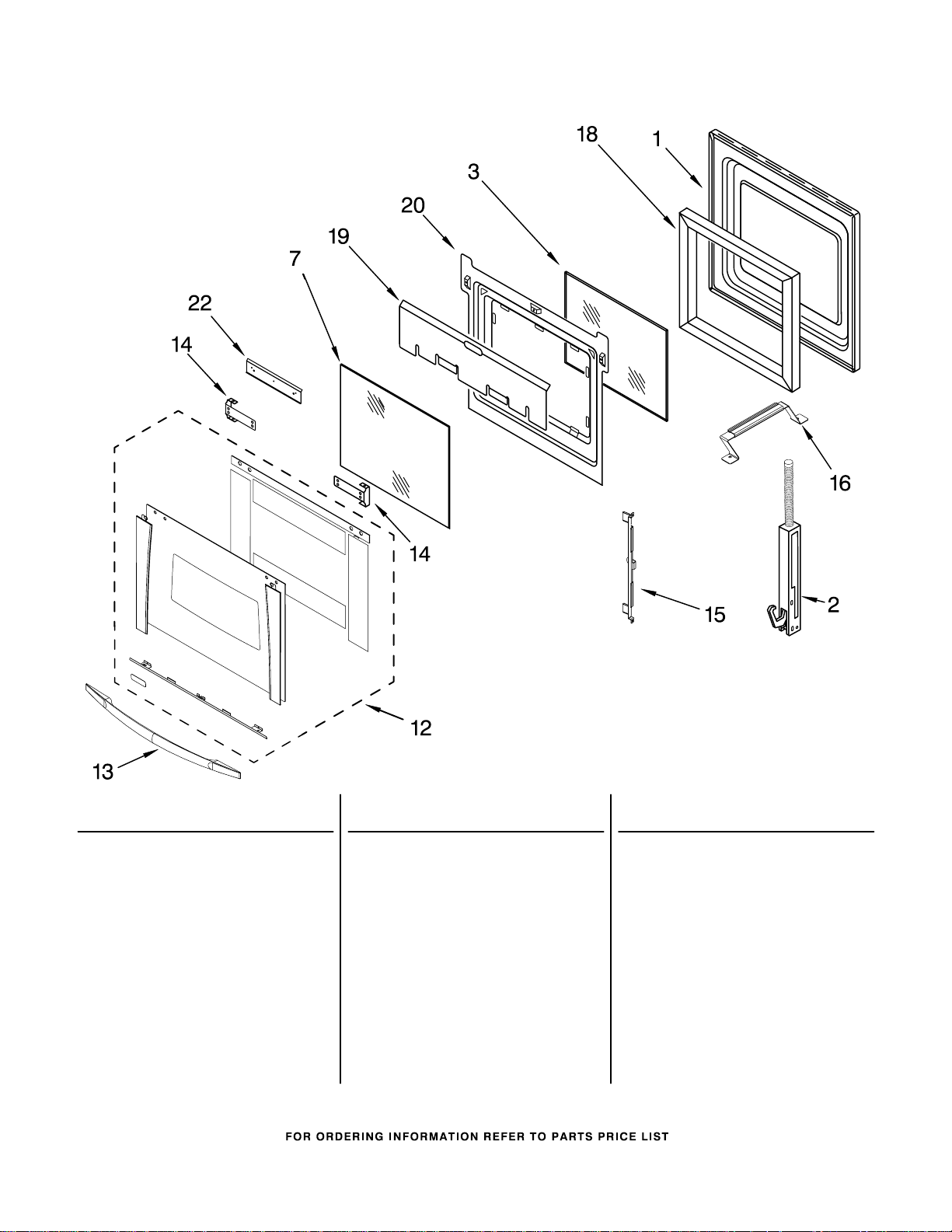

OVEN DOOR PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 8303700 Door Liner
2 Hinge, Door
8300577 R.Hand (Yellow)
8300578 L.Hand (Yellow)
4449743 Screw
3 4449259 Glass, Inner
7 9759225 Glass, Inner
8186315
Illus. Part
No. No. DESCRIPTION
12 Door Glass Assy
(Upper)
8303306 White
8303300 Black
8303310 Biscuit
8303288 S.Steel
(Lower)
8303307 White
8303301 Black
8303311 Biscuit
8303289 S.Steel
5
Illus. Part
No. No. DESCRIPTION
13 Door Handle
8302814 White
8302813 Black
8302815 Biscuit
8303164 S.Steel
14 8303167 Bracket, Handle
4451040 Screw
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
18 4451722 Insulation, door
19 4457103 Shield, Heat
4449809 Screw
20 4457132 Retainer, Glass
4449809 Screw
22 4457114 Shield, Heat
Page 6

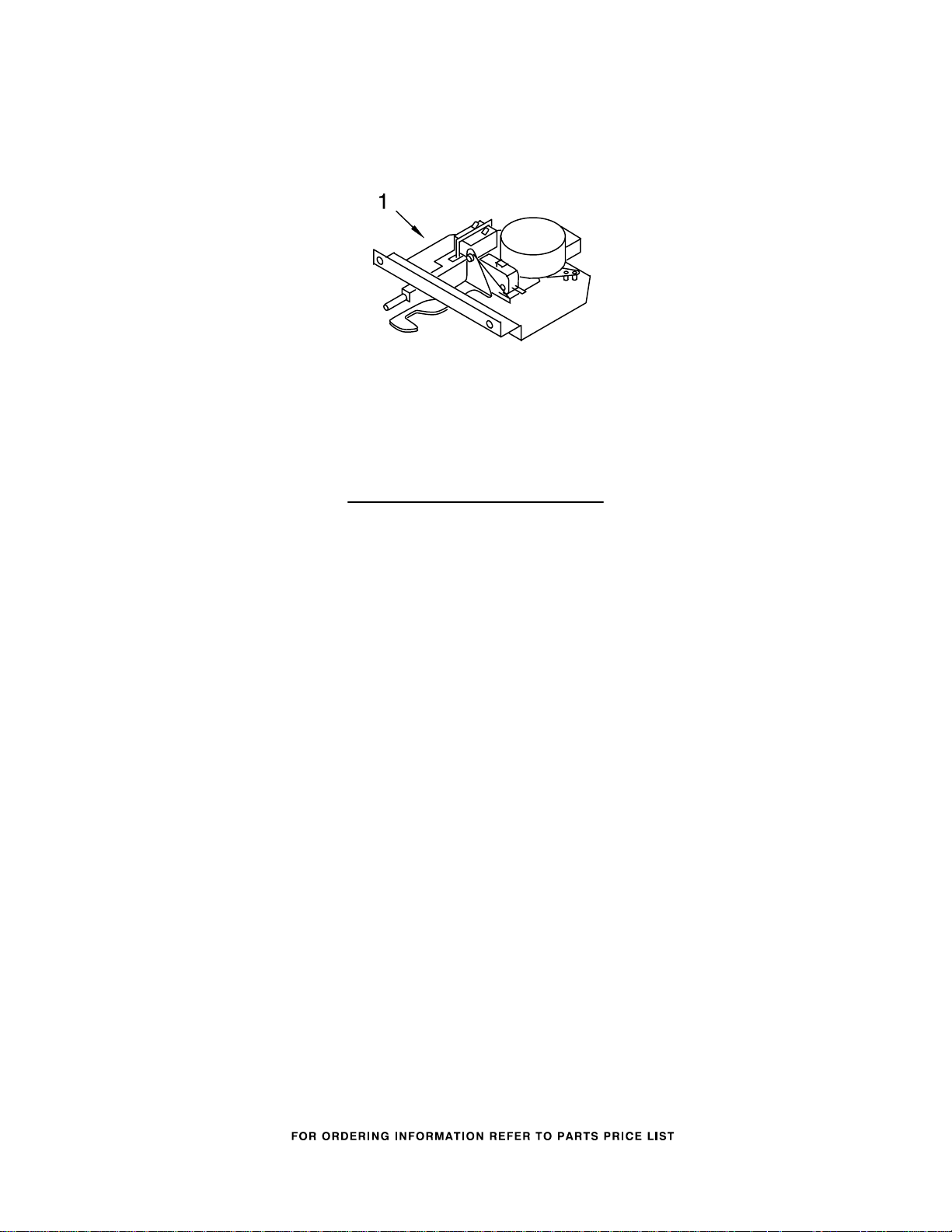

LATCH PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 9759481 Latch, Motorized
6
8186315
Page 7

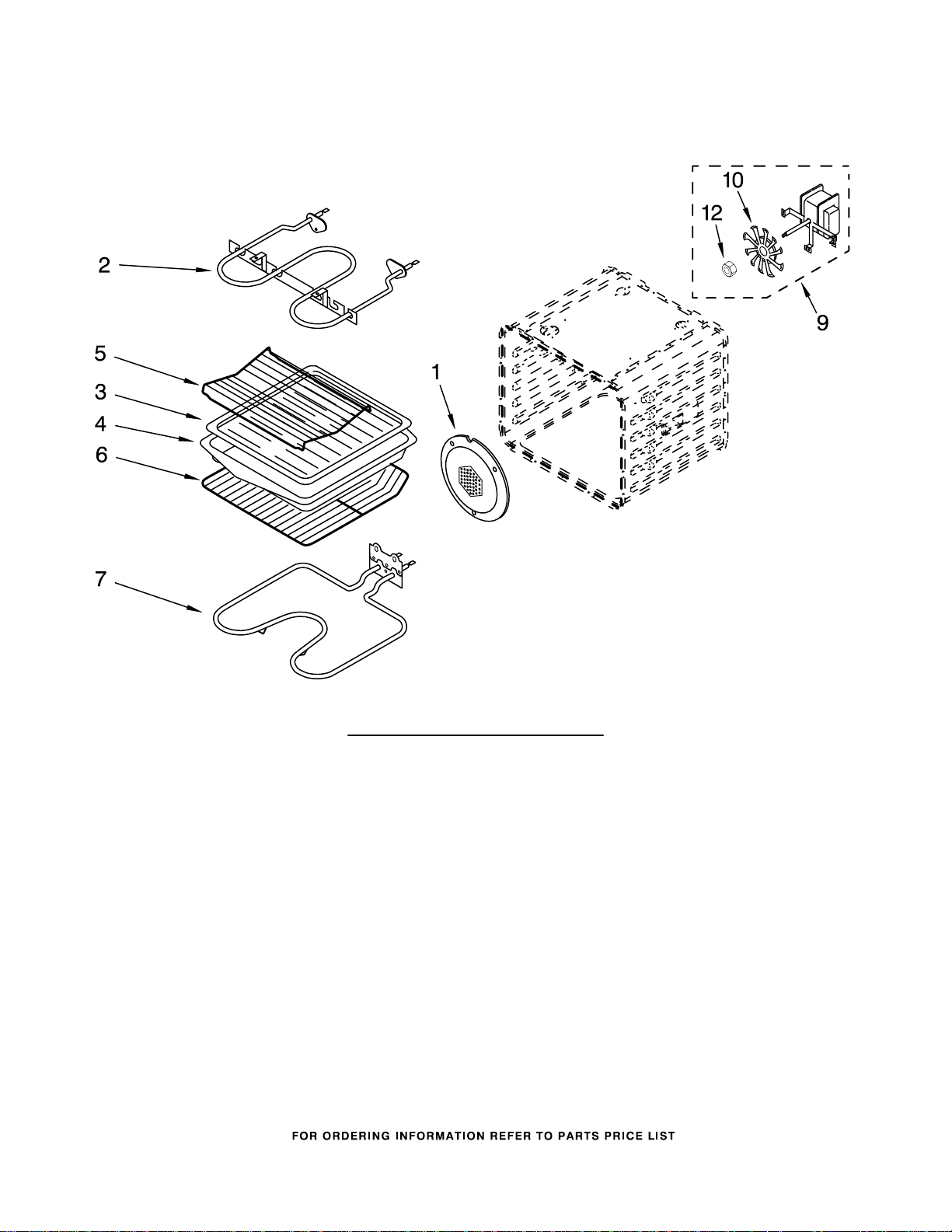

INTERNAL OVEN PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 4448988 Cover, Fan
4449154 Screw
2 4456103 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 4448717 Rack, Oven
9759322 Pad, Rack
7 4452153 Element, Bake
4449154 Screw
9 4451583 Fan, Convection
4449154 Screw
10 4452226 Blade, Fan
12 4452227 Nut
8186315
7
Page 8

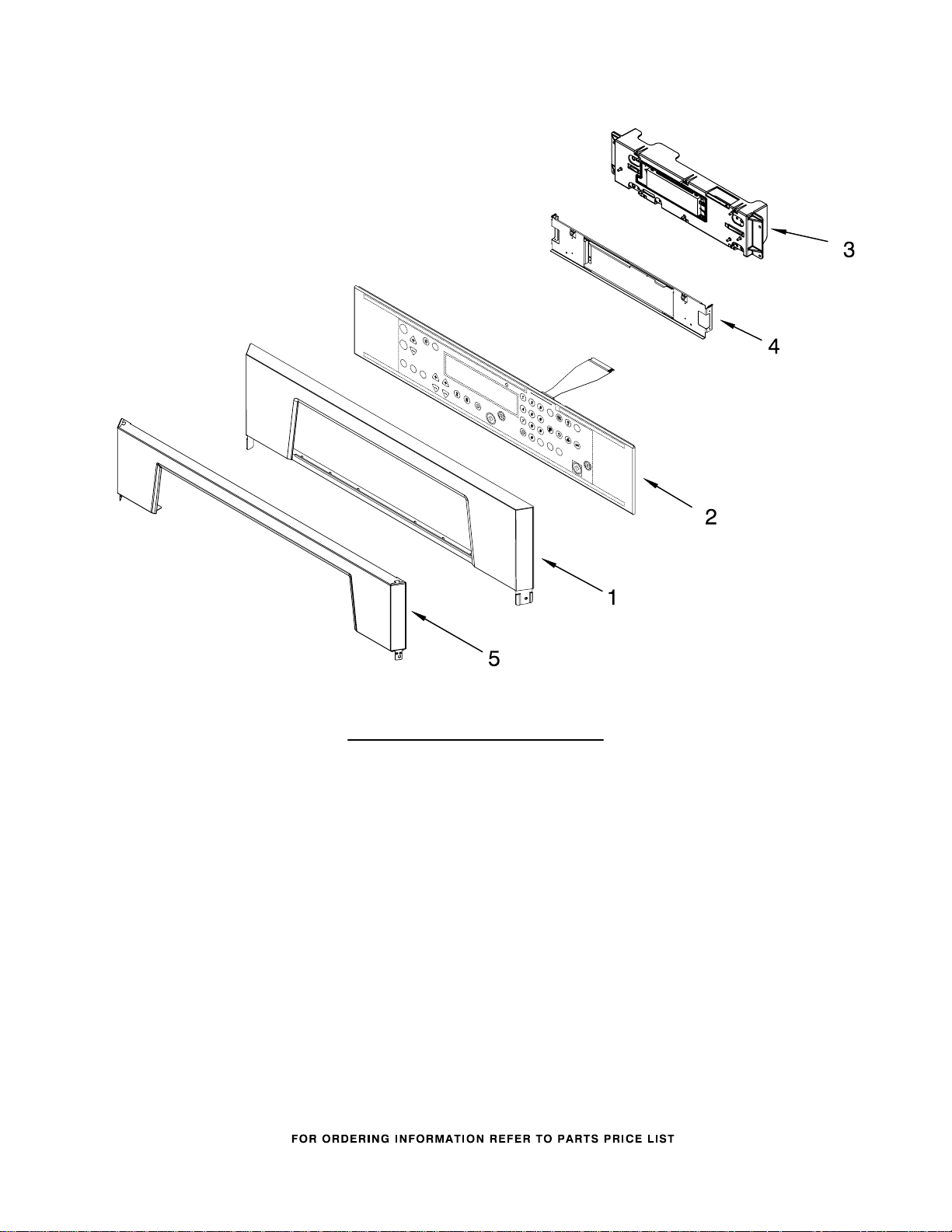

CONTROL PANEL PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Control Panel
8302849 White
8302848 Black
8302850 Biscuit
2 Assy, Switch
8303182 Black
8303224 White
8303230 Biscuit
3 8303817 Assy, Control
4449745 Screw
8301848 Latch, Sister
Board
4 8302990 Control, Bracket
5 8302877 Trim−Panel
(Use on S.Steel
model only)
8
8186315
Page 9

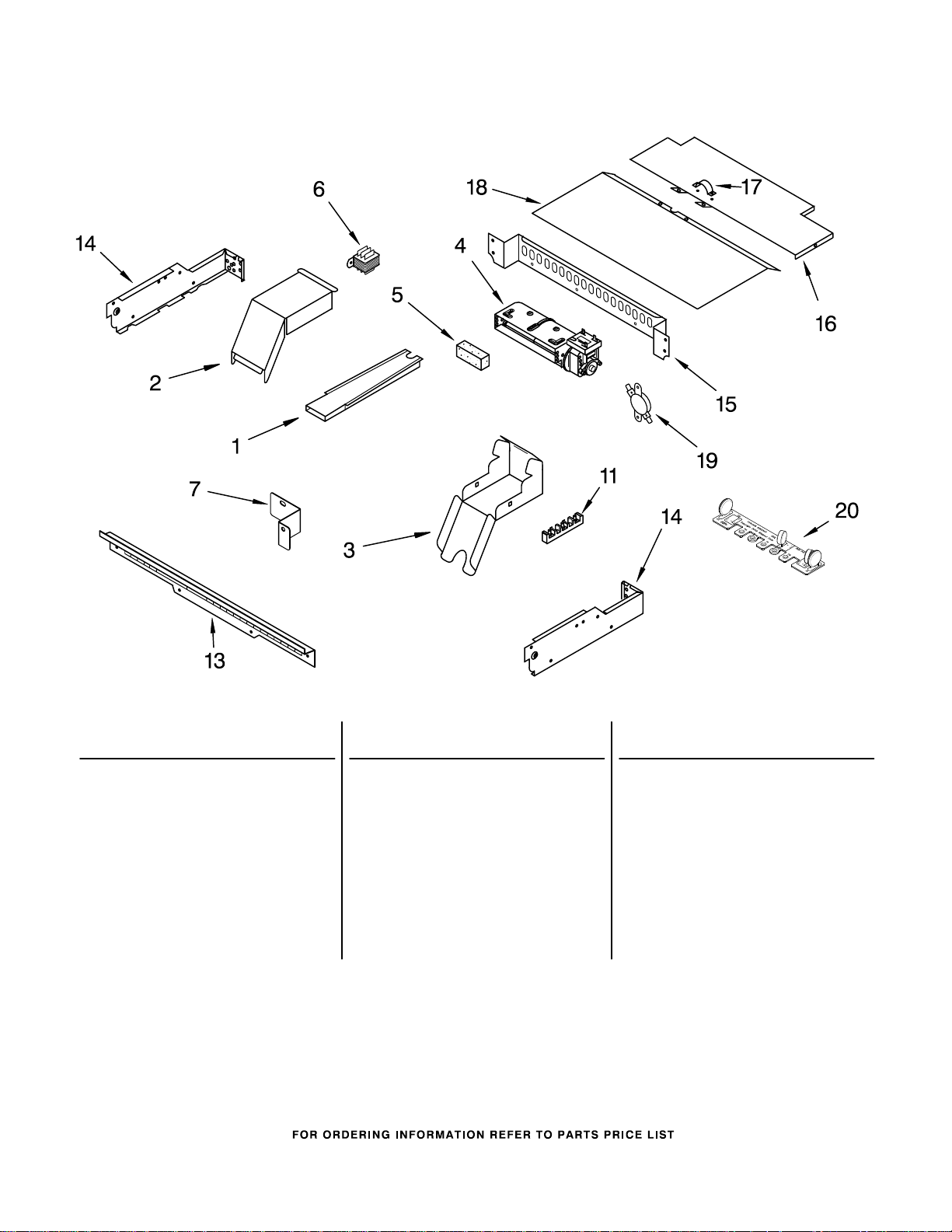

TOP VENTING PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 4451759 Assembly,
2 4455178 Elbow, Vent Top
3 4455177 Elbow, Vent Btm
4 Blower
6610168 45MM Lower Oven
4457289 65MM Upper Oven
4455191 Bracket
5 4451758 Foam, Block
6 8300642 Transformer,
Control
8186315
Illus. Part
No. No. DESCRIPTION
7 8302390 Bracket, Support
(Air Stop)
11 4449868 Block, Terminal
3400080 Screw
13 8303497 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Top
4451597 Right
4451598 Left
4449809 Screw
4449154 Screw
9
Illus. Part
No. No. DESCRIPTION
15 9759135 Back, Control
4449809 Screw
16 4450551 Cover, Top Rear
4449809 Screw
17 4448664 Clamp
4449809 Screw
112432 Nut
18 4452367 Cover, Top Front
4449809 Screw
19 9759243 Thermostat, Oven
20 8302143 Suppressor
Page 10
OPTIONAL PARTS
For Models:GBD307PRQ00, GBD307PRB00, GBD307PRS00, GBD307PRT00
(Designer White) (Black) (S.Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
8301909 Harness, Wire
(Latch, Lower)
4449809 Screw
8301777 Harness, Wire
(Main)
4450953 Conduit, Double
4450800 Screw
4448664 Clamp
4449809 Screw
112432 Nut
4452222 Spacer, Harness
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
10
8186315
