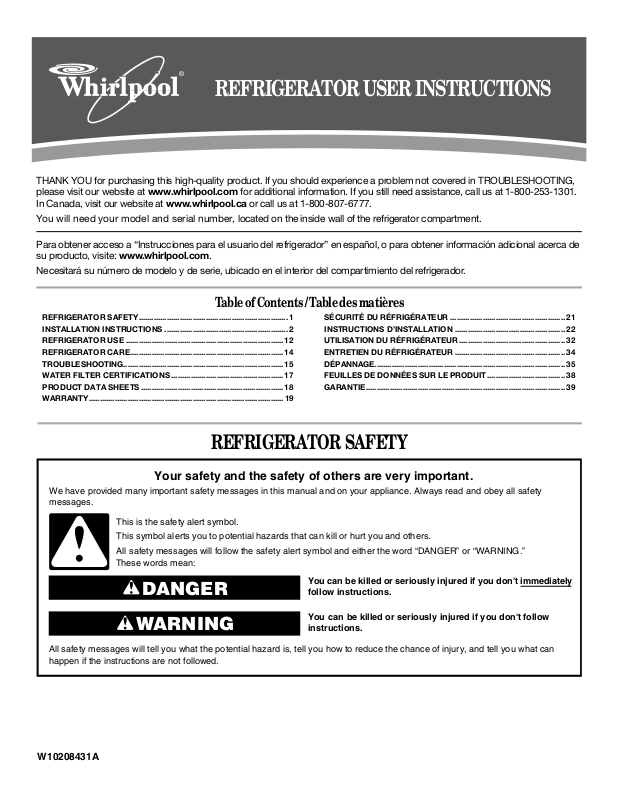

WHIRLPOOL GB2SHDXT, GB2FHDXW User Manual

REFRIGERATOR USER INSTRUCTIONS

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

Para obtener acceso a “Instrucciones para el usuario del refrigerador” en español, o para obtener información adicional acerca de su producto, visite: www.whirlpool.com.

Necesitará su número de modelo y de serie, ubicado en el interior del compartimiento del refrigerador.

Table of Contents / Table des matières

REFRIGERATOR SAFETY.....................................................................1

INSTALLATION INSTRUCTIONS .........................................................2

REFRIGERATOR USE .........................................................................12

REFRIGERATOR CARE.......................................................................14

TROUBLESHOOTING..........................................................................15

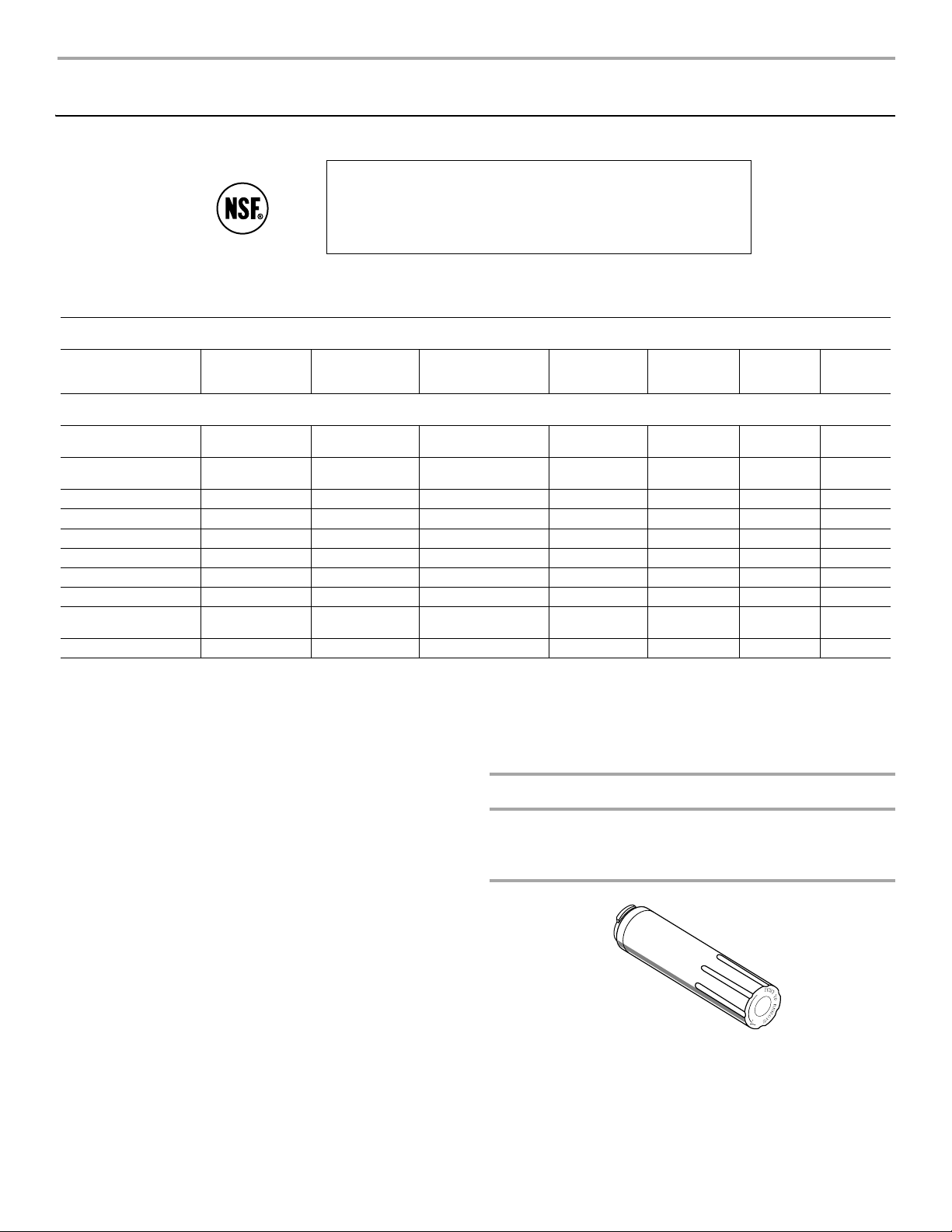

WATER FILTER CERTIFICATIONS ....................................................17

PRODUCT DATA SHEETS ..................................................................18

WARRANTY.......................................................................................... 19

SÉCURITÉ DU RÉFRIGÉRATEUR .....................................................21

INSTRUCTIONS D’INSTALLATION ...................................................22

UTILISATION DU RÉFRIGÉRATEUR.................................................32

ENTRETIEN DU RÉFRIGÉRATEUR ................................................... 34

DÉPANNAGE........................................................................................ 35

FEUILLES DE DONNÉES SUR LE PRODUIT....................................38

GARANTIE............................................................................................ 39

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

W10208431A

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions,

WARNING:

including the following:

■

Plug into a grounded 3 prong outlet.

■

Do not remove ground prong.

■

Do not use an adapter.

■

Do not use an extension cord.

■

Disconnect power before servicing.

■

Replace all parts and panels before operating.

■

Remove doors from your old refrigerator.

Use nonflammable cleaner.

■

Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■

Use two or more people to move and install refrigerator.

■

Disconnect power before installing ice maker (on ice maker

kit ready models only).

SAVE THESE INSTRUCTIONS

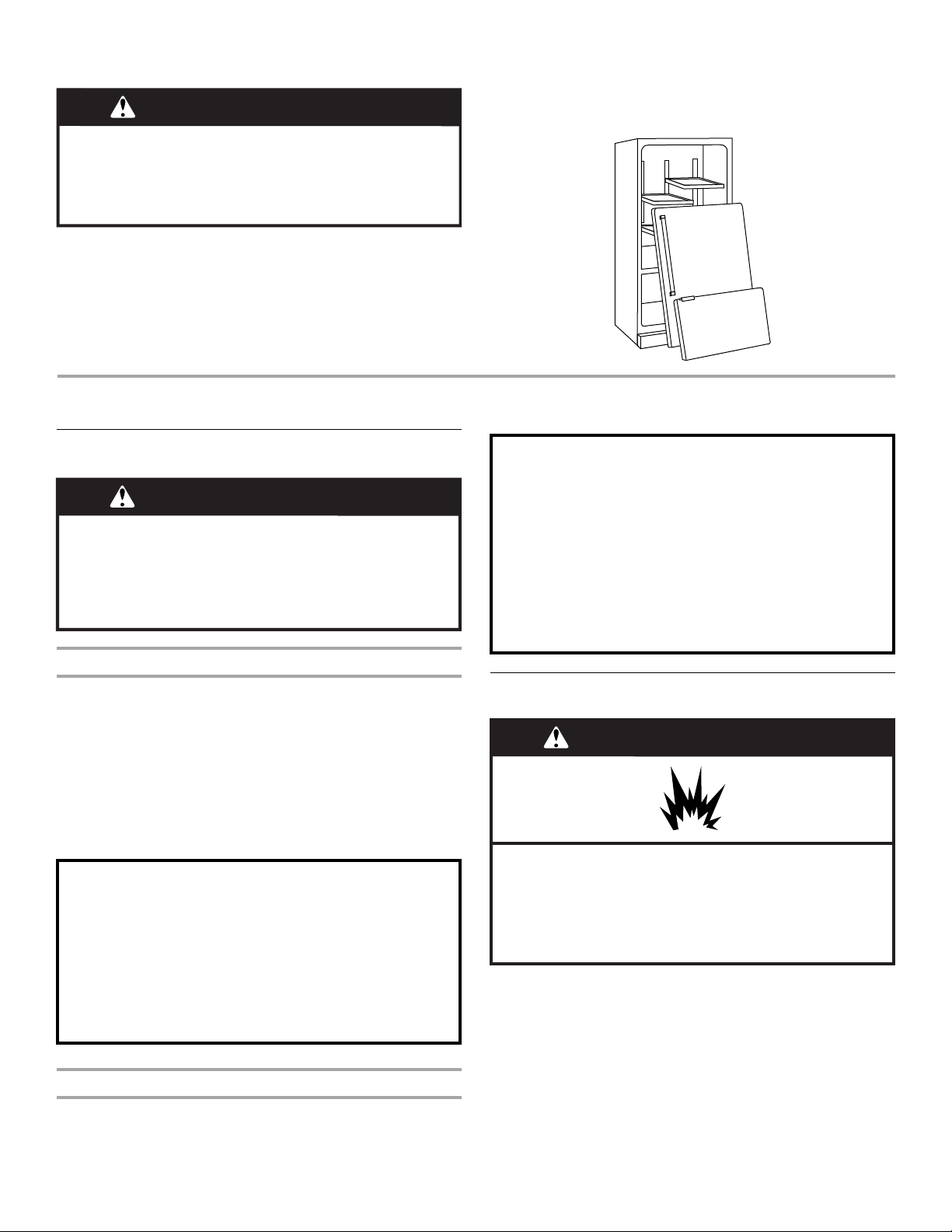

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning

on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

■ Dispose of/recycle all packaging materials.

Clean Before Using

After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

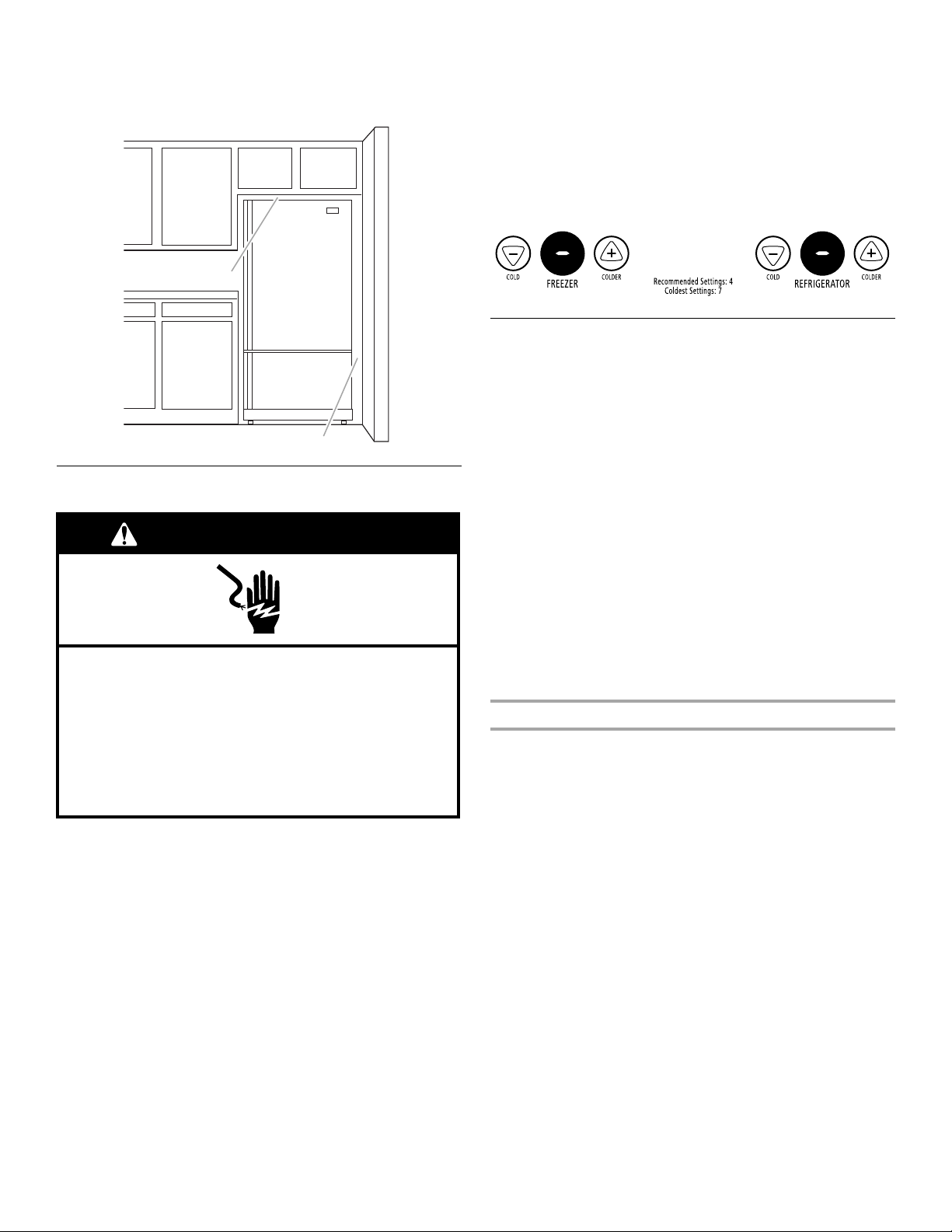

Location Requirements

Electrical Requirements

WARNING

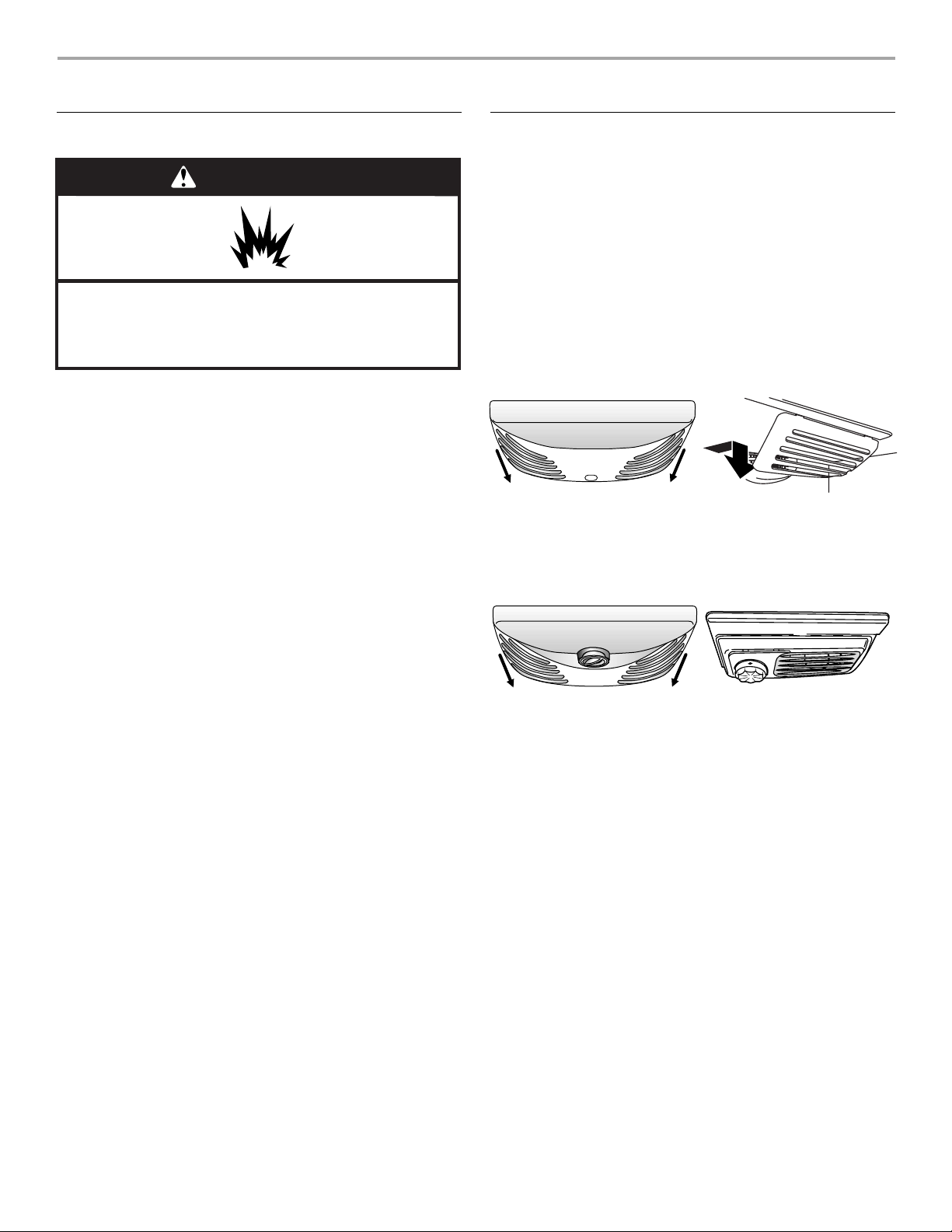

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (1.25 cm) space at the top and behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave 2¹⁄₂" (6.3 cm) minimum on the hinge side (some models require more) to allow for the door to swing open.

NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install the refrigerator in a location where the temperature will fall below 55°F (13°C).

¹⁄₂" (1.25 cm)

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the refrigerator to OFF. Depending on your model, turn the freezer control to the word OFF, or press the Freezer down arrow touch pad until a dash (–) appears in both the Freezer and Refrigerator displays as shown. Disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the temperature controls to the desired setting. See “Using the Controls.”

2¹⁄₂" (6.3 cm)

Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED:

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" Open-end or two

adjustable wrenches

IMPORTANT:

■ All installations must meet local plumbing code requirements.

■ Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve

which reduces water flow and clogs more easily.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain above freezing.

■ For models with water filters, the disposable water filter

should be replaced at least every 6 months.

Water Pressure

A cold water supply with water pressure of between 35 and 120 psi (241 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”

If you have questions about your water pressure, call a licensed, qualified plumber.

■ ¹⁄₄" Nut driver

■ ¹⁄₄" Drill bit

■ Cordless drill

Connect the Water Supply

Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

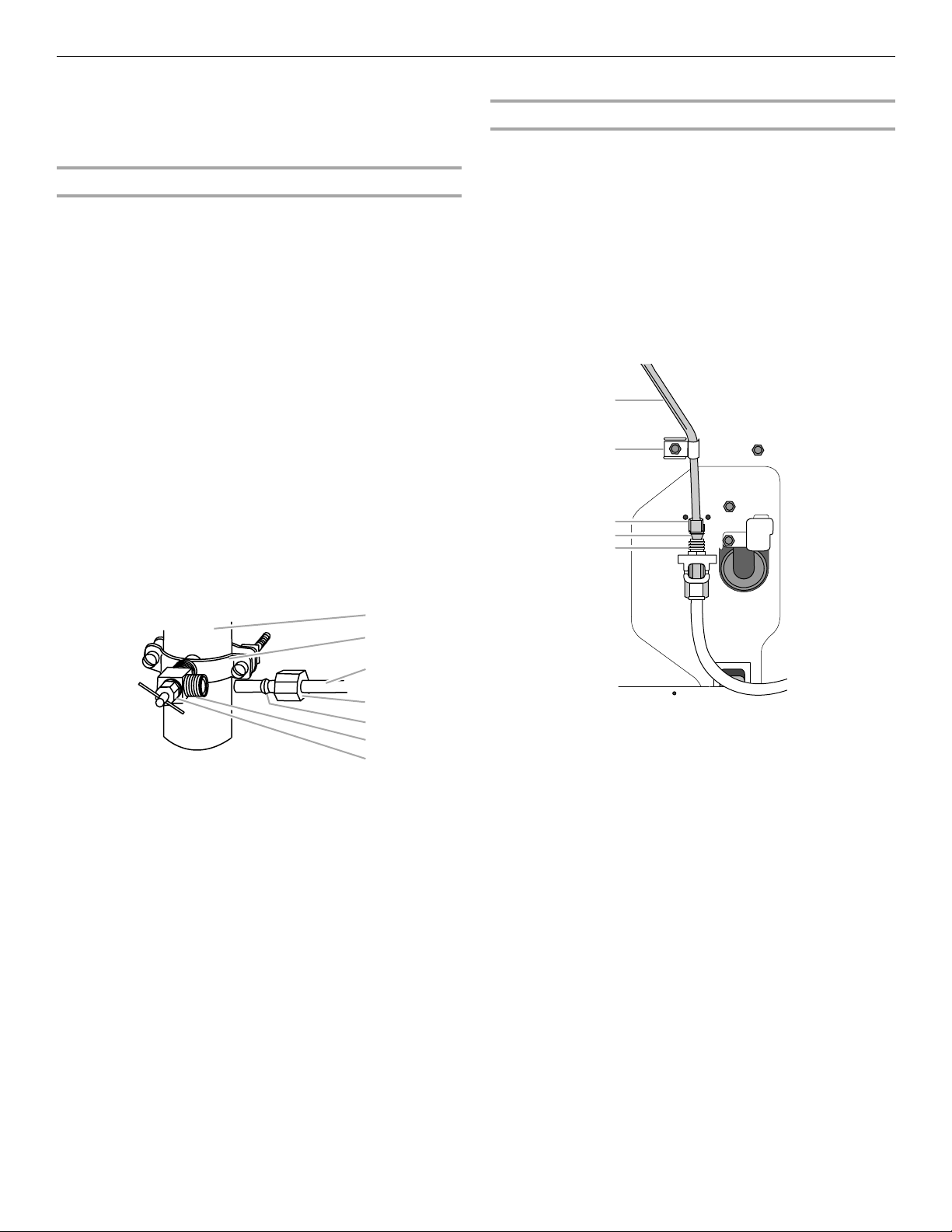

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Find a ¹⁄₂" to 1¹⁄₄" (12.7 mm to 31.8 mm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but the following procedure

must be followed: Drill on the top side of the pipe, not the bottom. This will help keep water away from the drill. This also keeps normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the rear of the refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" hole in the cold water pipe you

have selected.

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so the washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe.

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

A B

D E

F G

E. Compression sleeve F. Shutoff valve

G. Packing nut

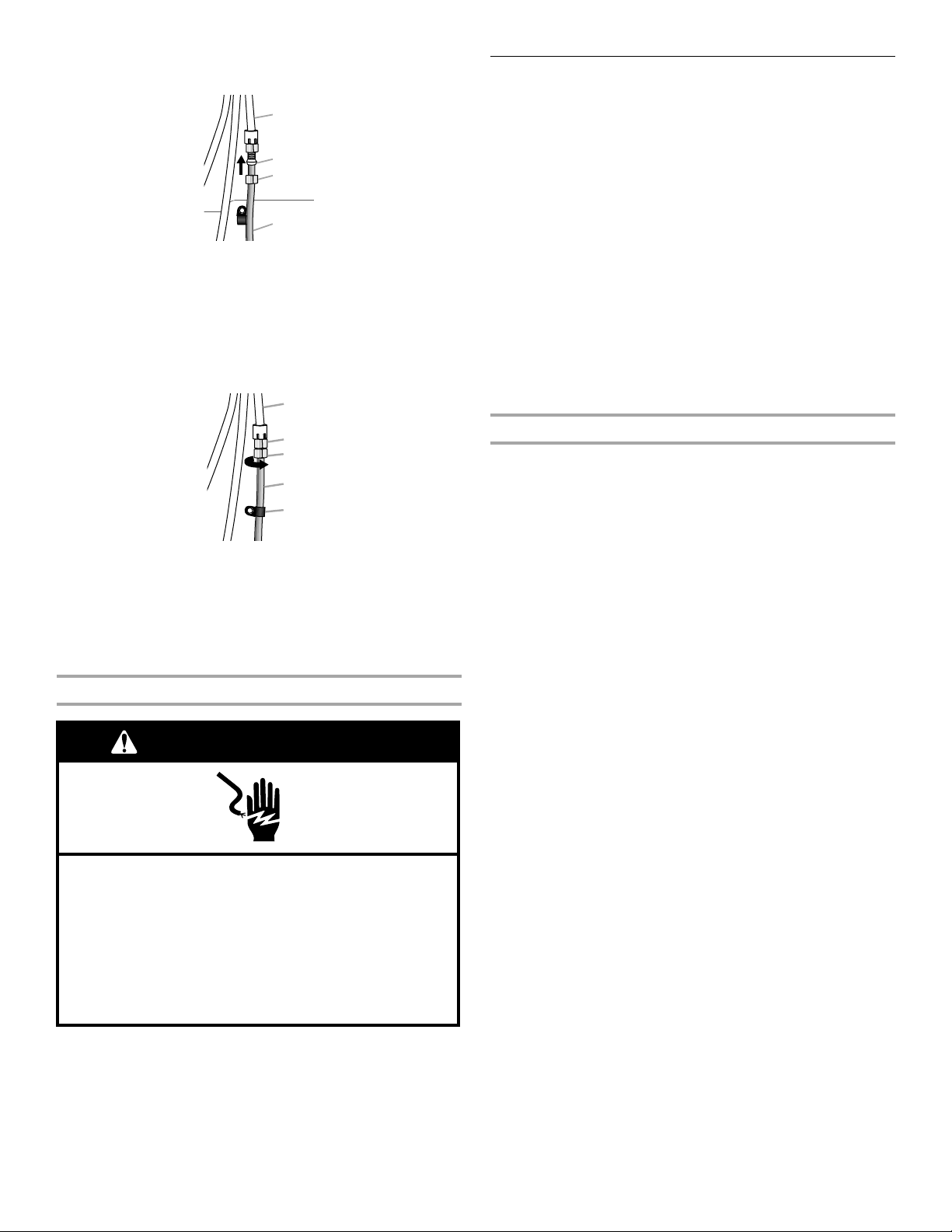

Connect to Refrigerator

Depending on your model, the water line may come down from the top or up from the bottom. Follow the connection instructions for your model.

Style 1

1. Remove plastic cap from water valve inlet port. Attach the

copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten. Confirm copper tubing is secure by pulling on copper tubing.

2. Create a service loop with the copper tubing. Avoid kinks

when coiling the copper tubing. Secure copper tubing to refrigerator cabinet with a “P” clamp.

5. Using an adjustable wrench, hold the nut on the plastic water

line to keep it from moving. Then, with a second wrench turn the compression nut on the copper tubing counterclockwise to completely tighten. Do not overtighten.

C D E

A. Copper tubing B. “P” clamp C. Compression nut

D. Compression sleeve

E. Water valve inlet port

3. Turn on water supply to refrigerator and check for leaks.

Correct any leaks.

Style 2

1. Create a service loop (minimum diameter of 2 ft [61 cm]) with

the copper tubing. Avoid kinks when coiling the copper tubing.

2. Remove the plastic cap from water valve inlet port. Place a

compression nut and sleeve on the copper tubing.

3. Insert the end of the copper tubing into the water valve inlet

port. Shape tubing slightly so that the tubing feeds straight into the port to avoid kinks.

4. Slide the compression nut over the sleeve and screw into the

water valve inlet port.

D E

A. Plastic water line B. Water valve inlet port C. Compression nut

D. Copper tubing

E. “P” clamp

6. Check connection by pulling on copper tubing. Attach copper

tubing to refrigerator cabinet with a “P” clamp. Turn on water supply to refrigerator and check for leaks. Correct any leaks.

Complete the Installation

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

A. Plastic water tubing B. Sleeve

B C

C. Compression nut D. Copper tubing

1. Plug into a grounded 3 prong outlet. NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill the ice container.

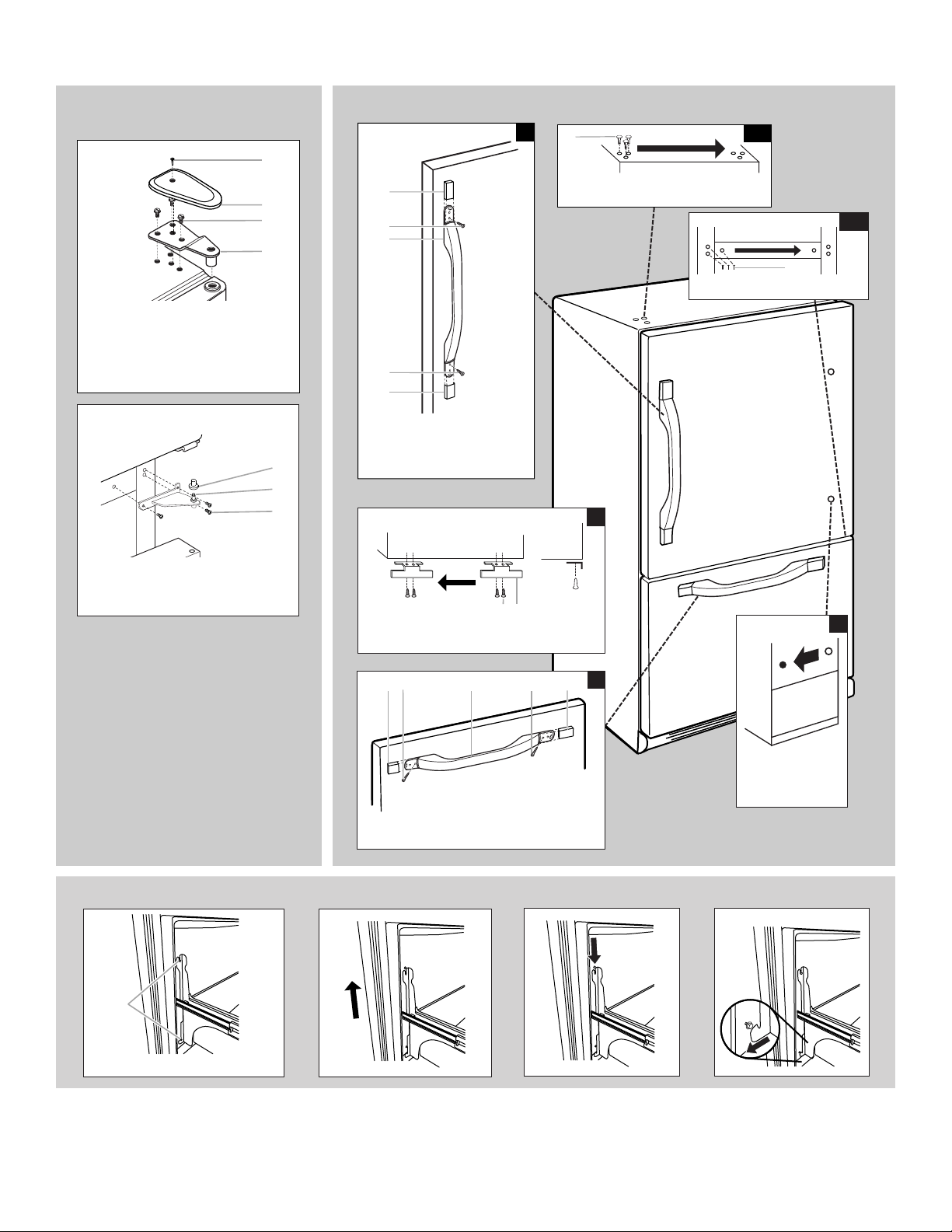

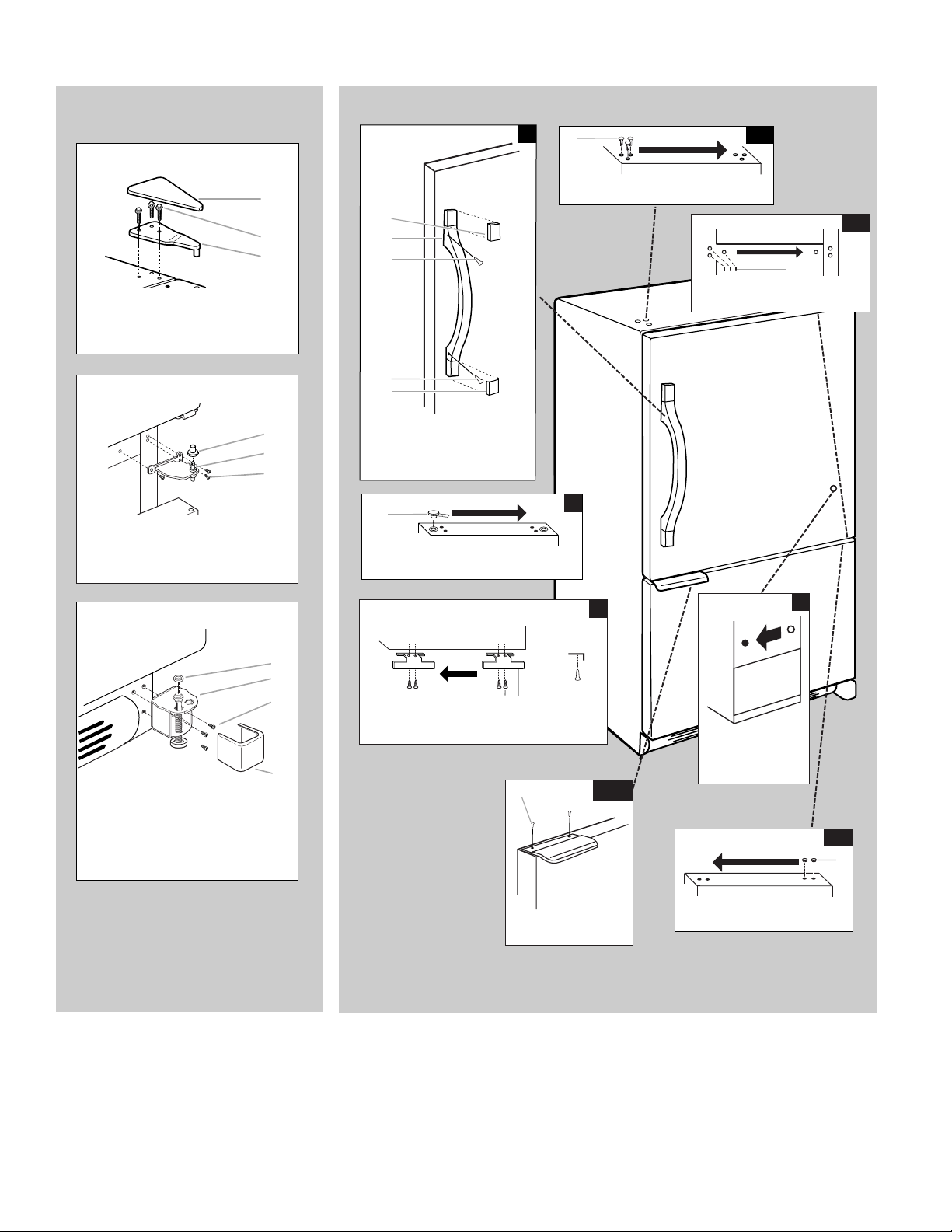

Refrigerator Door(s) and Drawer

TOOLS NEEDED: ⁵⁄₁₆", ³⁄₈", ¹⁄₄" hex head socket wrench, a #2 Phillips screwdriver, and a flat-blade screwdriver.

IMPORTANT:

■ Your refrigerator may have a standard reversible refrigerator

door (Style 1) with either a freezer door or freezer drawer, or French doors (Style 2). Follow the instructions specific to the door style of your model.

■ All graphics referenced in the following instructions are

included later in this section after “Final Steps.” The graphics shown for the standard door (Style 1) are for a right-hand swing refrigerator (hinges factory installed on the right).

■ If you only want to remove and replace the doors see

“Remove Doors and Hinges” and “Replace Doors and Hinges.”

■ Before you begin, turn the refrigerator control OFF, and

remove food and adjustable door or utility bins from the doors.

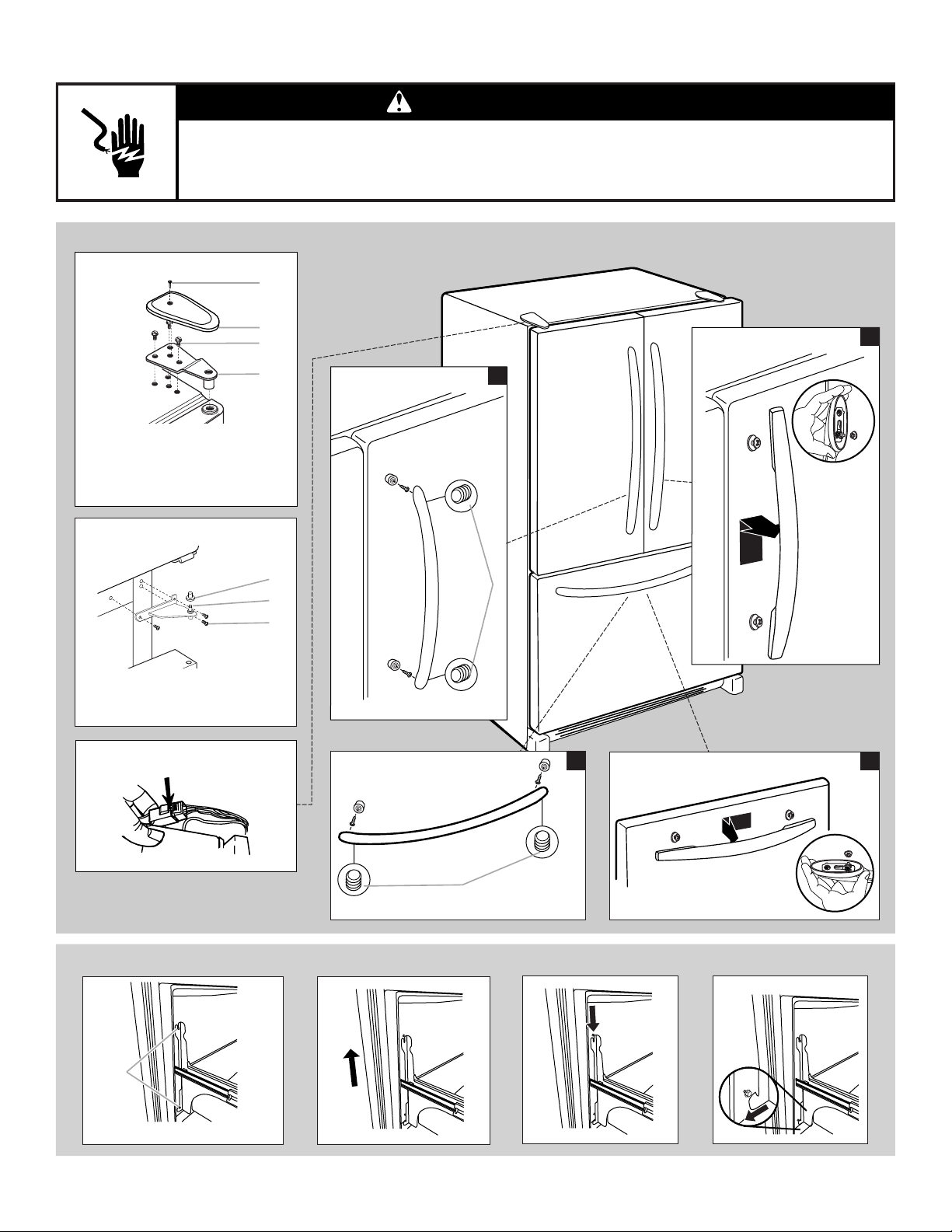

Replace and Remove Handles

Style 1–Standard Door

■ To replace the handle, align the handle on the door or drawer

as shown. Using a Phillips screwdriver, attach the handle with the handle screws.

■ To replace the handle trim pieces, using your hand, apply firm

pressure on the face of the trim and slide the trim piece toward the center of the handle.

■ To remove handles, reverse directions.

Style 2–French Doors

Metal handles

■ To remove the handle, use a ³⁄₃₂" Allen wrench to loosen the

two setscrews located on the side of each handle. Pull the handle straight out from the door or drawer. Make sure you keep the screws for reattaching the handles. See Metal Handle graphics 1 and 2.

■ To replace the handles, reverse the directions.

Plastic handles - Refrigerator door

■ To remove the handle, grasp the lower part of the handle

firmly, slide the handle up and pull the handle straight out from the door. See Plastic Handle graphic 1.

■ To replace the handle, position the handle so that the large

holes in the mounting clips are down and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the door and slide the handle down to engage. See Plastic Handle graphic 1.

Plastic handle - Freezer drawer

■ To remove the handle, grasp the handle firmly, slide the handle

to the left and pull the handle straight out from the drawer. See Plastic Handle graphic 2.

■ To replace the handle, position the handle so that the large

holes in the mounting clips are to the right and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the drawer and slide the handle to the right to engage. See Plastic Handle graphic 2.

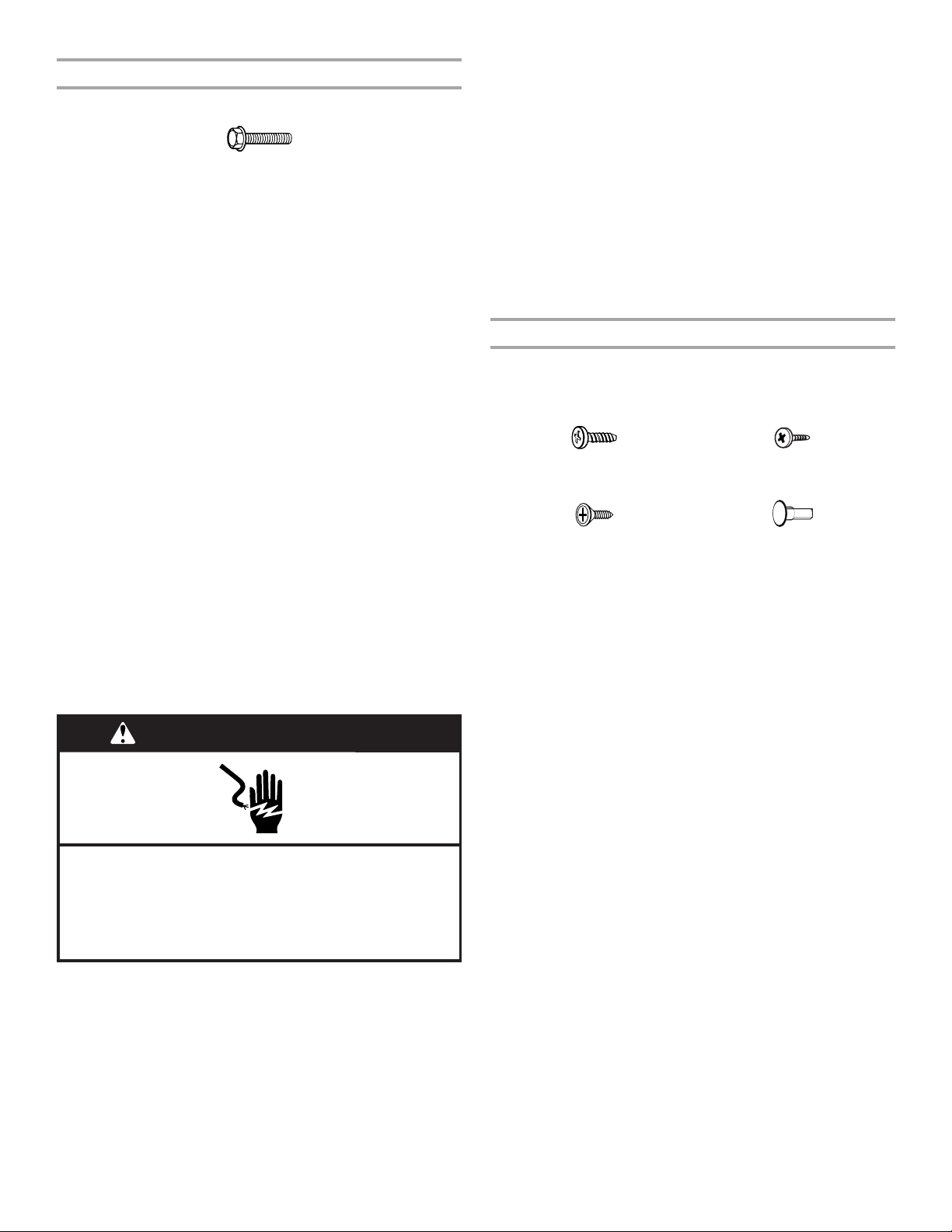

Remove Doors and Hinges

Style 1–Standard Door

Hex Head Top Hinge Screw

Freezer drawer models

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator door closed until you are ready to lift it

free from the cabinet. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the refrigerator door free from the cabinet.

4. Remove the parts for the bottom hinge as shown in Bottom

Hinge graphic.

Freezer door models

1. Unplug refrigerator or disconnect power.

2. Keep the freezer door closed until you are ready to lift it free

from the cabinet. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the refrigerator door free from the cabinet.

4. Remove the center hinge pin and remove the hinge screws as

shown in the Center Hinge graphic. Lift the freezer door free from the cabinet.

5. Remove the parts for the bottom hinge as shown in Bottom

Hinge graphic.

Style 2–French Doors

WARNING

Electrical Shock Hazard Disconnect power before removing doors. Failure to do so can result in death or electrical shock.

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator doors closed until you are ready to lift

them free from the cabinet. NOTE: Provide additional support for the refrigerator door

while the hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Starting with the right-hand side door, remove the parts for the

top hinge as shown in Top Hinge graphic. Lift the refrigerator door from the bottom hinge pin.

4. Remove the hinge pin cover from the bottom hinge pin and

keep it for later use. See Bottom Hinge graphic.

5. Before removing the left-hand side door, disconnect the wiring

plug located on top of the top hinge by wedging a flat-blade screwdriver or your fingernail between the two sections. See Wiring Plug graphic.

NOTE: The green, ground wire remains attached to the hinge.

6. Remove the parts for the left-hand side door top hinge as

shown in the Top Hinge graphic. Lift the door from the bottom hinge pin.

NOTE: Remove the hinge pin cover from the bottom hinge pin and keep it for later use. See Bottom Hinge graphic.

Reverse Door - Standard Door (optional)

IMPORTANT: If you want to reverse your door so it opens from

the opposite side, follow these steps. If you are not reversing the door, see “Replace Door(s) and Hinges.”

Door Stop Screw

Cabinet

1. Remove hinge screws from handle side and move them to

opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from cabinet top and move

them to opposite side hinge holes as shown in Graphic 1-2.

Door Handle Seal Screw Fron

Cabinet Hinge Hole PlugFlat-Head Handle Screw

Refrigerator door

1. Remove the refrigerator handle assembly as shown in

Graphic 2. Keep all parts together.

2. Remove door handle seal screw front. Move to opposite side

of refrigerator door as shown in Graphic 5.

3. Remove the door stop. Move it to the opposite side of the

refrigerator door as shown in Graphic 3.

4. Attach refrigerator handle on opposite side of the refrigerator

door with the two screws as shown in Graphic 2. Replace handle trim as shown.

5. Tighten all screws. Set aside the door until hinges and freezer

compartment drawer are in place.

Freezer door

1. Remove freezer handle assembly as shown in Graphic 5-1.

Keep all parts together.

2. Remove freezer door handle seal screw. Move to opposite

side of freezer door.

3. Remove door stop. Move to opposite side of freezer door as

shown in Graphic 4.

4. Attach handle to opposite side of freezer door.

5. Tighten all screws. Set aside door until bottom hinge is

installed on product.

Replace Doors and Hinges

Style 1–Standard Door

NOTE: Graphics may be reversed if door swing is reversed. Freezer drawer models

1. Replace the parts for the bottom hinge as shown. Tighten

screws. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

2. Assemble the parts for the top hinge as shown in Top Hinge

graphic. Do not tighten screws completely.

3. Adjust the door so that the bottom of the refrigerator door is

aligned with the top of the freezer drawer. Tighten all screws.

Freezer door models

1. Replace the parts for the bottom hinge as shown. Tighten

screws. Replace the freezer door. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

2. Assemble the parts for the center hinge as shown in the

Center Hinge graphic, and tighten all the screws. Replace the refrigerator door.

3. Assemble the parts for the top hinge as shown in the Top

Hinge graphic. Do not tighten the screws completely.

4. Adjust the doors so that the bottom of the refrigerator door is

aligned with the top of the freezer door. Tighten all screws.

Remove and Replace Freezer Drawer

IMPORTANT:

■ Two people may be required to remove and replace the freezer

drawer.

■ All graphics are included later in this section after “Final

Steps.”

Remove Drawer Front

1. Open the freezer drawer to full extension.

2. Loosen the four screws attaching the drawer glides to the

drawer front. See Drawer Front Removal graphic. NOTE: Loosen screws three to four turns. Keep the screws in

the drawer front.

3. Lift drawer front upward and off the screws. See Drawer Front

Removal graphic.

Replace Drawer Front

1. Slide the drawer glides out of the freezer compartment. Insert

the screws in the top of the drawer front into the slots in the drawer brackets. See Drawer Front Replacement graphic.

2. Pull the drawer brackets toward you to insert the two screws

in the bottom of the drawer front into the brackets. See Drawer Front Replacement graphic.

3. Completely tighten the four screws.

Final Steps

1. Check all holes to make sure that hole plugs and screws are in

place. Reinstall top hinge cover as shown in Top Hinge graphic.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Style 2–French Doors

1. Assemble the parts for the top hinges as shown in Top Hinge

graphic. Do not tighten the screws completely.

2. Replace the parts for the bottom hinges as shown in Bottom

Hinge graphic. Tighten screws. Replace the refrigerator doors. NOTE: Provide additional support for the refrigerator doors

while the hinges are being moved. Do not depend on the door gasket magnets to hold the doors in place while you are working.

3. Align each door so that the bottom of the refrigerator door

aligns evenly with the top of the freezer drawer. Tighten all screws.

4. Reconnect the wiring plug on top of the left-hand side

refrigerator door.

5. Replace the top hinge covers.

2. Plug into a grounded 3 prong outlet.

3. Return all removable door parts to door and food to

refrigerator.

Standard Door - Freezer Door

Door Removal &

Replacement

Top Hinge

A. Top Hinge Cover

⁵⁄₁₆

Hex-Head Hinge Screws

B C. Top Hinge

Center Hinge

A. Hinge Pin Cover B. Center Hinge C

⁵⁄₁₆

Hex-Head Hinge Screws

Door Swing Reversal (optional)

A. Cabinet Hinge Hole Plugs

C A

A. Handle Trim

B. Refrigerator Door Handle C. Flat-Head Handle Screws

A. Door Hinge Hole Plug

1-2

⁵⁄₁₆

" Hex-Head Hinge Screws

1-1

Bottom Hinge

A B

A. Hinge Pin Shim (on some models) B. Bottom Hinge C.

³⁄₈

" Hex-Head Hinge Screws

D. Bottom Hinge Cover

Front View

A. Door Stop Screws B. Door Stop

Side View

A. Flat-Head Handle

Screws

5-1

Door Handle

Seal Screw

Front

A. Door Hinge Hole Plugs

5-2

Standard Door - Freezer Drawer

Door Removal &

Replacement

Top Hinge

A. Hinge Cover Screw B. Top Hinge Cover

/16" Hex-Head Hinge Screws

D. Top Hinge

Bottom Hinge

Door Swing Reversal (optional)

B C

A. Handle Trim

B. Flat-Head Handle Screws C. Refrigerator Door Handle

Front View

Side View

A. Cabinet Hinge Hole Plugs

1-2

A. Hinge Screws

1-1

A. Hinge Pin Cover B. Bottom Hinge C. Hinge Screws

Drawer Front Removal

A. Door Stop Screws B. Door Stop

C B AAB

A. Handle Trim

B. Flat-Head Handle Screws C. Refrigerator Door Handle

Door Handle Seal Screw

Front

Drawer Front Replacement

A. Loosen 4 Door Bracket Screws

French Doors

WARNING

Electrical Shock Hazard

Disconnect power before removing doors. Failure to do so can result in death or electrical shock.

Door Removal & Replacement

Top Hinges

A. Hinge Cover Screw B. Top Hinge Cover

/16" Hex Head Hinge Screws

C. D. Top Hinge

Bottom Hinges

A. Hinge Pin Cover B. Bottom Hinge C. Hinge Screws

B C

Metal Handle

/32" Setscrew

Plastic Handle

Wiring Plug

Drawer Front Removal

A. Loosen 4 Door Bracket Screws

Metal Handle

A. 3/32" Setscrew

Plastic Handle

Drawer Front Replacement

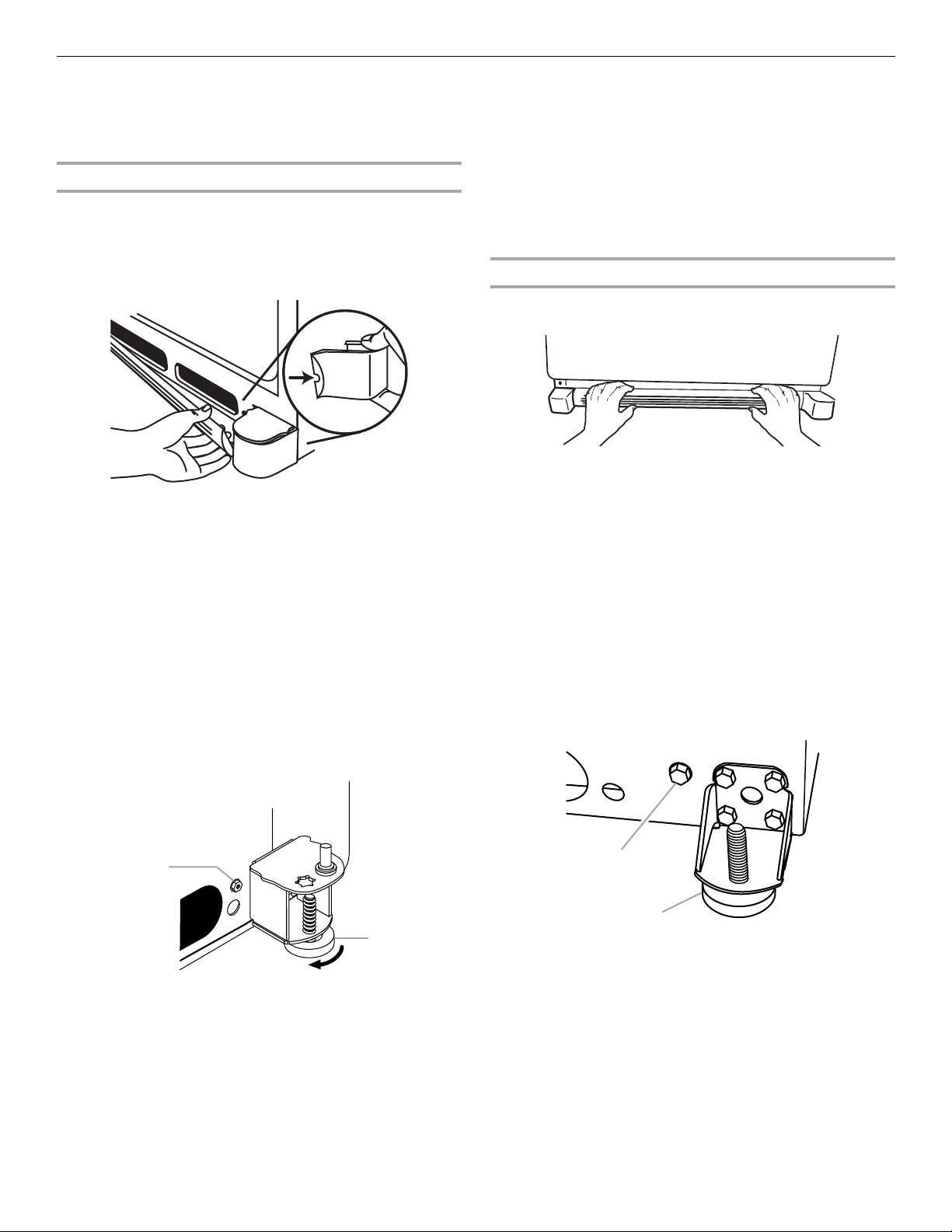

Adjust the Door

Your refrigerator has two front adjustable rollers located at the base of the refrigerator. If your refrigerator seems unsteady or you want the door to close more easily, use the instructions below.

Style1–Freezer Door Models

1. Remove the base grille. Grasp the grille firmly and pull it

toward you.

2. Remove the bracket cover. Insert the eraser end of a pencil in

the cover notch. Apply slight downward pressure to the notched side of the cover while swinging it off.

3. Using a screwdriver or ³⁄₈" hex driver, turn the roller adjustment

screw on each side to raise or lower that side of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the adjustment screws and rollers. This makes it easier to turn the screws It may take several turns of the roller adjustment screw to adjust the tilt of the refrigerator.

■ To raise, turn the roller adjustment screw to the right.

■ To lower, turn the roller adjustment screw to the left.

4. Turn the brake foot clockwise until it is firmly against the floor

to keep the refrigerator from rolling forward when the freezer drawer is pulled open.

Style 2–Freezer Drawer Models

1. Remove the base grille. Grasp the grille firmly and pull it

toward you.

2. Raise or lower the cabinet. Using a ³⁄₈" hex driver, turn the

roller adjustment screw(s) on each side to raise or lower that side of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the adjustment screws and rollers. This makes it easier to turn the screws. It may take several turns of the roller adjustment screw to adjust the tilt of the refrigerator.

■ To raise, turn the roller adjustment screw to the right.

■ To lower, turn the roller adjustment screw to the left.

3. Turn the brake foot clockwise until it is firmly against the floor

to keep the refrigerator from rolling forward when the freezer drawer is pulled open.

A. Roller adjustment screw B. Brake foot

5. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both roller adjustment screws to the right. It may take several more turns, and you should turn both adjustment screws the same amount.

6. Replace the bracket cover. Place the bracket cover into the

outer edge, swing the cover toward the cabinet and snap it into place.

7. Replace the base grille.

A. Front roller adjustment screw B. Brake foot

4. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both screws the same amount.

5. Replace the base grille.

REFRIGERATOR USE

Opening and Closing Doors

(French door models)

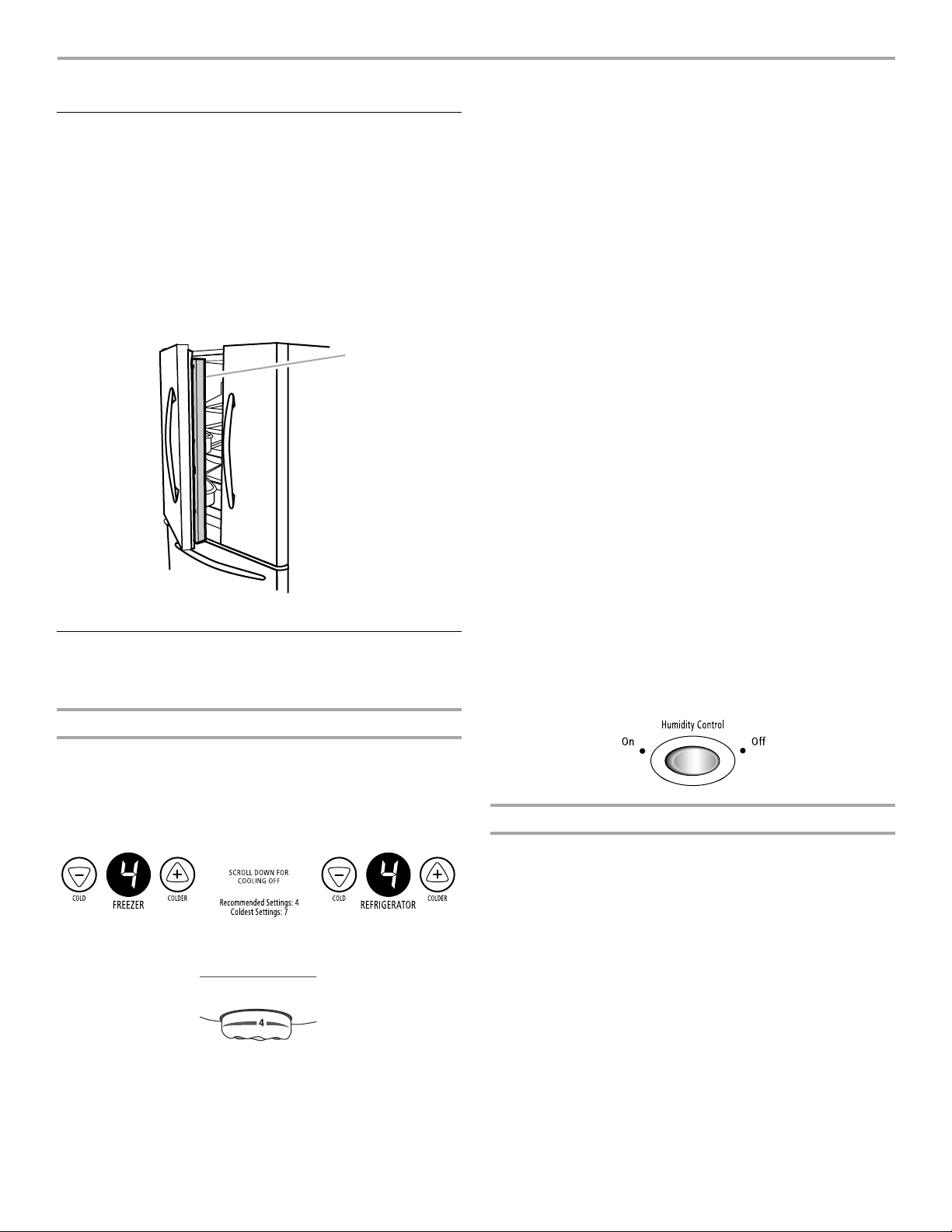

There are two refrigerator compartment doors. The doors can be opened and closed either separately or together.

There is a vertically-hinged seal on the left refrigerator door.

■ When the left side door is opened, the hinged seal

automatically folds inward so that it is out of the way.

■ When both doors are closed, the hinged seal automatically

forms a seal between the two doors.

NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster.

■ If the temperature is too warm or too cold in the refrigerator or

freezer, first check the air vents to be sure they are not blocked before adjusting the controls.

To Tu rn Off/ On:

Style 1 Press the freezer down arrow touch pad until a

dash (-) appears in both the refrigerator and freezer displays. Neither compartment will cool.

Style 2 Turn the freezer control to the word OFF. Neither compartment will cool when the freezer is set to OFF.

Humidity Control (on some models)

The humidity control turns on a heater to help reduce moisture on the door hinge seal. Use in humid environments or when you notice moisture on the door hinge seal. The refrigerator uses more energy when Humidity Control is on.

■ Press the control to ON when the environment is warm and

more humid, or if you notice moisture on the door hinge seal.

■ Press the control to OFF to save energy when the environment

is less humid.

A. Hinged seal

Using the Controls

The temperature controls are located at the top front of the refrigerator or freezer compartments.

Temperature Controls

For your convenience, the temperature controls are preset at the factory. When you first install your refrigerator, make sure the controls are still set to the recommended setting as shown.

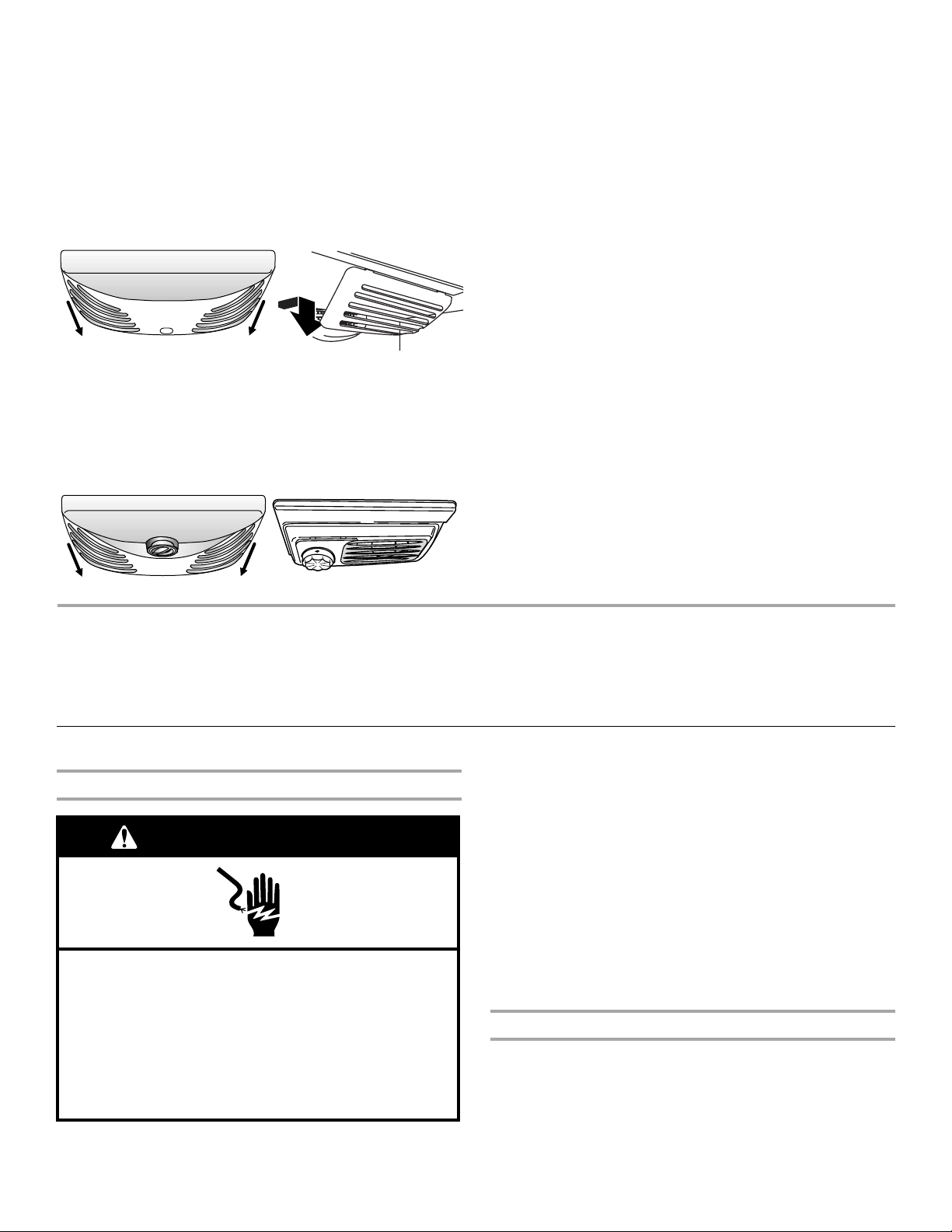

Style 1

Recommended Setting “4”

Style 2

Recommended Setting “4”

IMPORTANT:

■ The recommended setting should be correct for normal

household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

■ Wait 24 hours for your refrigerator to cool completely before

adding food. If you add food before the refrigerator has cooled completely, your food may spoil.

Adjusting Controls

If you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the chart below as a guide.

For (Style 1) controls press the up or down arrow touch pads, or for (Style 2) controls turn the dial to adjust the temperature. Except when starting the refrigerator, do not adjust either control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR Control

one setting higher

FREEZER too warm/too little ice FREEZER Control one

setting higher

REFRIGERATOR too cold REFRIGERATOR Control

one setting lower

FREEZER too cold FREEZER Control one

setting lower

Crisper Humidity Control

You can control the amount of humidity in the moisture-sealed crisper. Depending on your model, adjust the control to any setting between FRUIT and VEGETABLES or LOW and HIGH.

FRUIT / LOW (open) for best storage of fruits and vegetables with skins.

VEGETABLES / HIGH (closed) for best storage of fresh, leafy vegetables.

+ 28 hidden pages
