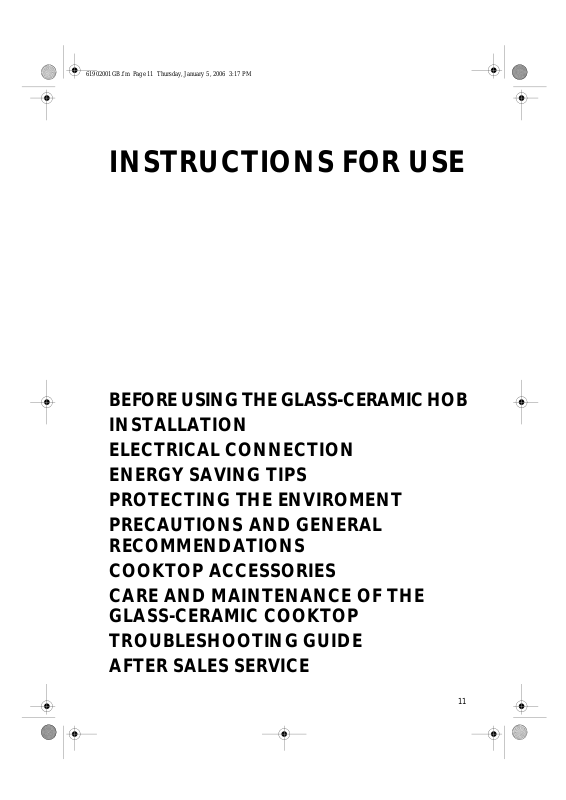

INSTRUCTIONS FOR USE
BEFORE USING THE GLASS-CERAMIC HOB
INSTALLATION
ELECTRICAL CONNECTION
ENERGY SAVING TIPS
PROTECTING THE ENVIROMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
COOKTOP ACCESSORIES
CARE AND MAINTENANCE OF THE
GLASS-CERAMIC COOKTOP
TROUBLESHOOTING GUIDE
AFTER SALES SERVICE
11
Page 2
61902001GB.fm Page 12 Thursday, January 5, 2006 3:17 PM
BEFORE USING THE GLASS-CERAMIC HOB
To make the most of your new appliance,
•
please read the user instructions carefully and
keep them to hand for future consultation.
INSTALLATION
Cooktop
• The cooktop must be set into a worktop between 20
mm and 50 mm deep.
• There must be nothing between the cooktop and the
oven (cross rails, brackets, etc.).
• The distance between the lower face of the glass
ceramic hob and the cupboard or separating panel
must be at least 20 mm.
• If the cooktop is to be installed next to a column unit,
leave a distance of at least 100 mm from the edge of the
cooktop.
Make an opening in the worktop of the dimensions shown in
•
the Product Description Sheet supplied separately.
Apply the supplied gasket to the cooktop (unless it has already
•
been fitted), after having cleaned its surface.
Important
In order to prevent the electronic circuits from overheating, and
therefore from being damaged, we recommend the following:
• Do not install the cooktop near the dishwasher or
washing machine, so that the electronic circuits are not
in contact with steam or moisture, which could damage
them.
If there is an oven under the hob (manufactured by us), make
sure that it is equipped with a cooling system.
If the temperature of the electronic circuits exceeds the
maximum permitted temperature, the cooktop will switch off
automatically; in this case, wait for a few minutes until the
internal temperature of the electronic circuits reaches a tolerable
level, at which point it will be possible to switch the cooktop on
again.
• Switch off the hob after use.
12
Page 3
61902001GB.fm Page 13 Thursday, January 5, 2006 3:17 PM
INSTALLATION
Assembly
A)
If the worktop is made of wood
clips and screws.
Position the 4 clips (A) as shown and at the specified
•
distance.
Secure the clips using the 4 screws (B).
•
Fit the cooktop in the prepared worktop (see figure).
•
B)
If the worktop is made of marble or other materials
(plastic compounds, ceramics, stone, etc.)
must be fitted by means of brackets code 4819 404 78697
(to be requested from the After-Sales Service).
Position the cooktop into the prepared worktop.
•
Position the 3 brackets (C) as shown in the figure, in
•
accordance with the thickness of the worktop.
Secure the three screws (E) in the holes (D).
•
, use the supplied spring
, the cooktop
13
Page 4
61902001GB.fm Page 14 Thursday, January 5, 2006 3:17 PM

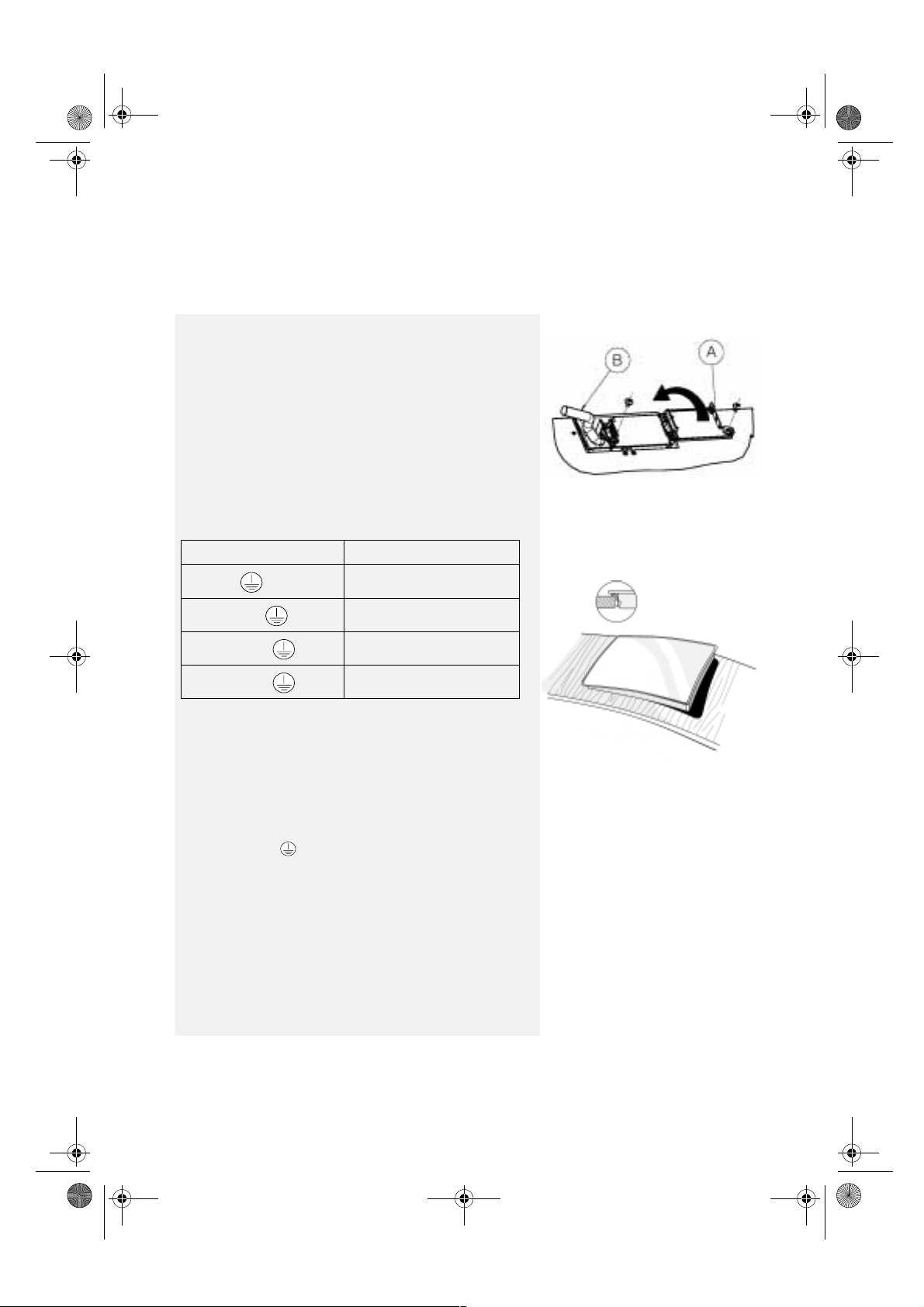

ELECTRICAL CONNECTION
Electrical connection must be made before connecting the
appliance to the electricity supply. The appliance must be
installed by a qualified technician who is fully aware of current
safety and installation regulations . Specificall y, installation must be
carried out in compliance with the regulations of the local
electricity supply company. Make sure that the voltage indicated
on the rating plate corresponds to the voltage in your home.
Regulations require that the appliance is earthed: use conductors
(including the earth conductor) of the appropriate size only. The
manufacturer declines all liability for injury to persons or animals
and for damage to property resulting from failure to observe the
above regulations. For the electrical connection use a HO5 RR-F
type cable as indicated in the table below:
Power supply voltage.
Conductors Amount x size
230 V ~
230 V 3 + ~
400 V 3N + ~
400 V 2N + ~
~
~
~
~
3 X 2.5 mm
4 X 1.5 mm
5 X 1.5 mm
4 X 1.5 mm
2
2
2
2
The appliance must be connected to the electricity supply
by means of an all-pole disconnect switch with minimum
contact gap of 3 mm.
Warning
: the power supply cable must be long enough to allow
the cooktop to be removed from the worktop and must be
positioned so as to avoid damage or overheating caused by
contact with the base.
Terminal block connections
: the yellow/green earth wire must be connected to the
Note
terminal with the symbol and must be longer than the other
wires.
Strip approx. 70 mm of sheath from the power supply
•
cable
Strip approx. 10 mm of sheath from the wires. Then insert the
•
(B)
.
power supply cable into the cable clamp and connect the
wires to the terminal block as indicated in the diagram located
near the terminal block.
Secure the power supply cable
•
by means of the cable
(B)
clamp.
Close the terminal block cover
•
After the electrical connection, fit the hob from the top and
•
and tighten its screw.
(A)
hook it to the support springs, according to the illustration.
14
Page 5
61902001GB.fm Page 15 Thursday, January 5, 2006 3:17 PM

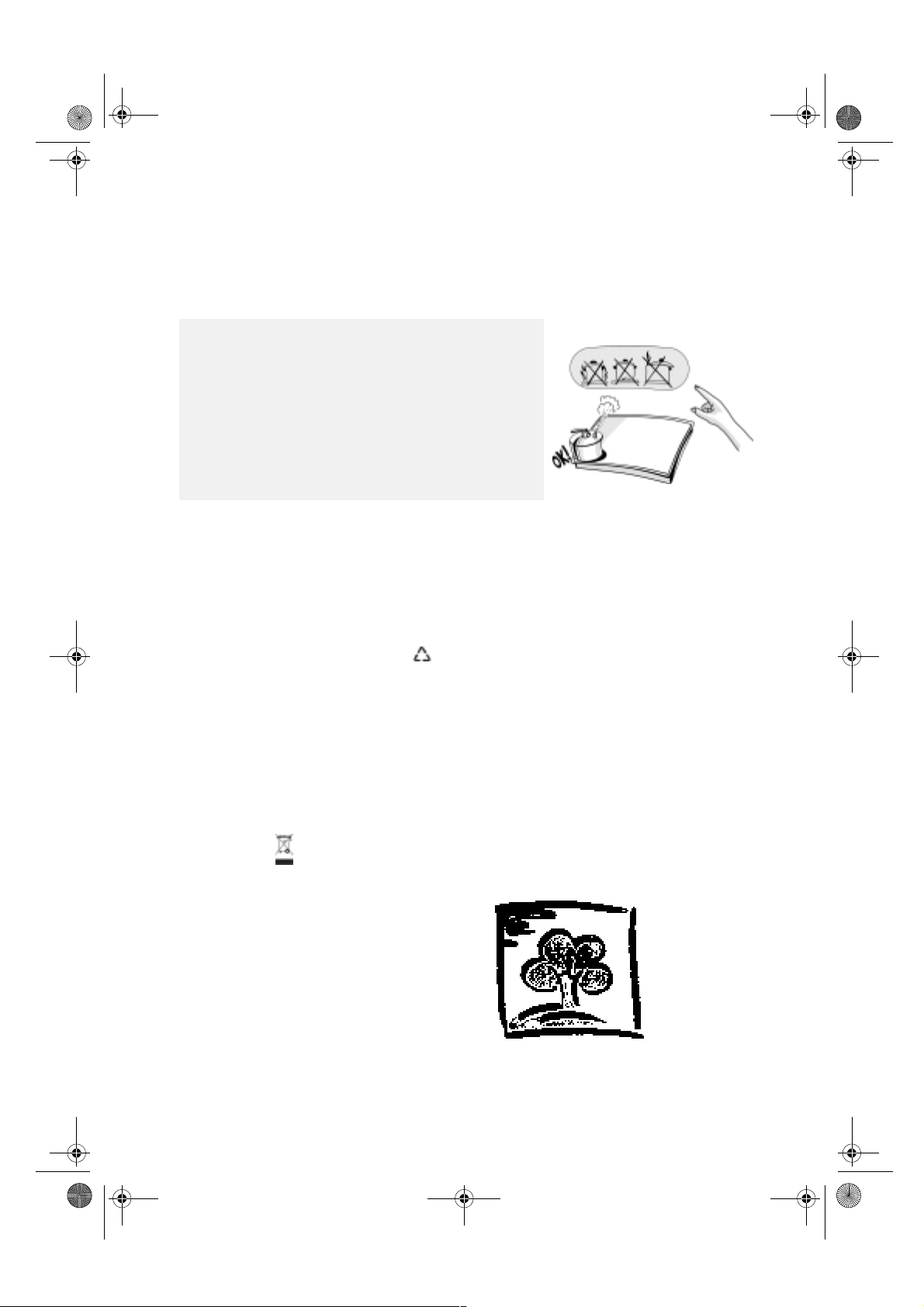

ENERGY SAVING TIPS
Use pots and pans whose bottom diameter is equal to that of
•
the cooking zone.
Only use flat-bottomed pots and pans.
•
If possible, keep the pot covered when cooking.
•
Cook vegetables, potatoes, etc. with little water in order to
•
cut down cooking time.
A pressure cooker allows you to save even more energy and
•
time.
PROTECTING THE ENVIROMENT
NO!
1. Packing
The packaging material can be 100% recycled,
•
as confirmed by the recycling symbol ( ).
2. Products
This appliance is marked according to the
•
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of this
product.
The symbol on the product, or on the
documents accompanying the product,
indicates that this appliance may not be treated
as household waste. Instead it shall be handed
over to the applicable collection point for the
recycling of electrical and electronic
equipment. Disposal must be carried out in
accordance with local environmental
regulations for waste disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city office,
your household waste disposal service or the
shop where you purchased the product.
Declaration of conformity CE
These appliances are designed to come into
•
contact with foodstuffs and they are
constructed in compliance with Directive
89/109/EEC.
The appliances are designed solely for use as
•
cooking appliances. Any other use of the
appliances (e.g. for room heating) is considered
as improper use and potentially dangerous.
The appliances are designed, built and sold in
•
compliance with:
The safety requirements of “Low Voltage”
•
Directive 73/23/EEC.
The protection requirements of EMC Directive
•
89/336/EEC “Electromagnetic compatibility”.
The requirement of Directive 93/68/EEC.
•
15
Page 6
61902001GB.fm Page 16 Thursday, January 5, 2006 3:17 PM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
Before any maintenance on the appliance
•
disconnect it from the electrical power supply.
Keep children away from the appliances when
•
they are in use and when its has just been
switched off.
The appliances must be repaired or adjusted
•
exclusively by a qualified technician.
Make sure that the electrical wires of other
•
electrical appliances near the cooktop do not
come into contact with hot parts.
• Do not switch on the hotplates/cooking
zones when there is no pan in position.
Never clean the appliance with high pressure
•
water or steam cleaning equipment
If liquid is detected on the control panel, the
•
hob will shut off. Carefully wipe the control
zone in order to use it again.
The cooktop features different size hotplates/
•
cooking zones. Use pans whose base diameter
is the same as the diameter of the hotplate/
cooking zone.
To avoid permanently damaging the glassceramic top, do not use:
- Pots with bottoms that are not perfectly
flat;
- Metal pots with enamelled bottom.
- When cooking is finished, press the
button .
Do not use the cooktop as a work surface or a
•
support surface.
Do not leave the appliance unattended when
•
frying food -risk of fire.
If the glass ceramic surface should break or
•
crack due to violent impact (falling objects,
etc...) do not use it and call After-Sales Service
immediately.
Do not place food wrapped in aluminium foil,
•
plastic containers or cloths on the hot cooking
zones.
Do not drag pans across the glass-ceramic
•
surface - risk of scratches.
Avoid spilling sugar and similar substances on
•
the cooktop. If necessary, clean the cooktop
immediately following the care and
maintenance instructions in this handbook.
If you have a cooktop with halogen cooking
•
zones, avoid looking straight at the lamps.

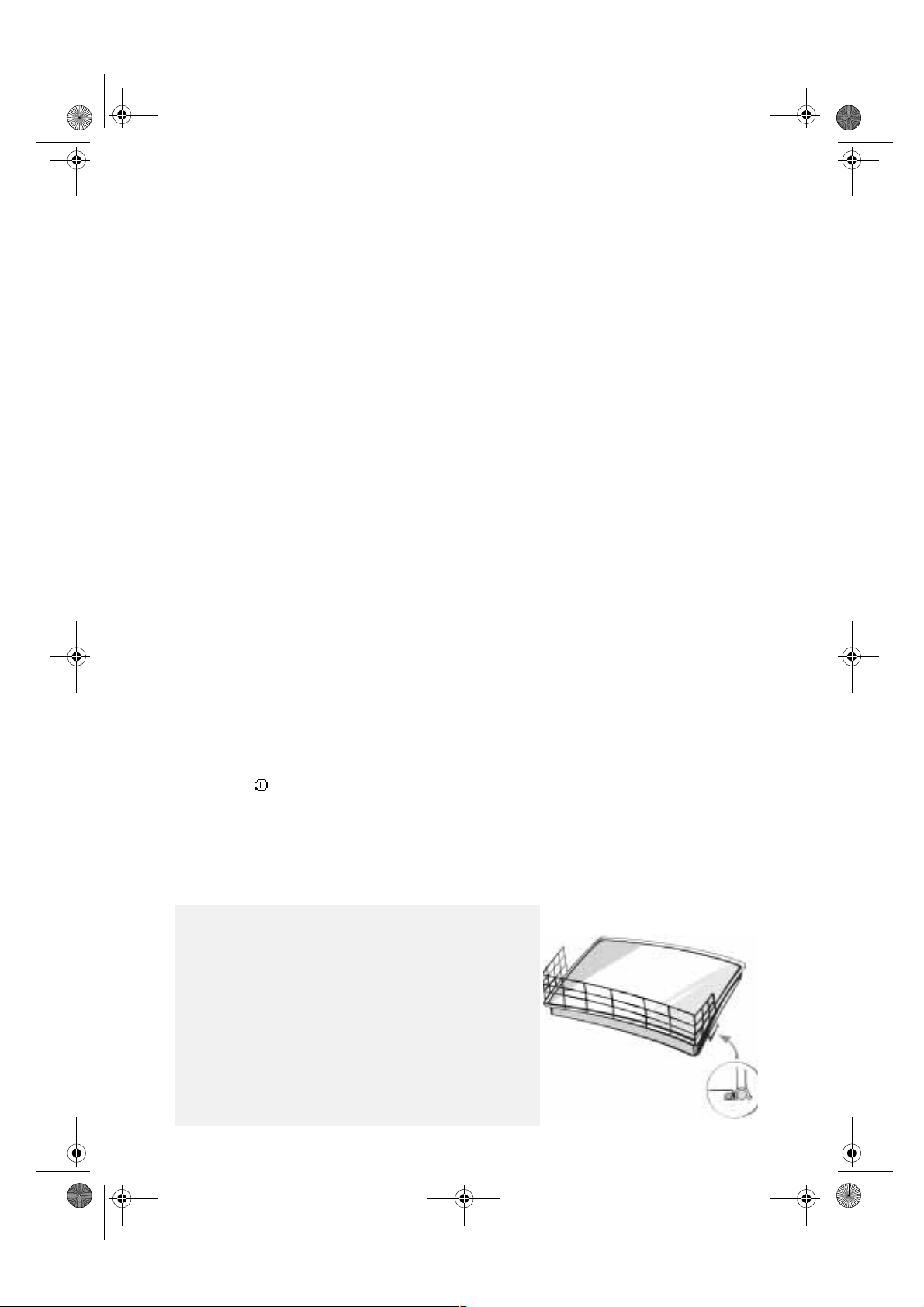

COOKTOP ACCESSORIES
Child guard accessory AMH 122
This accessory can be obtained from the After-Sales Service
under Part N° 4819 310 18436.
16
Page 7
61902001GB.fm Page 17 Thursday, January 5, 2006 3:17 PM

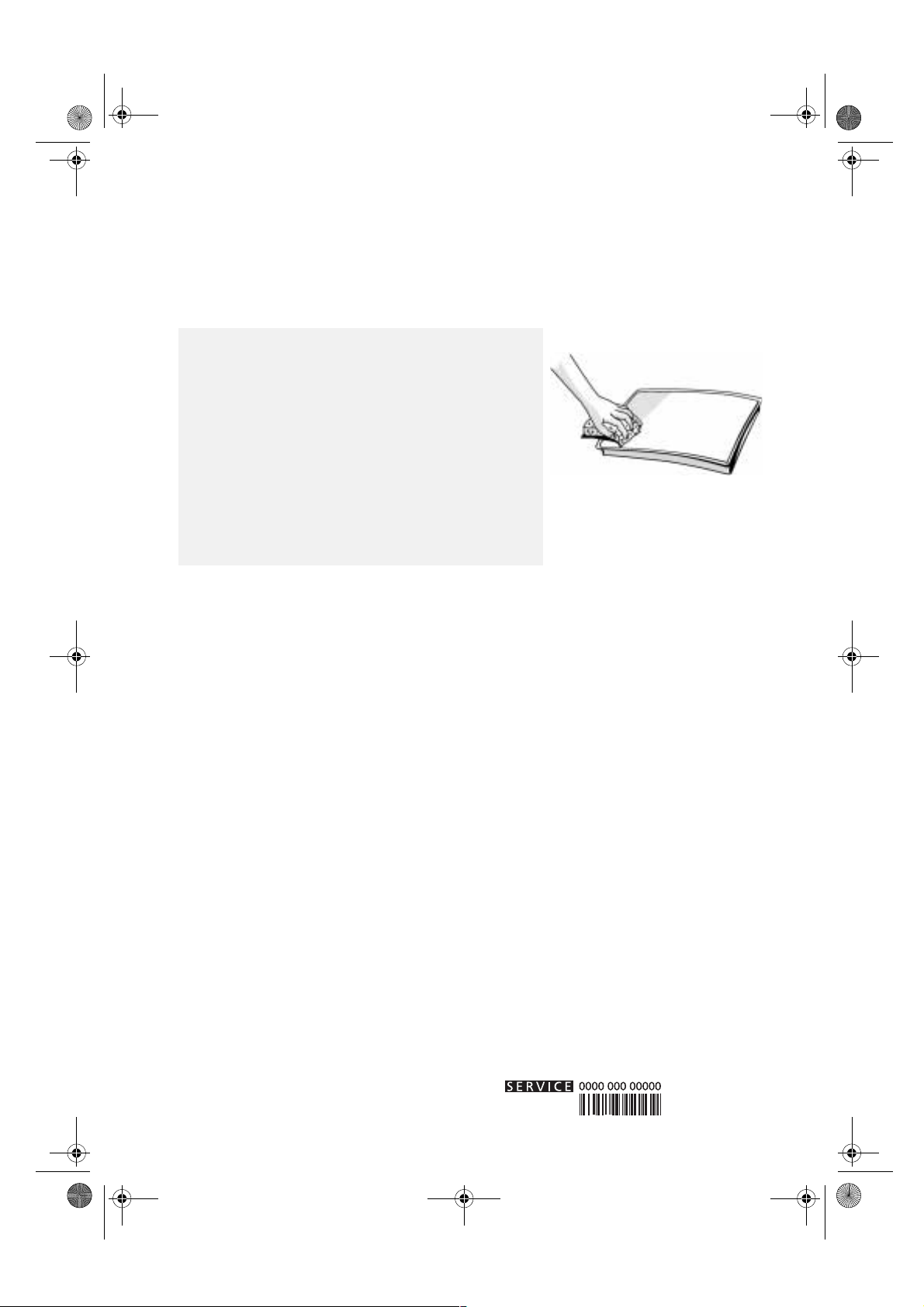

CARE AND MAINTENANCE OF THE GLASSCERAMIC COOKTOP
Clean the cooktop, when it is cool, after each use. This will
prevent the build-up of dirt and make cleaning easier.
Use a clean cloth, absorbent kitchen wipes and washing up
•
liquid or a specific glass-ceramic hob cleaner.
Remove baked-on dirt with the supplied scraper tool and
•
specific cleaning products.
Food spills should be cleaned off before they bake onto the
•
glass-ceramic surface.
Foods with a high sugar content (toffee, fruit syrup, jam, etc.)
•
that boil over onto the hob or sugar spills must be removed
immediately using a scraper.
Do not use abrasive products, bleach, oven-cleaner spray or
•
pan scourers.
The cooktop should be treated periodically with a proprietary
brand of protective wax for glass-ceramic hobs.
TROUBLESHOOTING GUIDE
To solve the problem, follow the instructions
Cooktop not working
• When pressing the control buttons did you
follow the instructions in the section “Using
the hob” in the ”Product Sheet” supplied?
• Is there perhaps a power failure?
• Did you dry the hob carefully after cleaning it?
If a cooking zone has been selected and an “F”,
1.
appears on the display, contact the After Sales
Technical Service and specify the F on display.
With the exception of the message “
-
“
” that refers to incorrect cleaning of
ER03
the cooking zone.
F03
” or
-
in the section “Cleaning and maintenance of
the glass ceramic cooking hob”.
If the cooktop does not work following
2.
intensive use, the cooktop internal temperature
is too high. Wait a few minutes until the
cooktop cools down.
Important!
If you are not able to turn the glass ceramic hob off
after using it, disconnect it immediately from the
power supply.
AFTER SALES SERVICE
Before contacting After Sales Service
1.
Try to solve the problem (see
“Troubleshooting Guide”).
2.
Turn off the appliance and restart it to see if the
fault is repeated.
If after the above checks the fault still occurs,
get in touch with the nearest After Sales
Service.
Please give:
the exact type and model,
•
the service number (number after the word
•
“Service” on the rating plate) is located on the
underside of the cooktop or on the Product
Description Sheet. The service number is also
indicated on the guarantee booklet,
a short description of the fault,
your complete address and phone number.
•
If any repairs are required, please contact
authorised After Sales Service
the warranty.
In the unlikely event that an operation or repair is
carried out by an
always request a certification of the job carr ied out
and insist on the use of
Failure to comply with these instructions may
compromise the safety and quality of the
product
.
an
as indicated in
unauthorised technician
original spare parts
,
.
17
Loading...
