GB
FUN 640

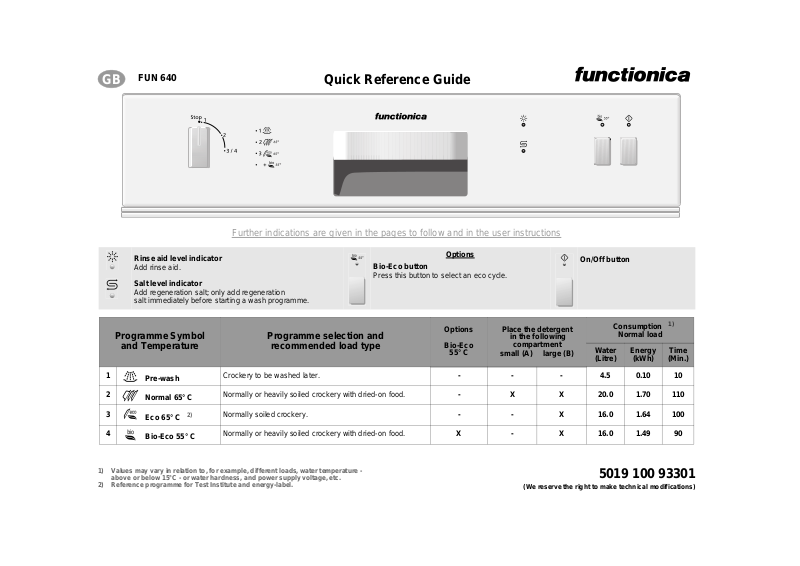

Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add regeneration
salt immediately before starting a wash programme.
Programme Symbol
and Temperature
1
2
3
4
1) Values may vary in relation to, for example, different loads, water temperature above or below 15°C - or water hardness, and power supply voltage, etc.
2) Reference programme for Test Institute and energy-label.
Pre-wash
Normal 65° C
Eco 65° C
Bio-Eco 55° C
2)
Crockery to be washed later.
Normally or heavily soiled crockery with dried-on food.
Normally soiled crockery.
Normally or heavily soiled crockery with dried-on food.
Programme selection and
recommended load type
Options
Bio-Eco button
Press this button to select an eco cycle.
Options
Bio-Eco
55° C
- - - 4.5 0.10 10
- X X 20.0 1.70 110
- - X 16.0 1.64 100
X - X 16.0 1.49 90
On/Off button
Place the detergent
in the following
compartment
small (A) large (B)
Consumption
Normal load
Water
(Litre)
Energy
(kWh)
5019 100 93301
(We reserve the right to make technical modifications)
1)
Time
(Min.)
How to use the dishwasher
1. After loading the crockery, close the
dishwasher door properly and open the
water supply tap.
2. Select the desired programme by turning
the selector’s knob clockwise: posit ion 1:
“Pre-wash”; position 2: “Normal”;
position 3: “Eco”. The dishwasher starts
automatically as soon as the On/Off
button has been pressed.
3. Press the On/Off button to switch the
dishwasher on. The indicator lamp
switches on.
To change the selected
programme, press the On/Off
button to turn the dishwasher off
and then turn the selector knob to
the desired programme (if required,
select the Bio-Eco options by
pressing the relevant button). Press
the On/off button to start the newly
selected programme.
if you switch off the dishwasher
Note:
during a wash cycle, when switched on
again, the dishwasher resumes the cycle
from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
4. The wash programme is over when the
selector's knob is back in the Stop
position.
5. Switch the dishwasher off now by
pressing the On/Off button. All the
indicator lamps switch off.
6. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one.
Close the water tap.
Upper rack
Upper and lower rack
Crockery holders:
• Down: cups and long-stemmed
glasses.
• Up: plates.
Lower rack
Cutlery basket (A):
• The cutlery basket can be either
inserted or removed to increase
available space, as required.
• If present, the central compartment
is recommended for storing
teaspoons.
Plate holders (B) (if available):
Please read the user instructions carefully.
Tips and advice
• Arrange crockery so that items do not
touch each other. Arrange large
crockery in the lower rack and smaller
crockery in the upper rack.
• Load cups at an angle to facilitate
water circulation.
• Generally speaking, place cutlery in the
basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispenser and check
the salt and rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher,
for example: wooden items, aluminium,
plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If regeneration salt is to be added
immediately
in order to eliminate any residual salt
(rinsing alone is not sufficient).
• Sometimes, even though the
regeneration salt container has been
filled, the corresponding indicator light
(if fitted) will light up during the first
wash cycle after filling with salt.
start a wash programme
• Before starting a wash programme,
make sure that the spray arms can turn
freely and are not blocked by crockery
or cutlery.
• Switch off the dishwasher after the
selector's knob is back in the start
position. If the dishwasher is turned off
during the washing programme, when
switched on again, the dishwasher
resumes the wash cycle from where it
was interrupted
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Is the water supply tap on?
• Is the flow of water obstructed by
impurities? If so, close the water supply
tap, detach the water hose and clean the
filter. Then re-connect the water hose t o
the tap and open the water tap once
again.
• Are the filters clogged? (See the “Care
and Maintenance” chapter in the user
instructions).
• Is the door closed properly?
Troubleshooting Guide
Crockery still dirty after washing:
• Was the crockery loaded properly?
• Crockery must be loaded facing
downwards; make sure, especially for
large crockery, that water can run away
immediately without being trapped inside
the crockery.
• The water jets must spray the entire
surface of all items.
• Make sure that crockery and cutlery are
arranged properly.
• Have you selected the correct programme?
• Did you use too much or too little detergent?
(The use of poor quality detergents results
in less effective washing).
• Are the filters clogged or incorrectly
assembled? (See “Care and Maintenance”
chapter in the user instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenance”
chapter in the user instructions).
• Is the salt container cap (water softening
system) screwed down?
Marked crockery:
• Is the salt dispenser properly adjusted?
(See “Filling the salt container” in the user
instructions).
• Is the salt container empty?
(See “Filling the salt container”
in the user instructions).
• Was too little detergent used?
(See “Filling the detergent dispenser”
in the user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used?
(See “Filling the rinse aid dispenser”
in the user instructions).
AFTER-SALES
SERVICE
If, after carrying out the above checks
the malfunction persists or appears
again, turn the appliance off and turn
off the water supply tap, then call
our After-Sales Service (see guarantee).
Please specify:
• The nature of the fault.
• The appliance type and model.
• The service code (the number
indicated after the word Service
on the adhesive rating plate) inside
the door on the right-hand side.
• Your full address and telephone number.
Please read the user instructions carefully.
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
Dishwasher Loading Instructions
UPPER RACK Test Institute Information
Load
Load capacity:
(according to International Norms
EN 50242-DIN 44990-IEC 436)
Detergent:
(according to Norm EN 50242)
Test Programme:
LOWER RACK
Upper and Lower Rack (Normal Load)
12 settings (dishes and serving dishes)
Type B: 25 g (Eco 65° C programme)
Eco 65° C
Depending on the model, rack features may vary (see “Upper and lower rack” description).
