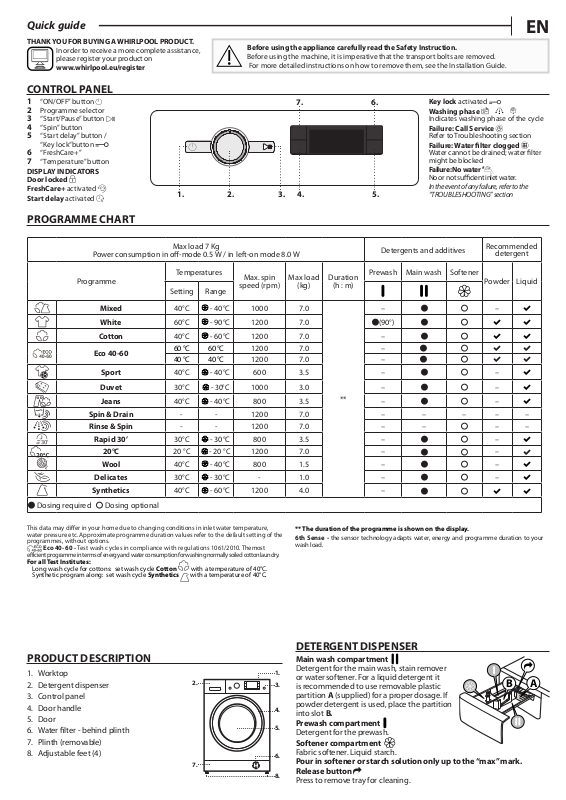

Quick guide |
|
|
|
||
|
|
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register
Before using the appliance carefully read the Safety Instruction.
Before using the machine, it is imperative that the transport bolts are removed. For more detailed instructions on how to remove them, see the Installation Guide.
CONTROL PANEL
1 |
“ON/OFF” button |
|
|
|
7. |
|
6. |
Key lock activated |
|
||
2 |
Programme selector |
|
|
|
|
|
|
Washing phase |
|
|
|
3 |
“Start/Pause” button |
|
|
|
|
|
|
Indicates washing phase of the cycle |
|||
4 |
“Spin” button |
|
|
|
|
|
|
Failure: Call Service |
|
||
5 |
“Start delay” button / |
|
|
|
|
|
|
Refer to Troubleshooting section |
|||
6 |
“Key lock“button |
|
|
|
|
|
|
Failure: Water filter clogged |
|||
“FreshCare+” |
|
|
|
|
|
|
Water cannot be drained; water filter |
||||
7 |
“Temperature” button |
|
|
|
|
|
|
might be blocked |
|
|
|
DISPLAY INDICATORS |
|
|
|
|
|
|
Failure: No water |
|
|
||
Door locked |
|
|
|
|
|
|
No or not sufficient inlet water. |
|
|||
FreshCare+ activated |
1. |
2. |
3. |
4. |
|
5. |
Inthe event ofany failure, refer tothe |
||||
Start delay activated |
|
“TROUBLESHOOTING” section |
|
||||||||
|
|
|
|
|
|
|
|
|
|
||
PROGRAMME CHART |
|
|
|
|
|
|
|
|
|
|
|
|
|
Max load 7 Kg |
|
|
|
Detergents and additives |
Recommended |
||||
|
Power consumption in off-mode 0.5 W / in left-on mode 8.0 W |
|
detergent |
||||||||
|
|
|
|
|
|||||||
|
Programme |
Temperatures |
Max. spin |
Max load |
Duration |
Prewash |
Main wash |
Softener |
Powder |
Liquid |
|
|
|
|
|
|
|
||||||
|
Setting |
Range |
speed (rpm) |
(kg) |
(h : m) |
|
|
|
|||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
||
|
Mixed |
40°C |
- 40°C |
1000 |
7.0 |
|
– |
|
|
– |
|
|
White |
60°C |
- 90°C |
1200 |
7.0 |
|
(90°) |
|
|
|
|
|
Cotton |
40°C |
- 60°C |
1200 |
7.0 |
|
– |
|
|
|
|
|
Eco 40-60 |
60 °C |
60 °C |
1200 |
7.0 |
|
– |
|
|
|
|
|
40 °C |
40 °C |
1200 |
7.0 |
|
– |
|
|
|
|
|
|
|
|
|||||||||
|
Sport |
40°C |
- 40°C |
600 |
3.5 |
|
– |
|
|
– |
|
|
Duvet |
30°C |
- 30°C |
1000 |
3.0 |
|
– |
|
|
– |
|
|
Jeans |
40°C |
- 40°C |
800 |
3.5 |
** |
– |
|
|
– |
|
|
Spin & Drain |
- |
- |
1200 |
7.0 |
|
– |
– |
– |
– |
– |
|
Rinse & Spin |
- |
- |
1200 |
7.0 |
|
– |
– |
|
– |
– |
|
Rapid 30’ |
30°C |
- 30°C |
800 |
3.5 |
|
– |
|
|
– |
|
|
20°C |
20 °C |
- 20 °C |
1200 |
7.0 |
|
– |
|
|
– |
|
|
Wool |
40°C |
- 40°C |
800 |
1.5 |
|
– |
|
|
– |
|
|
Delicates |
30°C |
- 30°C |
- |
1.0 |
|
– |
|
|
– |
|
|
Synthetics |
40°C |
- 60°C |
1200 |
4.0 |
|
– |
|
|
|
|
Dosing required Dosing optional |
|
|
|
|
|
|
|
|
|
|
|
This data may differ in your home due to changing conditions in inlet water temperature, water pressure etc. Approximate programme duration values refer to the default setting of the programmes, without options.
Eco 40-60 - Test wash cycles in compliance with regulations 1061/2010. Themost efficientprogrammeintermsofenergyandwaterconsumptionforwashingnormallysoiledcottonlaundry.
For all Test Institutes: |
|
Long wash cycle for cottons: set wash cycle Cotton |
with a temperature of 40°C. |
Synthetic program along: set wash cycle Synthetics |
with a temperature of 40°C. |
** The duration of the programme is shown on the display.
6th Sense - the sensor technology adapts water, energy and programme duration to your wash load.
PRODUCT DESCRIPTION
1. |
Worktop |
2. |
1. |
2. |
Detergent dispenser |
3. |
|
3. |
Control panel |
|
|
4. |
Door handle |
|
4. |
5. |
Door |
|
5. |
6. |
Water filter - behind plinth |
|
|
7. |
Plinth (removable) |
|
|
8. |
Adjustable feet (4) |
|
6. |
|
|
7. |
|
|
|
|
8. |
DETERGENT DISPENSER
Main wash compartment |
|
Detergent for the main wash, stain remover |
|
or water softener. For a liquid detergent it |
B |
is recommended to use removable plastic |
|
partition A (supplied) for a proper dosage. If |
|
powder detergent is used, place the partition |
|
into slot B. |
|
Prewash compartment |
|
Detergent for the prewash. |
|
Softener compartment
Fabric softener. Liquid starch.
Pour in softener or starch solution only up to the“max”mark.
Release button
Press to remove tray for cleaning.
PROGRAMMES
For choosing the appropriate programme for your kind of laundry, always respect the instructions on the care labels
of the laundry. The value given in the tub symbol is the maximum temperature possible for washing the garment.
Mixed
For washing lightly to normally soiled resilient garments in cotton, linen, synthetic fibres and mixed fibres.
White
For washing normally to heavily soiled towels, underwear, table and bed linen, etc in resilient cotton and linen. Only when the temperature is selected at 90°C the cycle is provided with a prewash phase before main washing phase. In this case it is recommended to add detergent both, in the prewash and main wash section.
Cotton
Normally to heavily soiled and robust cottons .
Eco 40-60
For washing normally soiled cotton garments declared to be washable at 40 °C or 60 °C, together in the same cycle. This is the standard cotton programme and the most efficient in terms of water and energy consumption.
Sport
For washing lightly soiled sports clothing (tracksuits, shorts, etc.). For best results, we recommend not exceeding the maximum load indicated in the‚‘‘PROGRAMME CHART‘‘. We recommend using liquid detergent , and adding the amount suitable for half-load.
Duvet
Designed for washing eiderdown padded items such as double or single duvets, cushions and anoraks. It is recommended to load such padded items in the drum with the edges folded inwards and not to exceed ¾ of the drum’s volume. For optimal washing, we recommend using a liquid detergent.
Jeans
Turn garments inside-out before washing and use a liquid detergent.
Spin & Drain
Spins the load then empties the water. For resilient garments. If you exclude the spin cycle, the machine will drain only
Rinse & Spin
Rinses and then spins. For resilient garments.
Rapid 30’
For washing lightly soiled garments quickly. This cycle lasts only 30 minutes, saving time and energy.
20°C
For washing lightly soiled cotton garments, at a temperature of 20 °C.
Wool
All wool garments can be washed using programme‚“Wool“ even
those carryng the “hand-wash only “ label. For best results, use special detergents and do not exceed max kg declaration of laundry.
Delicates
For washing particularly delicate garments. Preferably turn garments inside out before washing.
Synthetics
For washing soiled garments made from synthetic fibres (such as polyester, polyacrylic, viscose, etc.) or cotton/synthetic blends.
FIRST TIME USE
To remove any manufacturing debris select the “Cotton”
programme at a temperature of 60°C. Pour a small quantity of detergent powder into the main wash
compartment of the detergent dispenser (maximum
1/3 of the quantity the detergent manufacturer recommends for lightly soiled laundry). Start the programme without adding any laundry.
DAILY USE
Prepare your laundry according to the recommendations in the “HINTS AND TIPS”section. Load the laundry, close the door, open the water tap and press the “ON/OFF”
button to switch the wasching machine on, the “Start/Pause” button flashes. Turn the programme selector to the desired programme and select any option if needed. The temperature and spin speed can be changed by pressing the « » button or the «
» button. Pull out the detergent dispenser and add the detergent (and additives/softener) now. Observe the dosing recommendations on the detergent pack. Then close the detergent dispenser and press the “Start/
Pause” |
button. The “Start/Pause” |
button will lights up and the door |
will be locked. |
|
|
PAUSE A RUNNING PROGRAMME
To pause the wash cycle, press the “Start/Pause”
; the indicator light will go off and the remaining time on display flash. To start the wash cycle from the point at which it was interrupted press the button again.
OPEN THE DOOR, IF REQUIRED
After starting a programme, the “Door locked”
indicator lights up to show that the door can not be opened. As long as a wash programme is running, the door remains locked. To open the door while a programme is in progress, press the “Start/Pause”
to pause the programme. Provided the water level and/or temperature is/are not too high, the “Door locked”
indicator light goes off and you can open the door. For example to add or remove laundry. Press the“Start/Pause”
button again to continue the programme.
PROGRAMME END
The “Door locked”
indicator light goes off and the display shows “End”. To switch off the washing machine after programme ends press the “ON/OFF”
button, the lights goes off. If you do not press “ON/OFF”
button, the washing machine will switch off automatically after about a 10 minutes. Close the water tap, open the door and unload the washing machine. Leave the door ajar to allow the drum to dry.
OPTIONS
!If the selected option is incompatible with the programme set, the incompatibility will be signalled by a buzzer (3 beeps) and the corresponding indicator light will flash.
!If the selected option is incompatible with another previously set option, only the most recent selection will remain active.
Start delay
To set the selected programme to start at a later time, press the button to set the desired delay time. Symbol
lights on the display when this fuction is enabled. To cancel the delayed start, press the button again untile the value‚‘‘0‘‘ is shown on the display.
This option enhances washing performance by generating steam to inhibit the proliferation of the main bad odour sources inside the
machine. After steam phase, the washing machine will perform gentle tumbling through slow rotations of the drum.
option starts after the cycle ends for a maximum duration of 6h and you can interrupt it at any time by pressing any button on control panel or turning the knob. Wait around 5 minutes before door can be opened.
Temperature
Every programme has a predefined temperature. If you want to change the temperature, press the «
» button. The value appears on the display.
Spin
Every programme has a predefined spin speed. If you want to change the spin speed, press the «
» button. The value appears on the display.
Demo mode
To deactivate this function, switch the washing machine OFF. Than press and hold “Start/Pause”
button, within 5 seconds press also “ON/OFF”
button and hold both buttons for 2 seconds.
KEY LOCK
To lock the control panel, press and hold the “Key lock”
button for approximately 3 seconds. When the display visualises a key symbol
, the control panel is locked (with the exception of the “ON/OFF”
button). This prevents unintentional changes to programmes, especially with children near the machine. To unlock the control panel, press and hold the “Key lock”
button for approximately 3 seconds again.
BLEACHING
If you wish to bleach the laundry, load the washing machine and set the “Rinse & Spin”
programme.
Start the machine and wait for it to complete the first water filling cycle (roughly 2 minutes). Put the machine in pause mode by pressing the “Start/Pause” button, open the detergent drawer and pour the bleach (observe the recommended doses indicated on the package) into the main wash compartment where the partition was previously mounted.
