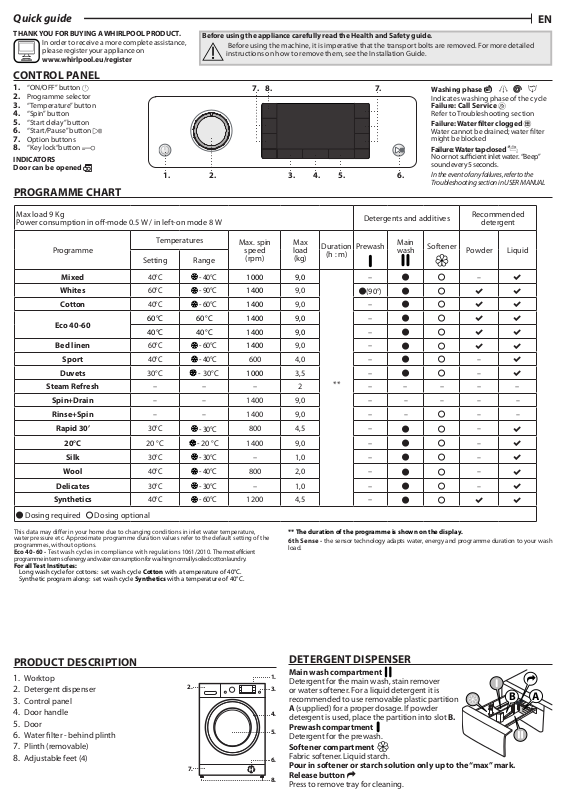

WHIRLPOOL FFD 9448 CV IL Daily Reference Guide

Quick guide

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance,
please register your appliance on

www.whirlpool.eu/register

CONTROL PANEL

1. “ON/OFF” button

2. Programme selector

3. “Temperature” button

4. “Spin” button

5. “Start delay” button

6. “Start/Pause” button

7. Option buttons

8. “Key lock“button

INDICATORS
Door can be opened

PROGRAMME CHART

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more detailed
instructions on how to remove them, see the Installation Guide.

8.7. 7.

2.1. 6.3. 4. 5.

Washing phase

Indicates washing phase of the cycle
Failure: Call Service
Refer to Troubleshooting section

Failure: Water lter clogged
Water cannot be drained; water lter
might be blocked

Failure: Water tap closed
No or not sucient inlet water. “Beep”
sound every 5 seconds.

In the event of any failures, refer to the
Troubleshooting section in USER MANUAL

EN

Max load 9 Kg
Power consumption in o -mode 0.5 W / in left-on mode 8 W

Programme

Mixed

Whites

Cotton

Eco 40-60

Bed linen

Sport

Duvets 30°C

Temperatures

Setting Range

40°C

60°C

40°C

- 40°C

- 90°C

- 60°C

60 °C 60 °C 1400 9,0 –

40 °C 40 °C 1400 9,0 –

60°C

40°C

- 60°C

- 40°C

- 30°C

Max. spin

speed

(rpm)

1000 9,0

1400 9,0

1400 9,0 –

1400 9,0 –

600 4,0 –

1000 3,5 –

Steam Refresh – – – 2 – – – – –

Spin+Drain

Rinse+Spin

Rapid 30’

20°C 20 °C

Silk

Wool

Delicates

Synthetics

– –

– –

30°C

30°C

40°C

30°C

40°C

- 30°C

- 20 °C

- 30°C

- 40°C

- 30°C

- 60°C

1400 9,0 –

1400 9,0 –

800 4,5 –

1400 9,0 –

– 1,0 –

800 2,0 –

– 1,0 –

1200 4,5 –

 Dosing required  Dosing optional

This data may dier in your home due to changing conditions in inlet water temperature,
water pressure etc. Approximate programme duration values refer to the default setting of the
programmes, without options.

Eco 40-60 - Test wash c ycles in compliance with regulations 1061/2010. The most efficient
programm e in terms of energ y and water consumpt ion for washing n ormally soile d cotton laundr y.

For all Test Institutes:

Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40°C.
Synthetic program along: set wash cycle Synthetics with a temperature of 40°C.

Recommended

detergent

Powder Liquid

–



Max
load

(kg)

Duration

(h : m)

Detergents and additives

Prewash

–

Main
wash

 

Softener

(90°)    

   
   
   
   
 
 

–

–




**

– – – –

–

 

 
 

 

 



– –

–

–

–

–

–










   

** The duration of the programme is shown on the display.

6th Sense - the sensor technology adapts water, energy and programme duration to your wash

load.

PRODUCT DESCRIPTION

1. Worktop

2. Detergent dispenser

3. Control panel

4. Door handle

5. Door

6. Water lter - behind plinth

7. Plinth (removable)

8. Adjustable feet (4)

DETERGENT DISPENSER

Main wash compartment

1.

2.

Detergent for the main wash, stain remover

3.

or water softener. For a liquid detergent it is
recommended to use removable plastic partition

A (supplied) for a proper dosage. If powder

4.

detergent is used, place the partition into slot B.
Prewash compartment

5.

Detergent for the prewash.

Softener compartment

Fabric softener. Liquid starch.

6.

7.

Pour in softener or starch solution only up to the “max” mark.
Release button 

8.

Press to remove tray for cleaning.



A

B

PROGRAMMES

For choosing the appropriate programme for your kind of
laundry, always respect the instructions on the care labels of
the laundry. The value given in the tub symbol is the maximum
temperature possible for washing the garment.

Mixed

For washing lightly to normally soiled resilient garments in cotton, linen,
synthetic bres and mixed bres.

Whites

For washing normally to heavily soiled towels, underwear, table and bed
linen, etc in resilient cotton and linen. Only when the temperature is
selected at 90°C the cycle is provided with a prewash phase before main
washing phase. In this case it is recommended to add detergent both, in the
prewash and main wash section.

Cotton

Normally to heavily soiled and robust cottons .

Eco 40-60

For washing normally soiled cotton garments declared to be washable at
40 °C or 60 °C, together in the same cycle. This is the standard cotton
programme and the most ecient in terms of water and energy
consumption.

Bed linen

Use this programme to wash bed linen an towels in one single cycle. It
optimises softner performance and helps you save time and energy. We
recommend to use powder detergent.

Sport

For washing lightly soiled sports clothing (tracksuits, shorts, etc.). For best
results, we recommend not exceeding the maximum load indicated in the
‚‘‘‘PROGRAMME CHART‘‘. We recommend using liquid detergent , and adding
the amount suitable for half-load.

Duvets

Designed for washing eiderdown padded items such as double or single
duvets, cushions and anoraks. It is recommended to load such padded
items in the drum with the edges folded inwards and not to exceed ¾ of
the drum’s volume. For optimal washing, we recommend using a liquid
detergent.

Steam Refresh

This programme refreshes garments by removing bad odours and relaxing
the bres (2 kg, roughly 3 items). Insert dry items only (that are not dirty)
and select programme “Steam Refresh”. Garments will be a little damp
at the end of the cycle and can be worn after a few minutes. The “Steam

Refresh” programme makes ironing easier.
! Not recommended for wool or silk garments.
! Do not add softeners or detergents.

Spin+Drain

Spins the load then empties the water. For resilient garments. If you exclude
the spin cycle, the machine will drain only

Rinse+Spin

Rinses and the spins. For resilient garments.

Rapid 30’

For washing lightly soiled garments quickly. This cycle lasts only 30 minutes,
saving time and energy.

20°C

For washing lightly soiled cotton garments, at a temperature of 20 °C.

Silk

Use this cycle to wash all silk garments. We recommend the use of special
detergent which has been designed to wash delicate clothes.

Wool

All wool garments can be washed using programme ‚“Wool“ even those
carryng the “hand-wash only “ label. For best results, use special detergents
and do not exceed max kg declaration of laundry.

Delicates

For washing particularly delicate garments. Preferably turn garments inside
out before washing.

Synthetics

For washing soiled garments made from synthetic bres (such as polyester,
polyacrylic, viscose, etc.) or cotton/synthetic blends.

FIRST TIME USE

The rst time the machine is switched on, you will be asked to select the
language and the display will automatically show the language selection
menu.
To select the desired language press the “Temperature” button or “Start
delay” button; to conrm the selection press the “Spin” button.
To change the language switch o the washing machine and press
buttons “Key lock” , “Intensive r inse” and “FreshCare+”
simultaneously until an alarm is heard: the language-selection menu will be
displayed again.

To remove any residues from the manufacturing process. Select the
“Cotton” programme at a temperature of 60°C. Add a small amount of
heavy duty detergent to the main wash compartment of the detergent
dispenser (maximum 1/3 of the quantity recommended by the detergent
manufacturer for lightly soiled laundry). Start the programme without

adding any laundry.

DAILY USE

Prepare your laundry according to the recommendations in the “HINTS
AND TIPS” section. Load the laundry, close the door, open the water tap
and press the “ON/OFF” button to switch the washing machine on,
the “Start/Pause” button ashes. Turn the programme selector to the
desired programme and select any option if needed. The temperature
and spin speed shown on the display can be changed by pressing the
“Temperature” button or the “Spin” button. Pull out the detergent
dispenser and add the detergent (and additives/softener) now. Observe the
dosing recommendations on the detergent pack. Then close the detergent
dispenser and press the “Start/Pause” button. The “Start/Pause”
button will lights up and the door will be locked.

PAUSE A RUNNING PROGRAMME

To pause the wash cycle, press the button “Start/Pause” again; the
indicator light will ash. If the symbol is illuminated, the door may be
opened. To start the wash cycle from the point at which it was interrupted,
press the button again.

OPEN THE DOOR, IF REQUIRED

Before starting and after end of a programme, the “Door open” symbol
lights to show the the door can be opened. As long as a wash programme is
running, the door remains locked. To open the door while a programme is
in progress, press the “Start/Pause” button. Provided the water level and/
or temperature is/are not too high, the “door open” indicator lights up
and you can open the door. For example to add/ remove laundry. Press the
“Start/Pause” button again to continue the programme.

PROGRAMME END

The “Door open” indicator lights up, and the display shows “Cycle end”.
To switch o the washing machine after programme end press the “ON/
OFF” button, the lights go o. If you do not press “ON/OFF” button,
the washing machine will switch o automatically after about a 10 minutes.
Close the water tap. Open the door and unload the machine. Leave the
door ajar to allow the drum to dry.

OPTIONS

! If the selected function is incompatible with the set programme, the

incompatibility will be signalled by a buzzer (3 beeps) and the wording

“No Selection” will appear on the display.
! If the selected function is incompatible with another previously set

function, the wording “No Selection” will appear on the display and the
function will not be enabled.

Clean+

Clean+ is an option working on 3 dierent levels (Intensive, Daily and Fast)
that are specially designed to set the right washing action, depending on
your cleaning needs:
Intensive: this option is designed for high levels of dirtiness, removing most
stubborn stains.

Daily: this option is designed to remove everyday stains.
Fast: this option is designed to remove lightly soiled stains.

Intensive rinse

By selecting this option, the eciency of the rinse is increased and optimal
detergent removal is guaranteed. It is particularly useful for sensitive skin.
Press the button once, two or three times to select an additional 1, 2 or 3
rinses after the standard cycle rinse and remove all traces of detergent.
Press the button again to go back to the “Normal rinse” rinse type.

Delay Timer

To set the selected programme to start at a later time , press the button
to set the desired delay time. “Waiting” or “Starts in” is indicated on the
display when this option is enabled. To cancel the delayed start, press the
button again until the value ‚‘‘--:--‘‘ is shown on the display.

This option enhances washing performance by generating steam to inhibit
the proliferation of the main bad odour sources inside the machine. After
steam phase, the washing machine will perform gentle tumbling through
slow rotations of the drum. option starts after the cycle ends for a
maximum duration of 6h and you can interrupt at any time by pressing any
button on control panel or turning the knob.
(*) Wait around 5’ before open the door.

Steam Hygiene

This option enhances washing performance by generating steam during
the wash cycle that eliminates any bacteria from bres while treating them
at the same time. Place the laundry in the drum, choose a compatible
programme and select option “ “.
