Page 1

Self-Cleaning

Gas Range

A Note to You ............2

Range Safety ............3

Parts and Features....5

Using Your Range......6

Using the Self-

Cleaning Cycle ........25

Caring for Your

Range ......................29

Troubleshooting ......35

Requesting Assistance or

Service ....................37

Index ........................39

Warranty ..................40

1-800-253-1301

Call our Consumer Assistance Center

with questions or comments.

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE.

4.65 Cubic Foot Oven

MODEL SF195LEH

8273161

with ACCUBAKE® System

Page 2

A NOTE TO YOU

Thank you for buying a WHIRLPOOL®appliance.

The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly. Please read it carefully.

Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number label/plate (see diagram in the “Parts and Features” section).

Please also record the purchase date of your appliance

and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference. It is important for you to save your sales receipt showing the date of purchase. Proof of purchase will assure you of in-warranty service.

Our Consumer Assistance Center number is toll free.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS

•

Do not try to light any appliance.

•

Do not touch any electrical switch.

•

Do not use any phone in your building.

•

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

•

If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer, service

agency or the gas supplier.

1-800-253-1301

Model Number Serial Number Purchase Date Dealer Name Dealer Address Dealer Phone

To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to

purchase an accessory item, or register your appliance on-line, please visit our Web site at

www.whirlpool.com

Page 3

RANGE SAFETY

continued on next page

You will be killed or seriously injured if you don’t follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the word “DANGER” or

“WARNING.” These words mean:

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

wWARNING

Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or serious burns

to children and adults.

Making sure the anti-tip bracket is installed:

•

Slide range forward.

•

Look for the anti-tip bracket securely attached to floor.

•

Slide range back so rear range foot is under anti-tip bracket.

Anti-Tip Bracket

Range Foot

THE ANTI-TIP BRACKET

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly.

Page 4

RANGE SAFETY

– SAVE THESE INSTRUCTIONS –

WARNING: To reduce the risk of fire, electrical

shock, injury to persons, or damage when using the range, follow basic precautions, including the following:

• WARNING –TO REDUCE THE RISK OF

TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.

• CAUTION – Do not store items of interest to

children in cabinets above a range or on the backguard of a range –children climbing on the range to reach items could be seriously injured.

• Proper Installation – The range, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70.

Be sure the range is properly installed and grounded by a qualified technician.

• This range is equipped with a three-prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded receptacle. Do not cut or remove the grounding prong from this plug.

IMPORTANT SAFETY INSTRUCTIONS

• Disconnect the electrical supply before servicing the appliance.

• Never Use the Range for Warming or Heating the Room.

• Injuries may result from the misuse of appliance doors or drawers such as stepping, leaning, or sitting on the doors or drawers.

• Maintenance – Keep range area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

• Storage in or on the Range – Flammable materials should not be stored in an oven or near surface units.

• Top burner flame size should be adjusted so it does not extend beyond the edge of the cooking utensil.

For self-cleaning ranges –

• Before Self-Cleaning the Oven – Remove broiler pan and other utensils. Wipe off all excessive spillage before initiating the cleaning cycle.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn if potential exposure to such substances.

WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.

This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, carbon monoxide, toluene, and soot.

Page 5

Oven vent

(p. 24)

Surface burners and grates

(pp. 6, 31-32)

Anti-tip bracket

(p. 3)

Door stop clip

(p. 32-34)

Model and serial number plate

(behind left side of storage drawer)

Storage drawer

(p. 24)

Other features not shown: Griddle

(p. 7)

PARTS AND FEATURES

Electronic oven

control

(p. 11-23)

Control panel

(pp. 5, 29)

Automatic oven

light switch

(p. 34)

Left front control knob (POWER™Burner)

Right front control knob

Right rear control knob

Left rear control knob

Surface burner marker

(shows which burner you are setting)

CONTROL PANEL

Page 6

RECOMMENDED USE

•

To light the burner.

•

To provide highest heat setting.

•

To start food cooking.

•

To bring liquid to a boil.

•

To hold a boil.

•

To fry chicken or pancakes.

•

To cook gravy, pudding, and icing.

•

To cook large amounts of vegetables.

•

To keep food warm.

•

To melt chocolate or butter.

•

To simmer.

USING YOUR RANGE

USING THE SURFACE BURNERS

NOTE: Do not leave empty cookware, or cookware which has boiled dry, on a hot surface burner. The cookware could overheat, causing damage to the cookware or cooking product.

Using POWER Burner

POWER Burner is an adjustable setting for the left front burner which provides an ultra-high heat setting. It can be used to rapidly bring liquid to a boil and to cook large quantities of food.

Easy ways to save energy

•

When heating large quantities of liquid for foods such as pasta or soup, cover with a lid to help shorten cooking time.

•

Preheat your pots and pans only when recommended and for the shortest time possible.

•

Start your food on a higher heat setting, then turn the control to a lower setting to finish cooking.

wWARNING

Fire Hazard

Do not let the burner flame extend beyond the edge of the pan.

Turn off all controls when not cooking. Failure to follow these instructions can

result in death or fire.

SETTING LIGHT

POWER™Burner

(left front burner)

HIGH

Mid-range

(between HIGH and LOW)

LOW

Burner heat settings

Use the following chart as a guide.

Using the control knobs

Your range comes with electric ignition. Electric ignitors automatically light the burners each time you turn the control knobs to LIGHT.

•

Place a filled pan on the burner grate before turning on the surface burner. Do not operate a burner for extended periods of time without having cookware on the grate.

•

Push in the control knob and turn it counter-

clockwise to the

LIGHT position. The clicking sound is the ignitor sparking. Make sure the burner has lit.

•

To stop the clicking sound after the burner lights, turn the control knob to the cook setting you want. You can set the control knob

anywhere between HIGH and LOW.

NOTE: All four electric ignitors will click at the same time. However, the burner with the control knob turned to LIGHT is the one that will ignite.

REMEMBER: When range is in use or during the Self-Cleaning cycle, the entire cooktop area may become hot.

Page 7

USING YOUR RANGE

USING THE SURFACE BURNERS (CONT.)

In case of a prolonged power failure

You can manually light surface burners. Hold a lit match near a burner and turn the control knob to the LIGHT position. After the burner lights, turn the control knob to the setting you want.

Home canning information

The large diameter of most water-bath or pressure canners combined with high heat settings for long periods of time can cause damage to the cooktop.

To protect your range:

•

For best results, use a canner which can be centered over the surface burner.

•

Do not place your canner on 2 surface burners at the same time.

•

Start with hot water. This reduces the time the control is set on high. Reduce the heat setting to the lowest position needed to maintain a boil or required pressure levels in a pressure canner.

•

Refer to your canner manual for specific instructions.

For up-to-date information on canning, contact your local U.S. Government Agricultural Department Extension Office or companies who manufacture home canning products.

Using the right cookware makes a big difference

•

The pan should have a flat bottom, straight sides, and a well-fitting lid.

•

Choose medium to heavy gauge (thickness) cookware.

•

The pan material (metal or glass) affects how quickly and evenly the pan heats.

•

When using glass or ceramic cookware, check to make sure it is suitable for use on surface burners.

•

To avoid tipping, make sure pots and pans are centered on the grates.

USING THE GRIDDLE (ACCESSORY ITEM PART

439

IMPORTANT: Always use oven mitts when handling a hot griddle.

•

Before using a griddle for the first time, wash it in hot, soapy water, rinse and dry.

•

On gas cooktops, burner grates must be used to properly position griddle above burner flames.

•

Never use high heat. Excessive heat will cause discoloration, will shorten the life of the non-stick surface and may cause damage to the cooktop.

•

Preheat griddle on medium setting, then adjust for cooking. Use only medium to low settings.

•

Never cut food with a metal utensil or knife while on the griddle surface. It may damage the non-stick finish. Use only plastic, rubber, or wooden utensils.

•

Always turn off the burners before draining the griddle. Drain griddle away from range. Be sure to wipe any fats and oils from the sides and bottom before returning griddle to the range.

•

Avoid sudden temperature changes such as running water on a hot griddle. This may cause warping.

Cleaning the griddle

•

Clean the griddle only after it has cooled.

•

After each use, thoroughly wash griddle in hot, soapy water, rinse and dry. Use non-abrasive plastic scrubber to remove food build up.

•

Never put the griddle in the dishwasher. Dishwashing detergents will corrode the aluminum.

Page 8

CHARACTERISTICS OF COOKWARE MATERIALS

USING YOUR RANGE

The pan material affects how fast heat transfers from the surface cooking area through the pa n material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

Aluminum

Cast iron

Ceramic or ceramic glass

Copper

Earthenware

Porcelain enamel-on-steel or enamel-on-cast iron

Stainless steel

• Heats quickly and evenly.

• Use for all types of cooking.

• Medium or heavy thickness is best for most cooking.

• Used as a core or base in cookware to provide even heating.

• Heats slowly and evenly.

• Good for browning and frying.

• Maintains heat for slow cooking.

• Can be coated with porcelain enamel.

• Heats s low ly a nd uneve nly.

• Use on low to medium settings.

• Follow manufacturer’s instructions.

• Heats very quickly and evenly.

• Used as a core or base in cookware to provide even heating.

• Can be used for cooktop cooking if recommended by the manufacturer.

• Use on low settings.

• See cast iron and stainless steel.

• Heats quic k ly but uneve nly.

•

A core or base of aluminum or copper on the cookware provides

even heating.

• Can be coated with porcelain enamel.

Page 9

USING YOUR RANGE

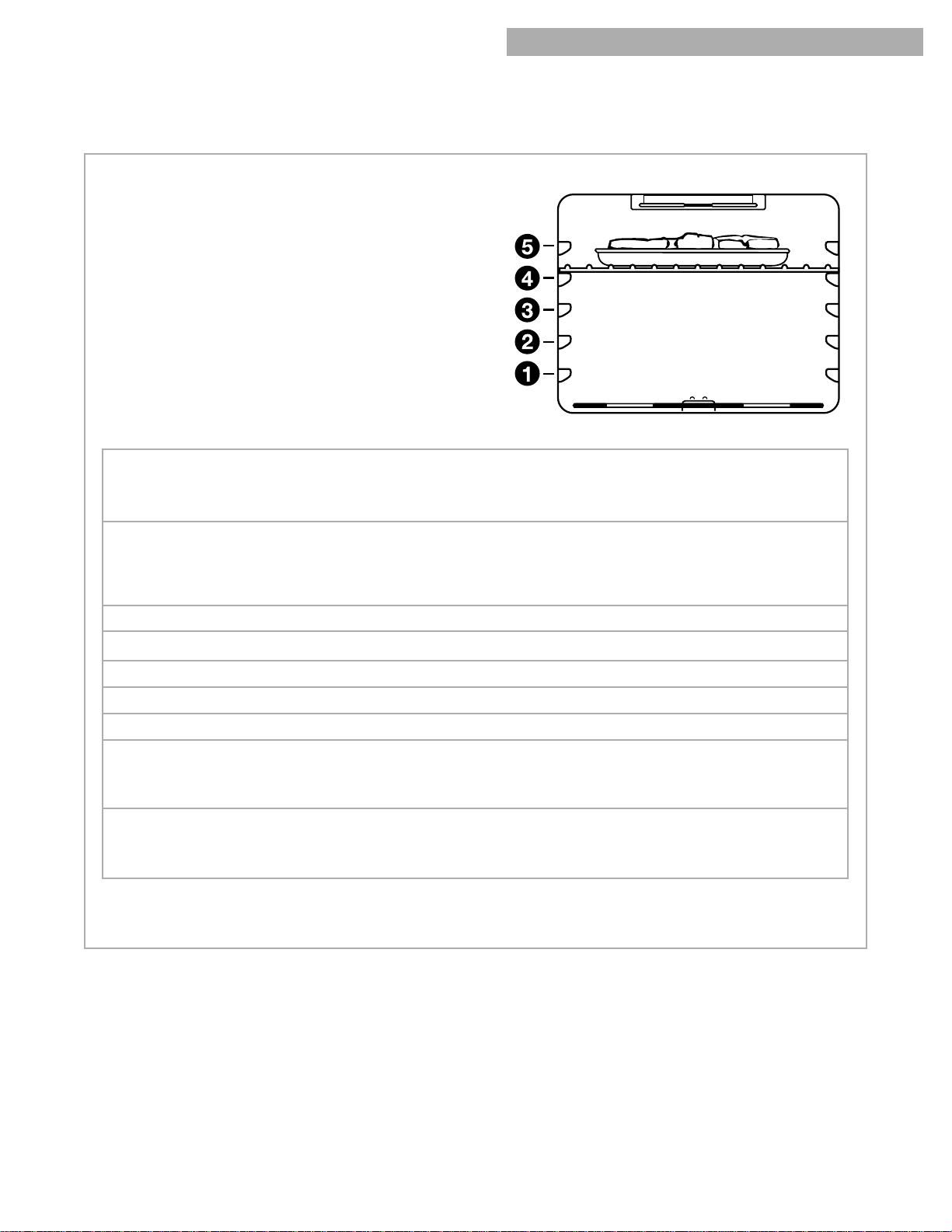

Positioning racks and pans

Place the oven racks where you need them before turning on the oven.

•

To move a rack, pull it out to the stop position, raise the front edge and lift it out.

•

Be sure the rack(s) is level.

•

Use pot holders or oven mitts to protect your hands if rack(s) must be moved while the oven is hot.

•

For best performance, cook on one rack. Place the rack so the top of the food will be centered in the oven.

•

For best results, allow 2 inches of space around each pan and between pans and oven walls.

Extra oven rack position (roasting rack)

Use this rack position when roasting food too large

to be placed on the first rack position.

For proper roasting, follow these guidelines:

•

To avoid spillage, remove food before pulling out the rack.

•

Tilt the rack up at the front before pulling it over the door.

• Use an adequate amount of liquid in the pan (meat

juices or water) so your food does not get overdone.

Extra oven rack position

USING THE OVEN

Where to place pans:

WHEN YOU HAVE

1 pan 2 pans

3 or 4 pans

PLACE

In center of the oven rack. Side by side or slightly

staggered. In opposite corners on

each oven rack. Stagger pans so no pan is directly over another.

Rack placement for specific foods:

FOOD

Frozen pies, large roasts, turkeys, angel food cakes

Bundt cakes, most quick breads, yeast breads, casseroles, meats

Cookies, biscuits, muffins, cakes, nonfrozen pies

RACK POSITION

1st or 2nd rack guide from bottom

2nd rack guide from bottom

2nd or 3rd rack guide from bottom

NOTE: For information on where to place your rack when broiling, see “Broiling guidelines” later in this section.

Page 10

USING YOUR RANGE

USING ALUMINUM FOIL

•

Do not line the oven bottom with any type of foil, liners, or cookware. Permanent damage will occur to the oven bottom finish.

•

Do not block the oven bottom vents.

•

Do not cover the entire rack with aluminum foil.

Doing so will reduce air circulation and overall oven performance.

•

To catch spillovers

from pies or casseroles place foil on the oven rack below. Foil should be turned up at edges and be at least 1 inch larger than dish.

•

Place tent-shaped foil loosely over meat or poultry to slow down surface browning for long term roasting. Remove foil for the last 30 minutes.

•

Use narrow strips of foil to shield piecrust edges if browning too quickly.

BAKEWARE CHOICES

Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.

BAKEWARE TYPE

Light color ed aluminum

Dark aluminum and other bakeware with dark, dull, and/or non-stick finish

BEST USED FOR

• Light golden crusts

• Even browning

• Brown, crisp crusts

GUIDELINES

• Use temperature and time recommended in recipe.

• May reduce baking temperature 25°F.

• Use suggested b aking time.

• Use temperature and time recommended in recipe for pies, breads, and casseroles.

• Place rack in center of oven.

Ovenproof glassware, ceramic glass, or ceramic

Insulated cookie sheets or baking pans

Stainless steel • May need to increase baking time.

• Brown, crisp crusts

• Little or no bottom browning • Place in the bottom third of oven.

• Light, golde n crusts

• Uneven browning

• Crisp crustsStoneware

• May reduce baking temperature 25°F.

• May need to increase baking time.

• Follow manufacturer's instructions.

Page 11

USING YOUR RANGE

THE ELECTRONIC OVEN CONTROL

Clock pad

(p. 12)

Off/cancel pad

(pp. 13, 15, 17, 21, 23,

28)

Start/enter pad

(pp. 11, 12, 13, 15, 16, 17, 18, 21, 23, 26, 27)

Minute pads

(pp. 12, 21, 22, 23, 26,

27)

Hour pads

(pp. 12, 21, 22, 23, 26,

27)

Temperature pad

(pp. 14, 16, 18, 20, 22)

Oven selector pads

(pp. 14, 16, 17, 18, 20, 22, 26, 27)

Electronic MEALTIMER™ control pads

(pp. 11, 14, 20, 22, 27)

Manual oven light pad

(p. 34)

Electronic display

Display/clock

•

When you first plug in the range, everything on the display will light up for 1 to 2 seconds, then a time of day and “PF” will appear on the temperature display. Press OFF/CANCEL to clear “PF” from the display. If, after you set the clock (see “Setting the clock” later in this section), “PF” again appears on the display, your electricity was off for a while. Reset the clock, if needed.

•

When you are not using the oven, the control is an accurate clock.

•

When you are using the oven or minute timer, the display will show times, temperature settings, and what command pads have been pressed.

•

When showing the time of day, the display will show the hour and minutes.

•

When you are using the minute timer, the display will show minutes and seconds in the following sequence:

– For settings from 1-59 minutes, the display will

count down each second.

– For settings one hour or over, the display will

count down each minute.

•

When you are using COOK TIME and/or STOP

TIME, the display will show hours and minutes or minutes and seconds.

Minute timer set and off pads (pp. 12, 13)

Using the control lock

The control lock lets you shut down the control panel command pads. The control lock comes in handy when you want to prevent others from using the oven.

NOTES:

•

You can only use the control lock when the oven is not in use or the control has not been set.

•

Set the control lock when cleaning the control panel to prevent yourself from accidentally turning on the oven.

•

The control lock will stay on even after a power failure.

To lock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear a single tone and “Loc” and

will appear on the temperature display. When the control is locked, “START?” will appear on the display and 3 tones will sound if you press any command

pad other than clock or timer set.

To unlock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear 3 tones followed by a single tone. “Loc” and will disappear from the temperature display.

START

ENTER

5 SEC

USING YOUR RANGE

HEAT

BAKE

DELAY

BROIL

DTIME START?

AUTO

CUSTOM

BAKE

BROIL

CLEAN

TEMP

COOK

TIME

STOP

TIME

COOK

TIME

LOCKED

COOK

DELAY START

TIME

RTIME

STOP CLEAN TIME

START

ENTER

5 SEC

TIMER

STOP

TIME

SET

HR MIN

TIMER

OFF

SELF-CLEANING OVENSELF-CLEANING OVEN

CLOCK LIGHT

OFF

START

ENTER

CANCEL

5 SEC

Page 12

1. Press CLOCK.

2. Set the time.

Press the “up” (s) or “down” (t) pad(s) until the correct time shows on the display.

3. Start the clock.

NOTE: If you do not want the clock time

displayed, press and hold CLOCK for 5 seconds. To display the clock time again, press and hold CLOCK for 5 seconds. You should not have to reset the time.

USING YOUR RANGE

ETTING THE CLOCK

PRESS YOU SEE

TIME

CLOCK

PRESS YOU SEE

(example for 5:30)

TIME

HR MIN

PRESS YOU SEE

START

ENTER

5 SEC

CLOCK

USING THE ELECTRONIC MINUTE TIMER

The minute timer does not start or stop the oven. It works like a kitchen timer. It can be set in hours and minutes up to 12 hours, 59 minutes. The minute timer will display minutes and seconds for settings under 1 hour. You will hear four 1-second tones when the set time is up.

1. Press TIMER SET.

2. Set the time.

Press the “up” (s) or “down” (t) pad(s) until the correct time shows on the display.

PRESS YOU SEE

RTIME

TIMER

SET

PRESS YOU SEE

RTIME

HR MIN

(example for 10 minutes)

Page 13

OFF/CANCEL will cancel any function except the

clock, timer, or control lock. When you press OFF/CANCEL, the display will show the time of day or, if the minute timer is also being used, the time remaining.

USING YOUR RANGE

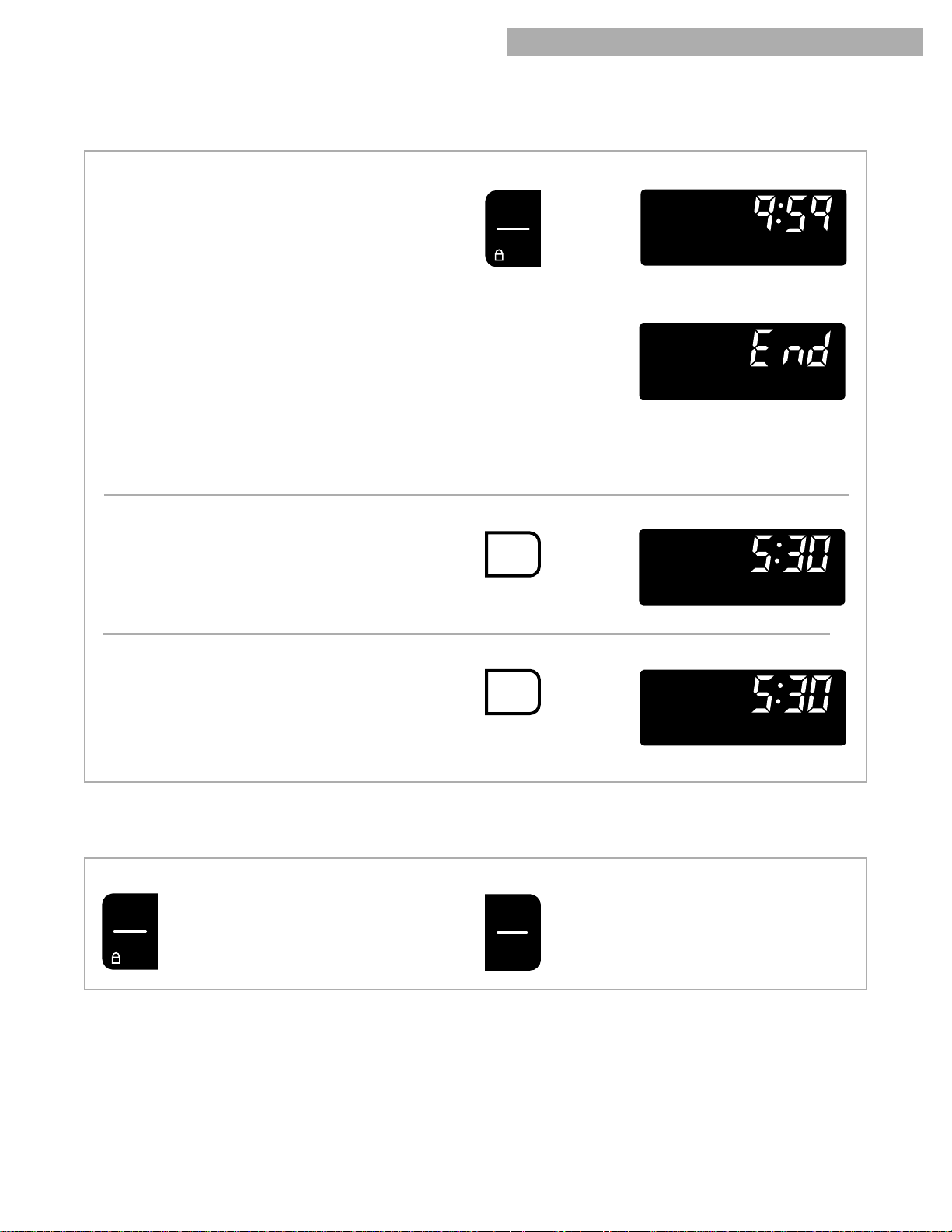

3. Start the minute timer.

The minute timer will begin counting down immediately after the timer is started.

When the time is up: You will hear four 1-second tones, then four

1-second reminder tones every minute until you press the timer off pad.

NOTE: To remove the reminder tones, press and hold TIMER SET for 5 seconds. To bring back the tones, follow the same step. You will see “OFF” when the tones are turned off and “on” when they are turned on.

4. Turn off the minute timer.

To cancel the minute timer:

Press TIMER OFF.

USING THE ELECTRONIC MINUTE TIMER (CONT.)

PRESS YOU SEE

RTIME

(display counts down)

START

ENTER

5 SEC

YOU SEE

RTIME

PRESS YOU SEE

TIMER

OFF

(time of day)

PRESS YOU SEE

TIMER

OFF

(time of day)

After setting a function, you must press START/

ENTER to start the function. If you do not press START/ENTER within 5 seconds of setting, “START?” will show on the display as a reminder.

STARTING/CANCELING A FUNCTION

START

ENTER

5 SEC

OFF

CANCEL

Page 14

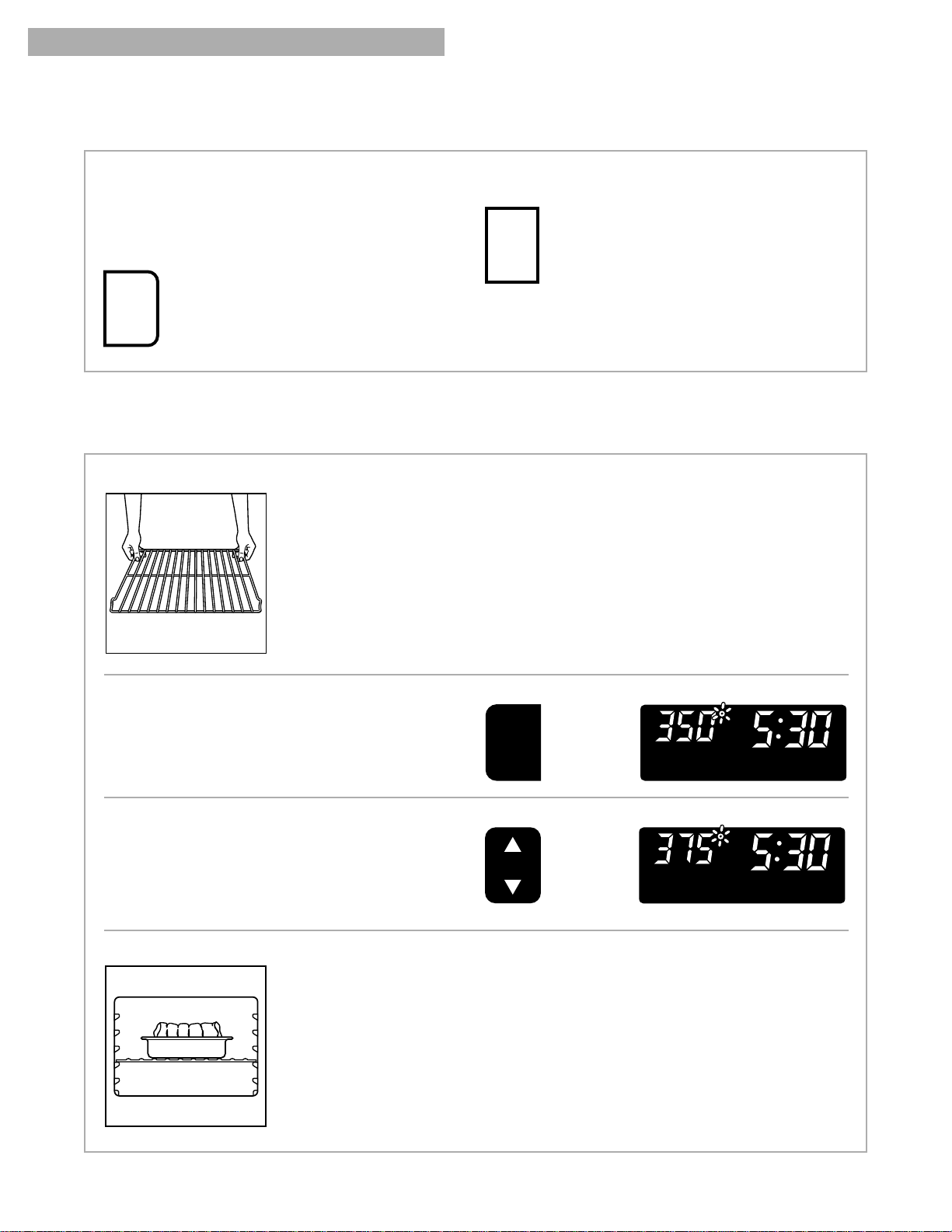

TONES

Tones tell you if a function is entered correctly or not. They also tell you when a cycle is completed.

To shut off all tones except the end-of-timer and error tones:

Press and hold STOP TIME for 5 seconds. A short

tone will sound to tell you the tones have been changed. Repeat to turn the tones back on. You will see “off” for 3 seconds when the tones are turned off and “on” for 3 seconds when they are turned on.

To choose between high and low volume tones:

Press and hold DELAY START TIME for 5 seconds.

A short tone will sound to tell you the tones have been changed. Either “HI” or “LO” will appear on the time display for 3 seconds to show the volume you chose.

USING YOUR RANGE

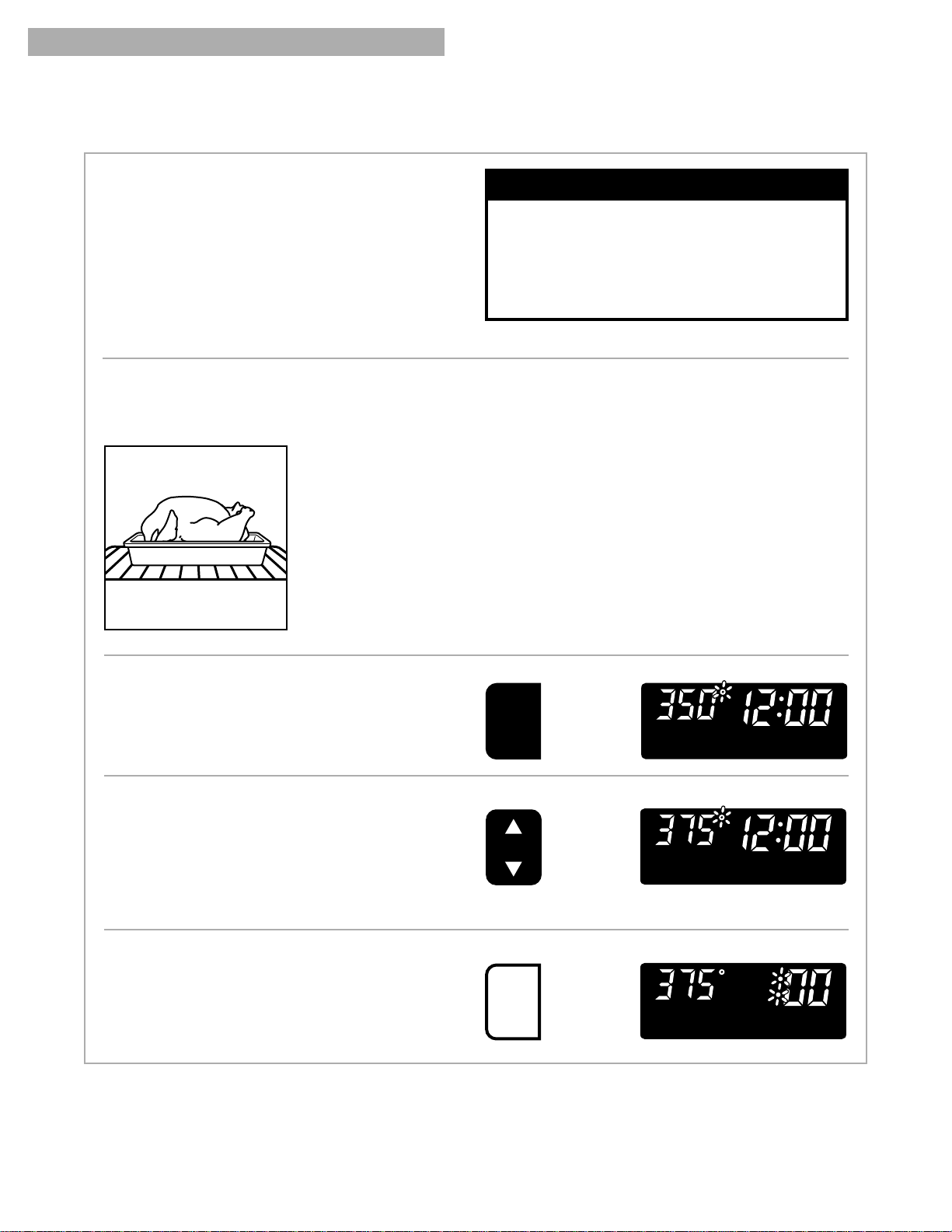

1. Place the racks where you need them. For more

information, see “Positioning racks and pans” in “Using the Oven” earlier in this section.

BAKING/ROASTING

PRESS YOU SEE

BAKE

PRESS YOU SEE

BAKE

(example for bake at 375°F)

TEMP

2. Choose the bake setting.

3. Set the temperature (optional).

Do this step if you want to set a temperature other than 350°F. Press ▲ to raise the temperature or ▼ to lower the temperature in 5°F amounts. Use these pads until the desired temperature shows on the small display.

4. When roasting, put your food in the oven. You

do not have to preheat the oven when roasting, unless your recipe recommends it. NOTE: The oven will cook normally even though the preheat conditioning timer is displayed.

Roasting meats and poultry

•

For even cooking, place the meat on a rack in a shallow pan. This keeps the meat out of the drippings and allows the heat to circulate better.

•

Use a meat thermometer for the most accurate doneness. Insert it so the tip is in the center of the largest muscle or thickest portion of the meat or poultry. Make sure the thermometer is not touching bone, fat, or the bottom of the pan.

IMPORTANT: Do not try to light the oven burner during a power failure. Never place food or cookware directly on the oven door or the oven bottom. When using the oven for the first time, it is necessary to light the surface burners first, to purge air from the gas lines.

STOP

TIME

Front

DELAY

START

TIME

Rear

Page 15

USING YOUR RANGE

BAKING/ROASTING (CONT.)

START

ENTER

5 SEC

PRESS YOU SEE

BAKE

BROIL

HEAT

BAKE

BROIL

HEAT

YOU SEE

(example for set temperature of 350°F)

6. When baking, put your food in the oven after

the preheat conditioning time ends. During baking/roasting, the oven burner will turn on and off to keep the oven temperature at the setting.

7. After cooking, turn off the oven.

PRESS YOU SEE

(time of day)

OFF

CANCEL

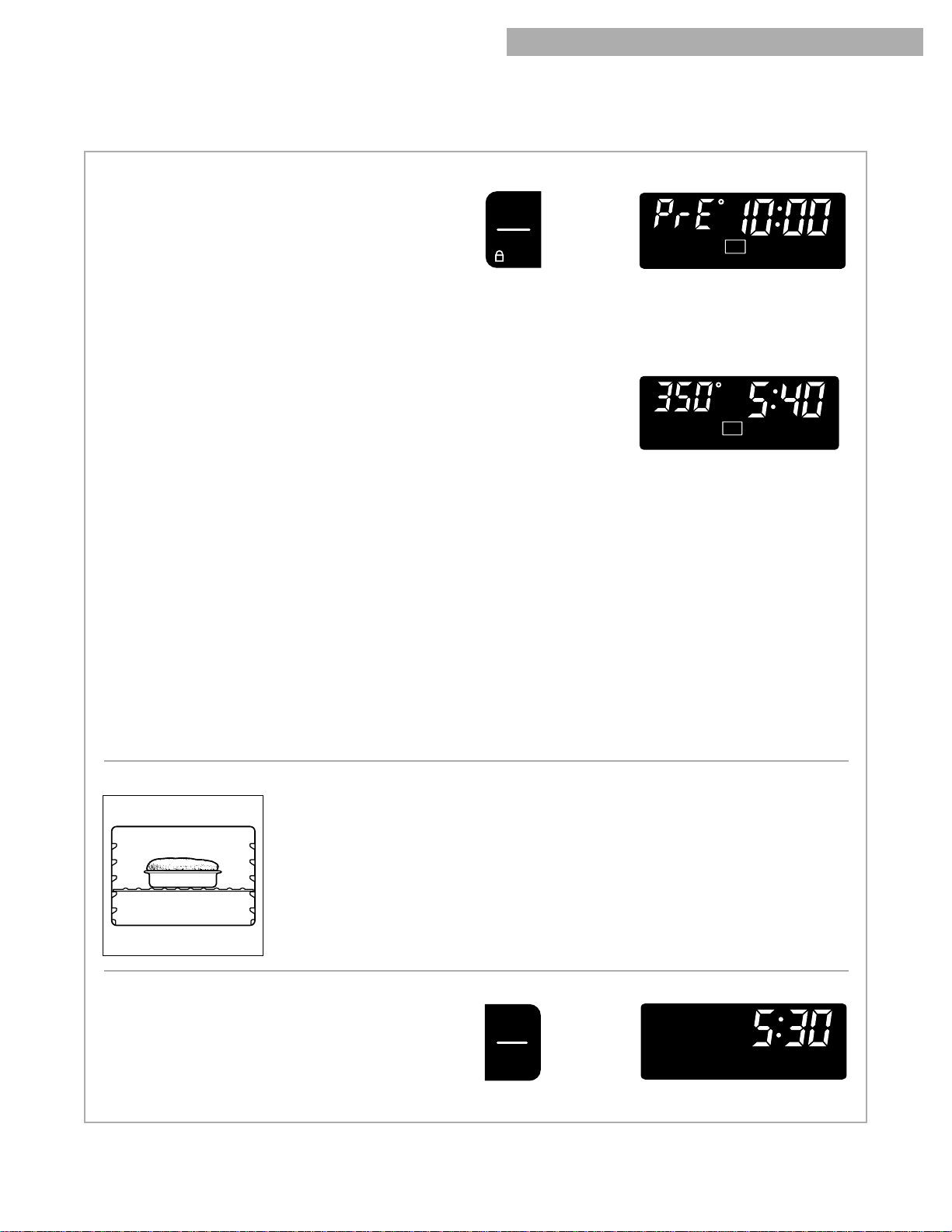

5. Press START/ENTER.

A preheat conditioning time counts down the approximate preheat time after the oven temperature has been set and the START pad has been pressed. The oven control automatically sets preheating times based on the oven temperature you select:

•

For 245°F and less, the preheating time is 4 minutes.

•

For 250°F-445°F, the preheating time is 10 minutes.

•

For above 450°F, the preheating time is 15 minutes.

As the preheat conditioning ends, the selected oven temperature replaces “PrE” on the display and the time of day reappears. You will hear a 1-second tone, indicating the oven is ready to use.

The ACCUBAKE®system electronically regulates the preheat time and temperature to maintain a precise temperature range for the best cooking results. The preheat and set temperatures may be different at the end of the countdown. This is normal.

NOTES:

•

When the oven temperature is greater than 170°F, no preheating time will be shown on the display.

•

You can change the temperature setting any time after pressing START/ENTER. You do not have to press START/ENTER again.

•

The preheating time will not change if you reset t

he temperature before the countdown time ends.

•

If you are baking/roasting while the minute timer is counting down, you can see the set baking/roasting temperature for 5 seconds by pressing BAKE.

Saving energy

•

To avoid loss of heat, open the oven door as little

as possible.

•

Use a timer to keep track of cooking time.

•

Plan your meals for the most efficient use of the

oven by cooking more than one food at a time, or baking while the oven is still hot after cooking a meal.

Page 16

Although your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven.

If you are not satisfied with the baking/roasting results, you can change the offset temperature by following the steps below.

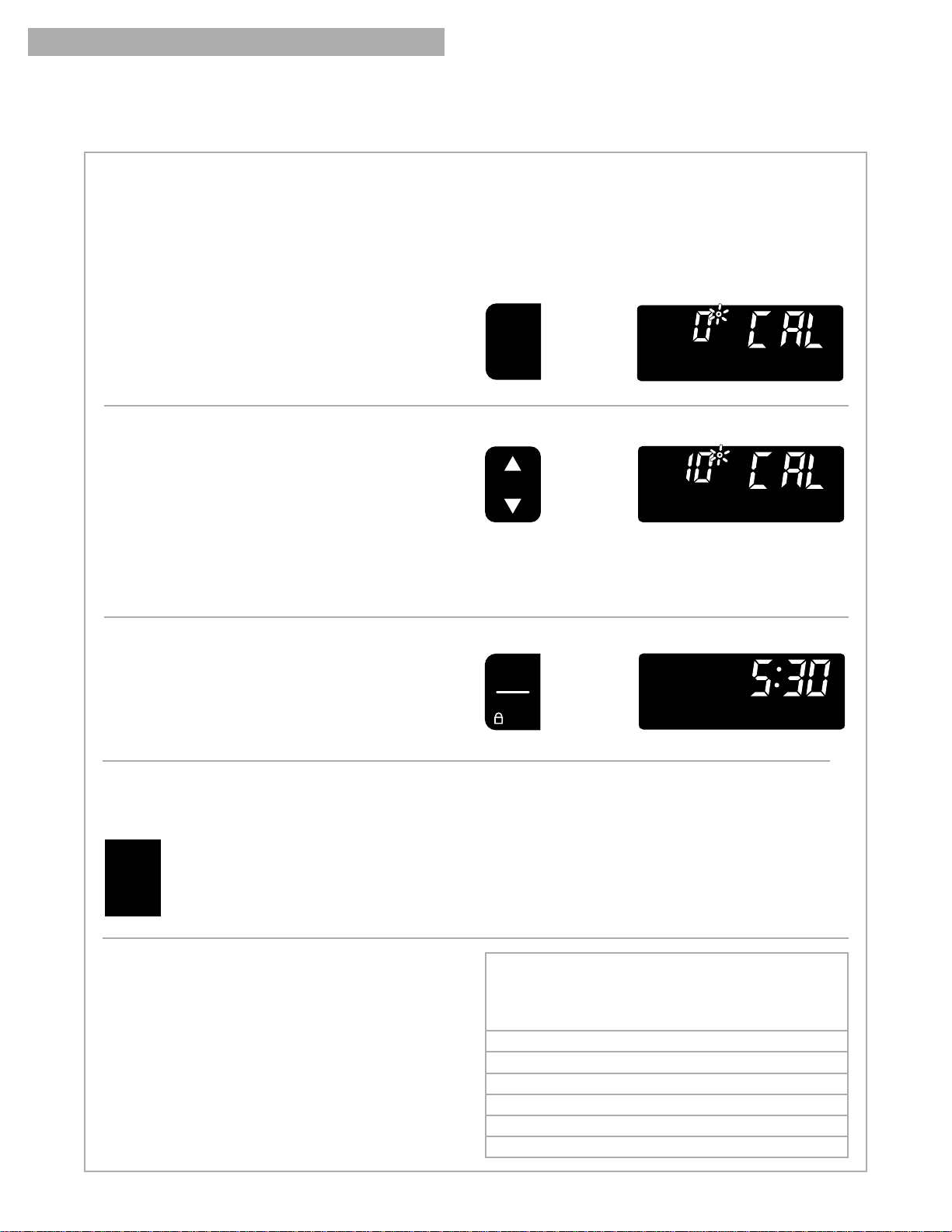

1. Press and hold BAKE for 5 seconds.

The display will show the current offset temperature, for example “0,” if you have not already adjusted the temperature.

2. Set the new offset temperature.

Press s to raise the temperature or t to lower the temperature in 10°F amounts. You can set the temperature change to as low as -30°F or as high as +30°F. A minus (-) sign will appear before the number when decreasing the temperature setting. The minus sign shows the oven will be cooler by the displayed amount. There is no sign in front of the number when increasing the temperature setting.

3. Enter the adjustment.

NOTE: You must press START/ENTER or your

changes will not be made.

To display temperatures in °C instead of °F:

Press and hold the CUSTOM BROIL pad for 5 seconds. You will hear a short tone and the temperatures

displayed will switch to °C. To switch back to °F, repeat the instructions above. Whenever you switch, “°C” or “°F” will be displayed for 5 seconds.

How to determine the amount of adjustment needed

The chart at the right tells you how much to adjust the offset temperature to get the cooking results you want. You can figure out cooking results by the amount of browning, moistness, and rising times for baked foods.

NOTE: DO NOT measure the oven temperature with a thermometer. Opening the oven door will lower the oven temperature and give you an incorrect reading. Also, the thermometer temperature reading will change as your oven cycles.

PRESS YOU SEE

(factory setting of “0”)

BAKE

PRESS YOU SEE

START

ENTER

5 SEC

(time of day)

PRESS YOU SEE

(example when making oven 10°F warmer)

TEMP

ADJUST BY THIS NUMBER OF DEGREES (FAHRENHEIT)

+10 +20 +30

-10

-20

-30

TO COOK FOOD ...

A little more Moderately more Much more A little less Moderately less Much less

ADJUSTING THE OVEN TEMPERATURE CONTROL

USING YOUR RANGE

CUSTOM

BROIL

Page 17

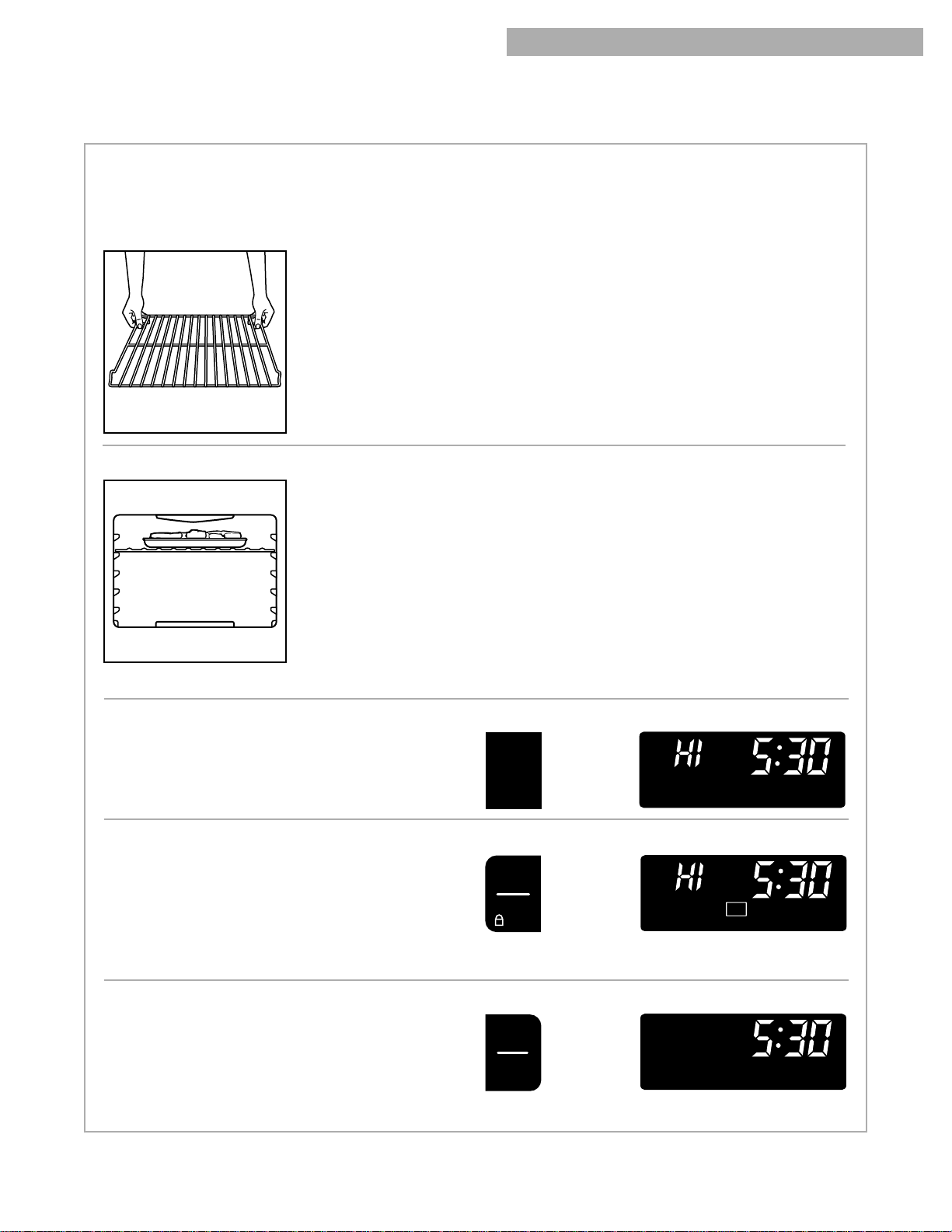

USING YOUR RANGE

BROILING

USING YOUR RANGE

NOTE:

•

Do not preheat when broiling unless your recipe

recommends it.

1. Place the rack where you need it in the oven.

See “Broiling guidelines” later in this section.

3. Close the door.

2. Put your food on the broiler pan and place the

pan in the center of the oven rack.

4. Press CUSTOM BROIL.

5. Start the oven.

You the can change the temperature setting any time before or after pressing START/ENTER. To change the setting, see “To custom broil at a lower temperature” later in this section. After changing the setting, you do not have to press START/ENTER again.

6. After broiling, turn off the oven.

PRESS YOU SEE

CUSTOM

BROIL

PRESS YOU SEE

START

ENTER

5 SEC

BROIL

HEAT

PRESS YOU SEE

OFF

CANCEL

(time of day)

continued on next page

Front

Rear

BROIL

Page 18

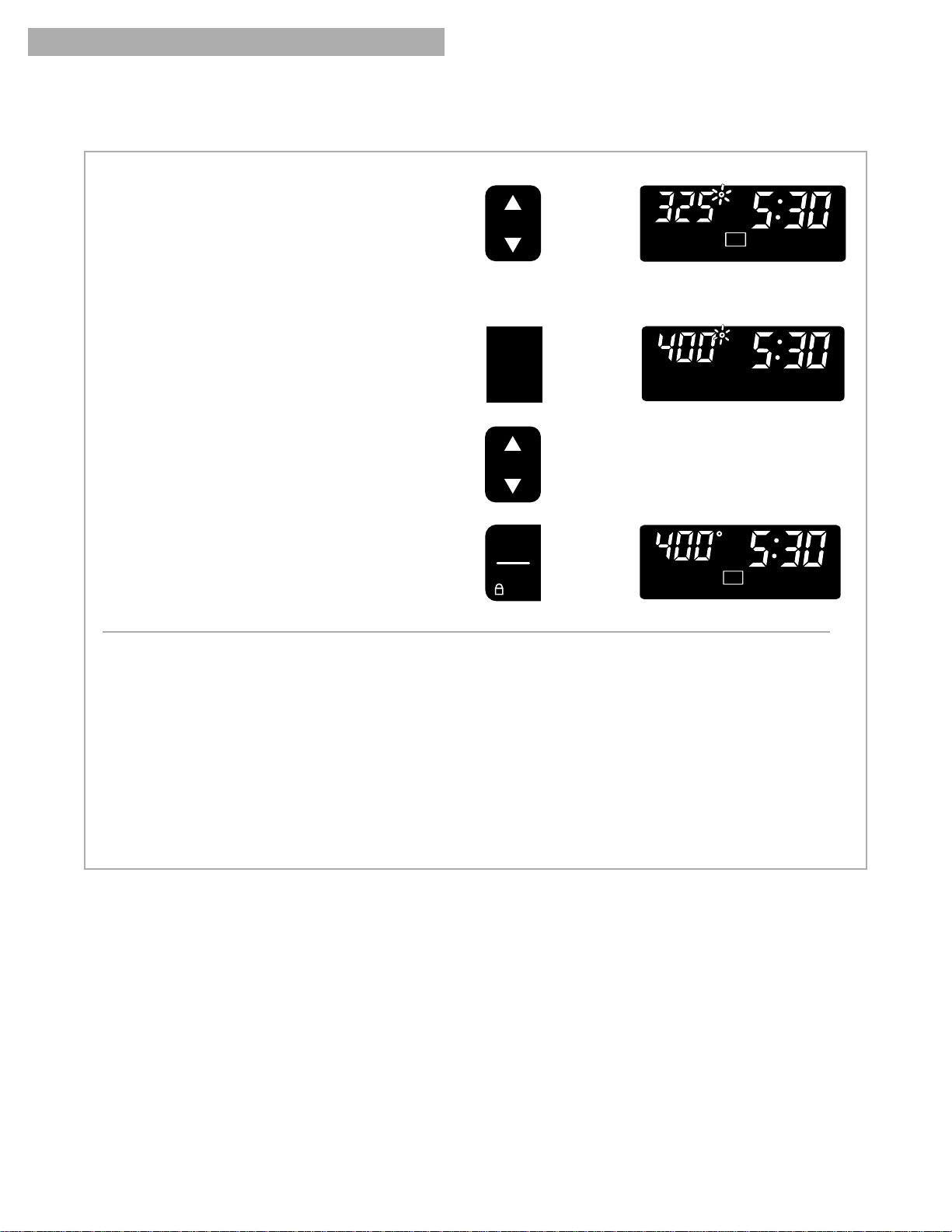

To custom broil at a lower temperature:

•

If your food is cooking too fast, press the ▼ TEMP

pad until “325°F” shows on the small display.

•

If you want your food to broil slower from the start,

press CUSTOM BROIL and press the ▼ TEMP

pad so a temperature between 300°F and 525°F

shows on the small display. Press START/ENTER. Lower temperature settings let the broil heating

element cycle and slow cooking results. The lower the temperature, the slower the cooking.

NOTE: Fish and chicken are some foods that may cook better if you use lower broiling temperatures.

BROILING (CONT.)

PRESS YOU SEE

TEMP

BAKE

BROIL

HEAT

TIME TIMECOOK

(example shows broil at 325°F)

BAKE

BROIL

CUSTOM

BROIL

(example shows broil at 400°F)

PRESS YOU SEE

BROIL

HEAT

START

ENTER

5 SEC

YOU SEE

TEMP

Broiling guidelines

•

Use only the broiler pan and grid provided. They

are designed to drain extra juices from the cook-

ing surface. This drainage helps prevent spatter

and smoke.

•

To make sure the juices drain well, do not cover

the grid with foil.

•

Trim excess fat to reduce spattering. Slit the fat

on the edges to prevent curling.

•

Use tongs to turn meat to avoid losing juices.

USING YOUR RANGE

•

Pull out oven rack to stop position before turning or removing food.

•

After broiling, remove the pan from the oven when removing the food. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult.

•

For easier cleaning, line the bottom of the pan with aluminum foil. Clean the pan and grid as soon as possible after each use.

Page 19

Broiling guidelines (cont.)

Recommended rack positions are numbered from the bottom (1) to the top (5). For best results, place food 3 inches or more from broil burner.

USING YOUR RANGE

BROILING (CONT.)

APPROXIMATE TIME

(MINUTES)

SIDE 2

7-8 8-9 9-10

6-7 10-11 4-5 3-4 8-9

18-20 11-16

4-5

MEAT Steak, 1" thick

medium rare medium well done

Ground Meat Patties, 3⁄4" thick, well done Pork Chops, 1" thick Ham Slice, 1⁄2" thick, precooked Frankfurters Lamb Chops, 1" thick Chicken

bone-in pieces boneless breasts

Fish

fillets 1⁄4-1⁄2" thick

RACK POSITION

4 4 4 4 4

3 4

SIDE 1

14-15 15-16 18-19

13-14 21-22 8-10 6-7 15-17

18-20 12-16

8-10

Times are guidelines only and may need to be adjusted for individual tastes. Very thin cuts, such as fish fillets, may not need to be turned.

Page 20

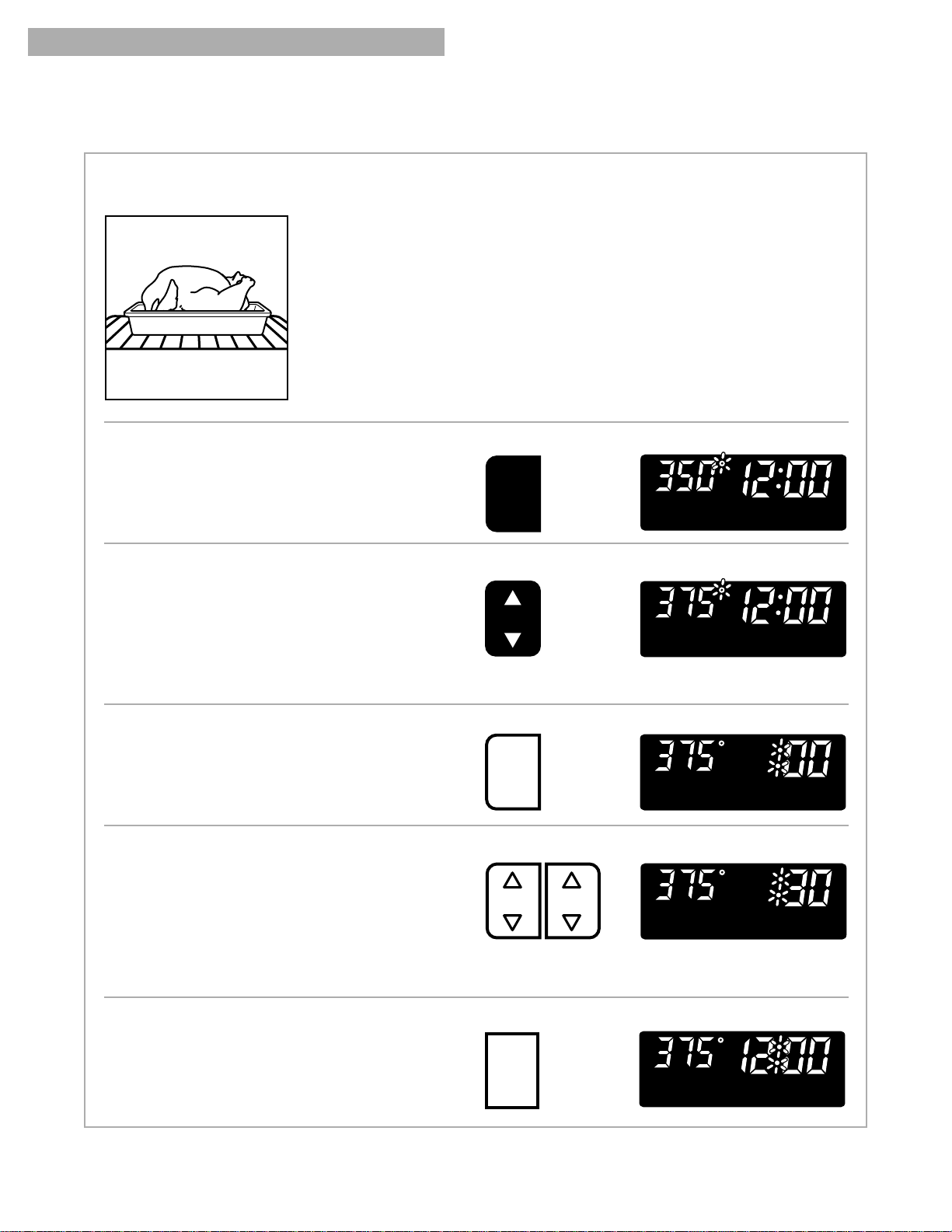

The electronic MEALTIMER control will turn the oven on and off at times you set, even when you are not around.

Delayed time baking/roasting is ideal for foods

that do not need a preheated oven, like meats and casseroles. Do not use delayed time cooking for

cakes, cookies, etc. – they will not rise properly.

Before using the electronic MEALTIMER control, make sure the clock is set to the correct time of day. (See the “Setting the clock” section.)

To start baking/roasting now and stop automatically:

1. Place the oven rack(s) where you need them and

put your food in the oven. To place your racks correctly, see “Positioning racks” under “Using the Oven” earlier in this section.

2. Choose the bake setting.

3. Set the temperature (optional).

Do this step if you want to set a temperature other than 350°F. Press ▲ to raise the temperature or ▼ to lower the temperature in 5°F amounts. Use these pads until the temperature you want shows on the small display.

4. Press COOK TIME.

USING THE ELECTRONIC MEALTIMER™ CONTROL

PRESS YOU SEE

BAKE

TEMP

BAKE

(example shows bake at 375°F)

PRESS YOU SEE

COOK

TIME

BAKE

TIMECOOK

PRESS YOU SEE

USING YOUR RANGE

wWARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Page 21

USING YOUR RANGE

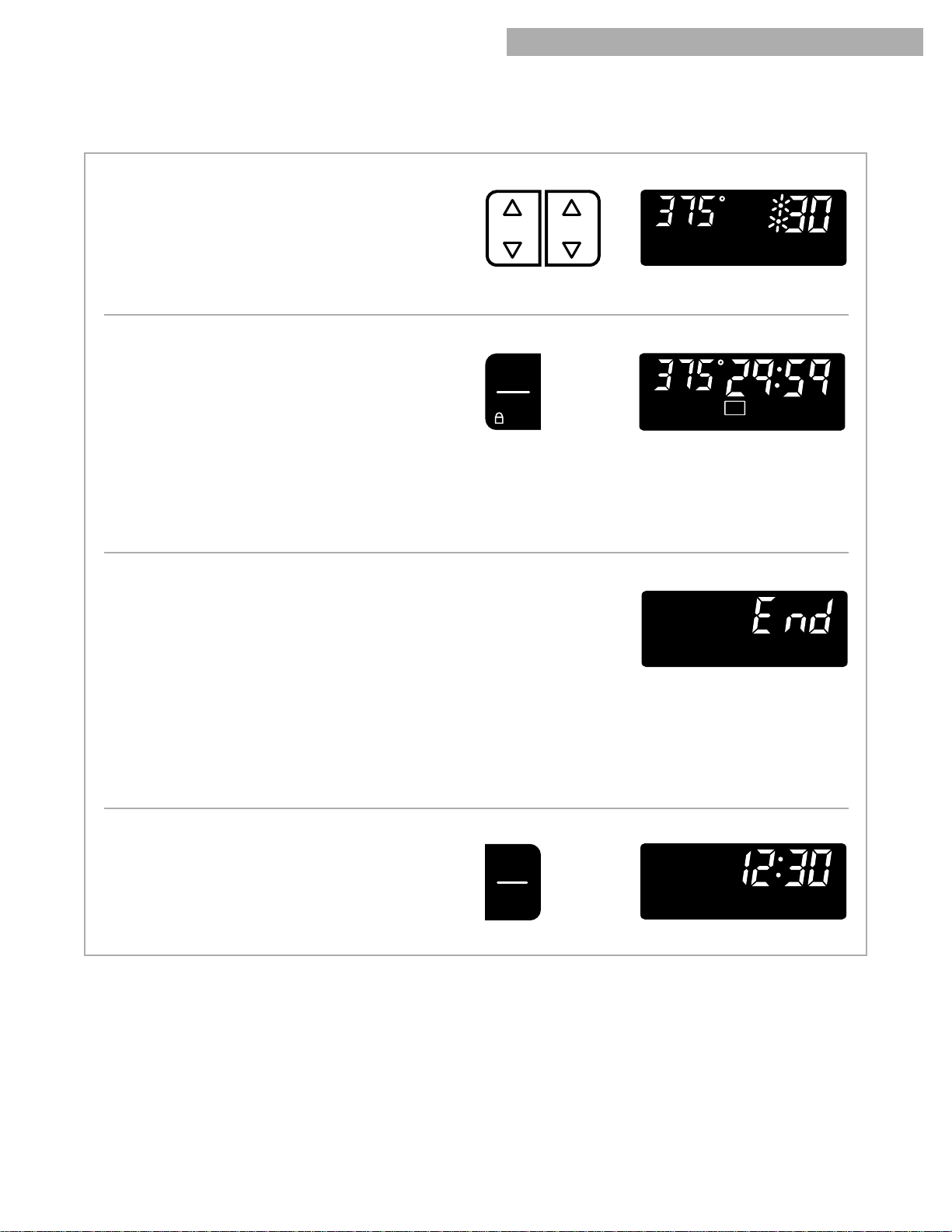

5. Set the cook time.

Press the “up” (s) or “down” (t) pad(s) until the correct time shows on the display.

6. Start the oven.

NOTES:

•

You can change the temperature or time settings any time after pressing START/ENTER by repeating Steps 3 or 5. You do not have to press START/ENTER.

•

The display will count down the baking/roasting time in hours and minutes (if cook time is more than 1 hour) or in minutes and seconds (if cook time is less than 1 hour).

7. When baking/roasting is done:

The oven will turn off by itself and beep 4 times. You will also hear four 1-second tones every minute until you press OFF/CANCEL.

NOTE: To remove the end-of-cycle tones, press and hold COOK TIME for 5 seconds. To bring back the tones, repeat this step. You will see “oFF” when the tones are turned off and “on” when they are turned on. Refer to “Using the Electronic Minute Timer” Step 3 to remove the reminder tones.

8. Turn off the oven.

NOTE: You can do this step any time to cancel

the MEALTIMER control setting.

USING THE ELECTRONIC MEALTIMER™ CONTROL (CONT.)

PRESS YOU SEE

HR MIN

BAKE

TIMECOOK

(example shows 30-minute baking/roasting time)

YOU SEE

TIMECOOK

OFF

CANCEL

(time of day)

PRESS YOU SEE

BAKE

BROIL

HEAT

DTIME TIMECOOK

START

ENTER

5 SEC

(display counts down cook time)

Page 22

USING THE ELECTRONIC MEALTIMER™ CONTROL (CONT.)

To delay start and stop automatically:

1. Place the oven rack(s) where you need them and

put your food in the oven. To place your racks correctly, see “Positioning racks” under “Using the Oven”, earlier in this section.

2. Choose the bake setting.

3. Set the temperature (optional).

4. Press COOK TIME.

5. Set the cook time.

Press the “up” (s) or “down” (t) pad(s) until the correct time shows on the display.

6. Press DELAY START TIME.

PRESS YOU SEE

BAKE

PRESS YOU SEE

BAKE

(example shows bake at 375°F)

TEMP

PRESS YOU SEE

COOK

TIME

BAKE

TIMECOOK

PRESS YOU SEE

HR MIN

BAKE

TIMECOOK

(example shows 30-minute baking/roasting time)

PRESS YOU SEE

DELAY START

TIME

BAKE

START TIME

USING YOUR RANGE

Page 23

USING YOUR RANGE

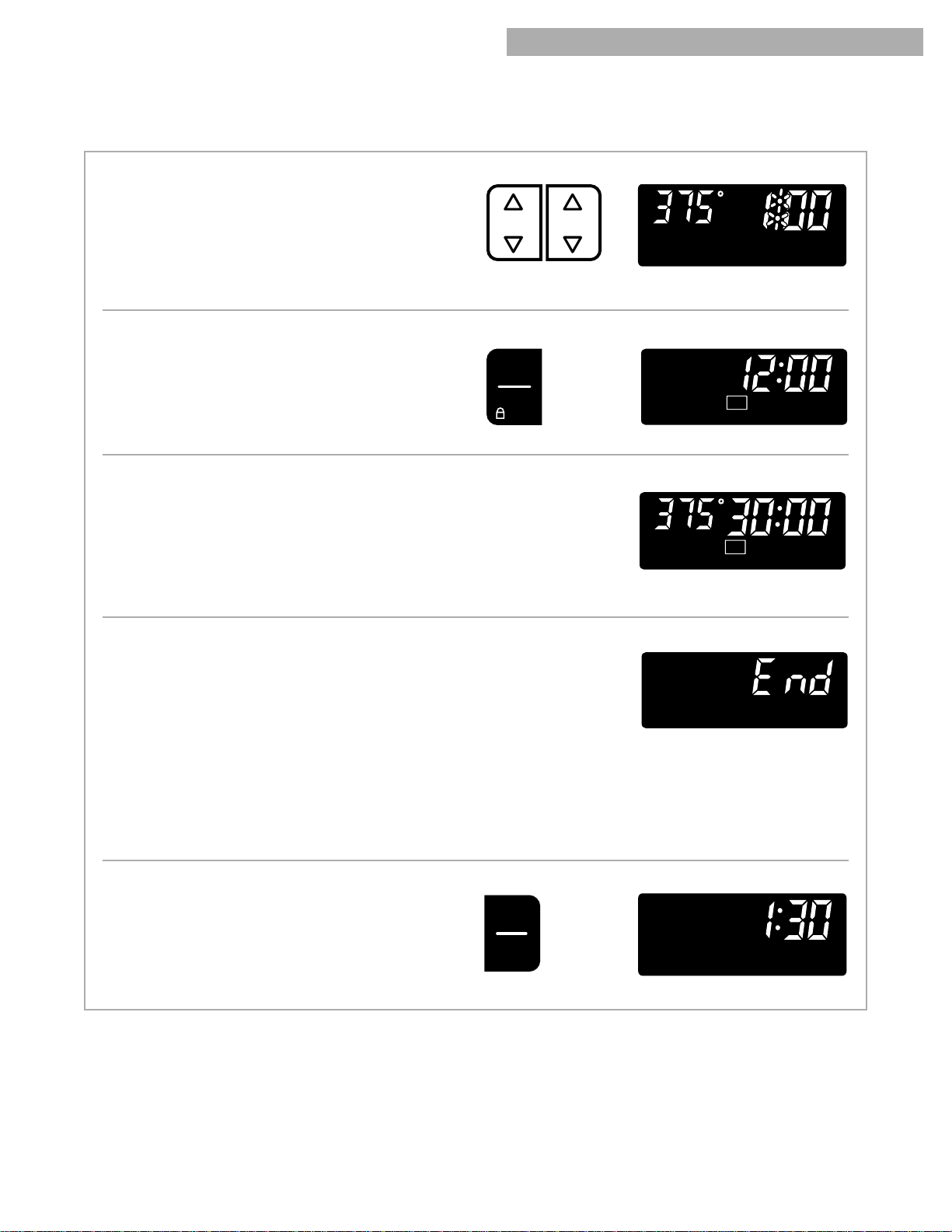

7. Set the start time.

Press the “up” (s) or “down” (t) pad(s) until the correct time shows on the display.

The example at the right shows a chosen start time of 1:00. The oven will shut off by itself at 1:30 (the set start time plus the set cook time).

8. Press START/ENTER.

NOTE: You can change the temperature or time

settings any time after pressing START/ENTER by repeating Steps 2 through 7.

9. When the start time is reached:

You will hear a 1-second tone. The display will count down the baking/roasting time in hours and minutes (if the cook time is more than 1 hour) or in minutes and seconds (if the cook time is less than 1 hour).

10. When baking/roasting is done:

The oven will turn off by itself and beep 4 times. You will also hear four 1-second tones every minute until you press OFF/CANCEL.

11.Turn off the oven.

NOTE: You can do this step any time to cancel

the MEALTIMER control setting.

USING THE ELECTRONIC MEALTIMER™ CONTROL (CONT.)

PRESS YOU SEE

HR MIN

BAKE

START TIME

(example shows 1:00 start time)

START

ENTER

5 SEC

BAKEDELAY

PRESS YOU SEE

YOU SEE

BAKE

BROIL

HEAT

DTIME TIMECOOK

(display counts down cook time)

YOU SEE

TIMECOOK

PRESS YOU SEE

OFF

CANCEL

(time of day)

Page 24

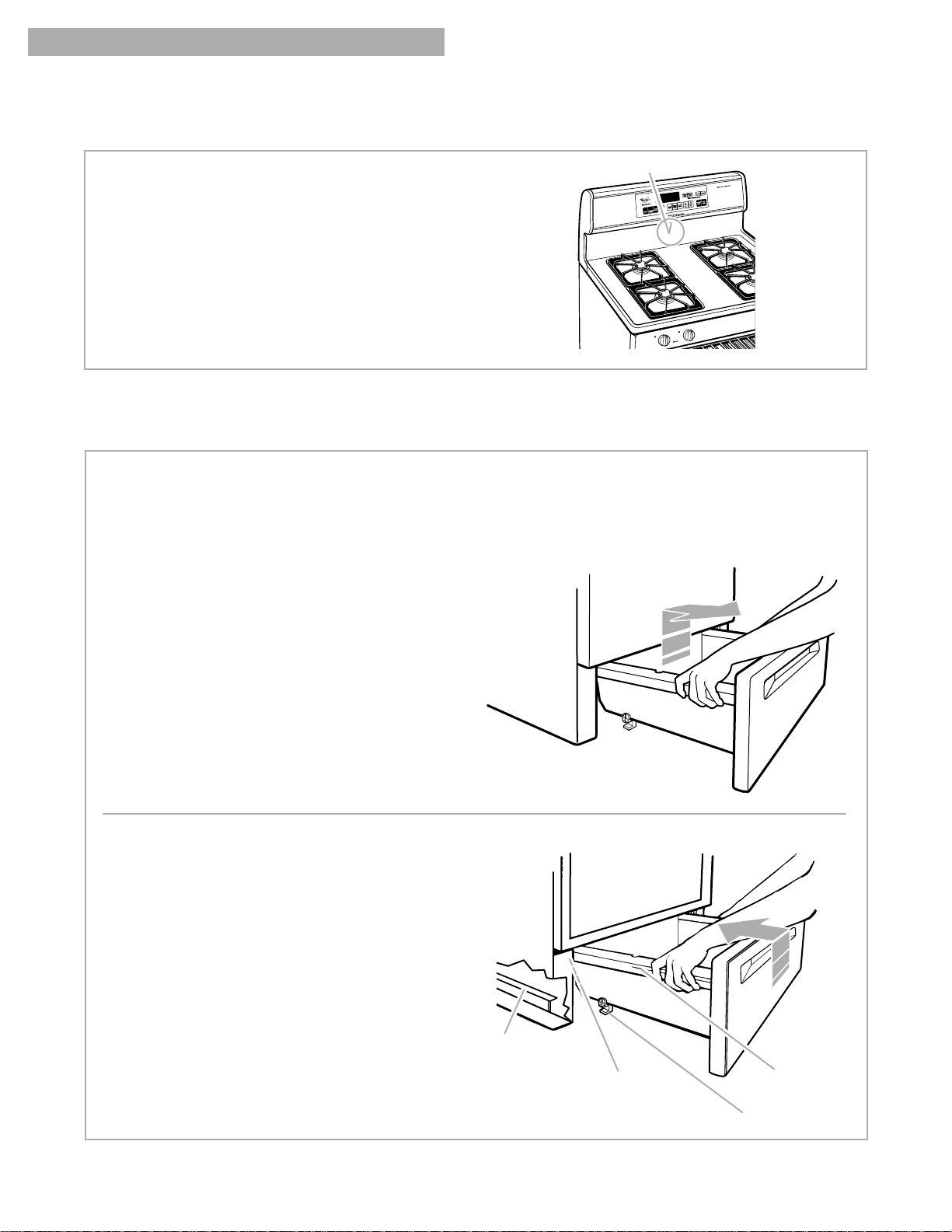

THE OVEN VENT

Hot air and moisture escape from the oven through a vent that is near the middle of the

backguard.

The vent lets air circulate properly. Be careful not to block the vent, or you will get poor baking/roasting results.

NOTE: Never store plastics, paper, or other items that could melt or burn near the oven vent, or any of the surface burners.

Oven vent

USING YOUR RANGE

Use the storage drawer to store cookware. You can remove the storage drawer to make it easier to clean under your range.

Removing the storage drawer:

1. Empty the drawer before you remove it. Pull the

drawer straight out to the first stop. (The stops are small, round objects formed in the slide rail. They keep the drawer from sliding all the way out.) Then lift the front of the drawer and pull it out to the second stop.

2. Lift the back of the drawer slightly and slide it all

the way out.

Replacing the storage drawer:

1. Position the drawer so that the lower drawer

guides rest just inside the front frame lip.

2. Lift the front of the drawer and push it in until

the metal stops on the drawer slide rails clear the upper drawer guides. Then slide the drawer closed.

THE STORAGE DRAWER

Upper drawer guides

(on inside walls)

Drawer

slide rail

Lower slide rail

(inside drawer opening)

Lower drawer guide

Page 25

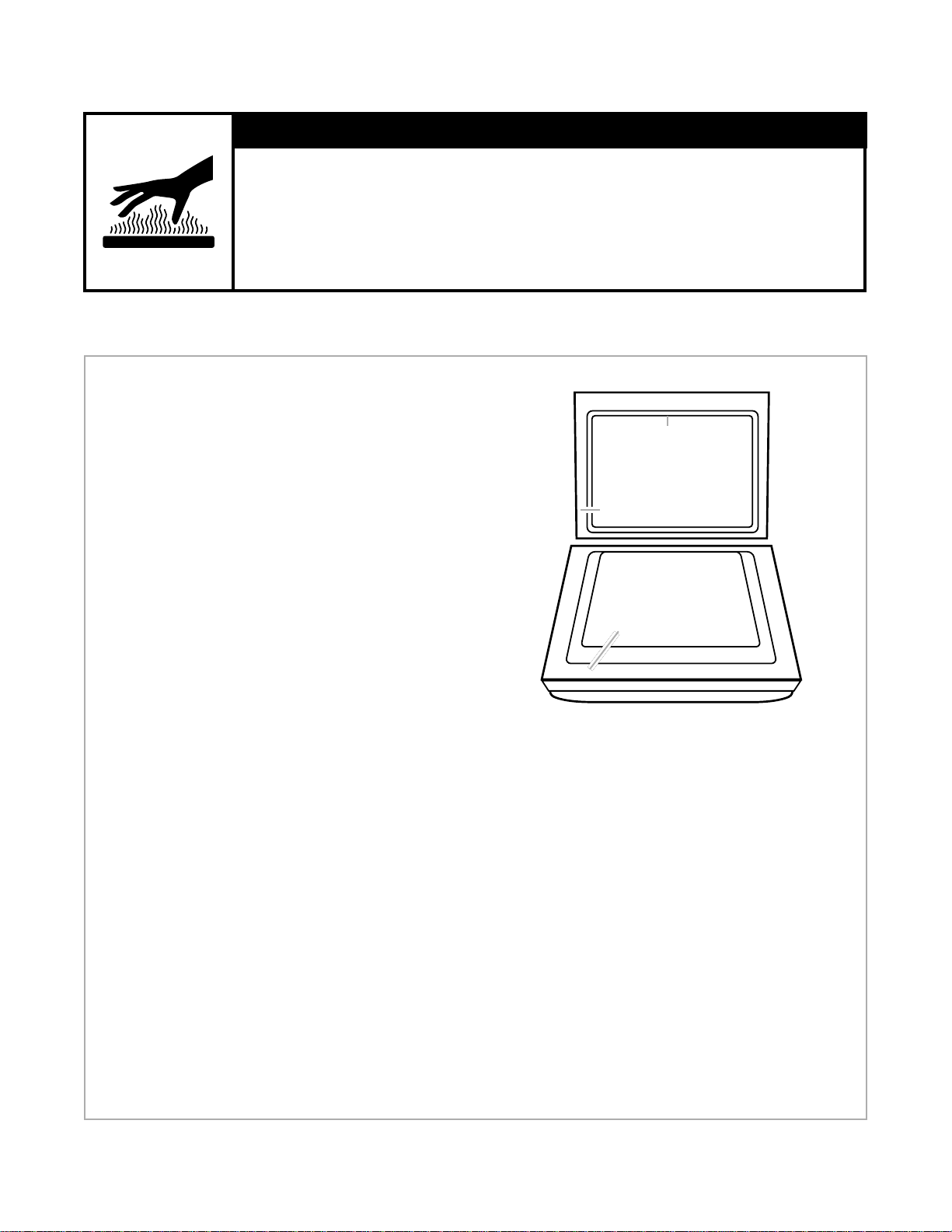

USING THE SELF-CLEANING CYCLE

BEFORE YOU START

Before you start the Self-Cleaning cycle, make sure you:

NOTE: DO NOT clean, move, or bend the gasket.

You may get poor cleaning, baking, and roasting.

•

Hand-clean the areas shown. They do not get hot enough during the Self-Cleaning cycle for soil to burn away. Use hot water and detergent or a soapy, steel-wool pad for cleaning.

•

Do not let water, cleaner, etc., enter slots on door and frame.

•

Remove the broiler pan and grid, griddle and any cookware/bakeware being stored in the oven.

•

Wipe out any loose soil or grease. This will help reduce smoke during the Self-Cleaning cycle.

•

Wipe up food spills containing sugar as soon as possible after the oven cools down. When sugar is heated to a high temperature in the SelfCleaning cycle, the high temperature can cause the sugar to burn and react with the porcelain. This can cause staining and etching, pitting, or faint white spots.

•

Remove the oven racks from the oven if you want them to remain shiny. You can clean the oven racks in the Self-Cleaning cycle, but they will become harder to slide. (See the “Cleaning chart” in the “Caring for Your Range” section.) If you clean the racks in the Self-Cleaning cycle, place them on the 2nd and 4th rack guides. (The guides are counted from bottom to top.)

•

Heat and odors are normal during the SelfCleaning cycle. Keep the kitchen well ventilated by opening a window or by turning on a vent hood or other kitchen vent during the cycle.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the SelfCleaning cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well ventilated room.

DO NOT hand-clean gasket

Hand-clean frame

Hand-clean door around edge

TIPS:

•

Keep the kitchen well ventilated during the Self-Cleaning cycle to help get rid of heat, odors, and smoke.

•

Clean the oven before it gets heavily soiled. Cleaning a very soiled oven takes longer and results in more smoke than usual.

•

Do not block the vent during the Self-Cleaning cycle. Air must move freely for best cleaning results.

•

Do not leave plastic utensils on the cooktop. They may melt.

•

Remove any combustible items, such as paper napkins, from the storage drawer. This includes utensils with plastic handles that can become overheated and melt.

•

Do not leave any foil in the oven during the Self-Cleaning cycle. Foil could burn or melt and damage the oven surface.

•

The oven light will not work during the SelfCleaning cycle.

wWARNING

Burn Hazard Do not touch the oven during the Self-Cleaning cycle. Keep children away from oven during Self-Cleaning cycle. Do not use commercial oven cleaners in your oven. Failure to follow these instructions can result in burns, or illness from inhaling

dangerous fumes.

Page 26

USING THE SELF-CLEANING CYCLE

NOTE: Make sure the clock is set to the correct time of day. (See “Setting the clock” in the “Using Your Range” section.)

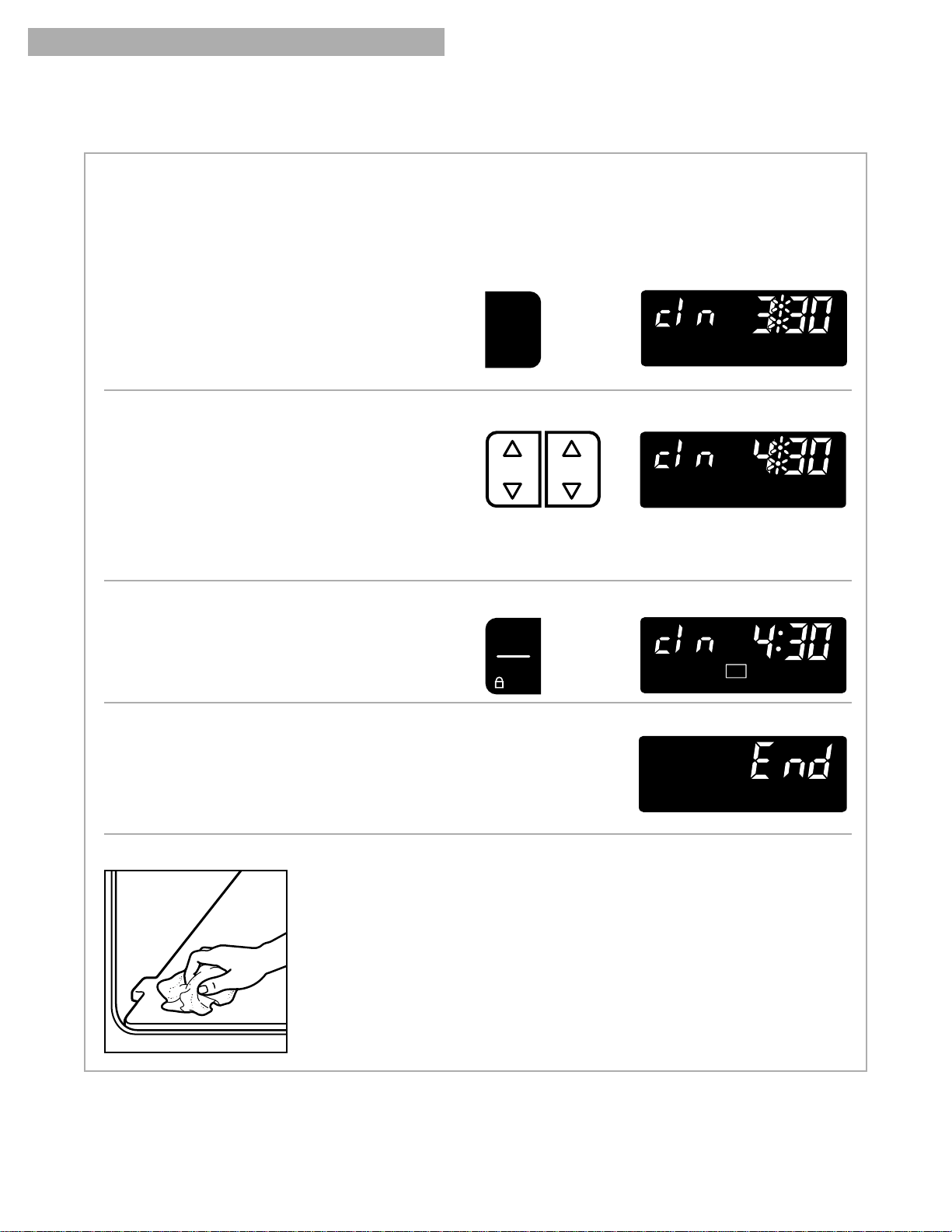

To start cleaning immediately:

1. Press AUTO CLEAN.

This will automatically set a 31⁄2-hour SelfCleaning cycle.

NOTE: There will be a 30-minute cool-down

⁄2 hour before the cycle is over.

2. Set the cleaning time (optional).

If you want a Self-Cleaning cycle longer or shorter than 31⁄2 hours, use the hour and minute pads to set the cleaning time you want. Press the “up” (s) or “down” (t) pad(s) until a time between 21⁄2-41⁄2 hours shows on the display.

•

Use 21⁄2 hours for light soil.

•

Use 31⁄2-41⁄2 hours for average to heavy soil.

3. Start the oven.

Make sure the door is closed all the way. If the door is open even a little, it will not lock. Press the door closed if needed. If the door is closed, it will lock as soon as you press START/ENTER.

4. After the Self-Cleaning cycle ends:

LOCKED goes off and the door unlocks.

5. After the oven is cool, wipe off any residue or ash

with a damp cloth or sponge. If needed, touch up spots with a mild abrasive cleanser or cleaning sponge.

SETTING THE CONTROLS

PRESS YOU SEE

HR MIN

CLEAN TIME

(example shows 41⁄

2-hour

cleaning time)

PRESS YOU SEE

START

ENTER

5 SEC

HEAT

DTIME

CLEAN TIME

LOCKED

CLEAN

YOU SEE

PRESS YOU SEE

AUTO

CLEAN

CLEAN TIME

Page 27

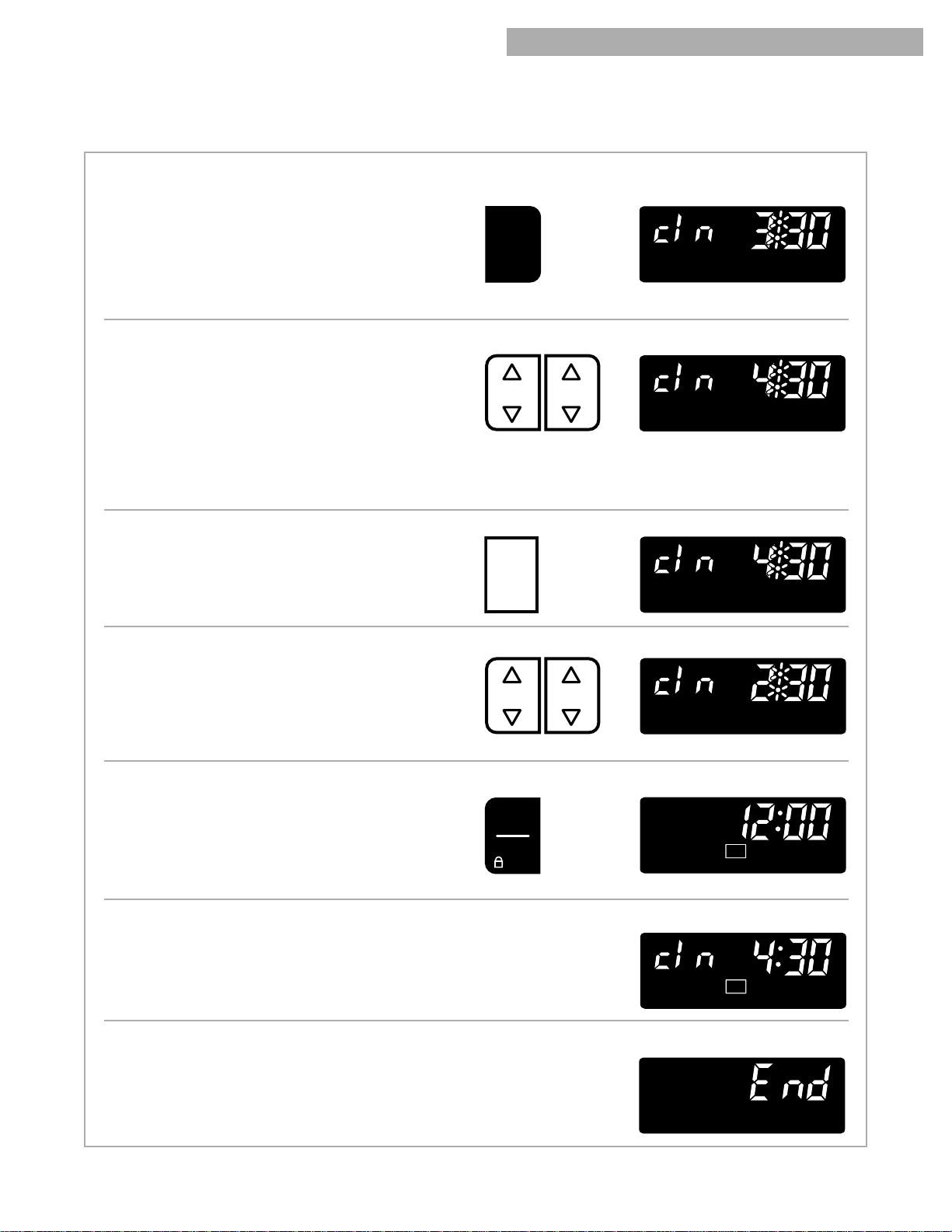

To delay the start using delay start time:

1. Press AUTO CLEAN.

This will automatically set a 31⁄2-hour SelfCleaning cycle.

NOTE: There will be a 30-minute cool-down

⁄2 hour before the cycle is over.

2. Set the cleaning time (optional).

If you want a Self-Cleaning cycle longer or shorter than 31⁄2 hours, use the Hour and Minute pads to set the cleaning time you want. Press the “up” (s) or “down” (t) pad(s) until a time between 21⁄2-41⁄2 hours shows on the display.

•

Use 21⁄2 hours for light soil.

•

Use 31⁄2-41⁄2 hours for average to heavy soil.

3. Press DELAY START TIME.

4. Set the start time.

Press the “up” (s) or “down” (t) pad(s) until the correct time shows on the display. The oven will automatically come up with the stop time by adding the set cleaning time to the set start time.

5. Press START/ENTER.

The door will lock as soon as you press START/ENTER.

6. After the Self-Cleaning cycle starts:

7. After the Self-Cleaning cycle ends:

LOCKED goes off and the door unlocks.

NOTE: The stop time will be the start time plus the cleaning time.

SETTING THE CONTROLS (CONT.)

PRESS YOU SEE

AUTO

CLEAN

CLEAN TIME

PRESS YOU SEE

(example for 41⁄2

-hour cycle)

HR MIN

CLEAN TIME

PRESS YOU SEE

DELAY START

TIME

START

CLEAN TIME

HR MIN

START

CLEAN TIME

(example for 2:30 start time)

PRESS YOU SEE

START

ENTER

5 SEC

DELAY CLEAN

YOU SEE

HEAT

DTIME

CLEAN TIME

LOCKED

YOU SEE

CLEAN

PRESS YOU SEE

USING THE SELF-CLEANING CYCLE

continued on next page

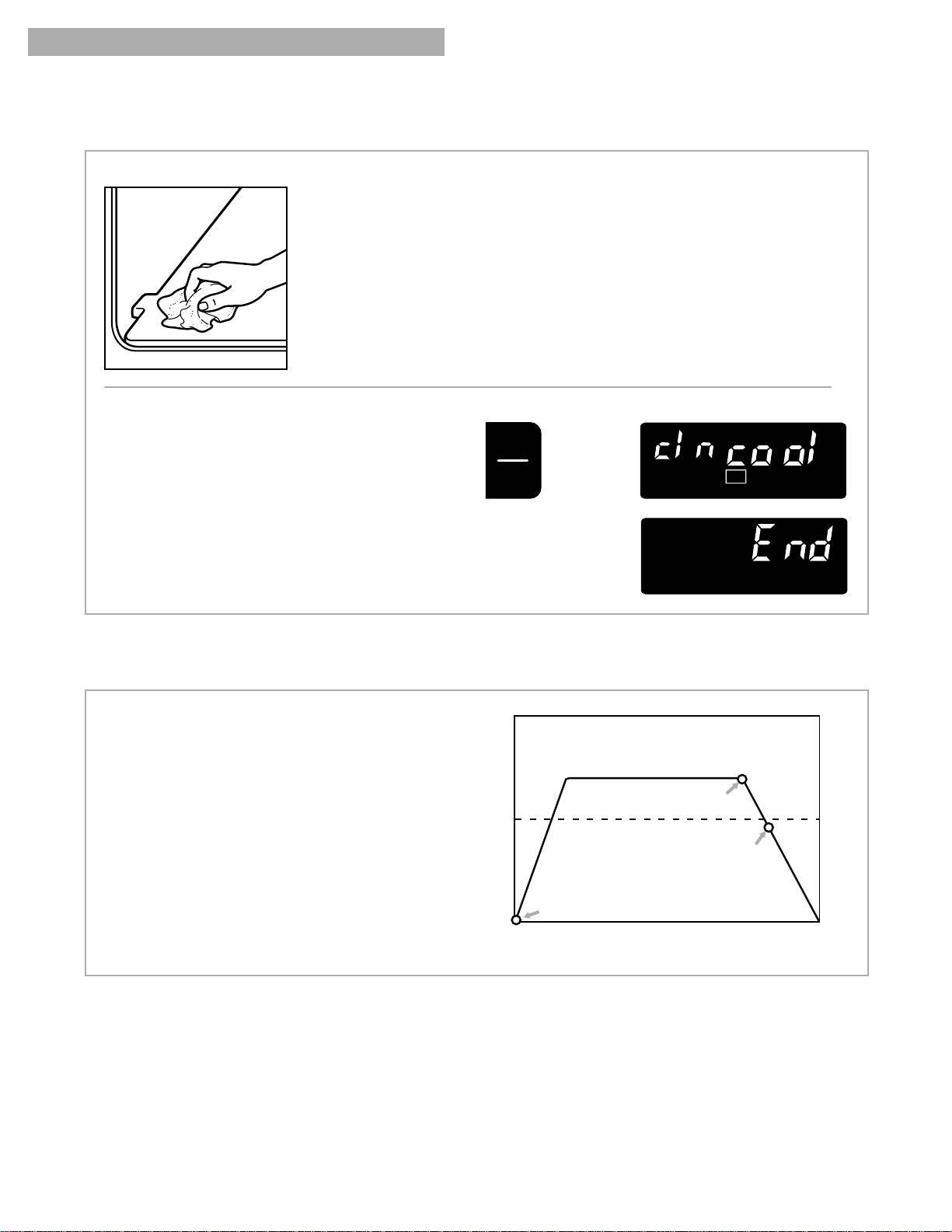

Page 28

8. After the oven cools to room temperature, wipe

off any residue or ash with a damp cloth or sponge. If needed, touch up spots with a mild abrasive cleanser or cleaning sponge.

To stop the self-cleaning cycle at any time:

If the oven temperature is too high for baking/ roasting when you press OFF/CANCEL, “cln,” TIMED, ON, “cool,” and LOCKED will appear on the display until the oven cools.

USING THE SELF-CLEANING CYCLE

SETTING THE CONTROLS (CONT.)

The Self-Cleaning cycle uses very high heat to burn away soil and grease. During the cycle, the oven gets much hotter than it does for normal baking or broiling. This high heat breaks up the soil or grease and burns it away.

Your oven is automatically preset for a 31⁄2-hour Self-Cleaning cycle.

The graph at the right shows you what happens in a 31⁄2-hour Self-Cleaning cycle. Notice that the heating stops 1⁄2 hour before the 31⁄2-hour setting is up.

PRESS YOU SEE

OFF

CANCEL

DTIME

LOCKED

CLEAN TIME

HOW THE CYCLE WORKS

875°F (468°C)

CLEANING CYCLE

OVEN SHUT OFF

(normal broiling temperature)

T emperature

DOOR LOCKS

START 11 2 3 STOP

Time In Hours

DOOR UNLOCKS

Page 29

CLEANING CHART

Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all cleaning products before using them to clean your range.

wWARNING

Explosion Hazard

Do not store flammable materials such as gasoline near this appliance. Doing so can result in death, explosion, or fire.

ARING FOR YOUR RANGE

PART CLEANING METHOD SPECIAL INSTRUCTIONS Control Knobs

Control Panel

Exterior Surfaces*

(excluding control panel and oven door glass)

Porcelain-coated surface burner grates and caps*

Light to moderate soil

•

Stubborn or heavy burned

•

on soils

Soap and water

•

Dishwasher

•

Soap and water

•

Spray glass cleaner

•

Soap and water

•

Mild liquid cleaner

•

Spray glass cleaner

•

Non-abrasive plastic scrubbing pad

•

Soap and water

•

Non-abrasive plastic scrubbing pad

•

Non-abrasive plastic scrubbing pad

•

Mild abrasive powdered cleanser

•

and water

• DO NOT use steel wool or

abrasive cleaners.

• Pull knobs straight away from

control panel.

• Wash, rinse and dry with soft

cloth.

• Wash, rinse and dry with soft

cloth.

• Apply spray cleaner to paper

towel; do not spray directly on panel.

• DO NOT use abrasive or harsh

cleaners like chlorine bleach, ammonia or oven cleaners.

• Wash, rinse and dry with soft

cloth.

• Gently clean around the model

and serial plate, too much scrubbing could remove the numbers.

NOTE: To avoid product

•

damage, do not remove the cooktop.

• DO NOT clean in dishwasher.

• Clean soon after they become

dirty.

• Wash, rinse and dry well.

• Repeat steps of cleaning process

(with items at left) as needed, until soil is completely removed.

• Rinse thoroughly and dry.

NOTE: Do not reassemble caps

•

on burners while wet.

*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato, may affect the finish. To avoid porcelain grate chipping, do not bang grates and caps against each other or other hard surfaces such as cast iron cookware.

Page 30

CARING FOR YOUR RANGE

CLEANING CHART (CONT.)

PART CLEANING METHOD SPECIAL INSTRUCTIONS Surface burners

Oven door glass

Oven cavity

Food spills containing

•

sugar and/or milk

All other spills

•

Oven racks

Broiler pan and grid

Soap and water

•

Non-abrasive plastic scrubbing pad

•

Spray glass cleaner

•

Soap and water

•

Self-cleaning cycle

•

Soap and water

•

Steel wool pad

•

Self-cleaning cycle

•

Soap and water

•

Steel wool pad

•

Dishwasher

•

Solution of 1/2 cup ammonia to

•

1 gallon water

Mild abrasive cleanser or

•

commercial oven cleaner

See the “Sealed surface burner”

•

section in the “Caring for Your Range” section.

• Wash, rinse and dry with soft

cloth.

• Wipe with paper towel.

When oven cools, wash, rinse

•

and dry with soft cloth. See the “Using the Self-Cleaning Cycle” section.

See the “Using the Self-Cleaning

•

Cycle” section.

Wash, rinse and dry.

•

Place on 2nd and 4th rack

•

guides. Racks will discolor and become harder to slide. After cleaning, apply vegetable oil to rack guides for easier sliding.

Wash, rinse and dry.

•

Soak for 20 minutes, then scrub

•

with plastic scrubbing pad.

DO NOT clean the pan and grid

•

in the self-cleaning cycle.

Griddle

(Accessory item Part # 4396096)

Soap and water

•

Non-abrasive plastic scrubbing pad

•

Wash, rinse and dry.

•

DO NOT clean the griddle in the

•

self-cleaning cycle.

Page 31

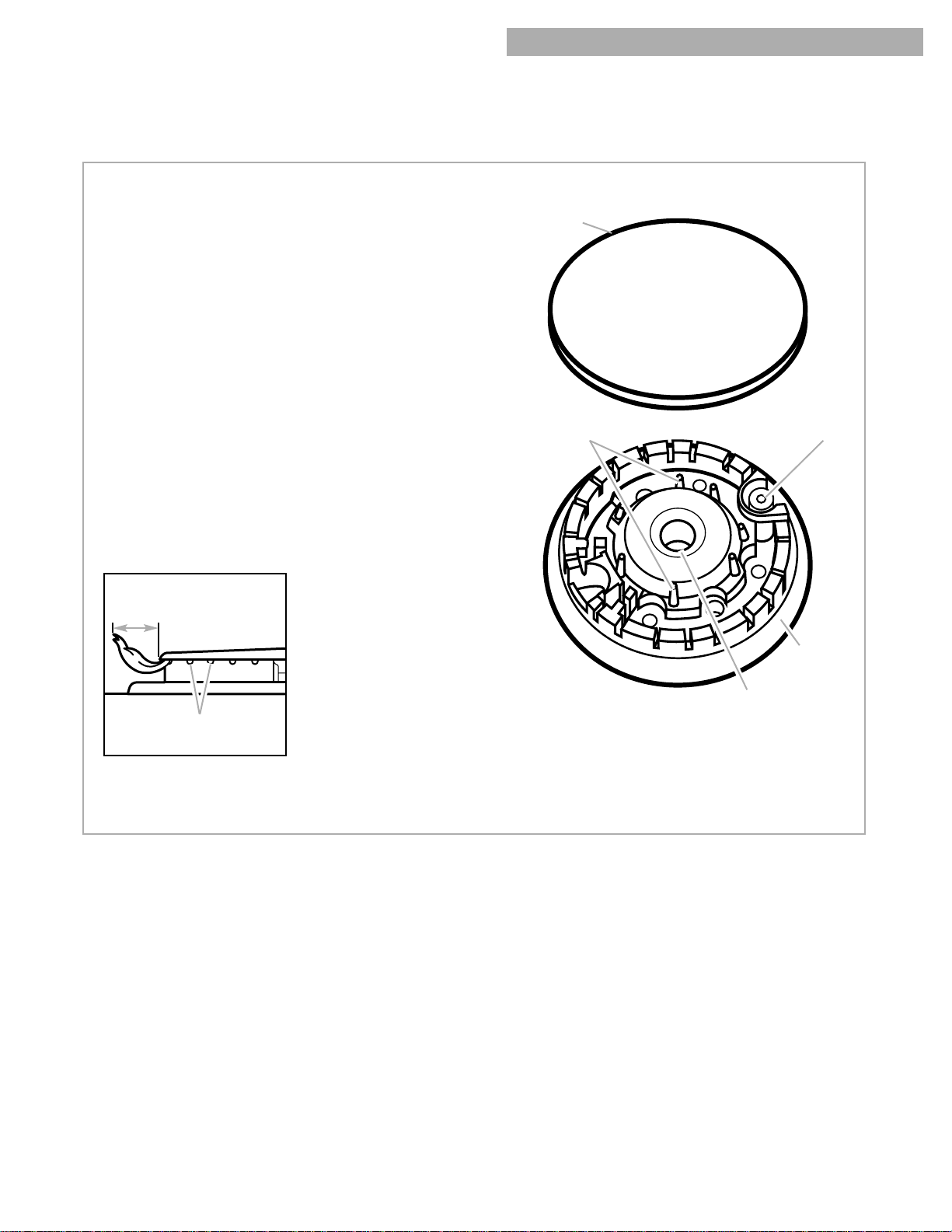

SEALED SURFACE BURNERS AND COOKTOP

CARING FOR YOUR RANGE

Cleaning the surface burners

• You should routinely remove and clean the burner

cap. Always clean the burner cap after a spillover. Keeping the burner cap clean prevents poor ignition and an uneven flame.

• For the proper flow of gas and ignition of the

burner, do not allow spills, food, cleaning

agents, or any other material to enter the gas tube opening or burner ports.

• Gas must flow freely through the gas tube

opening for the burner to light properly. You must keep this area free of any soil and protect it from boilovers or spillovers. Always keep the burner cap in place whenever a surface burner is in use.

• Let the cooktop cool before cleaning.

• Do not use oven cleaners, bleach, or rust

removers.

• Do not obstruct the flow of combustion and

ventilation air around the burner grate edges.

• Occasionally check the burner flames for proper

size and shape as shown. A good flame is blue in color. If the flames are not burning at all ports, you may need to clean the burner ports.

Burner ports

Porcelain burner cap

Alignment pins

Gas tube opening

Burner

base

Ignitor

1-11⁄2" (2.5-3.8 cm)

Page 32

5. After cleaning the gas tube opening and ports,

replace the burner cap. To replace the burner cap, make sure the alignment pins on the cap are properly aligned with the burner base.

SEALED SURFACE BURNERS AND COOKTOP (CONT.)

CARING FOR YOUR RANGE

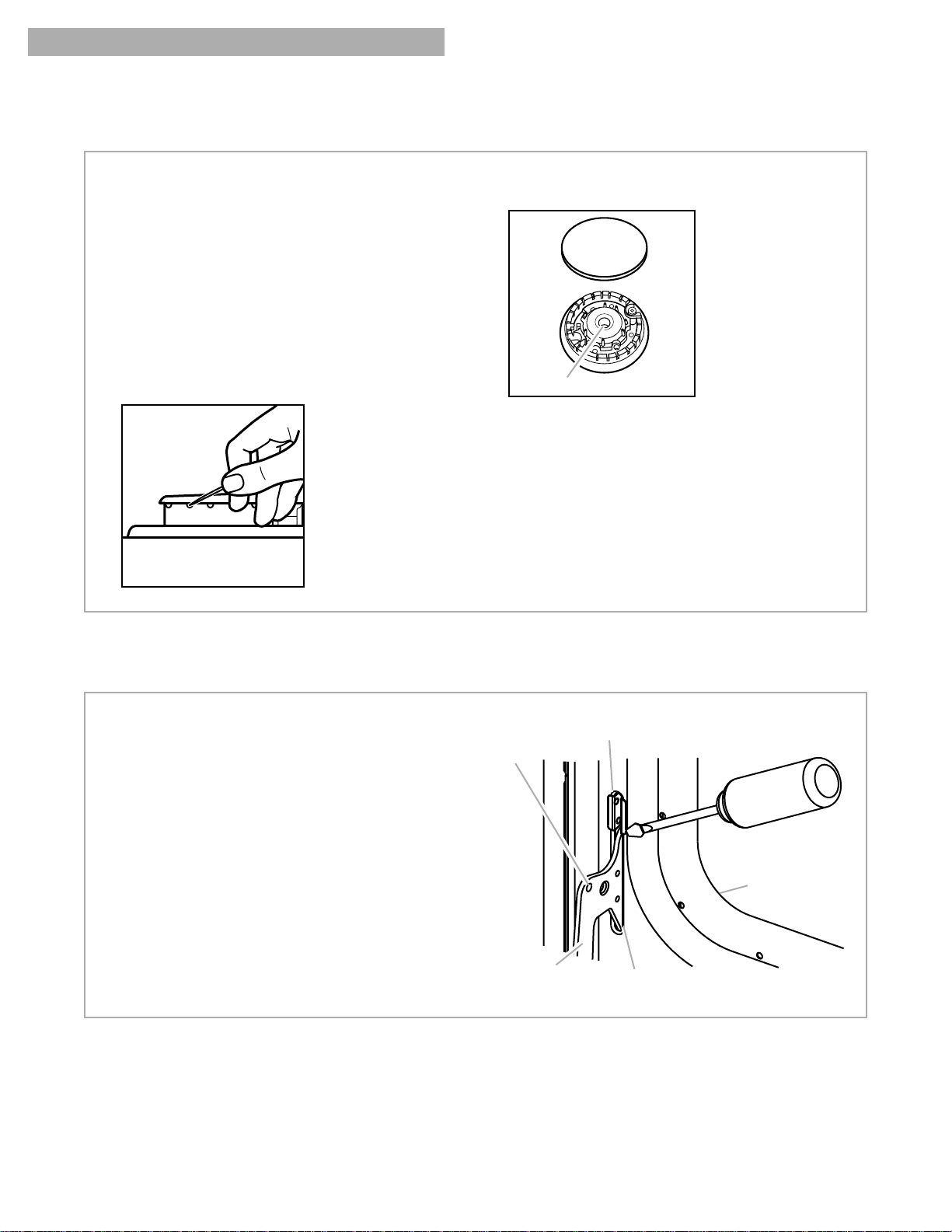

To clean the burners:

1. Pull the burner cap straight up from the

burner base.

2. Clean the burner cap with warm, soapy water

and a sponge. You can also clean it with a mildly abrasive scrubbing pad or cleanser. Do not clean the burner cap in a dishwasher or self-cleaning oven.

3. If the gas tube opening has become soiled or

clogged, use a cotton swab or a soft cloth to clean the area.

4. If the ports are clogged, clean them with a

straight pin. Do not enlarge or distort the port. Do not use a wooden toothpick. If the burner

needs to be adjusted, call a qualified technician for service.

6. Turn on the burner to see if it will light. If the

burner does not light after you have cleaned it, recheck cap alignment or contact a designated service technician. Do not service the sealed burner yourself.

REMOVING THE OVEN DOOR

For normal use of your range, you do not need to remove the door. However, if you find it necessary to remove the door, follow the instructions in this section.

NOTE: The oven door is heavy. Before removing the door:

1. Use a putty knife or screwdriver and insert it at

the bottom corner of the door stop clip.

2. Pry door stop clip free and remove from front

frame hinge slot. Take care not to scratch porcelain.

3. Repeat procedure for other door stop clip.

Door removal pin hole

Hinge hanger

Range

Front frame hinge slot

Door stop clip

Gas tube opening

Page 33

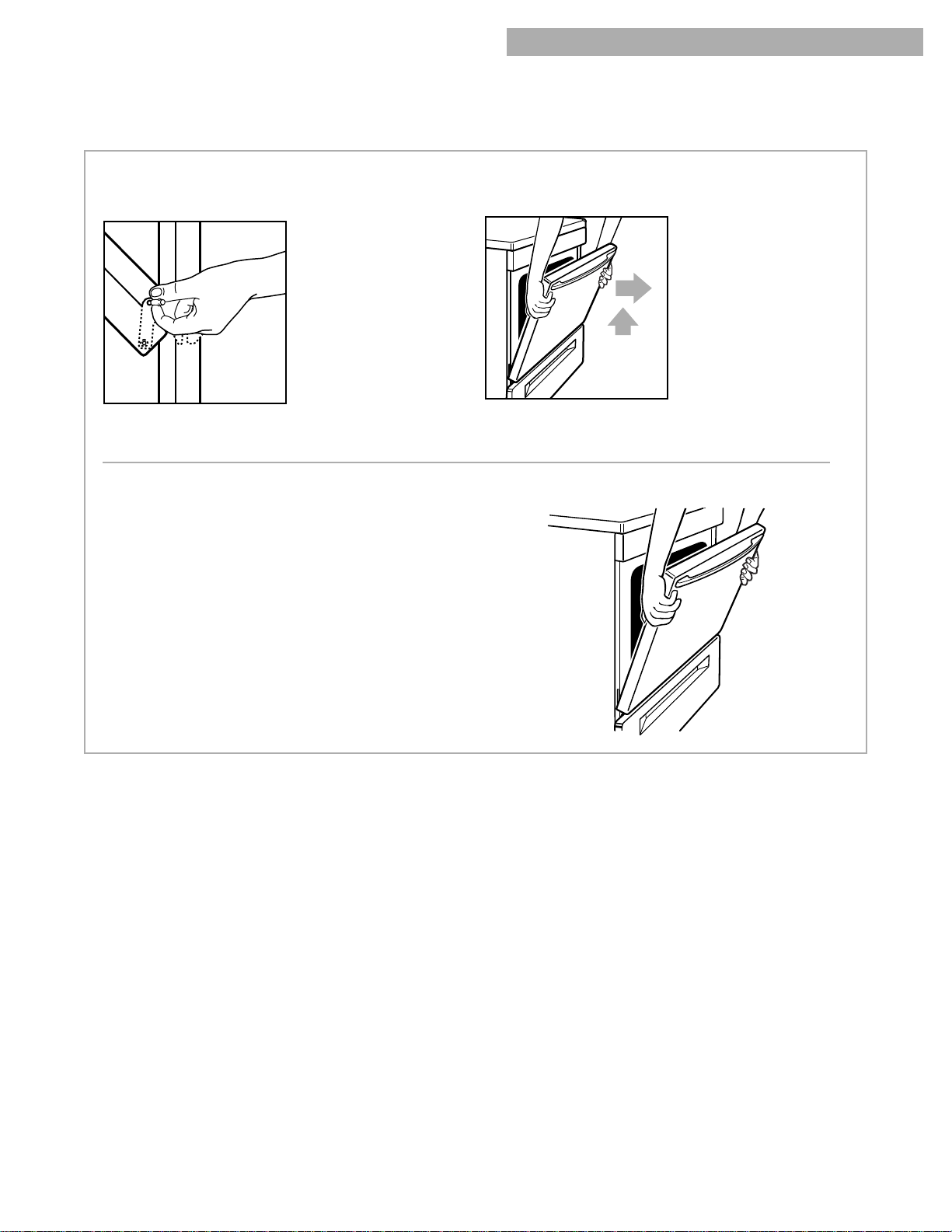

REMOVING THE OVEN DOOR (CONT.)

To remove:

1. Open the oven door. Insert door removal pins,

included with your range, into both hinge hangers. Do not

remove the pins while the door is removed from the range.

3. Grasp the door on the sides with your fingers

on the front of the door and your thumbs on the inside surface.

2. Carefully close the door until it rests against the

door removal pins.

To replace:

NOTE: The door removal pins you inserted must still be in both door hinges.

1. Grasp the door on the sides with your fingers

on the front of the door and your thumbs on the inside surface.

CARING FOR YOUR RANGE

4. Pull door straight up, then toward you. Hinge

hangers will slide out of front frame hinge slot.

Page 34

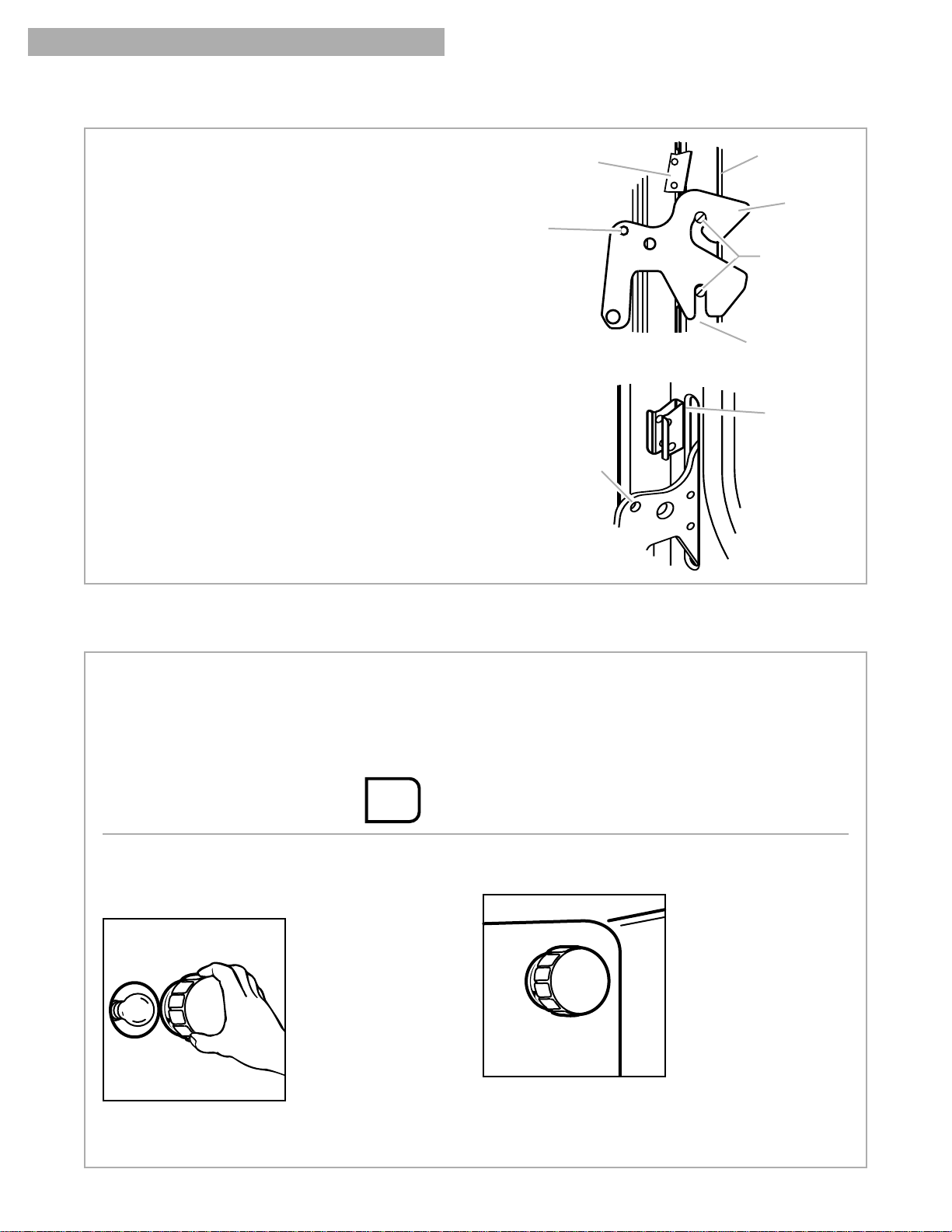

THE OVEN LIGHT

The oven light will come on when you open the oven door.

To turn the light on or off when the oven door is closed:

•

Press the oven light pad.

To replace the oven light:

1. Unplug range or disconnect power.

2. Remove the glass bulb cover in the back of the

oven by turning it counterclockwise.

LIGHT

4. Replace the light bulb cover by turning it clockwise.

CARING FOR YOUR RANGE

3. Remove the light bulb from its socket. Replace

the bulb with a 40-watt appliance bulb.

5. Plug in range or reconnect power.

NOTE: The oven light will not work during the

Self-Cleaning cycle.

Range

Front frame hinge slot

2. Hold oven door so that the top edge of each

hinge hanger is horizontal. Insert hinge hangers into the front frame hinge slots.

3. Tilt top of door toward range. Slide hinge hangers

down onto front frame support pins.

NOTE: Make sure the hinge hangers are fully seated and engaged on the support pins.

4. Insert the door stop clip with the angular surface

at the top of the frame hinge slot, then push in the bottom of the clip until flanges are flush with the front frame.

5. Open the door completely and remove the door

removal pins. Save door removal pins for future use.

6. Close the door.

Door removal pin hole

Hinge hanger

Door stop clip

Angular surface of door stop clip

Door removal pin hole

Support pins

REMOVING THE OVEN DOOR (CONT.)

Page 35

TROUBLESHOOTING

Most cooking problems often are caused by little things you can find and fix without tools of any kind. Check the lists below and on the next page before calling for assistance or service. If you still need help, see “Requesting Assistance or Service” on page 37.

RANGE DOES NOT WORK

CAUSE

•

The range is not plugged into a properly grounded outlet (120v polarized).

•

The range is not properly connected to the gas supply. Contact a designated service technician to reconnect the range to the gas supply. (See the Installation Instructions.)

•

You have blown a household fuse or tripped a circuit breaker.

PROBLEM

Nothing works

CAUSE

•

The control knob is not set correctly. Push in the control knobs before turning them. Make sure the control knob is turned to the LIGHT position. (See page 6.)

•

You have blown a household fuse or tripped a circuit breaker.

•

The burner ports may be clogged. Clean them with a straight pin. (See page 30.)

•

The burner ports may be clogged. Clean them with a straight pin. (See page 30.)

•

The burner caps may not be positioned properly. (See page 30.)

•

The burner needs cleaning. (See pages 29 and 30.)

•

The air/gas mixture is incorrect. Contact a designated service technician to check the air/gas mixture or see the Installation Instructions.

•

The burner is wet from washing. Let it dry.

PROBLEM

The burner fails to light

The burner flames are uneven

The burner flames lift off the ports, are yellow, or are noisy when turned off

The burner makes a popping noise when on

SURFACE BURNERS

OVEN

/BROILER BURNER

PROBLEM

The oven does not work

Burner makes muffled ticking noise when in use

The burner fails to light

The burner flames lift away from the ports, are yellow, or are noisy

CAUSE

•

When using the oven for the first time, it is necessary to light the surface

burners first, to purge air from the gas lines.

• You have not set the electronic control correctly. Refer to setting the

electronic oven control section.

•

The main or regulator gas shutoff valve is in the off position. (See the Installation Instructions.)

•

This is normal. This sound occurs when the oven burner cycles on and off to insure proper oven temperature.

•

The ignition system is broken. Contact a designated service technician to replace it.

•

You have blown a household fuse or tripped a circuit breaker.

•

The air/gas mixture is incorrect. Contact a designated service technician to check the air/gas mixture or see the Installation Instructions.

Page 36

TROUBLESHOOTING

WHEN SELF-CLEANING YOUR OVEN

PROBLEM

The Self-Cleaning cycle will not work

CAUSE

•

You did not press START/ENTER.

•

You have set a delayed start time. Wait for the start time to be reached or cancel and reset the control.

COOKING RESULTS

DISPLAY MESSAGES

PROBLEM

The display is showing “PF”

“F” followed by a number shows on the display

CAUSE

•

There has been a power failure. Press OFF/CANCEL to clear the display, then reset the clock. (See page 12.)

•

Press OFF/CANCEL to clear the display. If an “F” code appears again, call for service. (See “If You Need Assistance or Service” on page 37.)

If none of these items are causing your problem, see “Requesting Assistance or Service” on page 37.

PROBLEM SOLUTION

Cookware not level on cooktop (Check to see if liquids

are level in cookware) Excessive heat on cooktop

in areas around cookware The oven temperature

seems too low or too high Slow baking or roasting

Baked items too brown on bottom

Unevenly baked items

Crust edge browns before pie is done

Level the range. (See the Installation Instructions.)

•

Use cookware with a flat bottom.

•

Choose cookware the same size or slightly larger than the burner flame.

•

Adjust the oven temperature control. (See “Adjusting the Oven Temperature

•

Control” section.)

Increase baking or roasting time.

•

Increase temperature 25°F.

•

Preheat oven, when recommended, to selected temperature before placing

•

food in oven.

Choose bakeware that will allow 2 inches of air space around all sides.

•

Open oven door to check food when timer signals shortest time suggested

•

in recipe.

Oven peeking can make cooking times longer.

•

Preheat oven to selected temperature before placing food in oven.

•

Choose bakeware that will allow 2 inches of air space around all sides.

•

Position rack higher in oven.

•

Decrease oven temperature 15° to 25°F.

•

Level the range.

•

Bake in center of oven with 2 inches of space around each pan.

•

Check to make sure batter is level in pan.

•

Shield edge with foil.

•

Page 37

REQUESTING ASSISTANCE OR SERVICE

To avoid unnecessary service calls, please check the “Troubleshooting” section. It may save you the cost of a service call. If you still need help, follow the instructions below.

IF YOU NEED ASSISTANCE OR SERVICE

Call the Whirlpool Consumer Assistance

Center toll free at 1-800-253-1301. Our consultants are available to assist you.

When calling:

Please know the purchase date, and the complete model and serial number of your appliance (see the “A Note to You” section). This information will help Whirlpool better respond to your request.

Our consultants provide assistance with:

Features and specifications on our full line

•

of appliances Installation information

•

Use and maintenance procedures

•

IF YOU NEED REPLACEMENT PARTS

If you need to order replacement parts, we recommend that you only use FSP® factory specified parts. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new WHIRLPOOL® appliance.

Accessory and repair parts sales

•

Specialized customer assistance (Spanish

•

speaking, hearing impaired, limited vision, etc.) Referrals to local dealers, service companies, and

•

repair parts distributors Whirlpool designated service technicians are

trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

To locate FSP replacement parts in your area, call our Consumer Assistance Center telephone number or your nearest Whirlpool designated service center.

FOR FURTHER ASSISTANCE

If you need further assistance, you can write to Whirlpool with any questions or concerns at:

Whirlpool Brand Home Appliances Consumer Assistance Center c/o Correspondence Dept. 2000 North M-63 Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Page 38

NOTES

Page 39

3939

TOPIC PAGE

FEATURES ....................................................................5

GRIDDLE ................................................................7, 30

MEALTIMER™ CONTROL

Delay start ..............................................................22

Starting now............................................................20

MODEL AND SERIAL NUMBER ..................................2

OVEN DOOR ........................................................32-34

OVEN LIGHT ..............................................................34

OVEN TEMPERATURE

Adjusting ................................................................16

Setting ..............................................................14, 17

OVEN VENT ................................................................24

PANS........................................................................ 8, 9

PARTS ..........................................................................5

RACKS..........................................................................9

ROASTING

Pans .................................................................... 8, 9

Racks ..................................................................9, 14

Setting cycle............................................................14

Tips..........................................................................14

SAFETY ....................................................................3, 4

SELF-CLEANING CYCLE

Before you start ......................................................25

Delay start ..............................................................27

How the cycle works ..............................................28

Setting the controls ................................................26

Tips..........................................................................25

Starting immediately ..............................................26

Stopping the cycle ..................................................28

SERVICE ....................................................................37

STORAGE DRAWER ..................................................24

SURFACE BURNERS

Control knobs............................................................6

Control setting guide ................................................6

POWER™Burner ......................................................6

Power failure ............................................................7

Surface burner markers ............................................5

Tips............................................................................6

TROUBLESHOOTING ..........................................35, 36

WARRANTY ................................................................40

INDEX

TOPIC PAGE

ANTI-TIP BRACKET......................................................3

ASSISTANCE ..............................................................37

BAKING

ACCUBAKE

system ........................................14, 15

Aluminum foil ..........................................................10

Bakeware ................................................................10

Pans ......................................................................8, 9

Preheat conditioning ..............................................15

Racks ..................................................................9, 14

Setting cycle............................................................14

Tips..........................................................................15

BROILING

Grid..........................................................................18

Guidelines ........................................................18, 19

Pan ....................................................................17, 18

Rack positions ........................................................19

Setting cycle............................................................17

CLEANING

Broiler pan and grid ................................................30

Control knobs..........................................................29

Control panel ..........................................................29

Exterior surfaces ....................................................29

Griddle ....................................................................30

Oven cavity ............................................................30

Oven door glass......................................................30

Oven racks ..............................................................30

Self-cleaning cycle..................................................25

Surface burners ................................................30-32

Surface burner grates and caps ............................29

CONTROL PANEL

Burner heat settings..................................................6

Celsius/fahrenheit....................................................16

Control knobs............................................................6

Surface burner markers ............................................5

COOKWARE

Canning ....................................................................7

Materials....................................................................8

Tips............................................................................7

ELECTRONIC OVEN CONTROL

Canceling ................................................................13

Clock ......................................................................12

Control lock ............................................................11

Display/Clock ..........................................................11

Minute timer ......................................................12, 13

Starting....................................................................13

Tones ......................................................................14

Page 40

WHIRLPOOL CORPORATION WILL NOT PAY FOR A. Service calls to:

1. Correct the installation of your range.

2. Instruct you how to use your range.

3. Replace house fuses or correct house wiring or plumbing.

4. Replace owner-accessible light bulbs.

B. Repairs when your range is used in other than normal, single-family household use. C. Pickup and delivery. Your range is designed to be repaired in the home. D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not

approved by Whirlpool Corporation.

E. Repairs to parts or systems resulting from unauthorized modifications made to the appliance. F. Relacement parts or repair labor costs for units operated outside the United States.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the 50 United States, this warranty does not apply. Contact your local Whirlpool dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section, or by calling the Whirlpool Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.

WARRANTY

WHIRLPOOL®GAS RANGE

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY

FROM DATE OF PURCHASE

11/99

WHIRLPOOL CORPORATION WILL PAY FOR

FSP®replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

8273161
