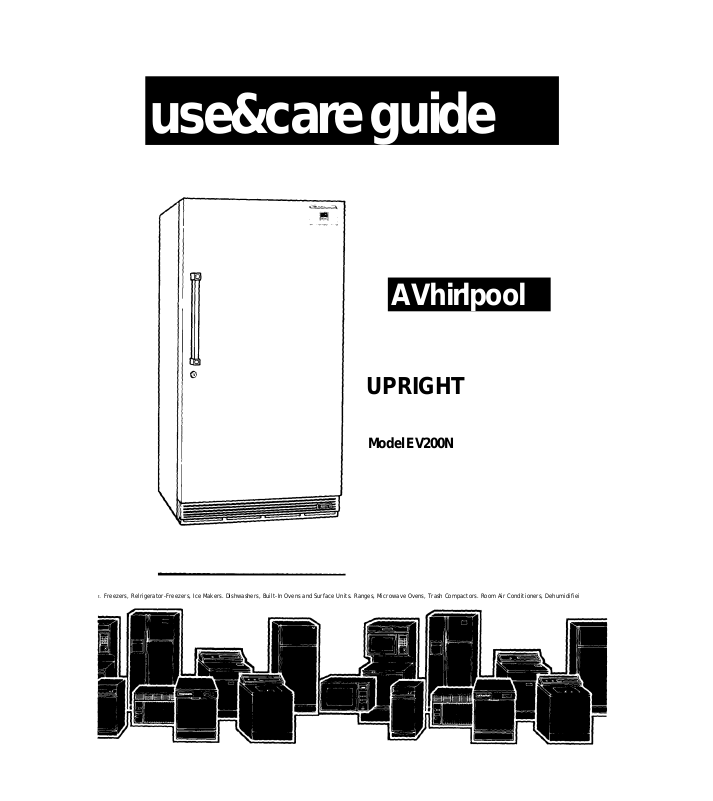

Whirlpool EVZOON User Manual

use&care guide

AVhirlpool

UPRIGHT

Model EV200N

t. Freezers, Relrigerator-Freezers, Ice Makers. Dishwashers, Built-In Ovens and Surface Units. Ranges, Microwave Ovens, Trash Compactors. Room Air Conditioners, Dehumidifiei

Please read this Use and Care Guide before you do anything else...

This booklet tells you how to start your freezer,

clean it and adjust controls.

Treat your new freezer with care. Use it only to

do what home freezers are designed to do.

Parts and features

Interior Light

Stationary Freezer Sheives

Power Saving

Control Temperature

Control Freezer

Basket Base

Grille

, Information Center - This

area holds Information Cards with additional use and safety tips, and Inventory Cards to help you organize and use your freezer items.

Stationary

Door Shelves

Juice Can

Shelves

Key Eject

Lock

Model and

Serial Number

Plate

Signal Light

Copy your Model and Serial Numbers here...

When you need service, or call with a question,

have this information ready:

1. Complete Model and Serial Numbers (from the plate located as shown],

2. Purchase date from sales slip.

Copy this information in these spaces. Keep this book, your warranty and sales slip together in a handy place. There is no warranty registration to re turn. Proof-of-purchase is all that is required for in warranty service.

Model Number

Serial Number

Purchase Date

Service Company and Telephone Number

Contents

Safety First................................................... 3

Before You Plug It In

Install Properly Level Freezer

Remove Sales Label ................................. 4

Clean It ...................................................... 4

Plug It In .................................................... 4

Using Your Freezer...................................... 5

Setting the Temperature Control ............... 5

Adjusting the Temperature Control Cooling Freezer First The Power Saving Control

Changing the Light Bulb............................. 5

Removing the Bottom Basket

The Key Eject Look.................................... 5

Removing the Base Grille The Signal Light

...................................

...........................................

.............................................

.........

................................

.........................

....................

..........................

.........................................

icj1985 Whirlpool Corporation

Safety first

Child entrapment and suffocation are

not things of the past. Junked or aban doned freezers are still dangerous...even if

they will "just sit in the garage a few days.”

If you are getting rid of your old freezer, do it safety. Please read the enclosed safety booklet from the Association of Home Appliance Manufacturers. Help pre vent accidents.

3 4 4

5 5

5 6

Energy Saving Tips.................................... 6

Cleaning Your Freezer

Cleaning Chart .......................................... 7

Freezing Food in Your Freezer................... 8

Packaging and Sealing Food To Wrap Foods Loading Storing Frozen Food

Vacation and Moving Care

Vacation..................................................... 10

Shutting Off and Moving

If You Need Service or Assistance . . 11

1. Before Calling for Assistance

2. If You Need Assistance

3. If You Need Service............................. 11

4. If You Flave a Problem

......................................................

................................

.....................

.........................................

..................................

.........................

............................

...............

.........................

..........................

Page

8 8 9 9 10

10 11

11 11

Before you plug it in

IMPORTANT

Before using your freezer, you are personally re

sponsible for making sure that it.,

• is installed and levelled ona floorthat will hold the weight, and in an area suitable for its size and use.

• is connected only to the right kind of outlet, with the right electrical supply and grounding. (Refer to your ''Electrical Requirements and Grounding Instructions.'']

• is used only for jobs expected of home freezers.

• is not near an oven, radiator or other heat source.

is properly maintained, is out of the weather. is used in an area where the room temperature

will not exceed 110°F [43.3°C]. is not run where there are explosive fumes, is not used by those who may not understand

how it should be used. is not loaded with food before it has time to get

properly cold.

the weight of a fully loaded freezer.

2 Pick a safe place, indoors, away from in

flammables such as gasoline.

3, Allow '/2 Inch (1,25 cm] on each side of the freezer

for ease of installation.

4. If the freezer is to be against a wall, you might want to leave extra space on the hinge side so the door can be opened wider.

Remove sales labels...

Remove the Consumer Buy Guide label and any

inside labels before using the freezer To remove any remaining giue:

1. Rub briskly with thumb to make a ball, then remove.

2, Soak area with dishwashing detergent solution (1

teaspoon detergent in 1 quart warm water) be fore removing glue as described in step 1.

DO NOT USi rubbing alcohoi or fiammabie or

toxic soivents, such as acetone, gasoiine, car bon tetrachioride, etc. These can damage the materiai.

NOTE: DO NOT REMOVE the Tech Sheet fas

tened under the freezer at the front.

Level freezer...

so the door will stay

open at any position.

Levelling Leg

Lower

Start adjustment with the door hinge side.

1. Slide freezer into place,

2. Remove base grille, (see page 6).

3. Adjust front legs to level the freezer.

- To raise front, turn legs in direction shown.

- To lower front, turn legs in direction shown,

4. Check with level.

5. After freezer is fully loaded, recheck with level.

Raise

Plug it in...

3-prong grounding

type wall receptacle

Retaining Clip

Freezer

Power Plug

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is required. It is recommended that a separate circuit serving oniy this appliance be provided. Use a receptacle

which cannot be turned off with a switch or pull chain. Do not use an extension cord.

3-prong

grounding plug

Attach retaining clip over power cord plug from

literature package inside the freezer

+ 8 hidden pages
