Whirlpool EVIDENCE 7033 BR PROGRAM CHART

(1)The programme times

(supplied for information only) are valid for maximum temperature wash without option.

Evidence 7033

Programme Selector Spin Speed Selector Intensive Wash 1/2 Load Rinse Hold On/Off

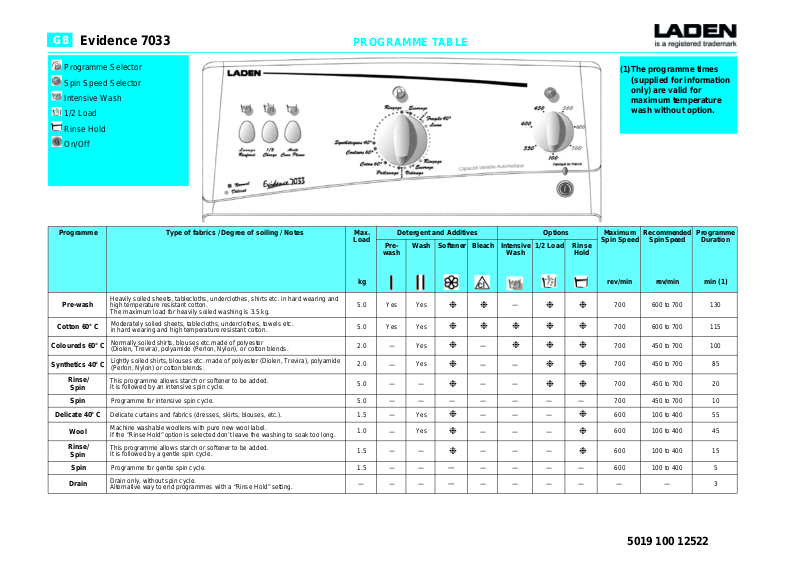

PROGRAMME TABLE

Programme Type of fabrics / Degree of soiling / Notes Max.

Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and

Pre-wash

Cotton 60° C

Coloureds 60° C

Synthetics 40° C

Rinse/

Spin Spin

Delicate 40° C

Wool

Rinse/

Spin

Drain

high temperature resistant cotton. The maximum load for heavily soiled washing is 3.5 kg.

Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high temperature resistant cotton.

Normally soiled shirts, blouses etc.made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon), or cotton blends.

Lightly soiled shirts, blouses etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

This programme allows starch or softener to be added. It is followed by an intensive spin cycle.

Programme for intensive spin cycle. 5.0 Delicate curtains and fabrics (dresses, skirts, blouses, etc.). 1.5 Machine washable woollens with pure new wool label.

If the “Rinse Hold” option is selected don’t leave the washing to soak too long . This programme allows starch or softener to be added.

It is followed by a gentle spin cycle. Programme for gentle spin cycle. 1.5

Drain only, without spin cycle. Alternative way to end programmes with a “Rinse Hold” setting.

Load

5.0 Yes Yes

2.0

5.0

1.0

1.5

———

Detergent and Additives Options Maximum

Pre-

wash

Wash Softener Bleach Intensive

Yes

—

Yes

—

—— ——— — — — —

Yes

— —

—— ——

Yes

Wash

❉❉

1/2 Load Rinse

—

Hold

❉❉

❉❉❉ ❉❉ ❉ ❉ ❉

❉ ❉

❉

— —

—

——

——— ———

——— ————

———— — —

❉❉❉

❉❉ ❉❉

❉ ❉

❉

Spin Speed

rev/min

700 600 to 700 130

700 600 to 700 115

700 450 to 700 100

700 450 to 700 85

700 450 to 700 20

700 450 to 700 10 600 100 to 400 55

600 100 to 400 45

600 100 to 400 15

600 100 to 400 5

Recommended

Spin Speed

rev/min

Programme

Duration

min (1)

5019 100 12522

ENERGY AND WATER CONSUMPTION DATA

Programme Load

(kg)

Cotton + Intensive Wash 95° C 5.0 72 1.8 115

Cotton 60° C 5.0 69 1.15 115 Coloureds 60° C 2.0 66 0.8 100 Synthetics 40° C 2.5 49 0.5 85

Delicate 40° C 1.5 70 0.65 55

Wool 1.0 70 0.55 45

Programmes with pre-wash last about 15 minutes more than programmes without pre-wash. Water and energy consumption values were measured in standard conditions in compliance with the Standard CEI 60456. Individual consumption may vary in comparison with the values specified in the table, because of differences in supply water pressure and temperature, the load and the type of wash.

Water

(l)

Energy

(kWh)

Programme

time

(min)

ADDING DETERGENT AND ADDITIVES

Pour the detergent and additives into the respective compartments as follows:

• Programme with pre-wash and main wash

• Main wash programme without pre-wash

• Fabric softeners and starch

• Bleach

• Stain remover agents

• Anti-scale agents (water hardness 4)

Important:

• Do not fill beyond the “

MAX

” level mark.

• For programme with pre-wash: do not use liquid

detergent.

• For programmes without pre-wash from cold to 40° C, it is recommended to use a liquid detergent to avoid white traces on coloured washing.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1. Turn the

2. Turn the

programme selector spin speed selector

“” clockwise to the required programme.

“” to the required speed.

PRESS THE BUTTON CORRESPONDING TO THE REQUIRED OPTION. “Intensive Wash ”

• This option will allow increasing the wash temperature to 95° C instead of 60° C for the “Cotton 60° C” programme.

• Especially recommended for soiled washing.

“1/2 Load ”

• Reduces the water consumption in the “Cotton” and “Synthetic” programmes especially during pre-wash and rinse.

• Recommended for lightly soiled or small washing loads (reduce the quantity of detergent).

“Rinse Hold ” button

• The unspun washing remains in the last rinse water, thus enabling creasing and discolouration of the washing to be avoided.

• This option is especially recommended for the “Synthetics 40° C” or “Delicate 40° C” programmes.

• This option is perfectly suitable if you wish to postpone the spin or you don’t wish to spin the washing.

Note:

the programme selectro stops on “”.

To stop the programme

• Again press on the “Rinse Hold” button; the programme will stop automatically with the spin cycle corresponding to the previously selected wash programme.

• If you don’t wish to spin the clothes, switch off the appliance by pressi ng the “On/Off

” button. Th e w arni ng li gh t go es ou t. Turn t he pro gramme s ele ct or t o th e “Drain”

position and switch on the appliance.

PROGRAMME START

Open the water inlet tap and press the “On/Off ” button. The warning light lights up.

DOOR LOCK

During the programme, the door cannot be opened. The door locks automatically during all programmes. If the programme is interrupted or if an electrical power failure occurs, the door unlocks automatically after about 1 minute.

PROGRAMME END

• The programme selector knob is at “Stop”.

1. Press the “On/Off” button. The warning light goes out.

2. Cancel the options by pushing the corresponding buttons.

3. Close the water inlet tap.

4. Wait for the door to unlock (about 1 minute).

5. Open the washing machine door and the drum doors. Remove the washing.

PROGRAMME CHANGE AFTER THE START OF THE CYCLE

1. Press the “On/Off” button to switch off the appliance. The warning light goes out.

2. Select another programme, the spin speed and the options.

3. Press the “On/Off” button to switch on the appliance. The warning light lights.

INTERRUPTION OF THE PROGRAMME BEFORE THE END OF THE CYCLE

1. Press the “On/Off” button to switch off the appliance. The warning light goes out.

2. Position the programme selector on “Drain”.

3. Press the “On/Off” button to start the “Drain” programme. Only open the door when the programme selector is at “Stop” and the door is unlocked (after about 1 minute).

5019 100 12522
