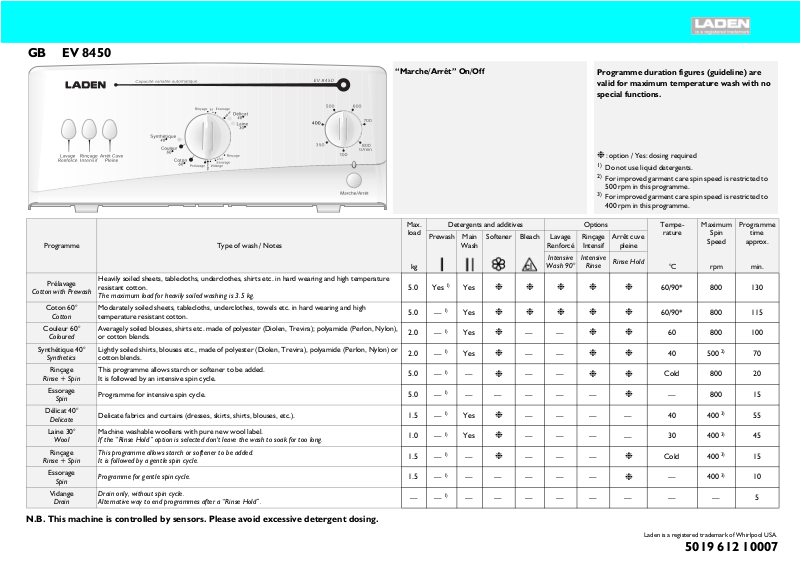

Whirlpool EV 8450 PROGRAM CHART

EV 8450

Programme Type of wash / Notes

Prélavage

Cotton with Prewash

Coton 60°

Cotton

Couleur 60°

Coloured

Synthétique 40°

Synthetics

Rinçage

Rinse + Spin

Essorage

Spin

Délicat 40°

Delicate

Laine 30°

Wool

Rinçage

Rinse + Spin

Essorage

Spin

Vidange

Drain

Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature resistant cotton.

The maximum load for heavily soiled washing is 3.5 kg.

Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high temperature resistant cotton.

Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon), or cotton blends.

Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

This programme allows starch or softener to be added. It is followed by an intensive spin cycle.

Programme for intensive spin cycle.

Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).

Machine washable woollens with pure new wool label.

If the “Rinse Hold” option is selected don't leave the wash to soak for too long. This programme allows starch or softener to be added.

It is followed by a gentle spin cycle.

Programme for gentle spin cycle.

Drain only, without spin cycle. Alternative way to end programmes after a “Rinse Hold”.

“Marche/Arrêt” On/Off

Max.

load

Detergents and additives Options Tempe-

Prewash Main

Wash

5.0 Yes 1)Yes

—

5.0

—

2.0

—

2.0

—

5.0

—

5.0

—

1.5

—

1.0

—

1.5

—

1.5

——

Yes

—

———— —

Yes

—

———— —

—— —

Programme duration figures (guideline) are valid for maximum temperature wash with no special functions.

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care spin speed is restricted to 500 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Softener Bleach Lavage

Renforcé

Intensive

Wash 90°

Rinçage

Intensif

Intensive

Rinse

Arrêt cuve

pleine

Rinse Hold

❉❉❉❉ ❉

❉❉❉❉ ❉ ❉ ❉ ❉

——

❉❉ ❉❉ ❉❉

❉ ❉ ❉ ❉

—— — —

—— —

—

❉

—

—— — —

rature

°C

Maximum

Spin

Speed

rpm

Programme

time

approx.

min.

60/90* 800 130

60/90* 800 115

60 800 100

40 500

Cold 800 20

—

40 400

30 400

Cold 400

—

800 15

400

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Laden is a registered trademark of Whirlpool USA.

5019 612 10007

ENERGY AND WATER CONSUMPTION DATA

Programme Temperature

Load

Water

Energy

Programme

time

(°C)

(kg)

(l)

(kWh)

(min)

Cotton 90 5.0 72 1.80 115

Cotton 60 5.0 72 1.15 115 Coloured 60 2.0 66 0.80 100 Coloured 40 2.0 66 0.40 100

Synthetics 30 1.0 54 0.30 70

Delicate 40 1.5 70 0.65 55

Wool 40 1.0 70 0.55 45

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Coloured Cotton 60°C”. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the household

conditions applicable at that time.

** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains

the water out.

PREPARATION OF WASH CYCLE PRESS ANY DESIRED OPTION BUTTON(S)

1. Close the drum flaps and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as

follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

clockwise

to the desired programme.

4. Turn the

spin speed knob

to the required

Intensive Wash 90° button

• This option allows to put the washing temperature to 90° C instead of 60° C for the

“Cotton” programmes.

• Especially suitable for heavily soiled laundry.

Intensive Rinse button

• The water level increases for improved rinsing efficiency.

• This option is particularly suitable for areas with very soft water when washing baby linen and helps people with skin allergies.

• For improved garment care it is advised to use the option for the Cotton 90° C and the Coloured 60° C programme.

“Lavage Renforcé”

“Rinçage Intensif”

spin speed.

Rinse Hold button

“Arrêt Cuve Pleine”

• The laundry remains in the last rinse water, without progressing to the spin cycle to avoid creasing and prevent colours from changing.

• This option is especially recommended for the “Synthetics” or “Delicate” programmes.

• This option is perfectly suitable if you wish to

postpone the spin or you don't wish to spin the clothes.

Note:

the programme selector stops on “”.

Terminate the “Rinse Hold” option.

• Press the “Rinse Hold” button again; the programme will terminate automatically with the spin cycle corresponding to the previously selected wash programme.

• If you do not wish to spin the clothes, switch off the appliance by pressing the

“On/Off”

button. The pilot light goes out. Turn the programme selector to the “Drain” position and switch on the appliance.

PROGRAMME START

Open the water inlet tap and press the

“On/Off”

button. The pilot lamp lights up.

DOOR LOCK

During the running programme, the door cannot be opened. The door locks automatically in all programmes. If the programme is stopped or if an electrical power failure occurs, the door unlocks automatically after about 1 minute.

PROGRAMME END

• The programme selector knob is at “STOP”, the pilot lamp lights.

1. Press the

“On/Off”

button. The pilot light goes

out.

Cancel the options by pressing the appropriate buttons.

Turn the water supply tap off.

Wait for the door to unlock (about 1 minute).

Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the

“On/Off”

button to switch off the appliance. The pilot light goes out.

Select the new programme, spin speed and options.

Press the

“On/Off”

button to switch on the appliance. The pilot light lights.

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the

“On/Off”

button to switch off the appliance. The pilot light goes out.

Set the programme selector on “Drain”.

Press the

“On/Off”

button to start the “Drain” programme. Only open the door when the programme selector is at “STOP” and the door is unlocked

(after approximately 1 minute).

NOTES AND INDICATIONS FOR USE

• After switching your washing machine on, it does not start immediately: it needs some seconds in order to lock the door, fill water and then drum starts turning.

• Spinning has an interrupted start-up: the drum starts and stops running several times, to improve spin efficiency and to better balance the laundry.

• At the end of the spinning cycle the drum goes on reversing for some minutes: this helps you unloading the laundry.

• Do not exceed in detergents dosage: excessive foam formation may prevent spinning.
