Whirlpool EV 845 INSTRUCTION FOR USE

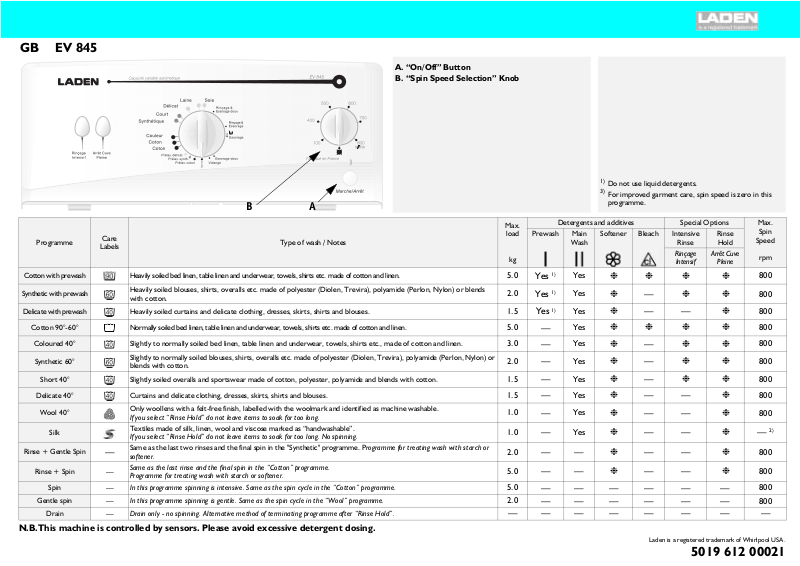

GB EV 845

A. “On/Off” Button

B. “Spin Speed Selection” Knob

B A

1) Do not use liquid detergents.

3)For improved garment care, spin speed is zero in this programme.

		Max.	Detergents and additives				Special Options		Max.
			Prewash	Main	Softener	Bleach	Intensive	Rinse	Spin
	Care	load
									Speed
Programme		Type of wash / Notes		Wash			Rinse	Hold
	Labels
							Rinçage	Arrêt Cuve
		kg							rpm
							Intensif	Pleine

	Cotton with prewash				Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.	5.0	Yes 1)	Yes					800
	Synthetic with prewash				Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends	2.0	Yes 1)	Yes		—			800
					with cotton.
	Delicate with prewash				Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.	1.5	Yes 1)	Yes		—	—		800
	Cotton 90°-60°				Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.	5.0	—	Yes					800
	Coloured 40°				Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc., made of cotton and linen.	3.0	—	Yes		—			800
	Synthetic 60°				Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or	2.0	—	Yes		—			800
					blends with cotton.
	Short 40°				Slightly soiled overalls and sportswear made of cotton, polyester, polyamide and blends with cotton.	1.5	—	Yes		—			800
	Delicate 40°				Curtains and delicate clothing, dresses, skirts, shirts and blouses.	1.5	—	Yes		—	—		800
	Wool 40°				Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.	1.0	—	Yes		—	—		800
					If you select “Rinse Hold” do not leave items to soak for too long.
	Silk				Textiles made of silk, linen, wool and viscose marked as “handwashable”.	1.0	—	Yes		—	—		— 2)
					If you select “Rinse Hold” do not leave items to soak for too long. No spinning.
	Rinse + Gentle Spin	—			Same as the last two rinses and the final spin in the "Synthetic" programme. Programme for treating wash with starch or	2.0	—	—		—	—		800
					softener.
	Rinse + Spin	—			Same as the last rinse and the final spin in the “Cotton” programme.	5.0	—	—		—	—		800
					Programme for treating wash with starch or softener.
	Spin	—			In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.	5.0	—	—	—	—	—	—	800
	Gentle spin	—			In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.	2.0	—	—	—	—	—	—	800
	Drain	—			Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.	—	—	—	—	—	—	—	—

N.B.This machine is controlled by sensors. Please avoid excessive detergent dosing.

Laden is a registered trademark of Whirlpool USA.

5019 612 00021

CONSUMPTION DATA

	Temperature Selector	Load	Water	Energy	Approx. Programme
Programme					Duration
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
Cotton	90	5.0	63*	1.80	2:05
Cotton	60	5.0	59	1.15	2:05
Cotton	40	5.0	55	0.55	2:05
Synthetic	60	2.0	56	0.80	1:35
Synthetic	40	2.0	50	0.40	1:30
Delicate	40	1.5	60	0.55	0:50
Wool	40	1.0	60	0.50	0:40
Silk	30	1.0	60	0.30	0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

*To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

PREPARATION OF WASH CYCLE

1.Load the machine, close the drum flaps and check that they are properly locked.

2.Add detergents and additives into the dispenser

to no more then the “MAX” level mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3.Turn the programme selector knob to the desired programme.

4.Turn the spin speed selector knob to the desired spin speed. If the spin speed “” is selected, the final spin is cancelled, but not the intermediate spins. The

programme ends with a drain cycle.

SELECT THE DESIRED OPTION

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet. “Intensive Rinse” button

•One rinse cycle is added to ensure a more intensive rinse.

•This option is particularly suitable for areas with very soft water, washing baby linen and people

with detergents allergies.

“Rinse Hold” button

•The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

•This option is particularly recommended for the “Synthetic” or “Delicate” programmes.

•This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Remark: The programme selector knob stop on “”.

Appliance in “Rinse Hold”:

•Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle.

•If you do not wish to spin the clothes, press the “On/Off” button, turn the programme selector knob to the “Drain” programme and press the “On/Off” button again.

PROGRAMME START

Turn on the tap and press the “On/Off” button. The indicator light of the “On/Off” button lights up. Remark: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

•The programme selector knob is in the Stop position.

1.Press the “On/Off” button to switch off the machine.

2.Cancel the options.

3.Turn the tap off.

4.Wait for the door to unlock (about 1 minute).

5.Open the door and the drum flaps and unload the machine.

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1.Switch off the machine by pressing the “On/ Off” button.

2.Select the new programme.

3.Start programme by pressing the “On/Off” button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1.Press the “On/Off” button.

2.After the desired pause, press again the “On/ Off” button.

CANCEL PROGRAMME

1.Switch off the machine by pressing the “On/ Off” button.

2.Set the programme selector to “Drain”.

3.Press the “On/Off” button again to start the “Drain” programme.

Laden is a registered trademark of Whirlpool USA.

5019 612 00021
