Whirlpool EV 7642 PROGRAM CHART

GB EVIDENCE 7642

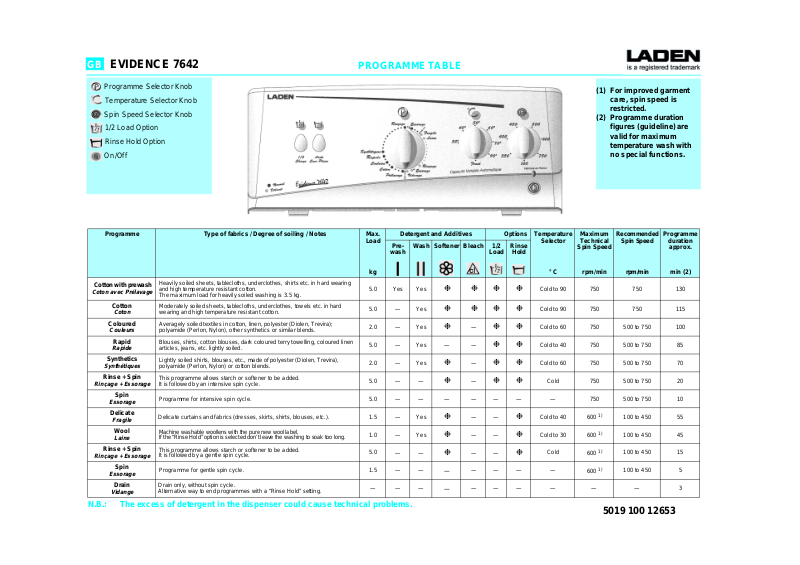

PROGRAMME TABLE

Programme Selector Knob

Temperature Selector Knob

Spin Speed Selector Knob

1/2 Load Option

Rinse Hold Option

On/Off

(1)For improved garment care, spin speed is restricted.

(2)Programme duration figures (guideline) are valid for maximum temperature wash with no special functions.

Programme	Type of fabrics / Degree of soiling / Notes	Max.	Detergent and Additives												Options				Temperature	Maximum	Recommended	Programme
		Load																	Selector	Technical	Spin Speed	duration
			Pre-	Wash			Softener			Bleach			1/2			Rinse				Spin Speed		approx.
			wash										Load				Hold
		kg																	° C	rpm/min	rpm/min	min (2)
Cotton with prewash	Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing
	and high temperature resistant cotton.	5.0	Yes	Yes															Cold to 90	750	750	130
Coton avec Pré lavage
	The maximum load for heavily soiled washing is 3.5 kg.
Cotton	Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard	5.0	—	Yes															Cold to 90	750	750	115
Coton	wearing and high temperature resistant cotton.
Coloured	Averagely soiled textiles in cotton, linen, polyester (Diolen, Trevira);	2.0	—	Yes							—								Cold to 60	750	500 to 750	100
Couleurs	polyamide (Perlon, Nylon), other synthetics or similar blends.
Rapid	Blouses, shirts, cotton blouses, dark coloured terry towelling, coloured linen	5.0	—	Yes				—			—								Cold to 40	750	500 to 750	85
Rapide	articles, jeans, etc. lightly soiled.
Synthetics	Lightly soiled shirts, blouses, etc., made of polyester (Diolen, Trevira),	2.0	—	Yes							—								Cold to 60	750	500 to 750	70
Synthé tiques	polyamide (Perlon, Nylon) or cotton blends.
Rinse + Spin	This programme allows starch or softener to be added.	5.0	—	—							—								Cold	750	500 to 750	20
Rinç age + Essorage	It is followed by an intensive spin cycle.
Spin	Programme for intensive spin cycle.	5.0	—	—			—			—		—		—					—	750	500 to 750	10
Essorage
Delicate	Delicate curtains and fabrics (dresses, skirts, shirts, blouses, etc.).	1.5	—	Yes							—			—					Cold to 40	600 1)	100 to 450	55
Fragile
Wool	Machine washable woollens with the pure new wool label.	1.0	—	Yes							—			—					Cold to 30	600 1)	100 to 450	45
Laine	If the “Rinse Hold” option is selected don’t leave the washing to soak too long.
Rinse + Spin	This programme allows starch or softener to be added.	5.0	—	—							—			—					Cold	600 1)	100 to 450	15
Rinç age + Essorage	It is followed by a gentle spin cycle.
Spin	Programme for gentle spin cycle.	1.5	—	—				—			—			—		—			—	600 1)	100 to 450	5
Essorage
Drain	Drain only, without spin cycle.	—	—	—				—			—			—		—			—	—	—	3
Vidange	Alternative way to end programmes with a “Rinse Hold” setting.

N.B.: The excess of detergent in the dispenser could cause technical problems.

5019 100 12653

GB

ENERGY AND WATER CONSUMPTION DATA

	Programme		Temperature						Load				Water					Energy			Programme
				selector																		time
					(°C)				(kg)					(l)				(kWh)				(min)
	Cotton		90					5.0				72					1.80				115
	Cotton		60					5.0				69					1.15				115
Coloured			60					2.0				66					0.80				100
Coloured			60					2.0				54					0.40				100
Rapid + 1/2 Load			40					2.5				49					0.50				85
Synthetics + 1/2 Load			30					1.5				45					0.30				70
Delicate			40					1.5				70					0.65				55
	Wool		40					1.0				70					0.55				45

Programmes with pre-wash last about 15 minutes more than programmes without pre-wash. Water and energy consumption values were measured in standard conditions in compliance with the Standard IEC 60 456. Individual consumption may vary in comparison with the values specified in the table, because of differences in supply water pressure and temperature, the load and the type of wash.

ADDING DETERGENT AND ADDITIVES

Add the detergent and the additives into the dispenser as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (water hardness 4)

Important Note:

•Be careful not to fill more than the “MAX” level mark.

•For programme with prewash: do not use liquid detergent.

•For programmes without prewash from cold to 40° C, it is recommended to use a liquid detergent to avoid white traces on coloured washing.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1.Turn the programme selector knob to the desired programme.

2.Turn the temperature selector knob to the desired temperature.

3.Turn the spin speed selector knob to the desired speed.

PRESS THE BUTTON CORRESPONDING TO THE REQUIRED OPTION

“1/2 Load ” button

•Reduces the water consumption in the “Cotton” and “Synthetics” programmes above all during prewash and rinse.

•Especially suitable for lightly soiled or small loads (reduce the detergent quantity).

“Rinse Hold” button

•The laundry remains in the last rinse water without progressing to spin cycle to avoid creasing and prevent colours from changing.

•This option is particularly recommended for the programme “Synthetics” or “Delicate”.

•This option is perfectly suitable if you wish to postpone the spin or you don’t wish to spin the washing.

Note: the programme selector stops on .”

Terminate the programme

•Press the “Rinse Hold” button again; the programme will terminate automatically with the spin cycle corresponding to the previously selected wash programme.

•If you don’t wish to spin the clothes, switch off the appliance by pressing the “On/Off ” button. The pilot light goes out. Turn the programme selector to the “Drain” position and

switch on the appliance.

PROGRAMME START

Open the tap and press the “On/Off ” button. The pilot lamp lights up.

DOOR LOCK

During the running programme the door cannot be opened The door locks automatically during all programmes.

If the programme is stopped or the electrical power supply is terminated, the door lock will open after approximately 1 minute.

PROGRAMME END

•The programme selector knob is at “Stop”.

1.Press the “On/Off” button. The pilot light goes out.

2.Cancel the options by pressing the corresponding buttons.

3.Turn the water supply tap off.

4.Wait for the door to unlock (about 1 minute).

5.Open the washing machine door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1.Press the “On/Off” button to switch off the appliance. The pilot lamp lights up.

2.Select another programme, the spin speed and the options.

3.Press the “On/Off” button to switch on the appliance. The pilot lamp lights up.

TO STOP, RESET A PROGRAMME BEFORE THE END

1.Press the “On/Off” button to switch off the appliance. The pilot lamp lights up.

2.Set the programme selector to “Drain”.

3.Press the “On/Off” button to start the drain programme.

Only open the door when the programme selector is at “Stop” and the door is unlocked (after approximately 1 minute).

5019 100 12653
