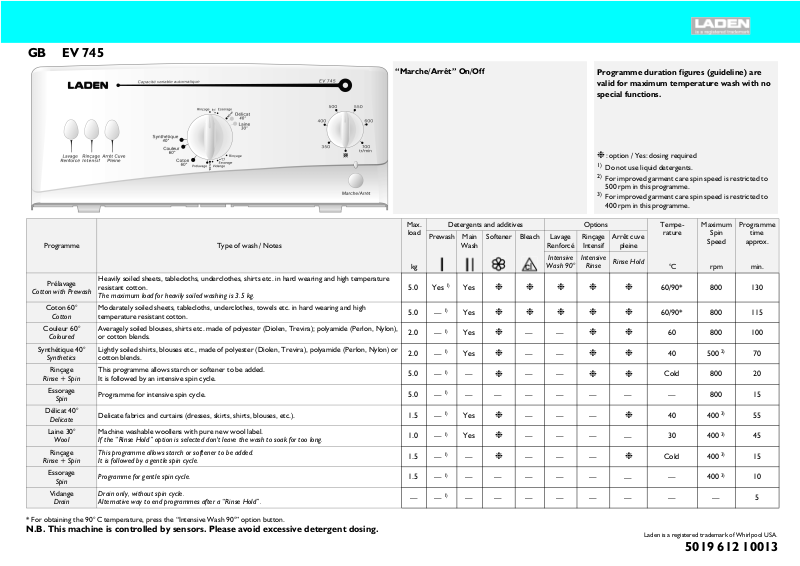

Whirlpool EV 745 PROGRAM CHART

GB EV 745

“Marche/Arrêt” On/Off	Programme duration figures (guideline) are
	valid for maximum temperature wash with no
	special functions.

																	: option / Yes: dosing required
															1)			Do not use liquid detergents.
															2)			For improved garment care spin speed is restricted to
																		500 rpm in this programme.
															3)			For improved garment care spin speed is restricted to
																		400 rpm in this programme.
			Max.	Detergents and additives											Options					Tempe-	Maximum	Programme
			load	Prewash	Main			Softener			Bleach			Lavage	Rinçage				Arrêt cuve	rature	Spin	time
																					Speed	approx.
Programme	Type of wash / Notes				Wash									Renforcé	Intensif				pleine
			kg											Intensive	Intensive				Rinse Hold	°C	rpm	min.
														Wash 90°	Rinse
Prélavage	Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature		5.0	Yes 1)	Yes															60/90*	800	130
	resistant cotton.
Cotton with Prewash
	The maximum load for heavily soiled washing is 3.5 kg.
Coton 60°	Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high		5.0	— 1)	Yes															60/90*	800	115
Cotton	temperature resistant cotton.
Couleur 60°	Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon),		2.0	— 1)	Yes							—		—						60	800	100
Coloured	or cotton blends.
Synthétique 40°	Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or		2.0	— 1)	Yes							—		—						40	500 2)	70
Synthetics	cotton blends.
Rinçage	This programme allows starch or softener to be added.		5.0	— 1)	—							—		—						Cold	800	20
Rinse + Spin	It is followed by an intensive spin cycle.
Essorage	Programme for intensive spin cycle.		5.0	— 1)	—				—			—		—		—			—	—	800	15
Spin
Délicat 40°	Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).		1.5	— 1)	Yes							—		—		—				40	400 3)	55
Delicate
Laine 30°	Machine washable woollens with pure new wool label.		1.0	— 1)	Yes							—		—		—			—	30	400 3)	45
Wool	If the “Rinse Hold” option is selected don't leave the wash to soak for too long.
Rinçage	This programme allows starch or softener to be added.		1.5	— 1)	—							—		—		—				Cold	400 3)	15
Rinse + Spin	It is followed by a gentle spin cycle.
Essorage	Programme for gentle spin cycle.		1.5	— 1)	—				—			—		—		—			—	—	400 3)	10
Spin
Vidange	Drain only, without spin cycle.		—	— 1)	—				—			—		—		—			—	—	—	5
Drain	Alternative way to end programmes after a “Rinse Hold”.

* For obtaining the 90° C temperature, press the “Intensive Wash 90°” option button.

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Laden is a registered trademark of Whirlpool USA.

5019 612 10013

ENERGY AND WATER CONSUMPTION DATA

Programme	Temperature	Load	Water	Energy	Programme
					time
	(°C)	(kg)	(l)	(kWh)	(min)
Cotton	90	5.0	72	1.80	115
Cotton	60	5.0	72	1.15	115
Coloured	60	2.0	66	0.80	100
Coloured	40	2.0	66	0.40	100
Synthetics	30	1.0	54	0.30	70
Delicate	40	1.5	70	0.65	55
Wool	30	1.0	70	0.55	45

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Coloured Cotton 60°C”.

*The remaining time indicator can similarly deviate from the values in the table, because it takes into account the household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

PREPARATION OF WASH CYCLE

1.Close the drum flaps and check that they are properly locked.

2.Add detergents and additives into the dispenser to no more then the “MAX” level mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3.Turn the programme selector knob clockwise to the desired programme.

4.Turn the spin speed knob to the required spin speed.

PRESS ANY DESIRED OPTION BUTTON(S)

Intensive Wash 90° button “Lavage Renforcé”

•This option allows to put the washing temperature to 90° C instead of 60° C for the “Cotton” programmes.

•Especially suitable for heavily soiled laundry.

Intensive Rinse button “Rinçage Intensif”

•The water level increases for improved rinsing efficiency.

•This option is particularly suitable for areas with very soft water when washing baby linen and helps people with skin allergies.

•For improved garment care it is advised to use the option for the Cotton 90° C and the Coloured 60° C programme.

Rinse Hold button “Arrêt Cuve Pleine”

•The laundry remains in the last rinse water, without progressing to the spin cycle to avoid creasing and prevent colours from changing.

•This option is especially recommended for the “Synthetics” or “Delicate” programmes.

•This option is perfectly suitable if you wish to postpone the spin or you don't wish to spin the clothes.

Note: the programme selector stops on “”.

Terminate the “Rinse Hold” option.

•Press the “Rinse Hold” button again; the programme will terminate automatically with the spin cycle corresponding to the previously selected wash programme.

•If you do not wish to spin the clothes, switch off the appliance by pressing the “On/Off” button. The pilot light goes out. Turn the programme selector to the “Drain” position and switch on the appliance.

PROGRAMME START

Open the water inlet tap and press the “On/Off” button. The pilot lamp lights up.

DOOR LOCK

During the running programme, the door cannot be opened.

The door locks automatically in all programmes. If the programme is stopped or if an electrical power failure occurs, the door unlocks automatically after about 1 minute.

PROGRAMME END

•The programme selector knob is at “STOP”, the pilot lamp lights.

1.Press the “On/Off” button. The pilot light goes out.

2.Cancel the options by pressing the appropriate buttons.

3.Turn the water supply tap off.

4.Wait for the door to unlock (about 1 minute).

5.Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1.Press the “On/Off” button to switch off the appliance.

The pilot light goes out.

2.Select the new programme, spin speed and options.

3.Press the “On/Off” button to switch on the appliance.

The pilot light lights.

TO STOP, RESET A PROGRAMME BEFORE THE END

1.Press the “On/Off” button to switch off the appliance.

The pilot light goes out.

2.Set the programme selector on “Drain”.

3.Press the “On/Off” button to start the “Drain” programme.

Only open the door when the programme selector is at “STOP” and the door is unlocked (after approximately 1 minute).

NOTES AND INDICATIONS FOR USE

•After switching your washing machine on, it does not start immediately: it needs some seconds in order to lock the door, fill water and then drum starts turning.

•Spinning has an interrupted start-up: the drum starts and stops running several times, to improve spin efficiency and to better balance the laundry.

•At the end of the spinning cycle the drum goes on reversing for some minutes: this helps you unloading the laundry.

•Do not exceed in detergents dosage: excessive foam formation may prevent spinning.

•Your imbalance detection and correction system reduces spin speed or interrupts the spin automatically in case of imbalance load – see “Troubleshooting guide”.

•Your machine has a new, electronically-controlled motor: don’t be surprised by its sound.

•If you want to change the programme during the wash cycle, remember to switch the machine off before turning the programme selector knob.
