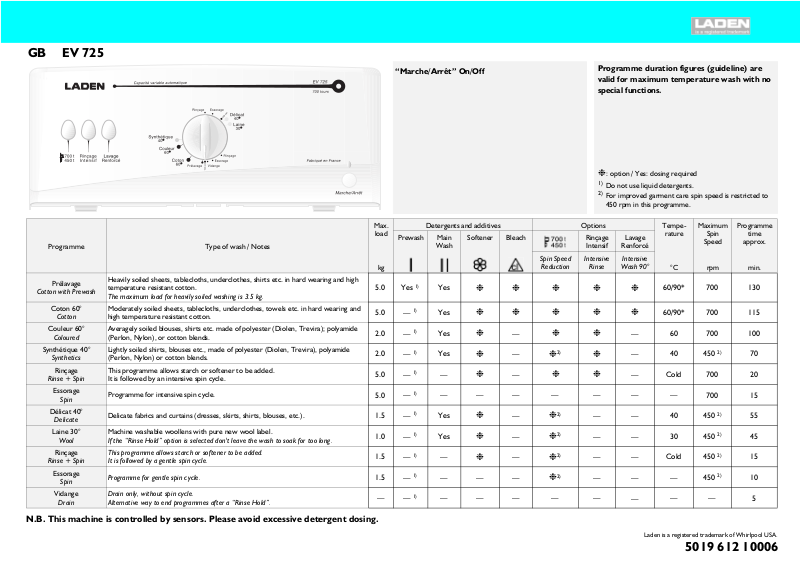

Whirlpool EV 725 PROGRAM CHART

EV 725

“Marche/Arrêt” On/Off

Programme duration figures (guideline) are valid for maximum temperature wash with no special functions.

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care spin speed is restricted to 450 rpm in this programme.

Programme Type of wash / Notes

Prélavage

Cotton with Prewash

Coton 60°

Cotton

Couleur 60°

Coloured

Synthétique 40°

Synthetics

Rinçage

Rinse + Spin

Essorage

Spin

Délicat 40°

Delicate

Laine 30°

Wool

Rinçage

Rinse + Spin

Essorage

Spin

Vidange

Drain

Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature resistant cotton.

The maximum load for heavily soiled washing is 3.5 kg.

Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high temperature resistant cotton.

Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon), or cotton blends.

Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

This programme allows starch or softener to be added. It is followed by an intensive spin cycle.

Programme for intensive spin cycle.

Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).

Machine washable woollens with pure new wool label.

If the “Rinse Hold” option is selected don't leave the wash to soak for too long. This programme allows starch or softener to be added.

It is followed by a gentle spin cycle.

Programme for gentle spin cycle.

Drain only, without spin cycle. Alternative way to end programmes after a “Rinse Hold”.

Max.

load

Prewash Main

5.0 Yes

5.0

2.0

5.0

1.5

1.0

1.5

——

—

Detergents and additives Options Tempe-

Wash

Yes

Softener Bleach Rinçage

Spin Speed

Reduction

Intensif

Intensive

Rinse

❉❉ ❉ ❉ ❉

❉❉ ❉ ❉ ❉ ❉ ❉

—

——— — — — —

❉

❉ ❉

—

———

——— — —

❉

—

❉❉

❉

❉❉

❉

——

—— —

Lavage

Renforcé

Intensive

Wash 90°

—

rature

°C

60/90* 700 130

60/90* 700 115

60 700 100

40 450

Cold 700 20

40 450

30 450

Cold 450

——

Maximum

Spin

Speed

rpm

700 15

450

Programme

time

approx.

min.

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Laden is a registered trademark of Whirlpool USA.

5019 612 10006

ENERGY AND WATER CONSUMPTION DATA

Programme Temperature

Load

Water

Energy

Programme

time

(°C)

(kg)

(l)

(kWh)

(min)

Cotton 90 5.0 72 1.80 115

Cotton 60 5.0 72 1.15 115 Coloured 60 2.0 66 0.80 100 Coloured 40 2.0 66 0.40 100 Synthetics 30 1.0 54 0.30 70

Delicate 40 1.5 70 0.65 55

Wool 40 1.0 70 0.55 45

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Coloured Cotton 60°C”. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the household

conditions applicable at that time.

** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains

the water out.

PREPARATION OF WASH CYCLE PRESS ANY DESIRED OPTION BUTTON(S)

1. Close the drum flaps and check that they are properly locked.

Add detergents and additives into the dispenser to no more then the

“MAX

” level mark, as

follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

Turn the

programme selector knob

clockwise

to the desired programme.

Spin Speed Reduction button “”

• Press the button to set the spin speed.

Note:

every programme has an automatic

maximum spin speed.

Intensive Rinse button

“Rinçage Intensif”

• The water level increases for improved rinsing efficiency.

• This option is particularly suitable for areas with very soft water when washing baby linen and helps people with skin allergies.

• For improved garment care it is advised to use the option for the Cotton 90° C and the Coloured 60° C programme.

Intensive Wash 90° button

“Lavage Renforcé”

• This option allows to put the washing temperature to 90° C instead of 60° C for the

“Cotton” programmes.

• Especially suitable for heavily soiled laundry.

PROGRAMME START

Open the water inlet tap and press the

“On/Off”

button. The pilot lamp lights up.

DOOR LOCK

During the running programme, the door cannot be opened. The door locks automatically in all programmes. If the programme is stopped or if an electrical power failure occurs, the door unlocks automatically after about 1 minute.

PROGRAMME END

• The programme selector knob is at “STOP”, the pilot lamp lights.

1. Press the

“On/Off”

button. The pilot light goes

out.

Cancel the options by pressing the appropriate buttons.

Turn the water supply tap off.

Wait for the door to unlock (about 1 minute).

Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the

“On/Off”

button to switch off the appliance. The pilot light goes out.

Select the new programme and options.

Press the

“On/Off”

button to switch on the appliance. The pilot light lights.

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the

“On/Off”

button to switch off the appliance. The pilot light goes out.

Set the programme selector on “Drain”.

Press the

“On/Off”

button to start the “Drain” programme. Only open the door when the programme selector is at “STOP” and the door is unlocked

(after approximately 1 minute).

NOTES AND INDICATIONS FOR USE

• After switching your washing machine on, it does not start immediately: it needs some seconds in order to lock the door, fill water and then drum starts turning.

• Spinning has an interrupted start-up: the drum starts and stops running several times, to improve spin efficiency and to better balance the laundry.

• At the end of the spinning cycle the drum goes on reversing for some minutes: this helps you unloading the laundry.

• Do not exceed in detergents dosage: excessive foam formation may prevent spinning.
