GB

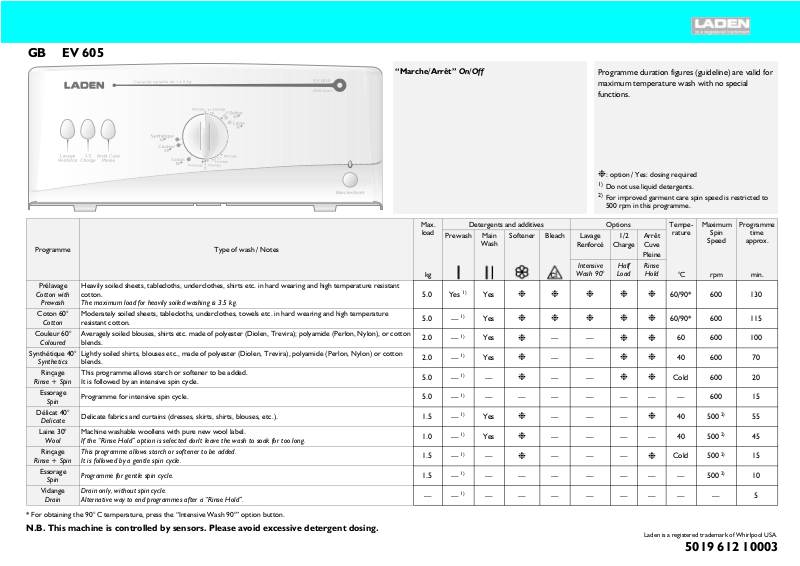

EV 605
Programme Type of wash / Notes
Prélavage
Cotton with
Prewash
Coton 60°
Cotton
Couleur 60°
Coloured
Synthétique 40°
Synthetics
Rinçage
Rinse + Spin
Essorage
Spin
Délicat 40°
Delicate
Laine 30°
Wool
Rinçage
Rinse + Spin
Essorage
Spin
Vidange
Drain
* For obtaining the 90° C temperature, press the “Intensive Wash 90°” option button.
Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature resistant
cotton.
The maximum load for heavily soiled washing is 3.5 kg.
Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high temperature
resistant cotton.
Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon), or cotton
blends.
Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton
blends.
This programme allows starch or softener to be added.
It is followed by an intensive spin cycle.
Programme for intensive spin cycle.
Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).
Machine washable woollens with pure new wool label.
If the “Rinse Hold” option is selected don't leave the wash to soak for too long.
This programme allows starch or softener to be added.
It is followed by a gentle spin cycle.
Programme for gentle spin cycle.
Drain only, without spin cycle.
Alternative way to end programmes after a “Rinse Hold”.
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.
“Marche/Arrêt”
Max.
load
Prewash Main
kg
5.0 Yes
—
5.0
—
2.0
—
2.0
—
5.0
—
5.0
—
1.5
—
1.0
—
1.5
—
1.5
——
On/Off
Programme duration figures (guideline) are valid for
maximum temperature wash with no special
functions.
❉
: option / Yes: dosing required
1)
Do not use liquid detergents.
2)
For improved garment care spin speed is restricted to
500 rpm in this programme.
Detergents and additives Options Tempe-
Softener Bleach Lavage
Wash
1)
Yes
1)
Yes
1)
Yes
1)
Yes
1)
—
1)
——— ————
1)
Yes
1)
Yes
1)
—
1)
——— ————
1)
——— ———— —
❉❉ ❉❉❉
❉❉ ❉❉❉
❉
❉
❉
❉
❉
❉
Renforcé
Intensive
Wash 90°
——
——
——
———
————
———
1/2
Charge
Pleine
Half
Load
❉❉
❉❉
❉❉
rature
Arrêt
Cuve
Rinse
Hold
°C
60/90* 600 130
60/90* 600 115
60 600 100
40 600 70
Cold 600 20
❉
40 500
40 500
Cold 500
❉
Laden is a registered trademark of Whirlpool USA.
Maximum
Spin
Speed
rpm
Programme
time
approx.
min.
600 15
500
2)
2)
2)
2)
55
45
15
10
5
5019 612 10003
Page 2
ENERGY AND WATER CONSUMPTION DATA
Programme Temperature
Load
Water
Energy
Programme time
(°C)
(kg)
(l)
(kWh)
(min)
Cotton 90 5.0 72 1.80 115
Cotton 60 5.0 72 1.15 115
Coloured 60 2.0 66 0.80 100
Coloured 40 2.0 66 0.40 100
Synthetics + 1/2 Load 30 1.0 54 0.30 70
Delicate 40 1.5 70 0.65 55
Wool 40 1.0 70 0.55 45
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the
table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy
Label” refer to the programme “Coloured Cotton 60°C”.
* The remaining time indicator can similarly deviate from the values in the table, because it takes into account the household
conditions applicable at that time.
** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains
the water out.
PREPARATION OF WASH CYCLE PRESS ANY DESIRED OPTION BUTTON(S)
1. Close the drum flaps and check that they are
properly locked.
2.
Add detergents and additives into the dispenser
to no more then the
“MAX”
level mark, as
follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
• Stain remover agents
• Anti-scale agents (if necessary)
3.
Turn the
programme selector knob
clockwise
to the desired programme.
Intensive Wash 90° button
• This option allows to put the washing
temperature to 90° C instead of 60° C for the
“Cotton” programmes.
• Especially suitable for heavily soiled laundry.
Half Load button
“Charge Reduite”
• Reduces the water consumption in the “Cotton”
and “Synthetics” programmes especially during
the rinse.
• Especially suitable for lightly soiled or small loads
(reduces the quantity of detergent).
• Not suitable for high temperature programmes.
Rinse Hold button
“Arrêt cuve pleine”
• The laundry remains in the last rinse water,
“Intensif 90°”
without progressing to the spin cycle to avoid
creasing and prevent colours from changing.
• This option is especially recommended for the
“Synthetics” or “Delicate” programmes.
• This option is perfectly suitable if you wish to
postpone the spin or you don't wish to spin the
clothes.
Note:
the programme selector stops on ““.
Terminate the “Rinse Hold” option.
• Press the “Rinse Hold” button again; the
programme will terminate automatically with
the spin cycle corresponding to the previously
selected wash programme.
• If you do not wish to spin the clothes, switch off
the appliance by pressing the
“On/Off”
button.
The pilot light goes out. Turn the programme
selector to the “Drain” position and switch on
the appliance.
PROGRAMME START
Open the water inlet tap and press the
“On/Off”
button. The pilot lamp lights up.
DOOR LOCK
During the running programme, the door cannot be
opened.
The door locks automatically in all programmes.
If the programme is stopped or if an electrical
power failure occurs, the door unlocks
automatically after about 1 minute.
PROGRAMME END
• The programme selector knob is at “STOP”,
the pilot lamp lights.
1. Press the
“On/Off”
button. The pilot light goes
out.
2.
Cancel the options by pressing the appropriate
buttons.
3.
Turn the water supply tap off.
4.
Wait for the door to unlock (about 1 minute).
5.
Open the door and the drum flaps and unload
the machine.
SELECTING A NEW PROGRAMME, SPIN
SPEED, OPTIONS AFTER PROGRAMME
START
1. Press the
“On/Off”
button to switch off the
appliance.
The pilot light goes out.
2.
Select the new programme and options.
3.
Press the
“On/Off”
button to switch on the
appliance.
The pilot light lights.
TO STOP, RESET A PROGRAMME BEFORE
THE END
1. Press the
“On/Off”
button to switch off the
appliance.
The pilot light goes out.
2.
Set the programme selector on “Drain”.
3.
Press the
“On/Off”
button to start the “Drain”
programme.
Only open the door when the programme
selector is at “STOP” and the door is unlocked
(after approximately 1 minute).
NOTES AND INDICATIONS FOR USE
• After switching your washing machine on, it
does not start immediately: it needs some
seconds in order to lock the door, fill water and
then drum starts turning.
• Spinning has an interrupted start-up: the drum starts
and stops running several times, to improve spin
efficiency and to better balance the laundry.
• At the end of the spinning cycle the drum goes
on reversing for some minutes: this helps you
unloading the laundry.
• Do not exceed in detergents dosage: excessive
foam formation may prevent spinning.
• Your imbalance detection and correction
system reduces spin speed or interrupts the
spin automatically in case of imbalance load –
see “Troubleshooting guide”.
• Your machine has a new, electronically-controlled
motor: don’t be surprised by its sound.
• If you want to change the programme during
the wash cycle, remember to switch the
machine off before turning the programme
selector knob.
