Whirlpool EV 4021 PROGRAM CHART
GB
EV 4021
Programme Selector
Temperature Selector
1/2 Load Option
On/Off
Froid
Cold

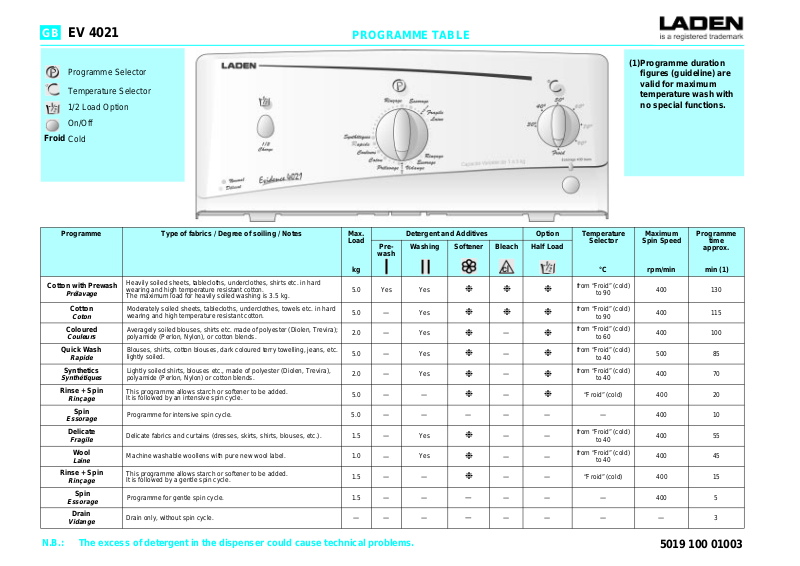

PROGRAMME TABLE
(1) Programme duration
figures (guideline) are
valid for maximum
temperature wash with
no special functions.
Programme Type of fabrics / Degree of soiling / Notes Max.
Cotton with Prewash
Prélavage
Cotton
Coton
Coloured
Couleurs
Quick Wash
Rapide
Synthetics
Synthétiques
Rinse + Spin
Rinçage
Spin
Essorage
Delicate
Fragile
Wool
Laine
Rinse + Spin
Rinçage
Spin
Essorage
Drain
Vidange
Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard
wearing and high temperature resistant cotton.
The maximum load for heavily soiled washing is 3.5 kg.
Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard
wearing and high temperature resistant cotton.
Averagely soiled blouses, shirts etc. made of po lyeste r (Diolen , Tr evira);
polyamide (Perlon, Nylon), or cotton blends.
Blouses, shirts, cotton blouses, dark coloured terry towelling, jeans, etc.
lightly soiled.
Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or cotton blends.
This programme allows starch or softener to be added.
It is followed by an intensive spin cycle.
Programme for intensive spin cycle. 5.0
Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.). 1.5
Machine washable woollens with pure new wool label. 1.0
This programme allows starch or softener to be added.
It is followed by a gentle spin cycle.
Programme for gentle spin cycle. 1.5
Drain only, without spin cycle.
Load
kg
5.0 Yes Yes
5.0
2.0
5.0
2.0
5.0
1.5
—— —
Detergent and Additives Option Temperature
Pre-
wash
Washing Softener Bleach Half Load
—
—
—
—
——
—— —— — —
—
—
——
——
Yes
Yes
Yes
Yes
Yes
Yes
❉❉ ❉
❉❉ ❉
❉
❉
❉
❉
❉
❉
❉
—
—
—
—
—
—
——
——
——
—— —
—— — —
❉
❉
❉
❉
Selector
°C
from “Froid” (cold)
to 90
from “Froid” (cold)
to 90
from “Froid” (cold)
to 60
from “Froid” (cold)
to 40
from “Froid” (cold)
to 40
“Froid” (cold) 400 20
from “Froid” (cold)
to 40
from “Froid” (cold)
to 40
“Froid” (cold) 400 15
Maximum
Spin Speed
rpm/min
400 130
400 115
400 100
500 85
400 70
400 10
400 55
400 45
400 5
Programme
time
approx.
min (1)
3
N.B.: The excess of detergent in the dispenser could cause technical problems.
5019 100 01003
GB
ENERGY AND WATER CONSUMPTION DATA
Programme Temperature
(°C)
Cotton 90 5.0 72 1.80 115
Cotton 60 5.0 70 1.20 115
Coloured 60 2.0 66 0.80 100
Coloured 40 2.0 66 0.40 100
Quick Wash + 1/2 Load 40 2.5 57 0.55 85
Synthetics + 1/2 Load 30 1.0 55 0.30 70
Delicate 40 1.5 70 0.65 55
Wool 40 1.0 70 0.55 45
Programmes with prewash last about 15 minutes more than programmes without prewash. Water and energy
consumption values were measured in standard conditions in compliance with the Standard IEC 60 456. Individual
consumption may vary in comparison with the values specified in the table, because of differences in supply water
pressure and temperature, the load and the type of wash.
Load
(kg)
Water
(l)
Energy
(kWh)
Programme
time
(min)
ADDING DETERGENT AND ADDITIVES
Pour the detergent and additives into the respective
compartments as follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and starch
• Bleach
• Stain removers
• Anti-scale agents (water hardness 4)
Important Note:
• Do not fill beyond the “
MAX”
level mark.
• For programme with prewash: do not use liquid detergent.
• For programmes without prewash from cold to 40° C, it is recommended to use a liquid
detergent to avoid whitish residues on the coloured laundry.
CLOSE THE DOOR AND SELECT THE PROGRAMME
1. Turn the
2. Turn the
programme selector knob
temperature knob
to the required temperature.
clockwise to the desired programme.
PRESS ANY DESIRED OPTION BUTTON(S)
“Half Load” button
• Reduces the water consumption in the “Cotton” and “Synthetics” programmes
especially during the rinse.
• Especially suitable for lightly soiled or small loads (reduce the quantity of detergent).
• Not suitable for high temperature programmes.
PROGRAMME START
Open the water inlet tap and press the On/Off button “ ”. The pilot lamp lights up.
DOOR LOCK
During the running programme, the door cannot be opened.
The door locks automatically in all programmes.
If the programme is stopped or if an electrical power failure occurs, the door unlocks
automatically after about 1 minute.
PROGRAMME END
• The programme selector knob is at “STOP”.
1. Press the On/Off button “ ”. The pilot light goes out.
2. Cancel the options by pressing the appropriate buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload the machine.
SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER
PROGRAMME START
1. Press the On/Off button “ ” to switch off the appliance.
The pilot light goes out.
2. Select the new programme, temperature and options.
3. Press the On/Off button “ ” to switch on the appliance.
The pilot light lights.
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Press the On/Off button “ ” to switch off the appliance.
The pilot light goes out.
2. Set the programme selector on “Drain”.
3. Press the On/Off button “ ” to start the “Drain” programme.
Only open the door when the programme selector is at “STOP” and
the door is unlocked (after approximately 1 minute).
5019 100 01003
