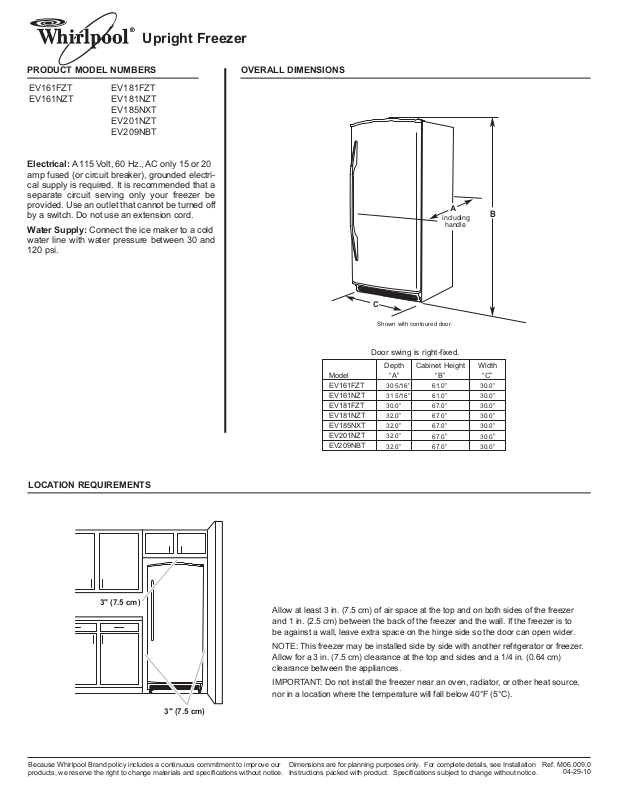

Upright Freezer
PRODUCT MODEL NUMBERS |
|

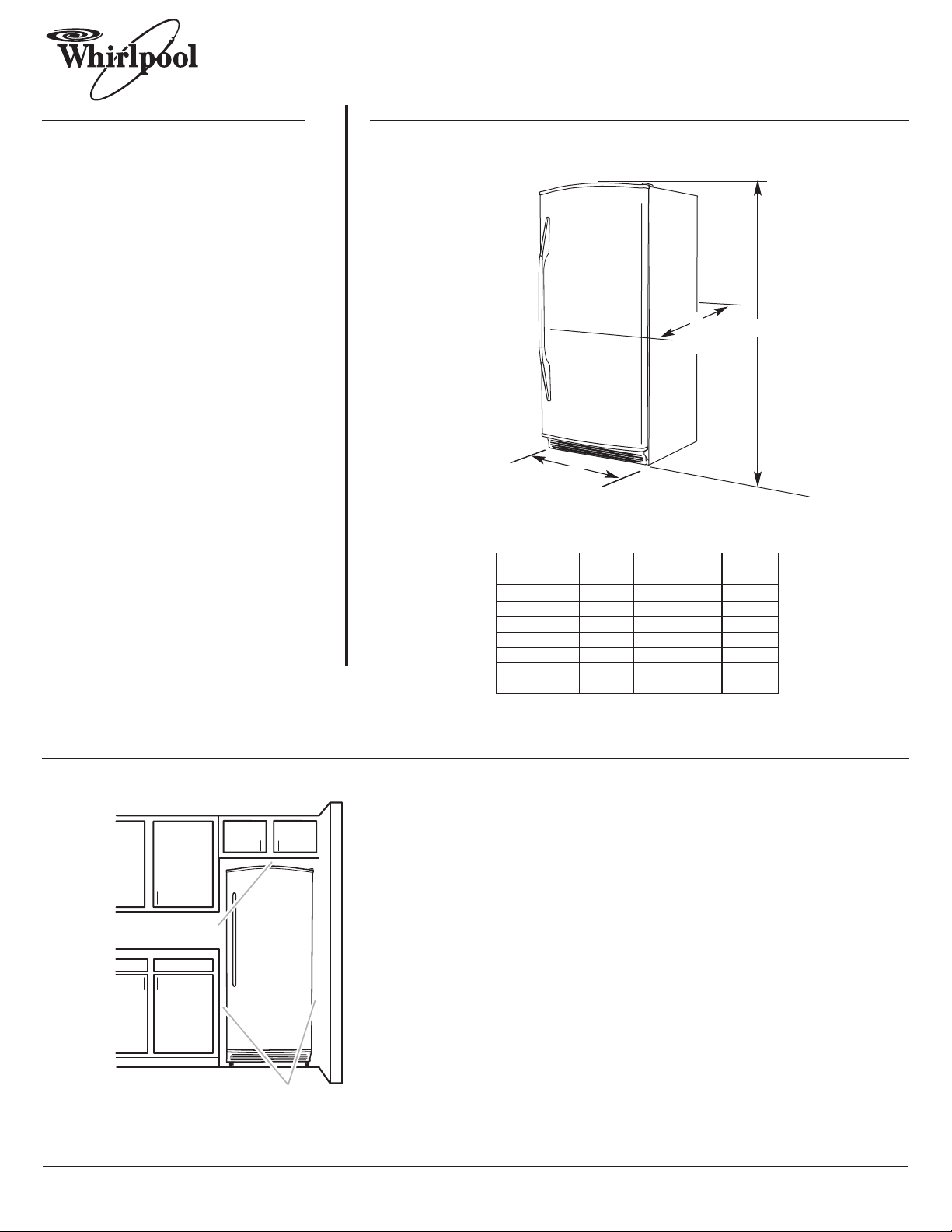

OVERALL DIMENSIONS |
|
|
|
EV161FZT EV181FZT
EV161NZT EV181NZT
EV185NXT
EV201NZT
EV209NBT
Electrical: A 115 Volt, 60 Hz., AC only 15 or 20 |
|
|
|
|
|
amp fused (or circuit breaker), grounded electri- |
|
|
|
|
|
cal supply is required. It is recommended that a |
|
|
|
|
|
separate circuit serving only your freezer be |
|
|
|
|
|
provided. Use an outlet that cannot be turned off |
|
|
|
|
|
|
|
A |
|
|
|
|
|
|
B |
||
|
|
|
|
||
by a switch. Do not use an extension cord. |
|
|
|
|
|
|
including |
||||
|
|
|
|||
Water Supply: Connect the ice maker to a cold |
|
handle |
|
||
|
|
|
|
|
|
water line with water pressure between 30 and |
|
|
|
|
|
120 psi. |
|
|
|
|
|
C
Shown with contoured door.
Door swing is right-fixed.
|
Depth |
Cabinet Height |
Width |
Model |
“A” |
“B” |
“C” |
EV161FZT |
30 5/16” |
61.0” |
30.0” |
EV161NZT |
31 5/16” |
61.0” |
30.0” |
EV181FZT |
30.0” |
67.0” |
30.0” |
EV181NZT |
32.0” |
67.0” |
30.0” |
EV185NXT |
32.0” |
67.0” |
30.0” |
EV201NZT |
32.0” |
67.0” |
30.0” |
EV209NBT |
32.0” |
67.0” |
30.0” |
LOCATION REQUIREMENTS
3" (7.5 cm)
3" (7.5 cm)
Allow at least 3 in. (7.5 cm) of air space at the top and on both sides of the freezer and 1 in. (2.5 cm) between the back of the freezer and the wall. If the freezer is to be against a wall, leave extra space on the hinge side so the door can open wider.
NOTE: This freezer may be installed side by side with another refrigerator or freezer. Allow for a 3 in. (7.5 cm) clearance at the top and sides and a 1/4 in. (0.64 cm) clearance between the appliances.
IMPORTANT: Do not install the freezer near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 40°F (5°C).
Because Whirlpool Brand policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
Ref. M06.009.0 |
Instructions packed with product. Specifications subject to change without notice. |
04-29-10 |
