Whirlpool EV 1089 INSTRUCTION FOR USE

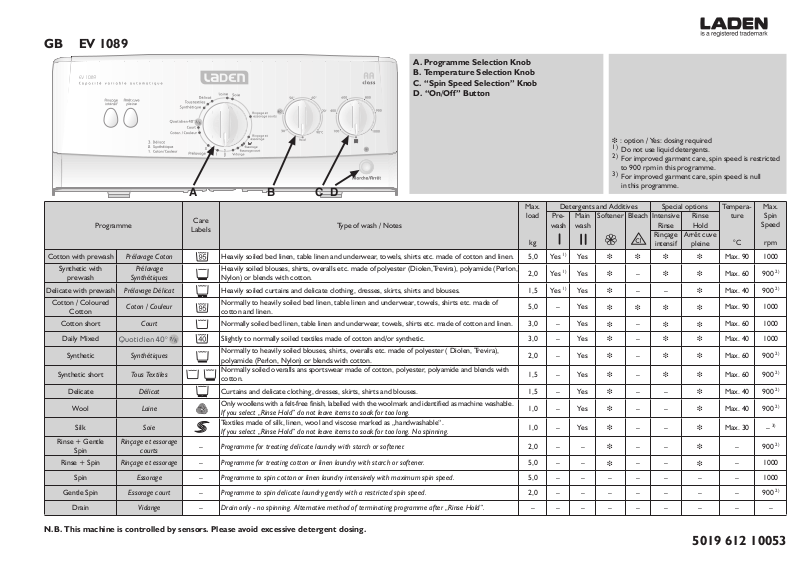

GB EV 1089

A. Programme Selection Knob
B. Temperature Selection Knob
C. “Spin Speed Selection” Knob
D. “On/Off” Button

i : option / Yes: dosing required

1)

Do not use liquid detergents.

2)

For improved garment care, spin speed is restricted

to 900 rpm in this programme.

3)

For improved garment care, spin speed is null

A DCB

Max.

load

Programme

Care

Labels

Type of wash / Notes

kg

Cotton with prewash Prélavage Coton Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. 5,0 Yes 1)Yes

Synthetic with

prewash

Prélavage

Synthétiques

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen,Trevira), polyamide (Perlon,
Nylon) or blends with cotton.

2,0 Yes 1)Yes

Delicate with prewash Prélavage Délicat Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 Yes 1)Yes

Cotton / Coloured

Cotton

Coton / Couleur

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of
cotton and linen.

5,0 – Yes

Cotton short Court Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. 3,0 – Yes

Daily Mixed Slightly to normally soiled textiles made of cotton and/or synthetic. 3,0 – Yes

Synthetic Synthétiques

Synthetic short Tous Textiles

Normally to heavily soiled blouses, shirts, overalls etc. made of polyester ( Diolen, Trevira),
polyamide (Perlon, Nylon) or blends with cotton.
Normally soiled overalls ans sportswear made of cotton, polyester, polyamide and blends with
cotton.

2,0 – Yes

1,5 – Yes

Delicate Délicat Curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 – Yes

Wool Laine

Silk Soie

Rinse + Gentle

Spin

Rinçage et essorage

courts

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select „Rinse Hold“ do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as „handwashable“.

If you select „Rinse Hold“ do not leave items to soak for too long. No spinning.

1,0 – Yes

1,0 – Yes

– Programme for treating delicate laundry with starch or softener. 2,0 – –

Rinse + Spin Rinçage et essorage – Programme for treating cotton or linen laundry with starch or softener. 5,0 – –

Spin Essorage – Programme to spin cotton or linen laundry intensively with maximum spin speed. 5,0 – – – – – – – 1000

Gentle Spin Essorage court – Programme to spin delicate laundry gently with a restricted spin speed. 2,0 – – – – – – – 900

Drain Vidange – Drain only - no spinning. Alternative method of terminating programme after „Rinse Hold“. – – – – – – – – –

Detergents and Additives Special options Tempera-

Pre-

Main

wash

wash

in this programme.

Softener Bleach Intensive

Rinse

Rinçage

intensif

i i i i

i

i

–

– –

i i

i i i i

i

i

i

i

i

i

i

i

i

–

–

–

–

– –

– –

– –

– –

– –

i i

i i

i i

i i

Rinse
Hold

Arrêt cuve

pleine

i

i

i

i

i

i

ture

Max. 90 1000

Max. 60 900

Max. 40 900

Max. 90 1000

Max. 60 1000

Max. 40 1000

Max. 60 900

Max. 60 900

Max. 40 900

Max. 40 900

Max. 30 –

Max.

Spin

Speed

°C

rpm

– 900

– 1000

2)

2)

2)

2)

2)

2)

3)

2)

2)

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

5019 612 10053

CONSUMPTION DATA

Programme

Temperature

Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)

Cotton 90 5,0 63* 1,80 2:05
Cotton 60 5,0 59 0,95 2:05
Cotton 40 5,0 59 0,55 2:05

Daily Mixed 40 3,0 49 0,48 1:00

Synthetic 60 2,0 56 0,80 1:30
Synthetic 40 2,0 56 0,40 1:30

Delicate 40 1,5 60 0,55 0:45

Wool 40 1,0 60 0,50 0:40

Silk 30 1,0 60 0,30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in
normalized conditions in compliance with standard IEC 60456. Consumption data in the home may vary with respect
to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the
pump drains the water out.

PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION

1. Load the machine, close the drum doors and
check that they are properly locked.

2. Add detergents and additives into the
dispenser to no more then the “MAX” level
mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the programme selector knob to the
desired programme.

4. Turn the temperature selector knob to the
desired temperature.

5. Turn the spin speed selector knob to the
desired spin speed. If the spin speed “ “ is
selected, the final spin is cancelled, but not the
intermediate spin. The programme ends with
a drain cycle.

Selecting or deselecting an option can be
done at any time during the programme.
The option will be applied as long as the
corresponding programme phase has not
been executed yet.
“Intensive Rinse” button (Rinçage intensif)

• One rinse cycle is added to ensure a more

intensive rinse.

• This option is particulary suitable for areas
with very soft water, washing baby linen and
people with detergents allergies.

“Rinse Hold” button (Arrêt cuve pleine)

• The laundry remains in the last rinse water

without progressing to the final spin cycle to
avoid creasing and prevent colours from
fading.

• This option is particularly recommended for
the “Synthetic”, “Delicate” and “Daily Mixed”
programmes.

• This function is particularly useful if you want
to postpone spinning to a later time, or if you
want to drain only.

Note: The programme selector knob stops on .

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the

programme will terminate automatically with
the selected spin cycle.

• If you do not wish to spin the clothes, press
the “On/Off” button, turn the programme
selector knob to the “Drain” programme and
press the “On/Off” button again.

PROGRAMME START

Turn on the tap and press the “On/Off” button.
The indicator light of the “On/Off” button lights
up.
Note: If there is a power interruption or if the
appliance is disconnected during the cycle, the
programme will run again from the point where it
was interrupted.

END OF WASH CYCLE

• The programme selector knob is in the Stop

position.

1. Press the “On/Off” button to switch off the
machine.

2. Cancel the option.

3. Turn the tap off.

4. Wait for the lid to unlock (about 1 minute).

5. Open the lid and the drun doors and unload
the machine.

CHANGE THE PROGRAMME DURING
THE WASH CYCLE

1. Switch off machine by pressing the “On/Off”
button.

2. Select the new programme.

3. Start programme by pressing the “On/Off”
button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the
programme for a certain time and continue it later:

1. Press the “On/Off” button.

2. After the desired pause, press again the
“ON/Off” button.

CANCEL PROGRAMME

1. Switch off the machine by pressing the
“On/Off” button.

2. Set the programme selector to “Drain”.

3. Press the “On/Off” button again to start the
“Drain” programme.

5019 612 10053
