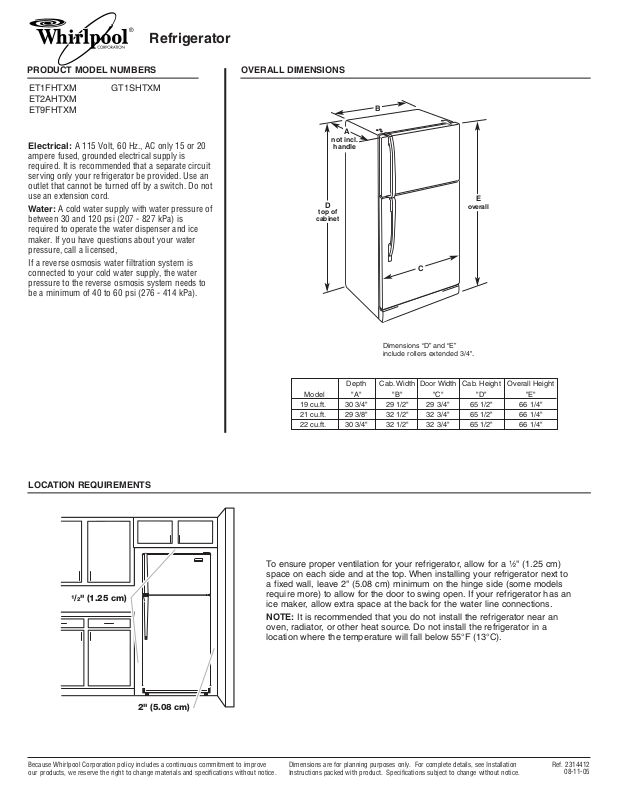

Whirlpool ET1FHTXM, ET2AHTXM, ET9FHTXM, GT1SHTXM DIMENSIONS

®

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

LOCATION REQUIREMENTS

ET1FHTXM
ET2AHTXM
ET9FHTXM

GT1SHTXM

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20
ampere fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.

Water: A cold water supply with water pressure of
between 30 and 120 psi (207 - 827 kPa) is
required to operate the water dispenser and ice
maker. If you have questions about your water
pressure, call a licensed,

If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 - 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Ref. 2314412

08-11-05

To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (1.25 cm)
space on each side and at the top. When installing your refrigerator next to
a fixed wall, leave 2" (5.08 cm) minimum on the hinge side (some models
require more) to allow for the door to swing open. If your refrigerator has an
ice maker, allow extra space at the back for the water line connections.

NOTE: It is recommended that you do not install the refrigerator near an
oven, radiator, or other heat source. Do not install the refrigerator in a
location where the temperature will fall below 55°F (13°C).

E

overall

D

top of

cabinet

C

B

Depth Cab. Width Door Width Cab. Height Overall Height

Model "A" "B" "C" "D" "E"
19 cu.ft. 30 3/4" 29 1/2" 29 3/4" 65 1/2" 66 1/4"
21 cu.ft. 29 3/8" 32 1/2" 32 3/4" 65 1/2" 66 1/4"
22 cu.ft. 30 3/4" 32 1/2" 32 3/4" 65 1/2" 66 1/4"

Refrigerator

Dimensions “D” and “E”
include rollers extended 3/4"

.

not incl.

handle

A

4

1

1

/

2" (1.25 cm)

2" (5.08 cm)
