Whirlpool ET25DK User Manual
A Note To You
Important Safety
Instructions
2
3
Parts And Features
Before Using Your
Refrigerator
Using Your
l Refrigerator
Caring For Your
Refrigerator

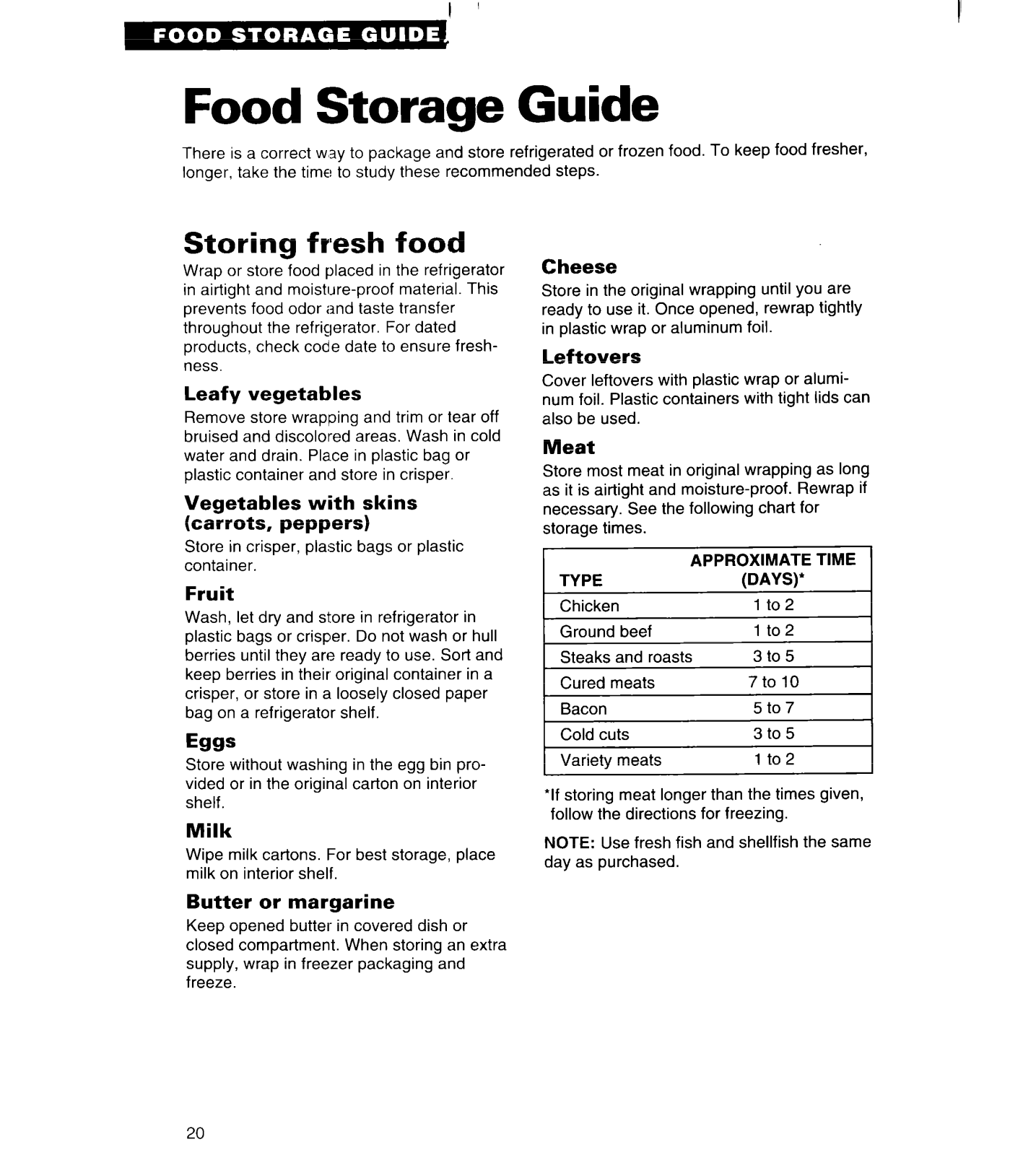

Food Storage Guide 20

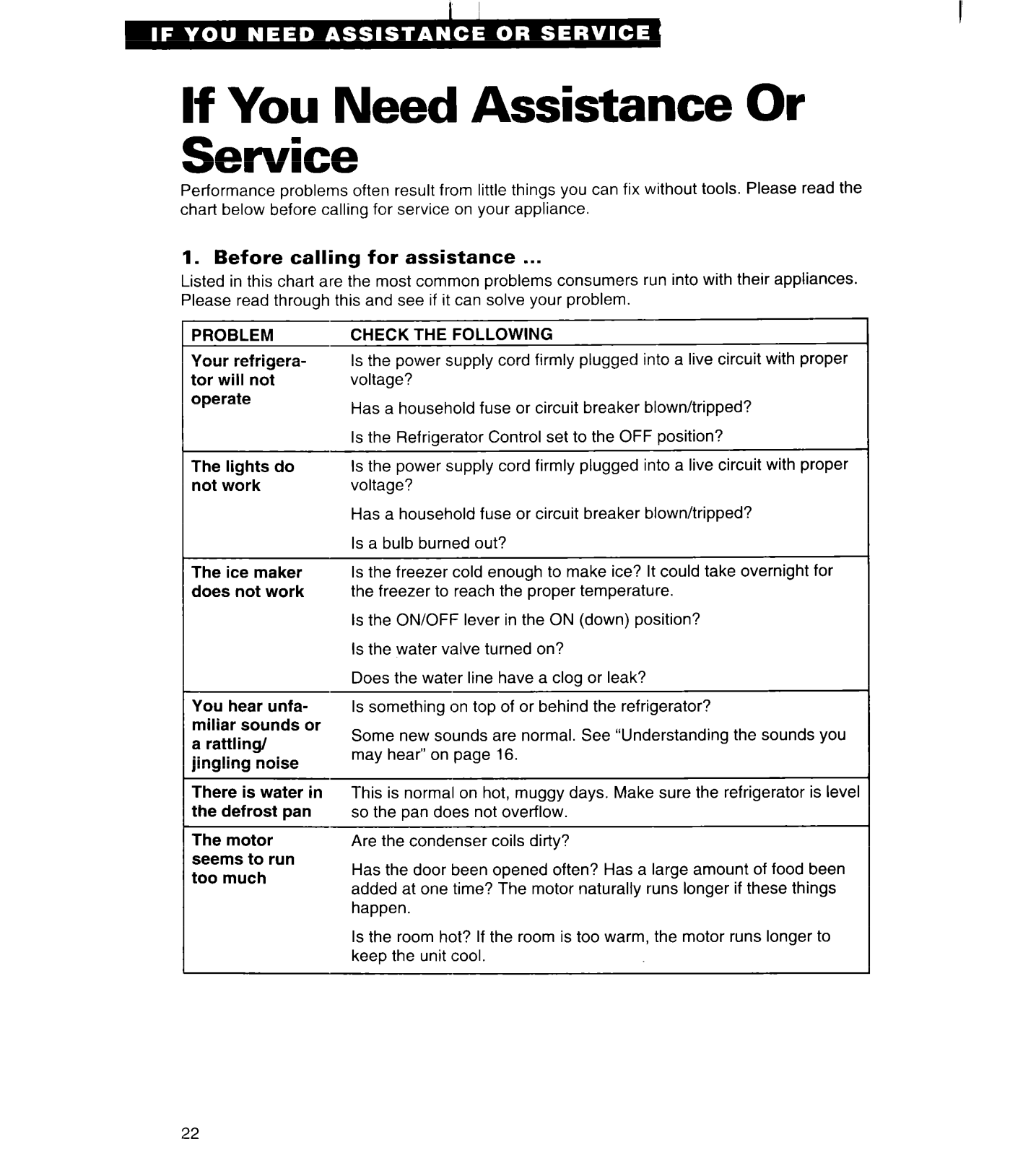

If You Need
Assistance
Or Service

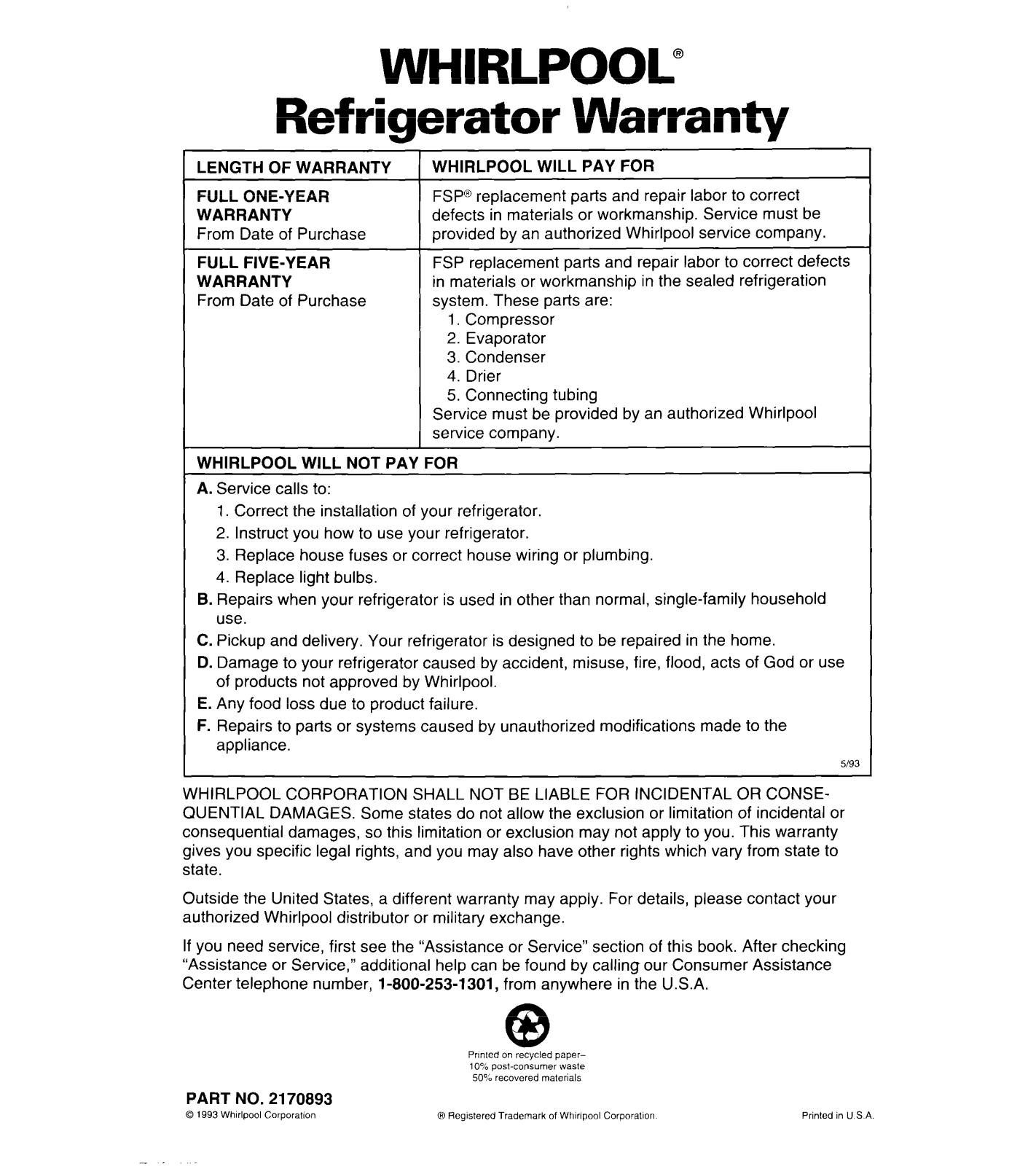

Warranty
1-800-253-1301
Call us with questions or comments.
4
5
7
17
22
24
6
NO-FROST REFRIGERATOR-FREEZER
s’lsq
MODELS ET25DM ET25DK

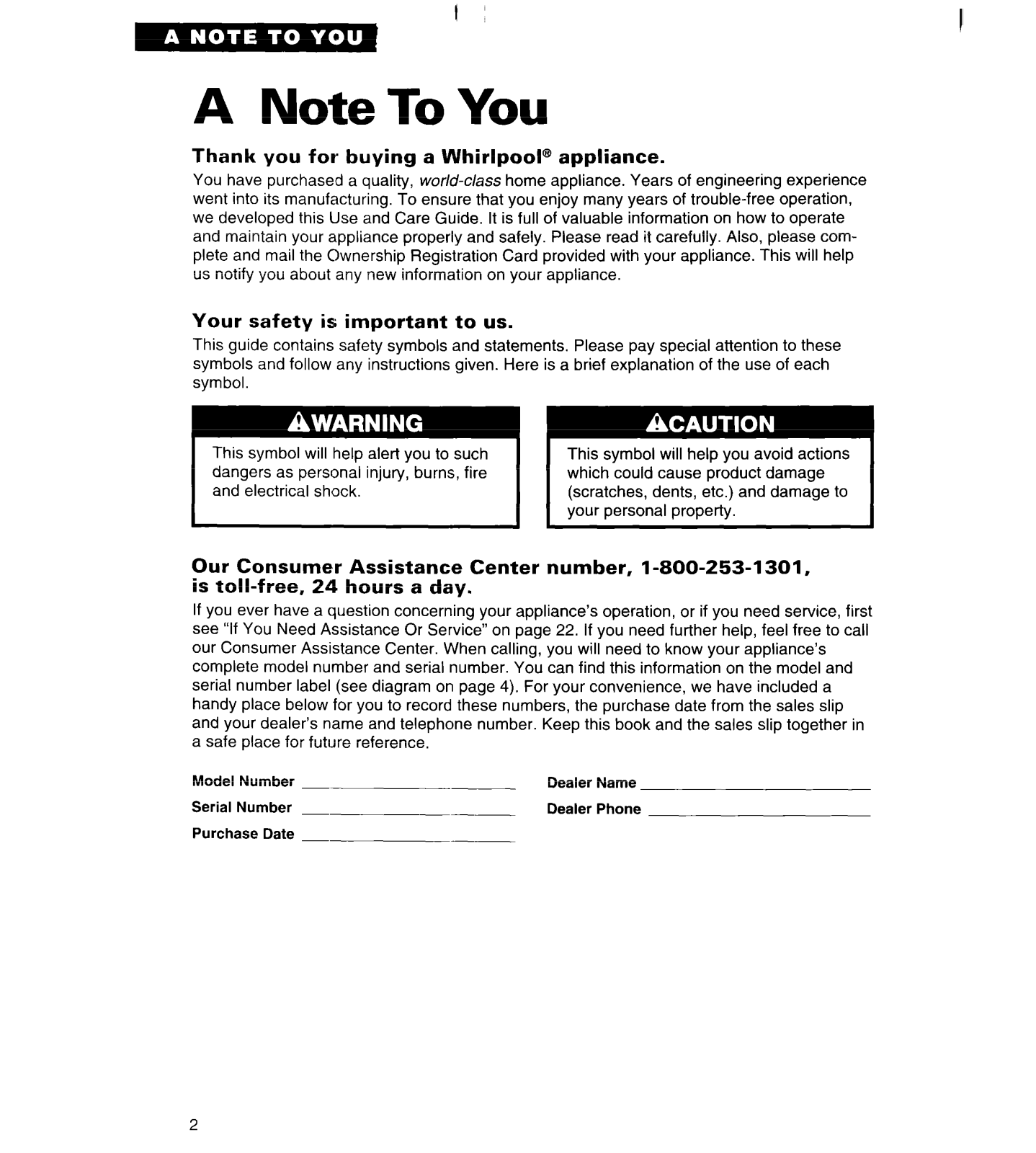

A Note To You
Thank you for buying a Whirlpool@ appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience
went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,
we developed this Use and Care Guide. It is full of valuable information on how to operate
and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help
us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire
and electrical shock.
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
Our Consumer Assistance Center number, l-800-253-1 301,
is toll-free, 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance Or Service” on page 22. If you need further help, feel free to call
our Consumer Assistance Center. When calling, you will need to know your appliance’s
complete model number and serial number. You can find this information on the model and
serial number label (see diagram on page 4). For your convenience, we have included a
handy place below for you to record these numbers, the purchase date from the sales slip
and your dealer’s name and telephone number. Keep this book and the sales slip together in
a safe place for future reference.
Model Number ~
Serial Number
Purchase Date ~
--~
-.-
Dealer Name
Dealer Phone
2
I
I

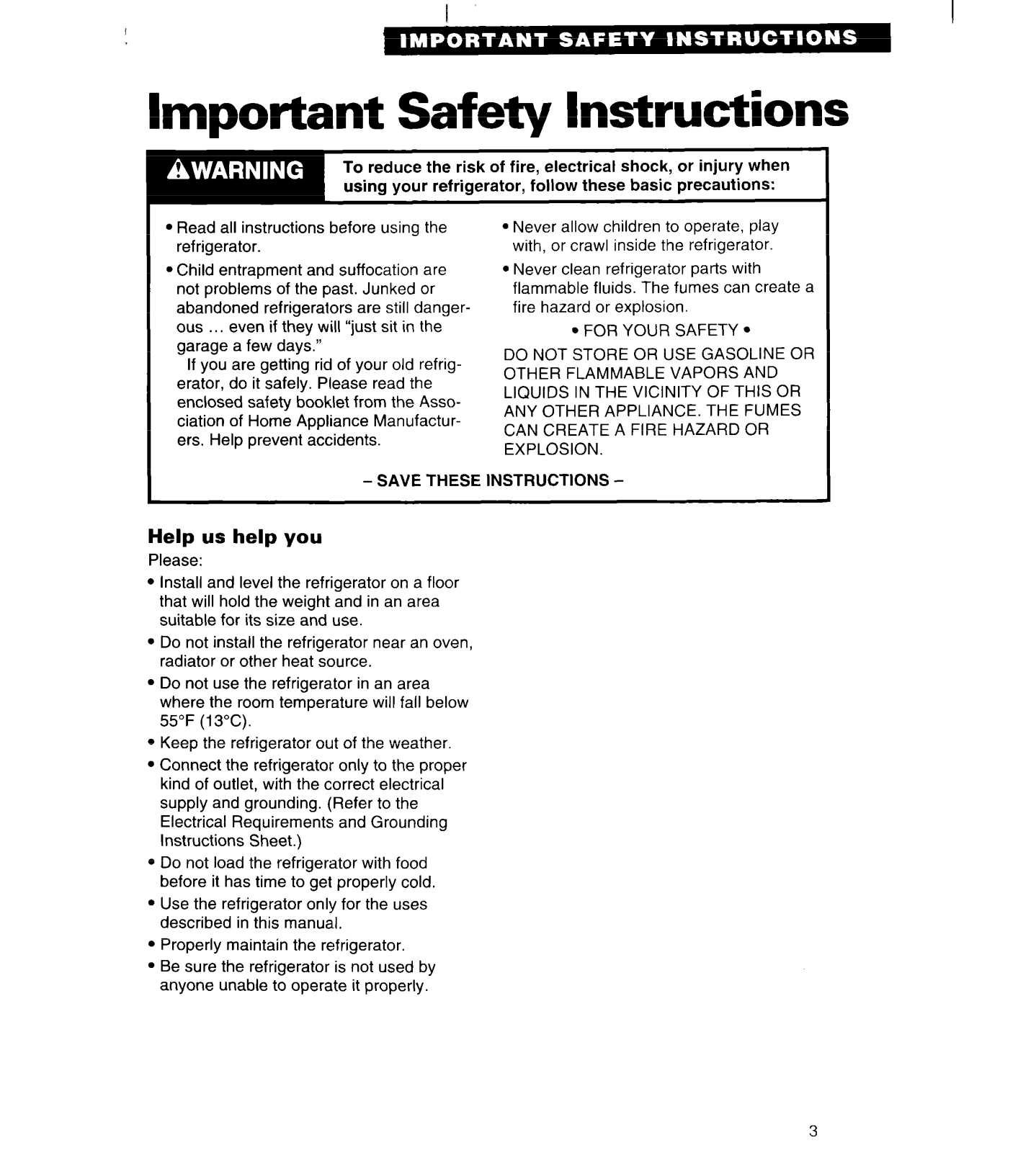

Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury when
using your refrigerator,
follow these basic precautions:
I
l Read all instructions before using the
refrigerator.
l Child entrapment and suffocation are
not problems of the past. Junked or
abandoned refrigerators are still dangerous . . .
even if they will “just sit in the
garage a few days.”
If you are getting rid of your old refrigerator, do it safely. Please read the
enclosed safety booklet from the Association of Home Appliance Manufacturers. Help prevent accidents.
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l Install and level the refrigerator on a floor
that will hold the weight and in an area
suitable for its size and use.
l Do not install the refrigerator near an oven,
radiator or other heat source.
l Do not use the refrigerator in an area
where the room temperature will fall below
55°F (13%).
l Keep the refrigerator out of the weather.
l Connect the refrigerator only to the proper
kind of outlet, with the correct electrical
supply and grounding. (Refer to the
Electrical Requirements and Grounding
Instructions Sheet.)
l Do not load the refrigerator with food
before it has time to get properly cold.
l Use the refrigerator only for the uses
described in this manual.
l Properly maintain the refrigerator.
l Be sure the refrigerator is not used by
anyone unable to operate it properly.
l Never allow children to operate, play
with, or crawl inside the refrigerator.
l Never clean refrigerator parts with
flammable fluids. The fumes can create a
fire hazard or explosion.
l FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE. THE FUMES
CAN CREATE A FIRE HAZARD OR
EXPLOSION.

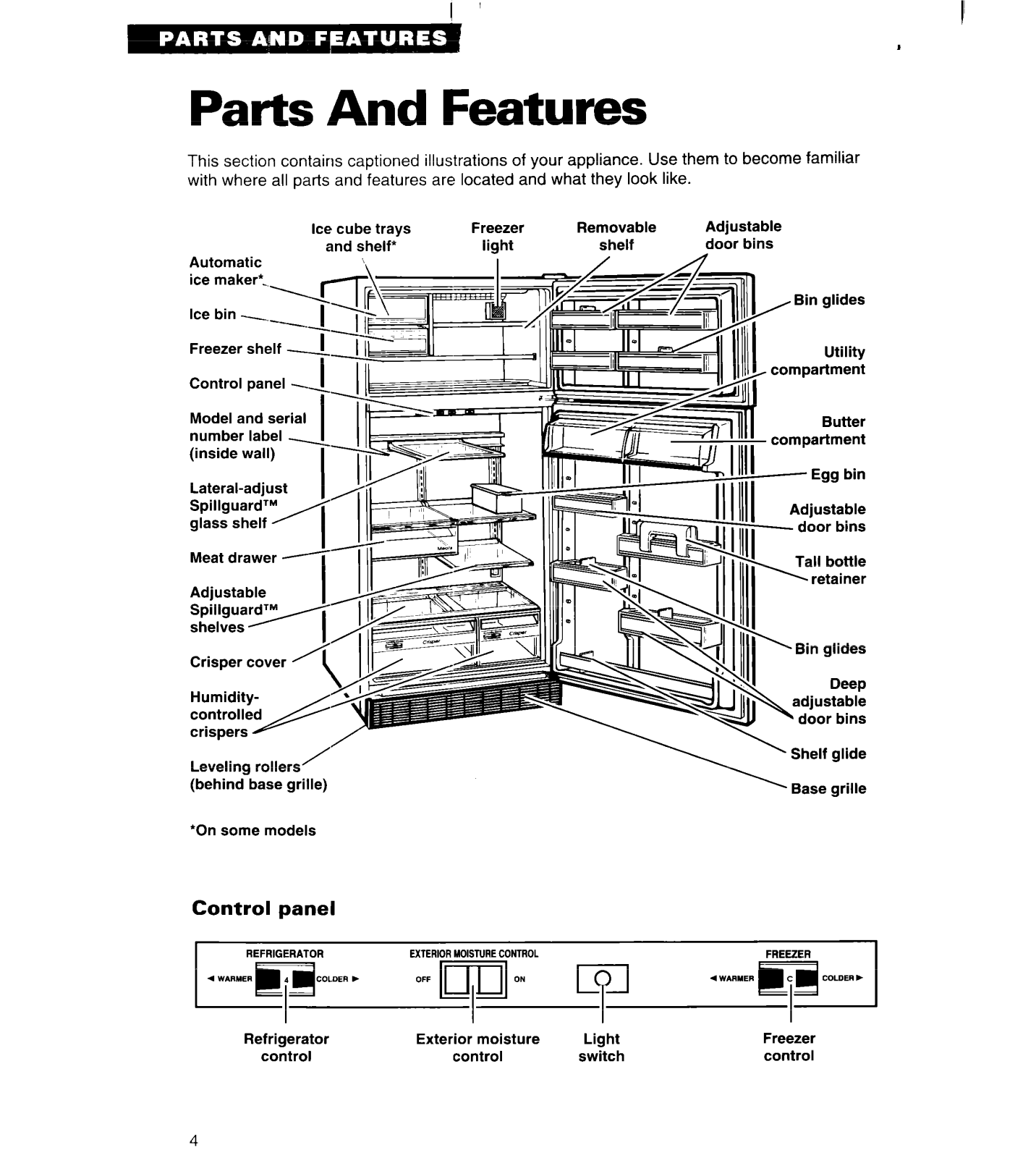

Parts And Features
This section contains captioned illustrations of your appliance. Use them to become familiar
with where all parts and features are located and what they look like.
Automatic
ice maker*-.
Ice bin
Freezer shelf -
Control panel -+
Model and serial
number label -
(inside wall)
Lateral-adjust
SpillguardTM
glass shelf /
Meat drawer -
Adjustable
SpillguardTM
shelves /
Crisper cover ’
-----i.--
Ice cube trays
and shelf*
Freezer
light
Removable
shelf
Adjustable
door bins
, Bin glides
Utility
. compartment
Butter
. compartment
- Egg bin
Adjustable
- door bins
Tall bottle
\ retainer
\ Bin glides
Deep
adjustable
\
door bins
Leveling rollers
(behind base grille)
*On some models
/
Control panel
REFRIGERATOR EXTERIOR MOISNRE CONTROL
. WARMER
I
Refrigerator
control
4
COWER .
I I
Exterior moisture Light
control
switch
I
Freezer
control

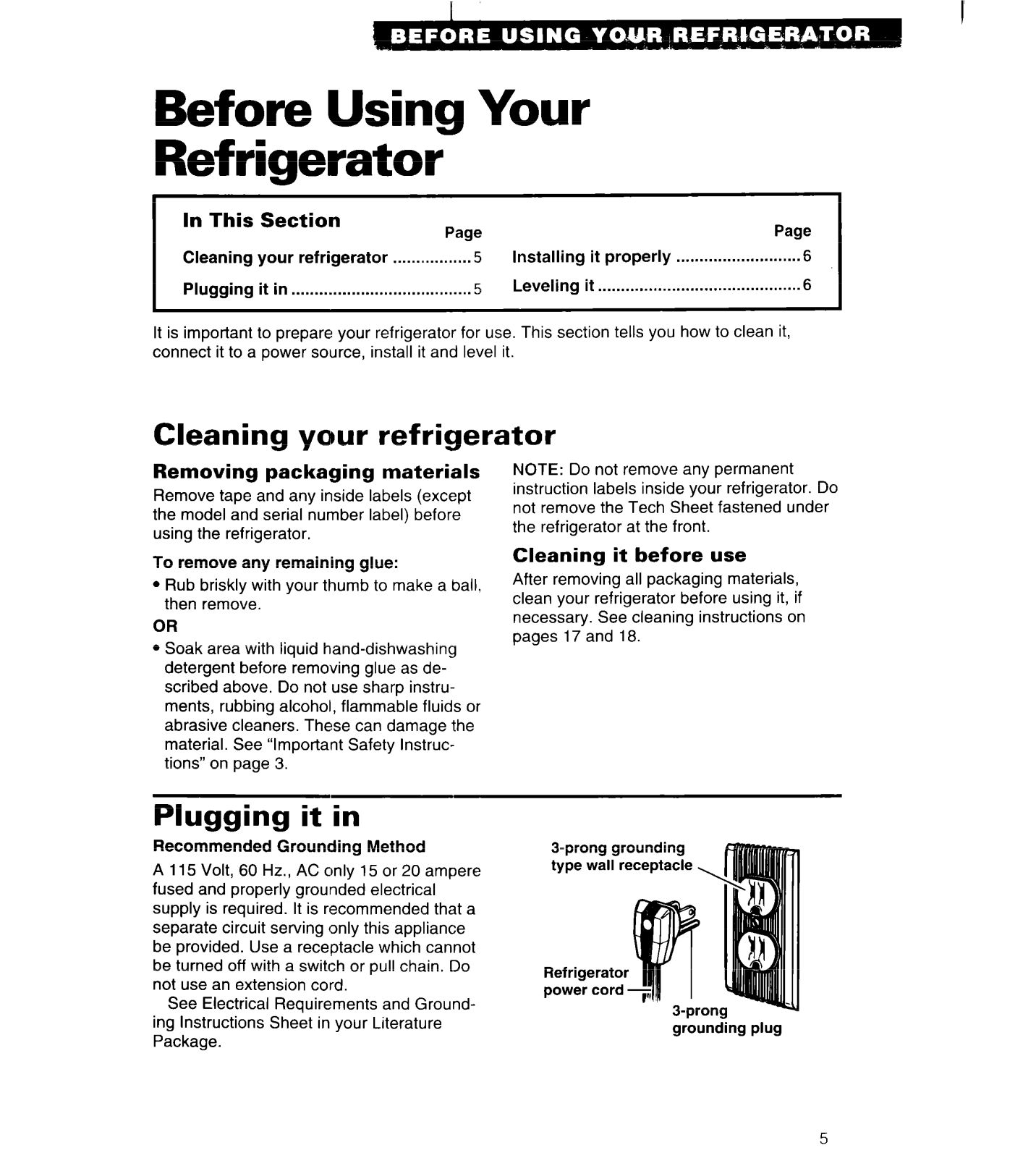

Before Using Your Refrigerator
In This Section
I
Cleaning your refrigerator . . . . . . . . . . . . . . . . . 5
Plugging it in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
I
It is important to prepare your refrigerator for use. This section tells you how to clean it,
connect it to a power source, install it and level it.
Installing it properly . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Leveling it
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
Cleaning your refrigerator
Removing packaging materials
Remove tape and any inside labels (except
the model and serial number label) before
using the refrigerator.
To remove any remaining glue:
l Rub briskly with your thumb to make a ball,
then remove.
OR
l Soak area with liquid hand-dishwashing
detergent before removing glue as described above. Do not use sharp instruments, rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage the
material. See “Important Safety Instructions” on page 3.
NOTE: Do not remove any permanent
instruction labels inside your refrigerator. Do
not remove the Tech Sheet fastened under
the refrigerator at the front.
Cleaning it before use
After removing all packaging materials,
clean your refrigerator before using it, if
necessary. See cleaning instructions on
pages 17 and 18.
6
Plugging it in
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere
fused and properly grounded electrical
supply is required. It is recommended that a
separate circuit serving only this appliance
be provided. Use a receptacle which cannot
be turned off with a switch or pull chain. Do
not use an extension cord.
See Electrical Requirements and Grounding Instructions Sheet in your Literature
Package.
3-prong grounding
type wall receptacle
grounding plug

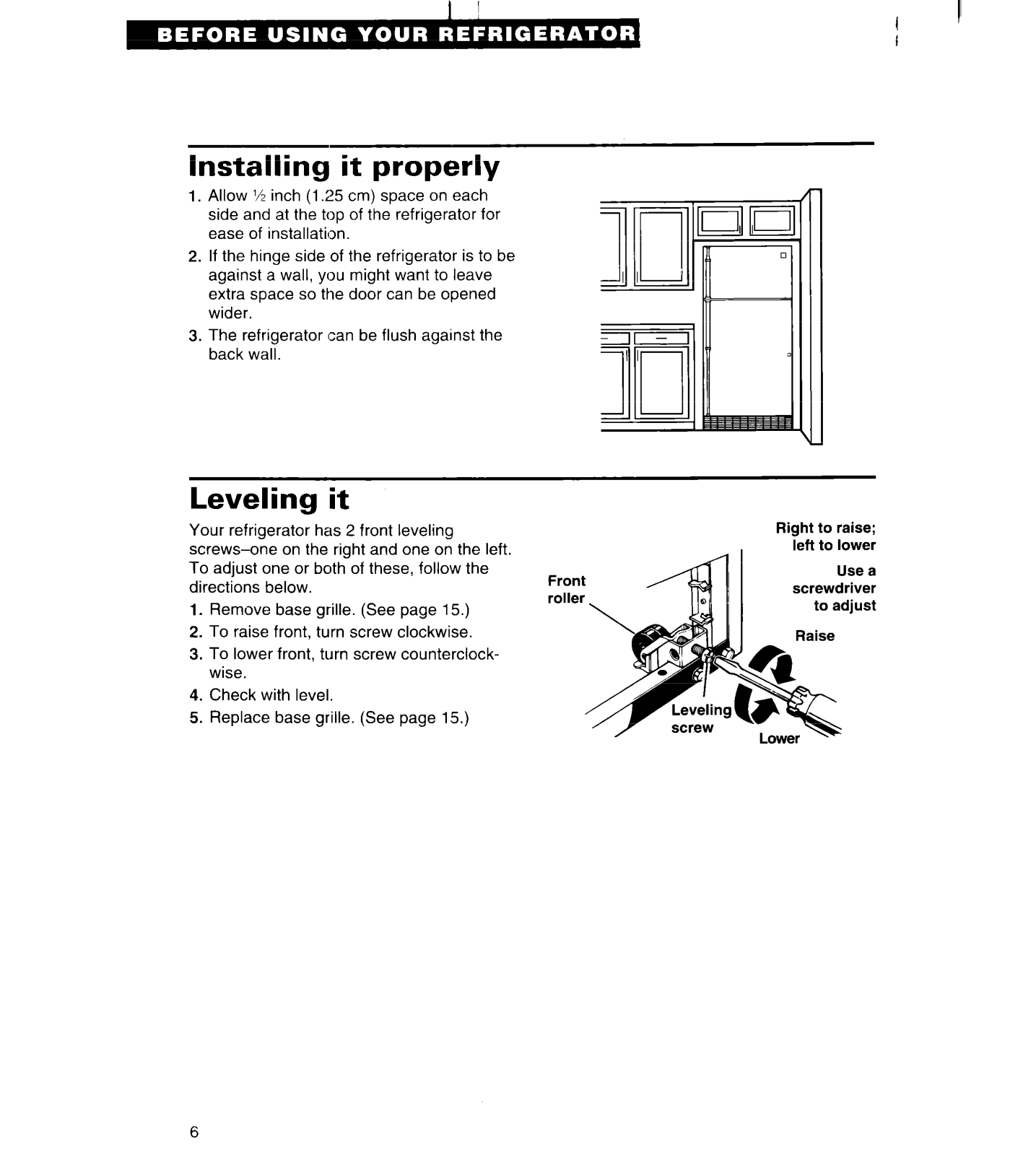

Installing it properly
1.
Allow % inch (1.25 cm) space on each
side and at the top of the refrigerator for
ease of installation.
2. If the hinge side of the refrigerator is to be
against a wall, you might want to leave
extra space so the door can be opened
wider.
3. The refrigerator can be flush against the
back wall.
Leveling it
Your refrigerator has 2 front leveling
screws-one on the right and one on the left.
To adjust one or both of these, follow the
directions below.
1.
Remove base grille. (See page 15.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclock-
wise.
4. Check with level.
5. Replace base grille. (See page 15.)
Right to raise;
left to lower
screwdriver
6

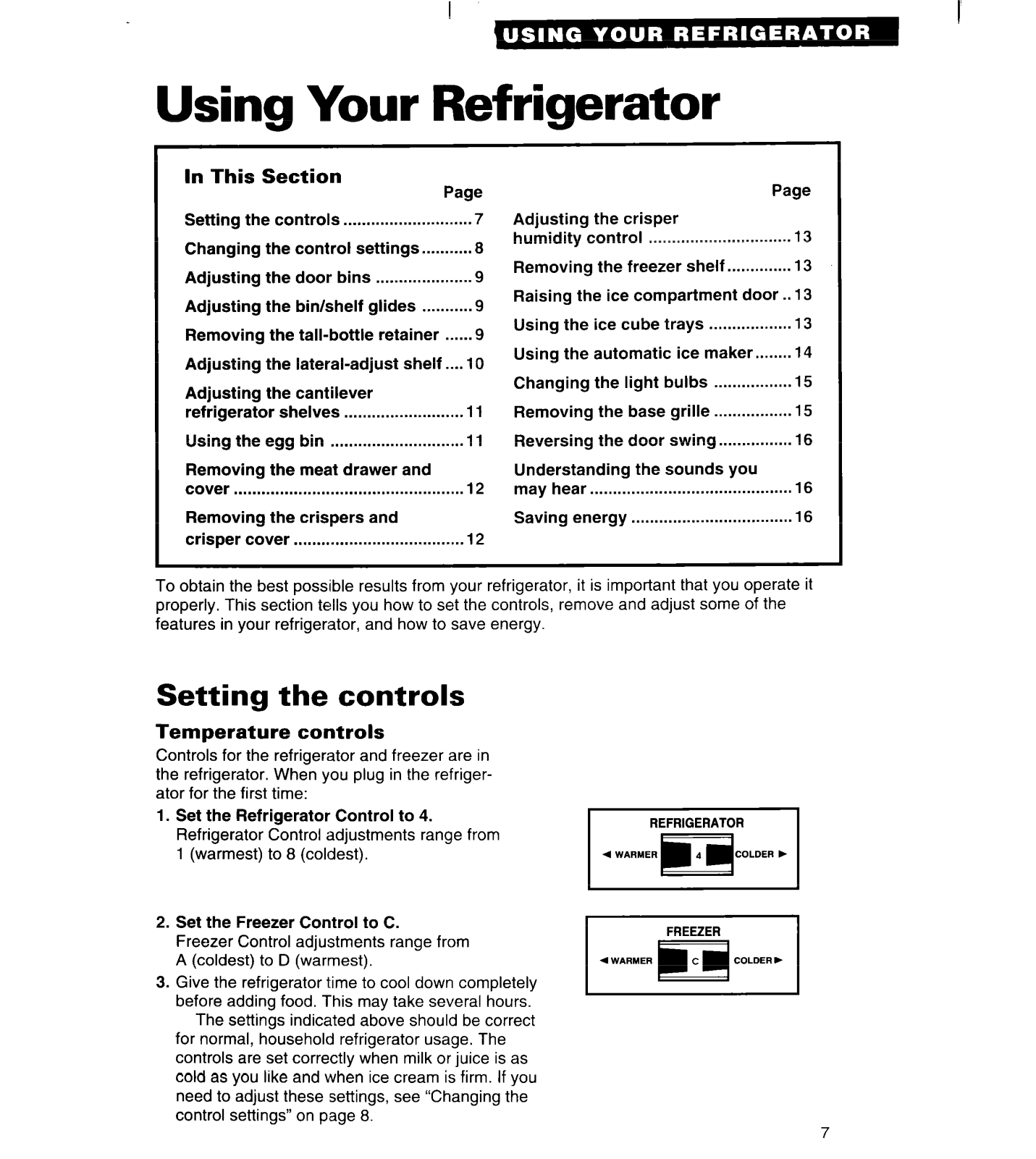

Using Your Refrigerator
In This Section
Page
Setting
Changing the control
Adjusting the door
Adjusting the bin/shelf glides
Removing the tall-bottle retainer . . . . . . 9

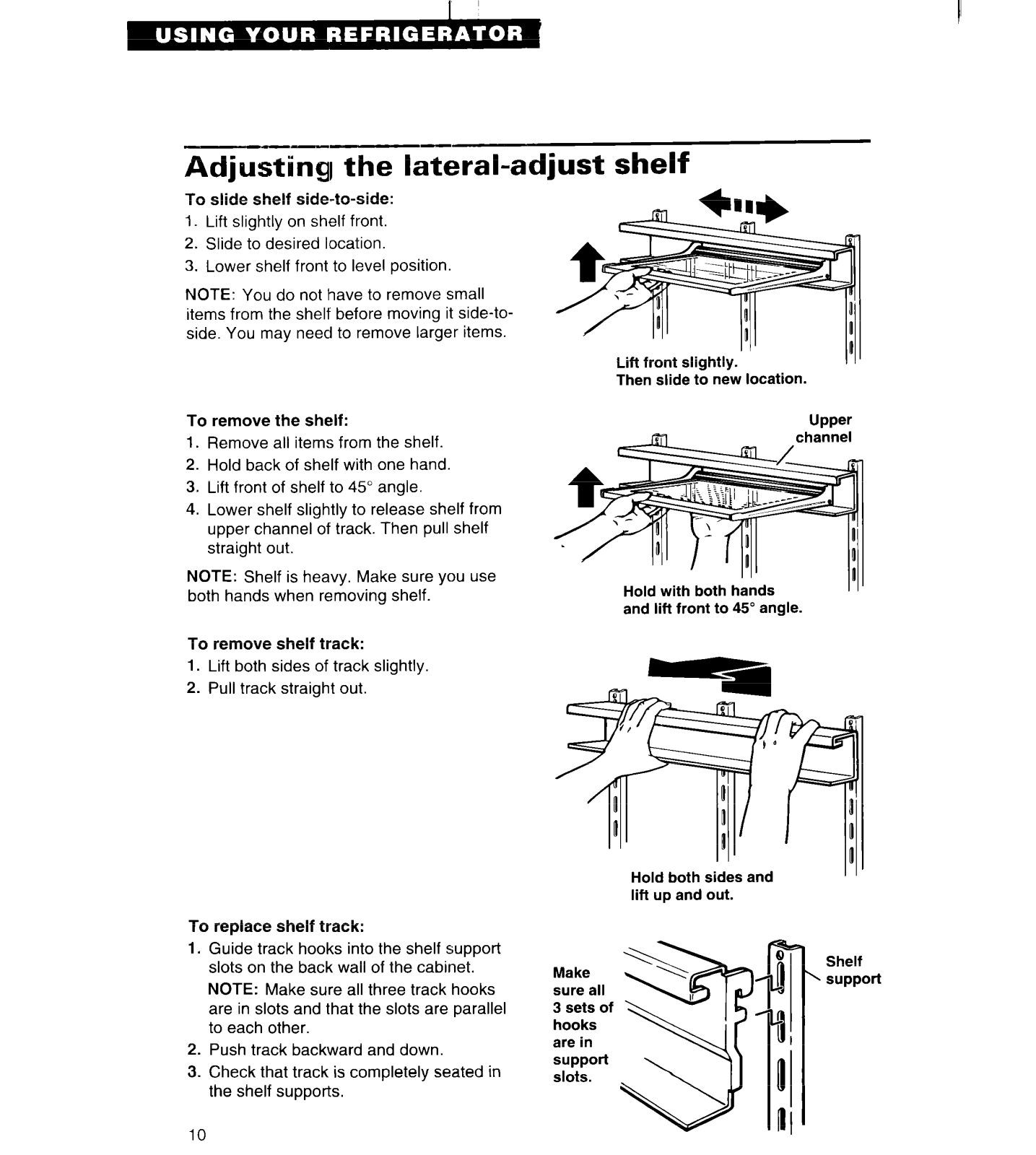

Adjusting the lateral-adjust shelf . . . . 10
Adjusting the cantilever
refrigerator
Using

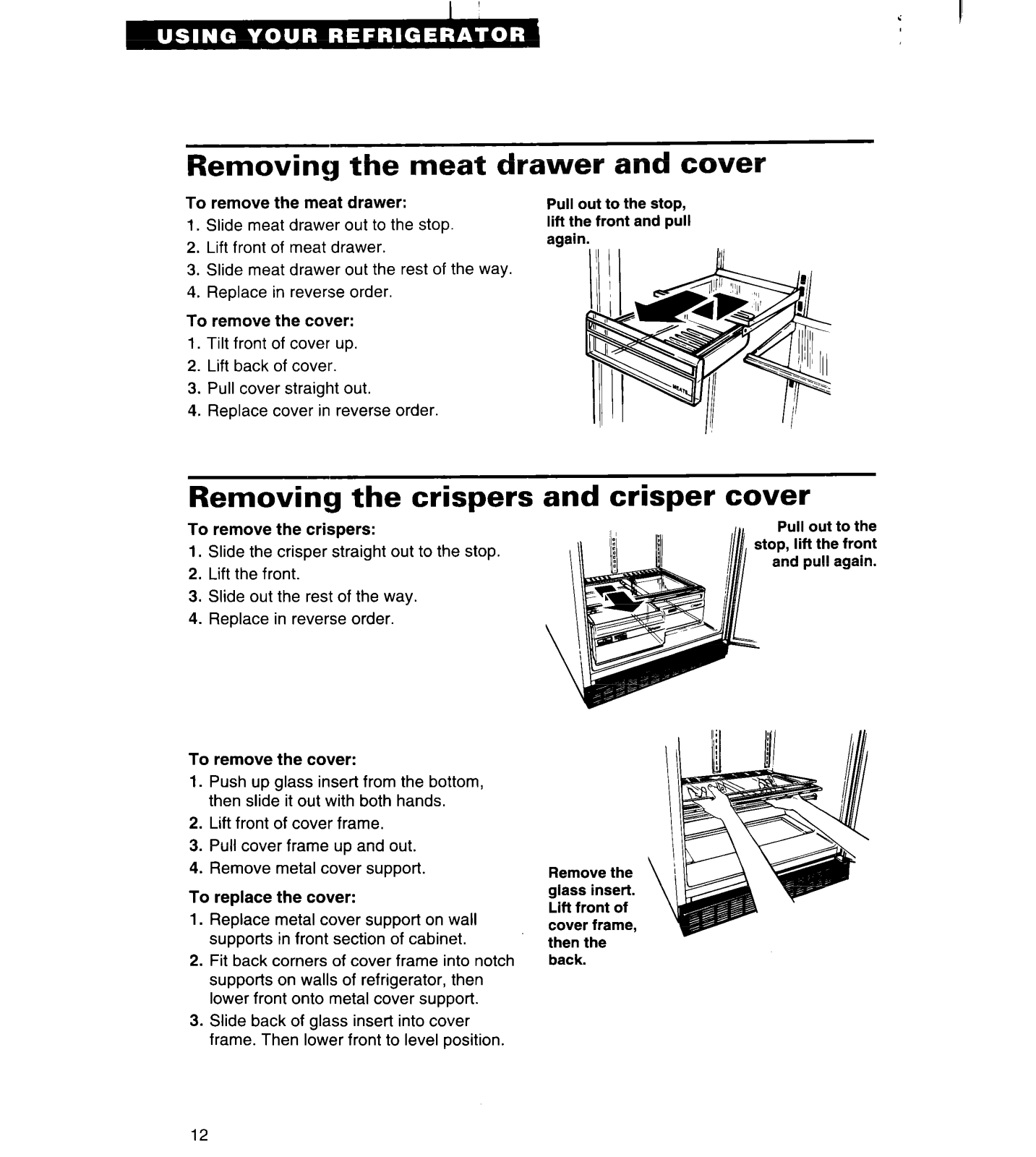

Removing the meat drawer and
cover
Removing the crispers and
crisper cover
To obtain the best possible results from your refrigerator, it is important that you operate it
properly. This section tells you how to set the controls, remove and adjust some of the
features in your refrigerator, and how to save energy.
the controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
settings . . . . . . . . . . . 8
bins . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . 9
shelves
the egg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . 11
bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Reversing

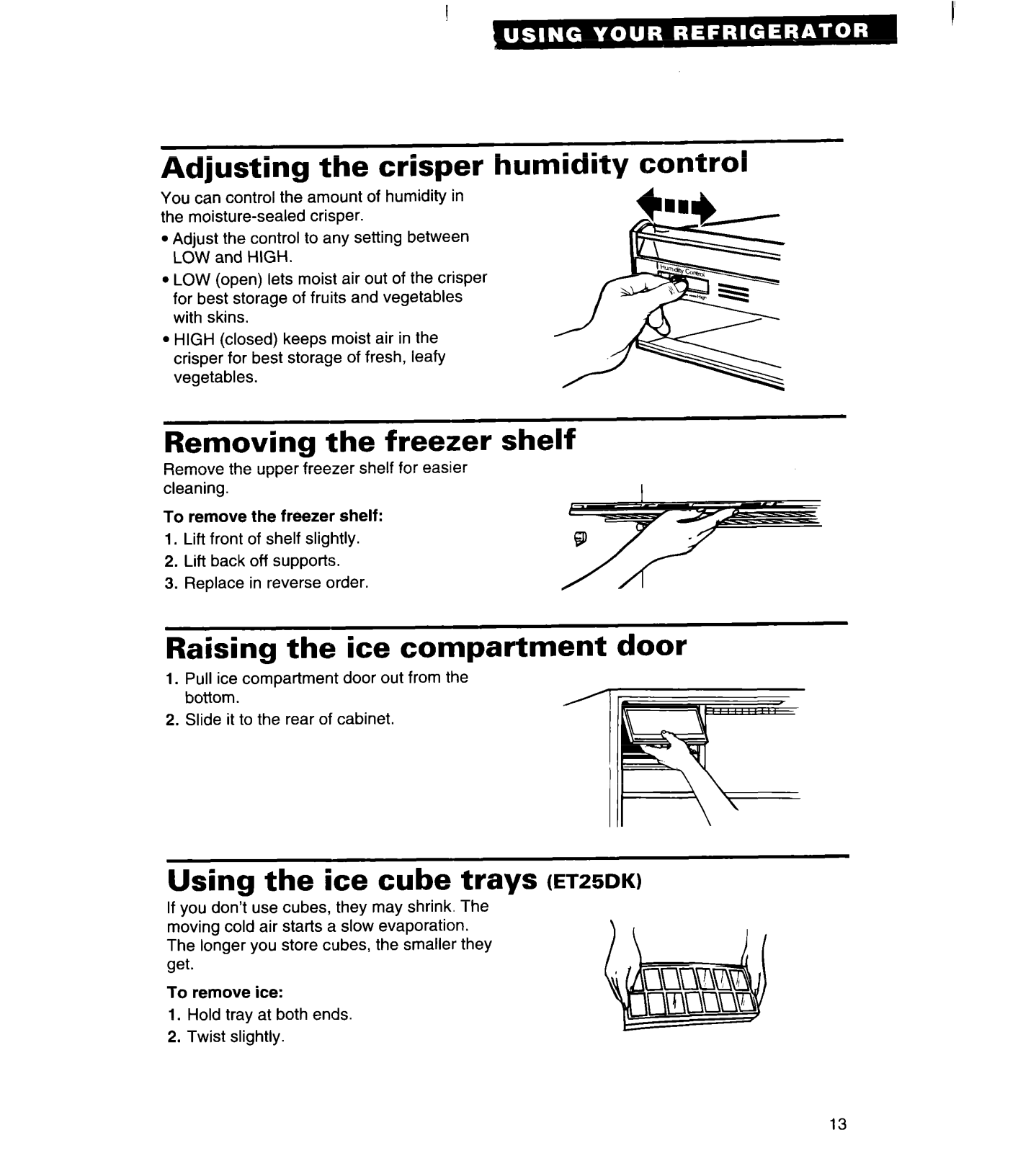

Adjusting the crisper
humidity control
Removing the freezer shelf . . . . . . . . . . . . . . 13
Raising the ice compartment door . . 13
Using the ice cube trays . . . . . . . . . . . . . . . . . . 13

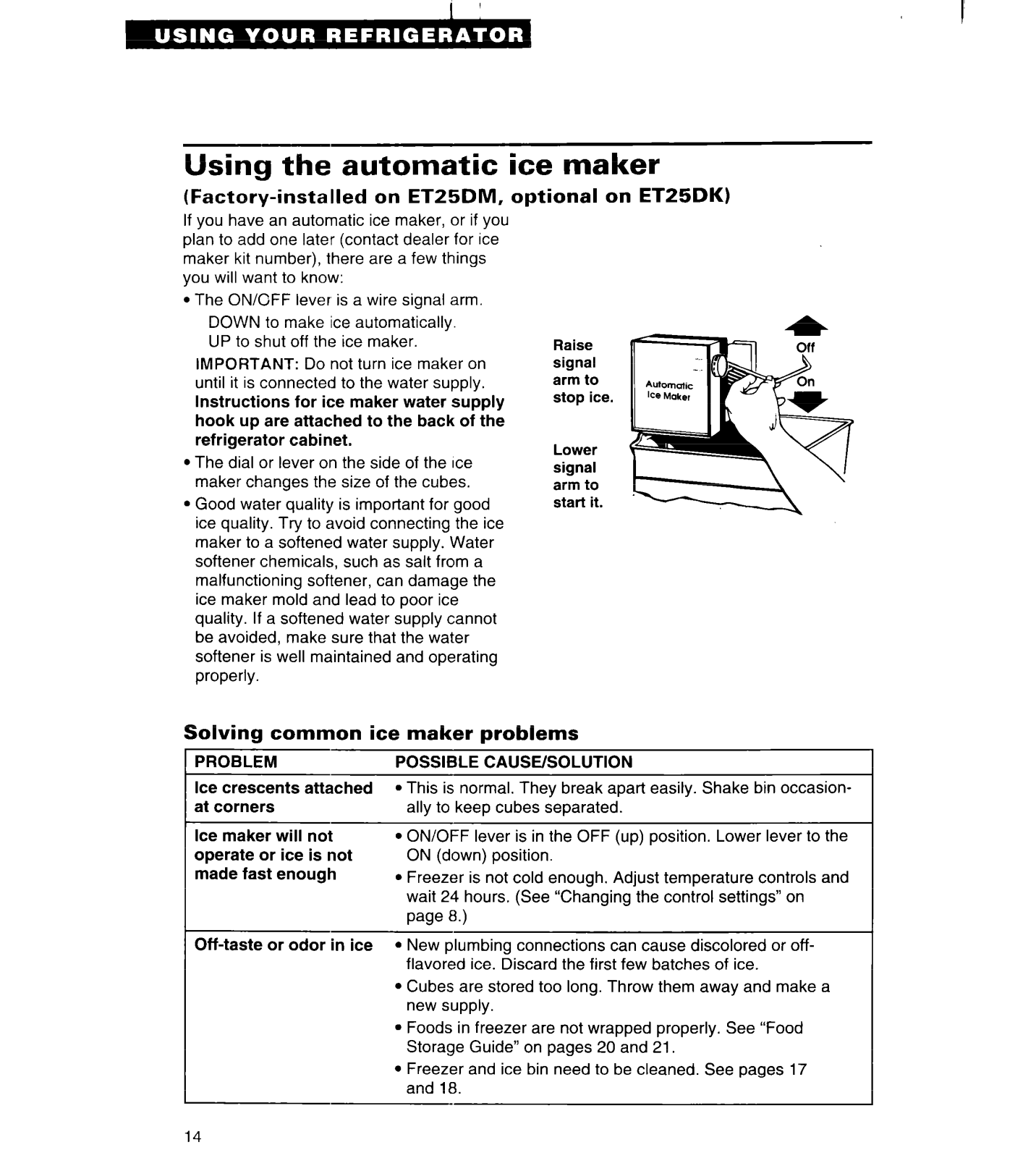

Using the automatic ice maker . . . . . . . . 14

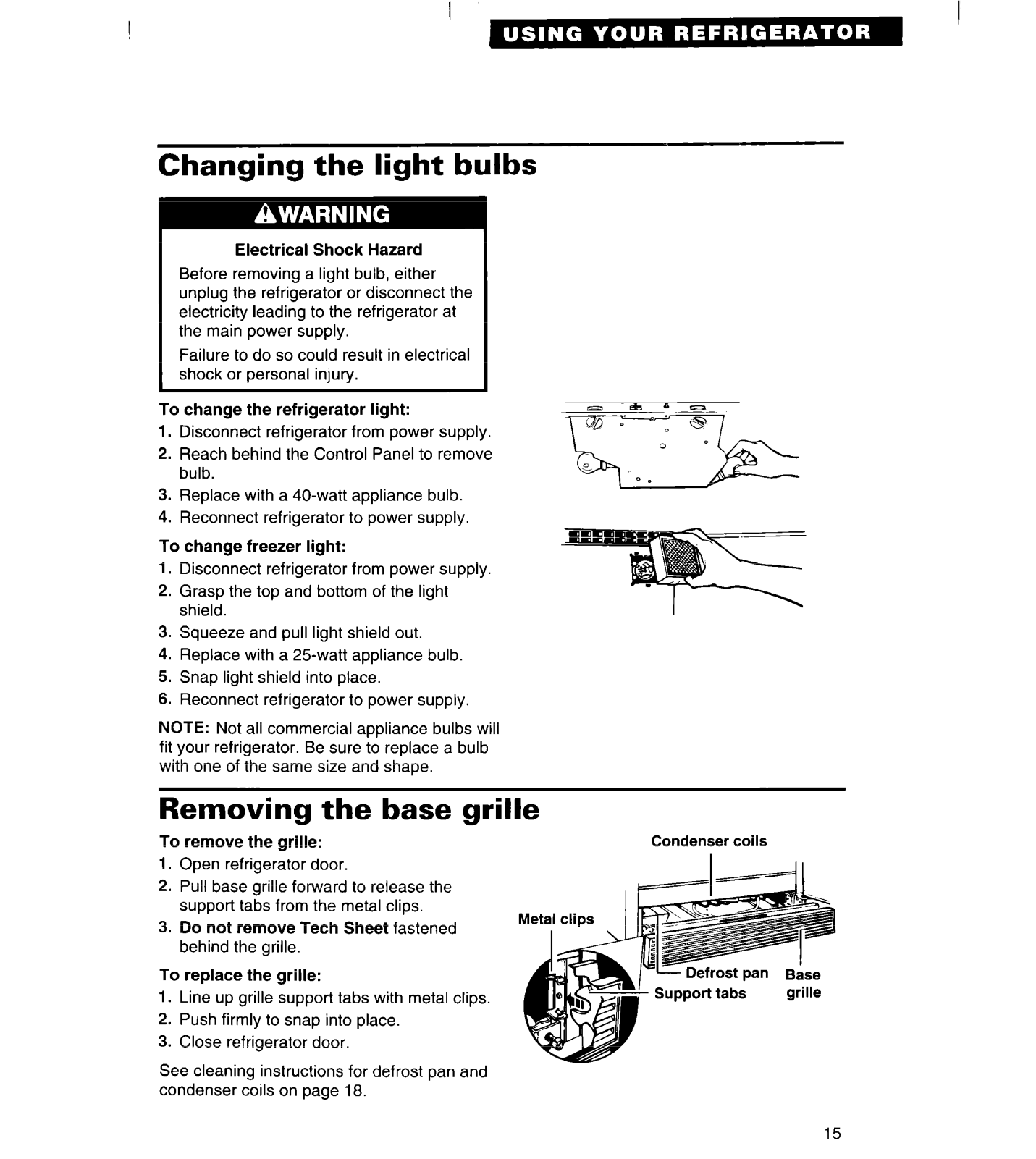

Changing the light bulbs
Removing

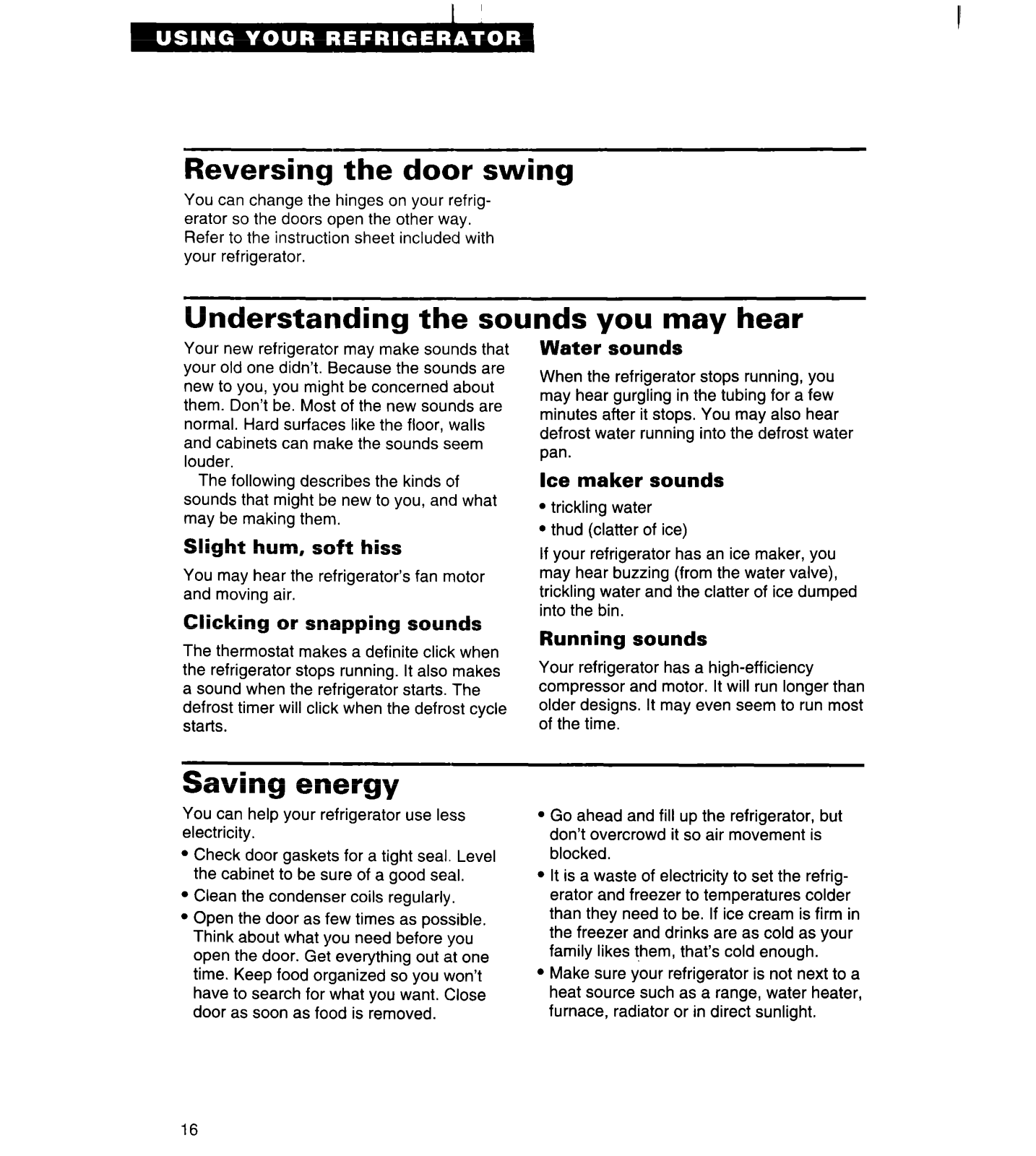

Understanding the sounds you
12
may hear
Saving energy
12
the base grille . . . . . . . . . . . . . . . . . 15
the door swing . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . 15
Page
13
16
Setting the controls
Temperature controls
Controls for the refrigerator and freezer are in
the refrigerator. When you plug in the refrigerator for the first time:
1. Set the Refrigerator Control to 4.
Refrigerator Control adjustments range from
1 (warmest) to 8 (coldest).
2. Set the Freezer Control to C.
Freezer Control adjustments range from
A (coldest) to D (warmest).
3. Give the refrigerator time to cool down completely
before adding food. This may take several hours.
The settings indicated above should be correct
for normal, household refrigerator usage. The
controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm. If you
need to adjust these settings, see “Changing the
control settings” on page 8.
I
REFRIGERATOR
FREEZER
I
7

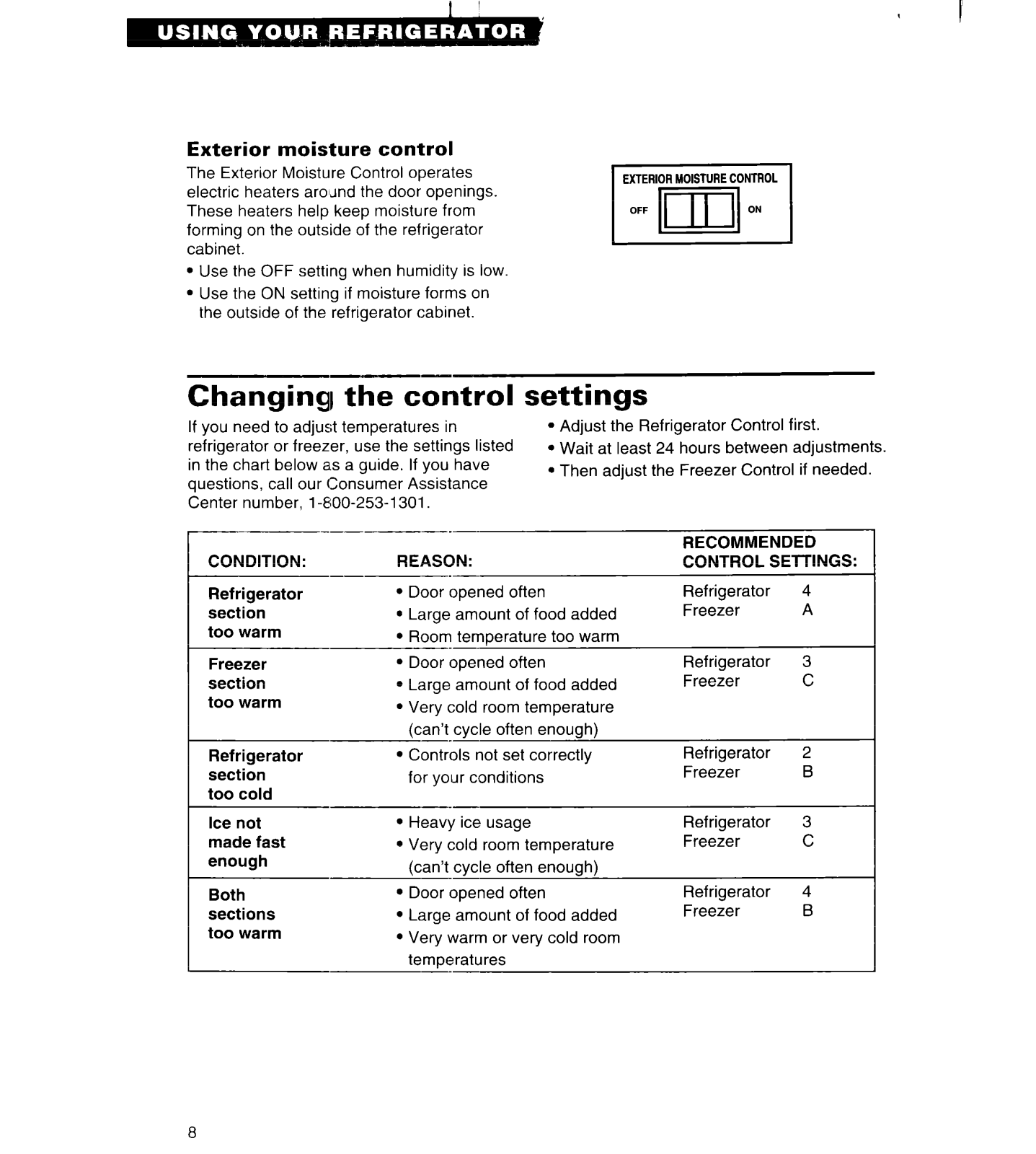

Exterior moisture control
The Exterior Moisture Control operates
electric heaters arolJnd the door openings.
These heaters help keep moisture from
forming on the outside of the refrigerator
cabinet.
l Use the OFF setting when humidity is low.
l Use the ON setting if moisture forms on
the outside of the refrigerator cabinet.
Changing1 the control settings
If you need to adjust temperatures in
refrigerator or freezer, use the settings listed
in the chart below as a guide. If you have
questions, call our Consumer Assistance
Center number, l-100-253-1 301.
-- ---I___
CONDITION: REASON:
--~-.-
Refrigerator
section
too warm
Freezer
section
too warm
Refrigerator
section
too cold
Ice not
made fast
enough
Both
sections
too warm
-.--
l Door opened often
* Large amount of food added
l Room temperature too warm
__.-_
l Door opened often
l Large amount of food added
l Very cold room temperature
(can’t cycle often enough)
-.-
l Controls not set correctly
for your conditions
-_-
l Heavy ice usage Refrigerator 3
l Very cold room temperature
(can’t cycle often enough)
--
l Door opened often
l Large amount of food added
l Very warm or very cold room
temperatures
---
l Adjust the Refrigerator Control first.
l Wait at least 24 hours between adjustments.
l Then adjust the Freezer Control if needed.
RECOMMENDED
CONTROL SETTINGS:
Refrigerator 4
Freezer
A
Refrigerator 3
Freezer C
Refrigerator 2
Freezer B
Freezer
C
Refrigerator 4
Freezer B
8
