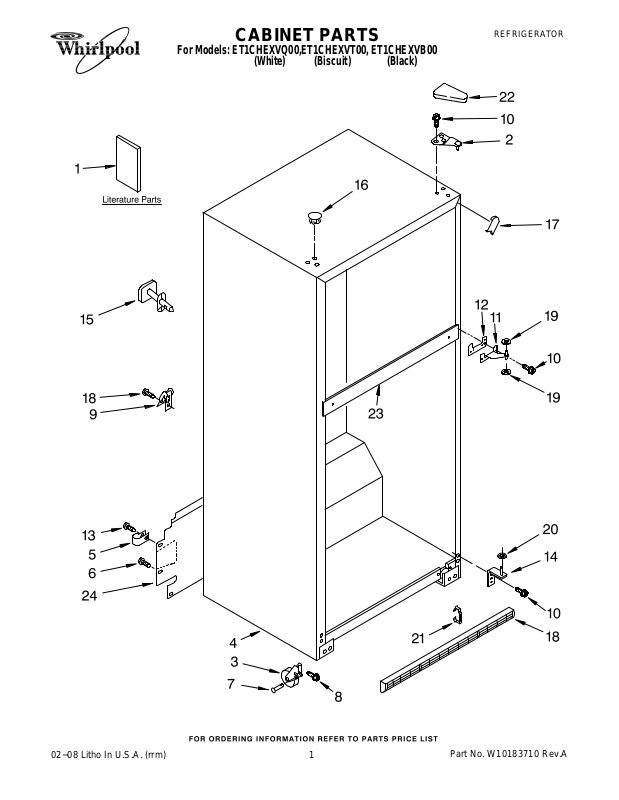

Page 1
CABINET PARTS
REFRIGERATOR
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
02−08 Litho In U.S.A. (rrm)
1
Part No. W10183710 Rev.A
Page 2
CABINET PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142143
W10178121
W10131409
W10131417
2225623 Modular Icemaker
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 Cabinet (Not a
5 489385 Clamp, Tube
6 489427 Screw
7 2179826 Rivet
8 3400504 Screw
9 549193 Clamp, Cord
10 489497 Screw
11 2254618 Hinge, Center
12 2183852 Shim, Hinge
13 8281265 Screw
14 2254473 Hinge Butt
15 Fitting, Water Tube
16 Hole Plug (6)
2201012 White
2200924 Biscuit
2183998 Black
17 Corner Filler (2)
2201014 White
2200926 Biscuit
2201017 Black
18 Grille
2254313 White
2254316 Biscuit
2254315 Black
19 489341 Washer
20 487576 Washer
21 2189356 Clip, Grille (2)
22 Cover, Hinge
2213360 White
2213364 Biscuit
2213363 Black
23 Rail, Center
24 2254576 Cover, Unit
Service &
Wiring Sheet
Energy Label
Use & Care Guide
Bilingual
Trilingual
Service Sheet
Manual Ref./Frz.
Serviceable Part)
(Water Supply Line)
Center
(Not Serviced)
(Includes
(Not Serviced)
Illus. 21)
2
W10183710
Page 3
DOOR PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
W10183710
3
Page 4
DOOR PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
2183920 White
2205284 Biscuit
2200714 Black
2 Handle, Trim
2193353T Biscuit
2193353B Black
2193353W White
5 Handle,
2213112W White
2213112T Biscuit
2213112B Black
6 489357 Screw
8 8281146 Screw
9 Door Gasket,
Magnetic
2202875 Mist Beige
2202882 Black
13 2262218 Nameplate
16 2195378 Trim, Door Shelf
17 8281206 Screw
19 Freezer Door
(Includes
Illus. 22 & 23)
2182489 White
2204686 Biscuit
2200711 Black
20 Hole Plug,
Handle
2189000 White
2200936 Biscuit
2189009 Black
21 2188236 Shelf, Flip−Up
22 2314293 Thimble
23 Door Gasket,
Magnetic
2214967 Mist Beige
2214969 Black
25 2204812 Bin, Door Shelf
26 2189202 Bracket,
27 489276 Screw
28 Hole Plug
2212648 White
2212649 Biscuit
2212651 Black
29 2156007 Plug, Trim
30 2156006 Plug, Trim
31 2218118 Compartment Door
33 Handle,
2213111W White
2213111T Biscuit
2213111B Black
34 2195947 Trim, Door (2)
35 2195916 Endcap (4)
36 2195948 Trim, Door
Illus. 9 & 22)
Refrigerator
Door Stop (2)
Freezer
4
W10183710
Page 5

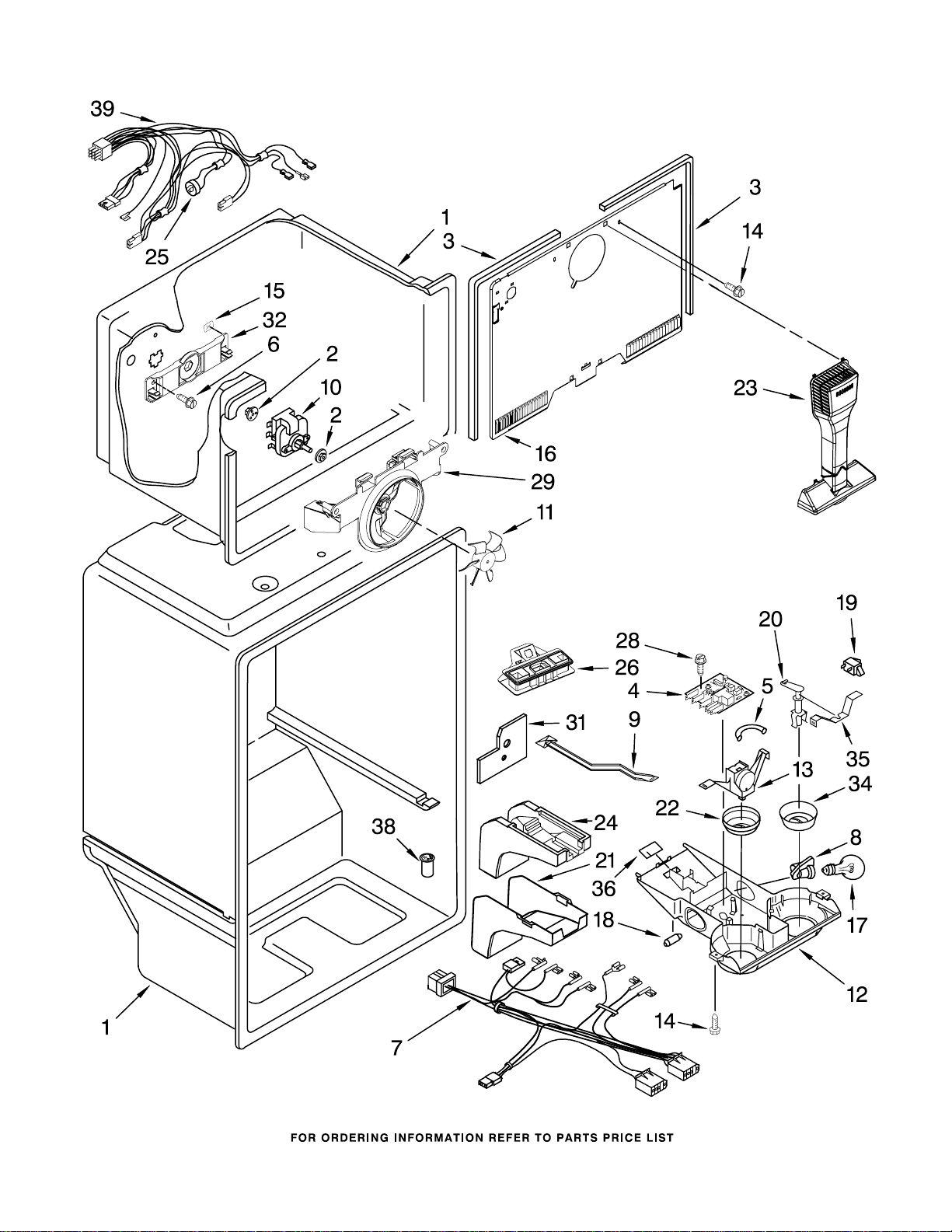

LINER PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
W10183710
5
Page 6
LINER PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254360 Gasket, Evaporator
Cover (2)
4 2304099 Defrost Timer
5 2212485 Thermostat Tube
Barrier
6 488208 Screw
7 2310057 Wire Assembly,
Control Box
8 2162085 Socket, Light
9 2179858 Damper, Air
10 2315539 Fan Motor
11 2163777 Fan Blade
12 2212982 Control Box
13 2200859 Thermostat Assy.
(Includes
Illus. 5 & 18)
14 489478 Screw
15 2320183 Retainer−Screw
16 2320194 Cover, Evaporator
17 527949 Light Bulb (2)
18 2200831 Weight, Thermal
19 1118894 Switch, Rocker Arm
20 2179859 Post, Damper
21 2176281 Cover, Air
Diffuser
22 2200863 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
25 2321800 Defrost, BI−Metal
26 2212439 Air Separator
Assembly
28 8534009 Screw
29 2254453 Bracket,
Fan Motor
31 2204639 Shield, Heat
32 2254454 Bracket
Evap. Fan, Rear
34 2302536 Knob, Damper
35 2163810 Bracket,
Damper Knob
36 2205079 Seal, Rear
Thermostat
38 2210509 Valve−Tube, Body
39
W10129795
Wire Assembly,
Freezer Compartment
(Includes
Illus. 25)
6
W10183710
Page 7

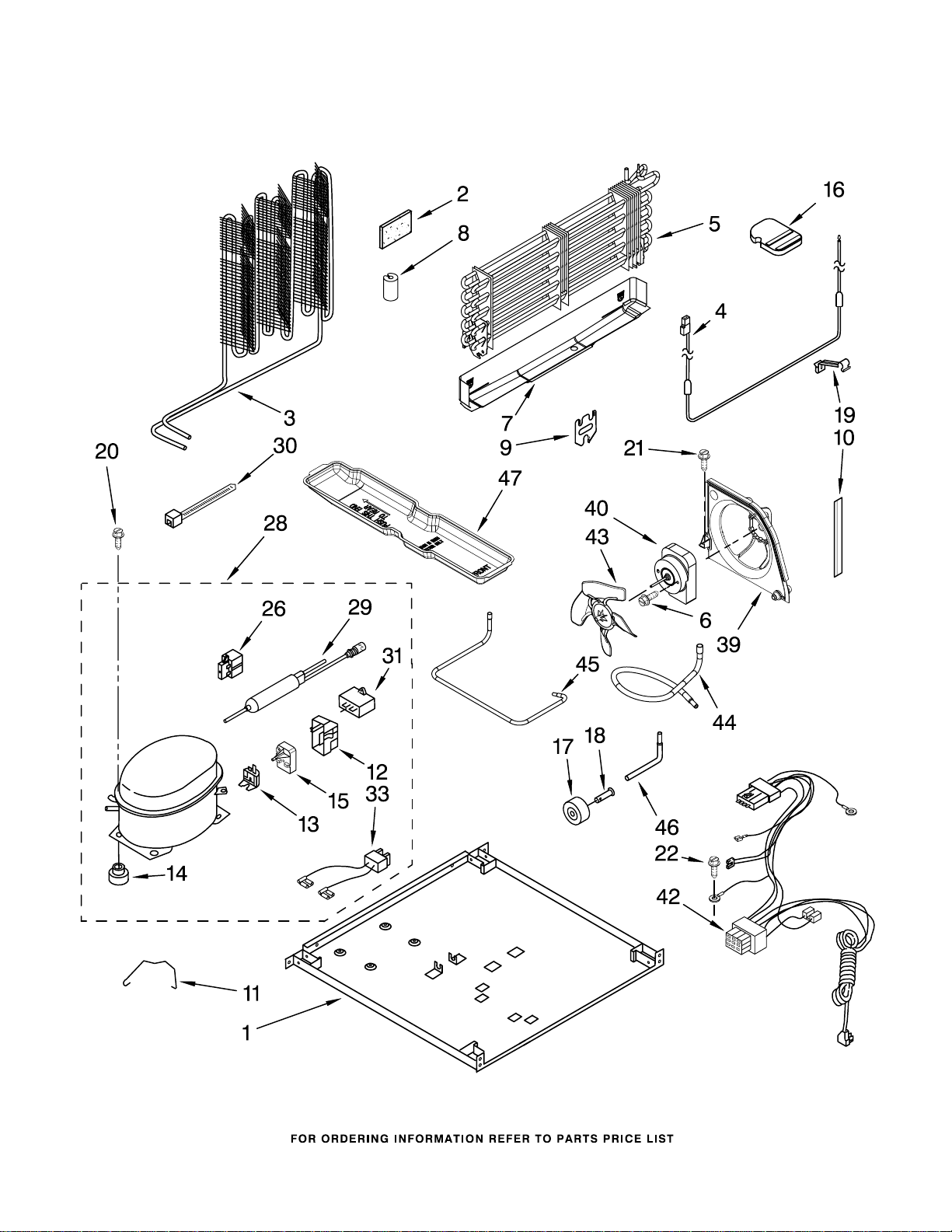

UNIT PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
W10183710
7
Page 8
UNIT PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
1 2320187 Plate, Unit
Mounting
2 2169104 Insulation,
Sound Dampening
3 2214960 Condenser
4 2314157 Heater, Defrost
5 2254249 Evaporator Assy.
6 8533859 Screw
7 2254295 Drain Pan
8 2319835 Grommet−Cond.(4)
9 2176301 Bracket, Heater
10 2300638 Extension, Air
Baffle
11 2223314 Strap
12 4387731 Cover
(Service Only)
13 4390624 Overload
(Service Only)
14 Grommet (4)
1100826 Production
4387558 Service
15
W10136414
16 2201185 Support Block
17 2150304 Roller (2)
18 2221797 Rivet
Start−Device
Combination
(Start Relay and
Overload for
Production
Compressor Only)
Illus. Part
No. No. DESCRIPTION
19 2182338 Clip, Heater
20 489373 Screw
21 3400518 Screw
22 488500 Screw
26 2183454 Relay
(Service Only)
W10171785
28
29 Drier
2319825 Production
2317845 Service
30 2155774 Clamp
31 Capacitator
2264017 Production
1118576 Service
33 4387765 Wire Assembly
39 2315541 Air Baffle
40 2188874 Motor, Condenser
42 2187382 Wire Assembly,
43 2225834 Fan Blade
44
W10171793
45 2214924 Tube, Suction
46 2154109 Tube, Process
47 2254574 Tray, Evaporator
Compressor
(Includes
Illus. 12,13,14,
26,29,31 & 33)
(Also Order 482801
Installation Kit
& 876765 Tube Kit)
(Service Only)
Tube, Discharge
Unit
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.00 Ozs.
(R134A)
8
W10183710
Page 9

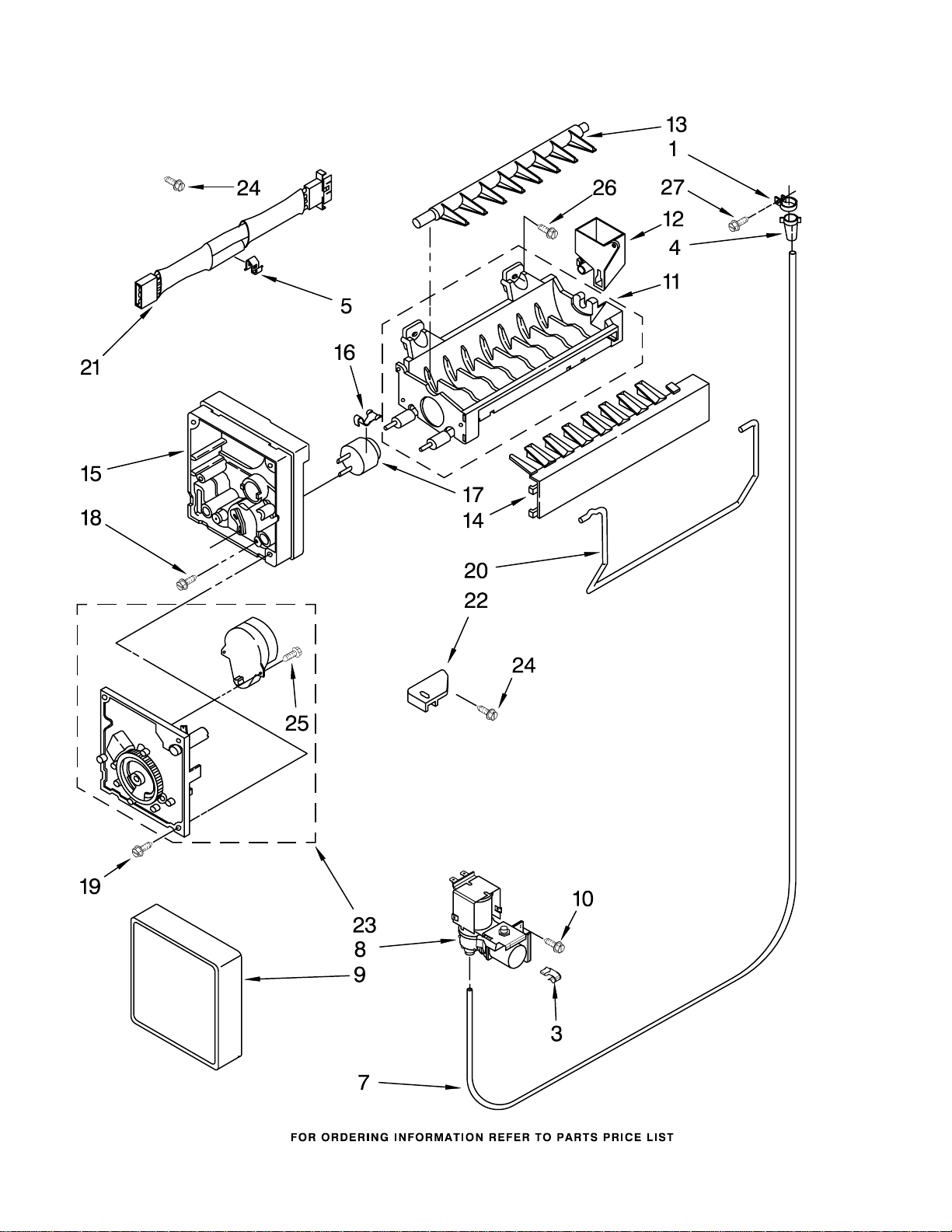

ICEMAKER PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
W10183710
9
Page 10
ICEMAKER PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
1 488878 Clamp, Tube
3 2210495 Clip, Water Valve
4 2181939 Insert, Tube
5 628379 Clip, Fuse
7 2181943 Tube Water
8 2315576 Valve Solenoid
9 2210484 Cover
10 489442 Screw
11
W10122527
12 628515 Cup, Water Fill
13 627843 Ejector
14 2182124 Ice Striper
15 2194712 Support
16 2315522 Retainer
17 628397 Thermostat (Also
18 8533917 Screw
19 489276 Screw
20 627792 Shut Off Arm
21 2187464 Harness, Wiring
22 628320 Bracket
23 626680 Module Assembly
24 489478 Screw
25 489136 Screw,
26 488208 Screw
27 488886 Screw, 8−18 x 1/2
100
W10122496
Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
Thermostat
Order 542369
Cement
Alumilastic)
(Includes Item 25)
3−24 x 23/64
Icemaker,Complete
Assembly
10
W10183710
Page 11

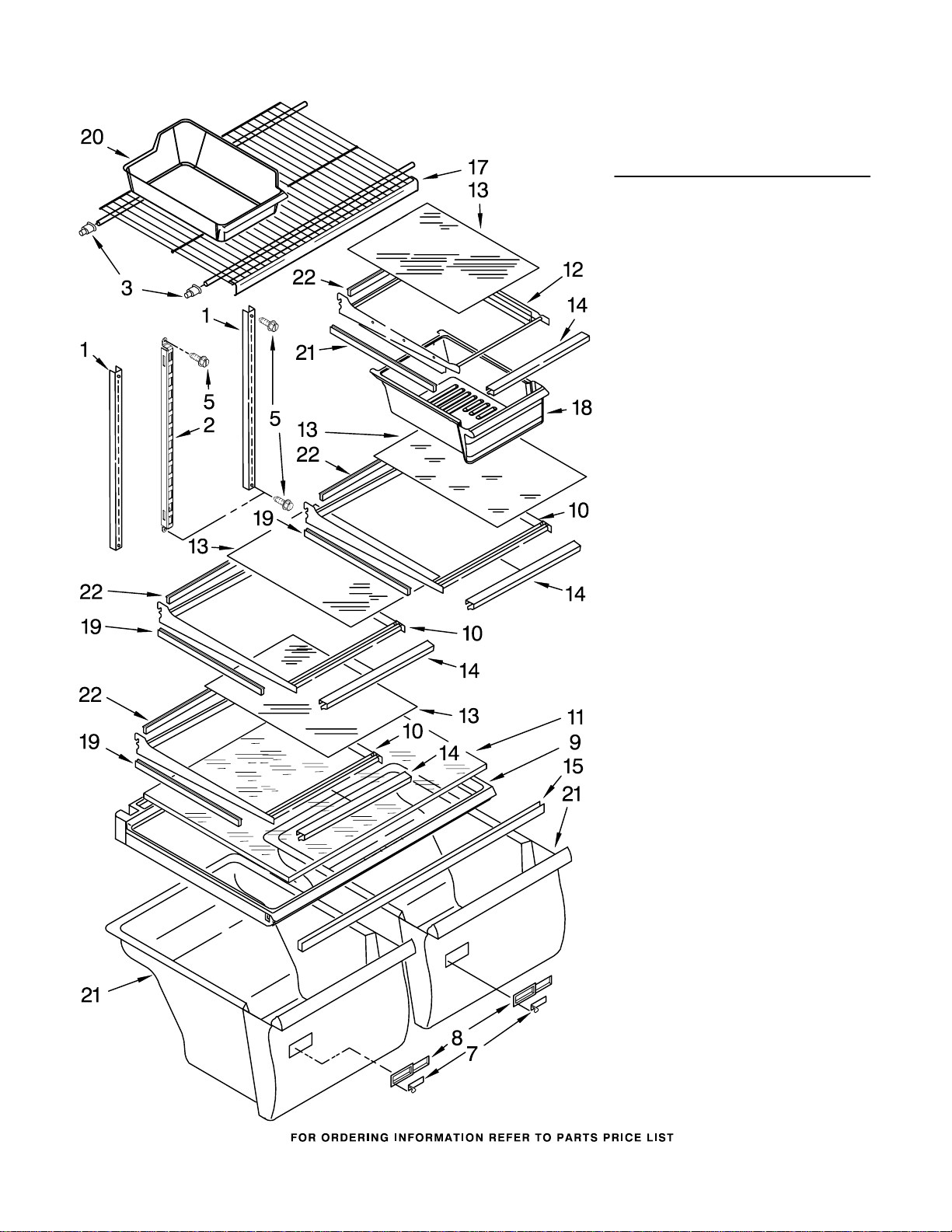

SHELF PARTS
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mtg.
5 489478 Screw
7 2176222 Slide, Humidity
Control
8 2212446 Body, Humidity
Control
9 2314502 Crisper Cover
10 2201102E Shelf, Cantilever
11 2210573 Insert, Crisper
Cover
12 2201106 Pan, Shelf
Cantilever
13 2200987 Glass, Shelf
14 2188685 Trim, Shelf Front
15 2314478 Crisper Support
17 2184667 Shelf, Freezer
18 2218132K Pan, Meat
19 2188711 Trim, Shelf Side
20 2254352 Bucket, Ice
21 2218141 Crisper Pan
(Includes
Illus. 7 & 8)
22 2188687 Trim, Shelf Rear
W10183710
11
Page 12
OPTIONAL PARTS (NOT INCLUDED)
For Models: ET1CHEXVQ00,ET1CHEXVT00, ET1CHEXVB00
(White) (Biscuit) (Black)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Miscellaneous
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Illus. Part
No. No. DESCRIPTION
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
786032 Enamel, Black
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
12
W10183710
