Page 1

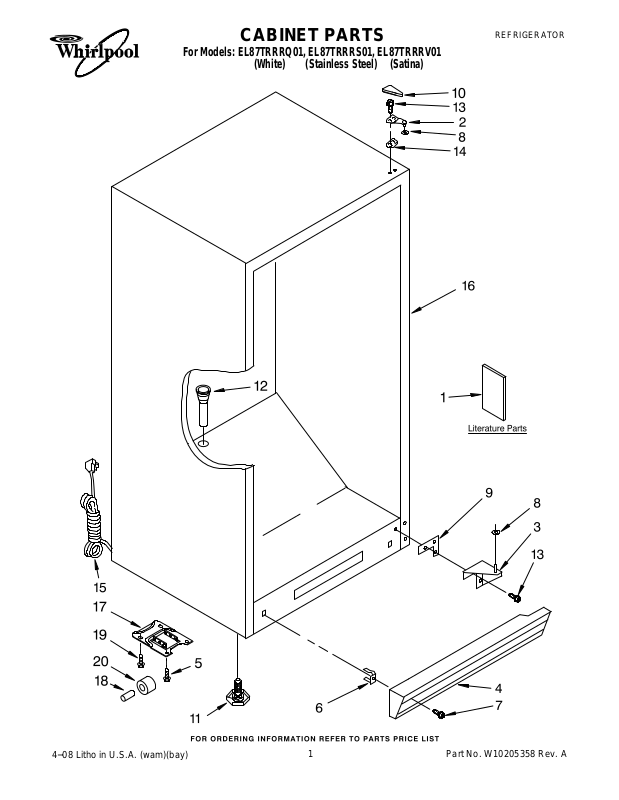

CABINET PARTS
REFRIGERATOR
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
4−08 Litho in U.S.A. (wam)(bay)
1
Part No. W10205358 Rev. A
Page 2
CABINET PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8210433 Owners Manual
8210378 Energy Guide/Tag
2 Top Hinge
W10179593
8210251 Black
3 Bottom Hinge
W10201501
8210268 Black
4 Grille
8210290 White
8210294 Black
5 4357277 Screw
6 4356803 Clip, Grille
7 Screw
4357243 White
8210262 Black
8 4390520 Washer
9 4390489 Shim Bottom
10 Cover, Hinge
4357279 White
4390763 Black
11 4390866 Leg, Leveller
W10164544
12
13 4356830 Screw
14 4390489 Shim, Hinge
15 8210302 Power Cord
16 Cabinet (Not A
17 8210265 Bracket, Roller
18 4390755 Axle
19 8210266 Screw
20 4390754 Roller, Front
White
White
(Includes 6 & 7)
Grommet, Drain
Serviceable Part)
2
W10205358
Page 3
LINER PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
W10205358
3
Page 4
LINER PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
Illus. Part
No. No. DESCRIPTION
1 8210342 Pan, Crisper
2 4390770 Shelf, Crisper
(Upper)
3 4390772 Shelf, Crisper
(Lower)
4 4390773 Channel,
Crisper Cover
5 4390766 Thermostat
6 4357292 Knob, Thermostat
7 4357124 Timer, Defrost
8 8210350 Lamp, Socket
9 4390465 Bulb
10 4390743 Light Shield
11 4357041 Plate,
Thermostat
12 4357042 Screw
13 4390513 Light, Switch
14 4357295 Vent Plug
15 4390768 Shelf, Middle
16 4390767 Shelf, Top
17 8210236 Pan, Crisper
(Upper)
18 4356849 Screw
W10135693
19
20 4390774 Support,
21 4390775 Egg Bin
Bracket, Light
Crisper Cover
4
W10205358
Page 5

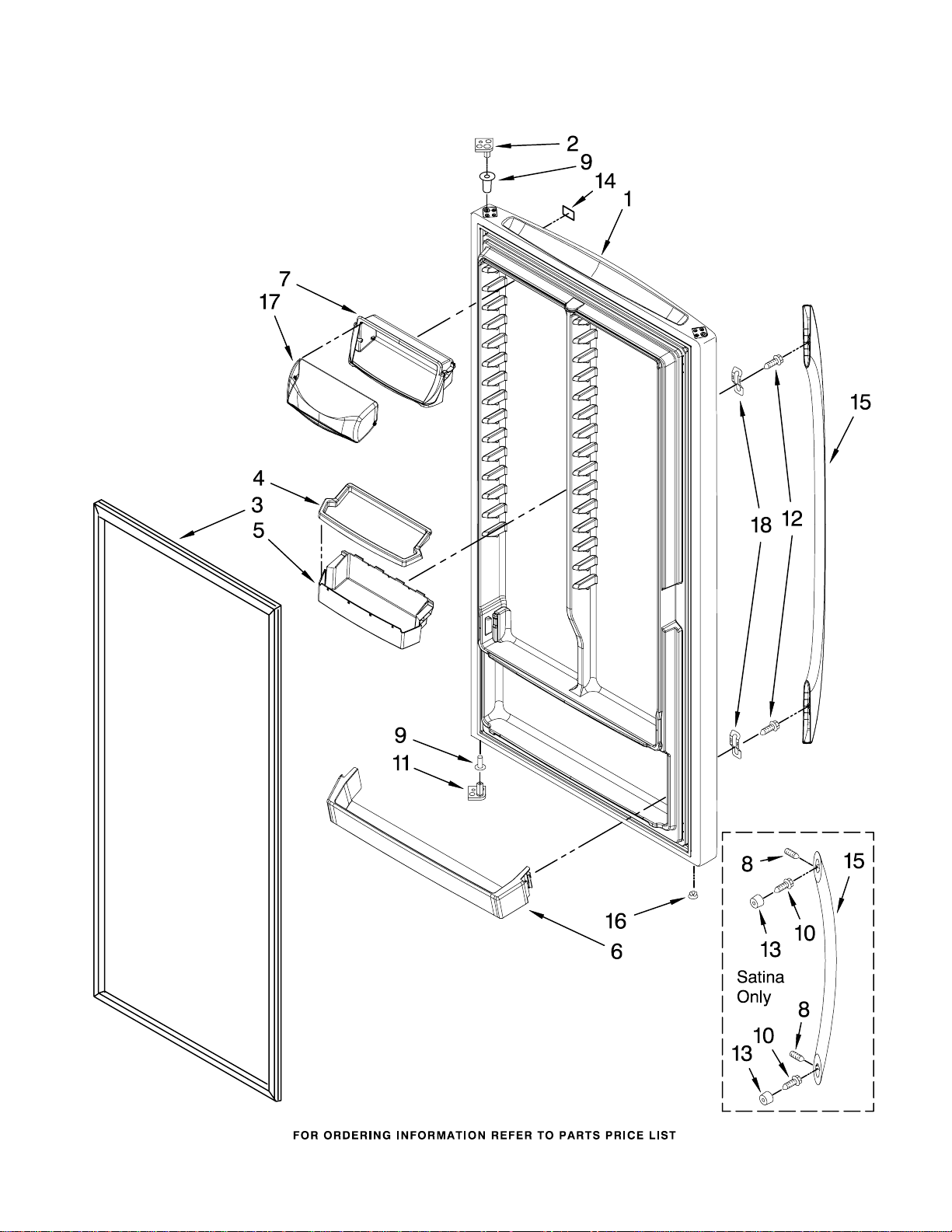

DOOR PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
W10205358
5
Page 6
DOOR PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
Illus. Part
No. No. DESCRIPTION
1 Exterior Door
(Includes
Interior Liner)
8210352 White
8210353 Stainless Steel
8210354 Satina
2 Stop, Door
(Top)
8210401 White
8210402 Black
3 Gasket
8210339 White
8210343 Black
4 8210383 Cover, Bin
5 8210380 Bin, Door
6 8210379 Rail, Door
(Lower)
7 8210381 Housing, Dairy
Compartment
8 8533976 Screw, Set
9 Bushing, Hinge
4390731 White
4390869 Black
10 488208 Screw
11 Stop, Door
(Bottom)
8210400 Natural
12 489491 Screw
13 2219698 Stud, Handle
14 2255121 Nameplate
15 Handle
2313345W White
2313345B Black
W10202711
16 4357067 Vent Plug
17 8210382 Door,
18 2255411 Clip, Handle
Brushed Aluminum
(Includes Item 8)
Compartment
6
W10205358
Page 7

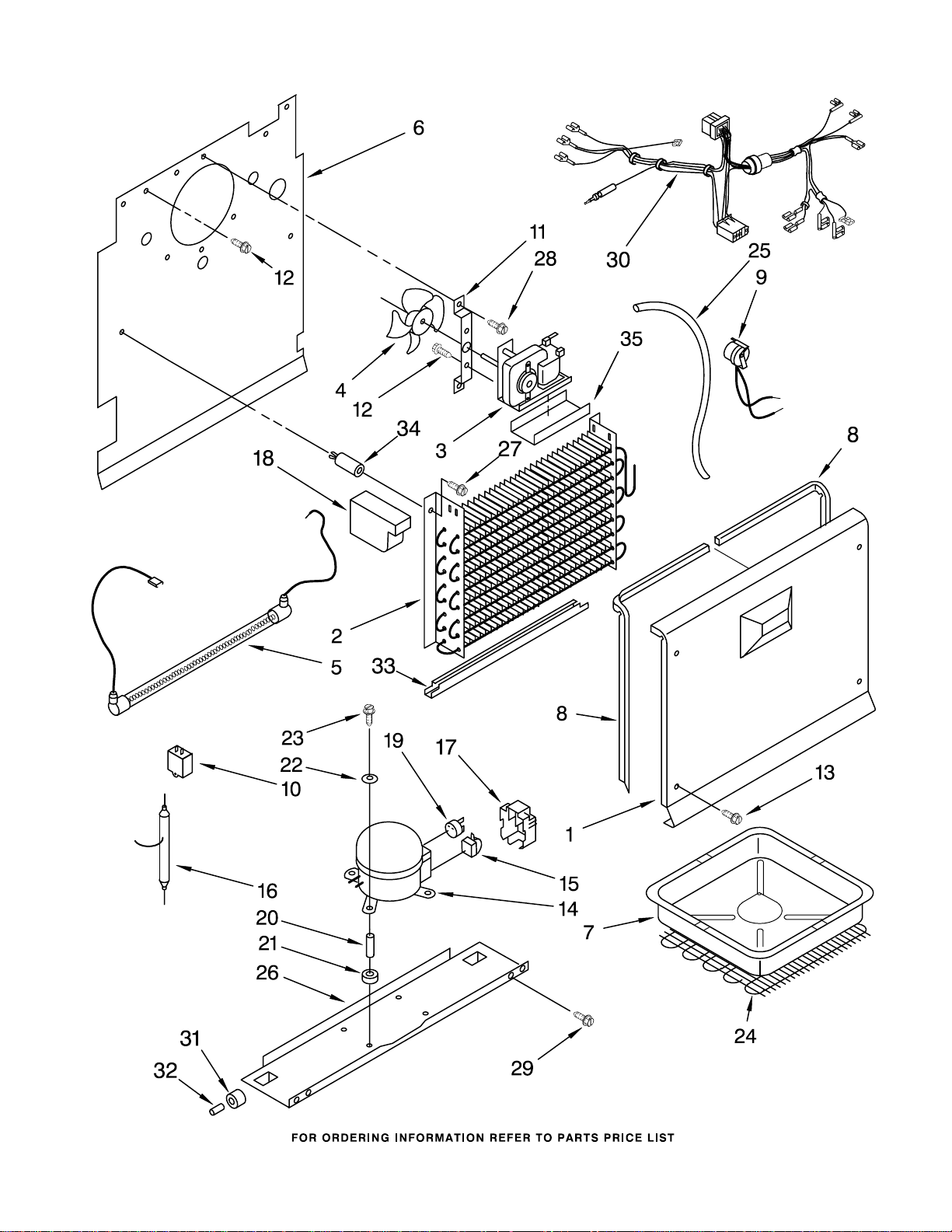

UNIT PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
W10205358
7
Page 8
UNIT PARTS
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
Illus. Part
No. No. DESCRIPTION
1 4390662 Cover, Evaporator
2 4390782 Evaporator
3 4357004 Fan Motor
4 4356920 Fan Blade
5 4356923 Heater Defrost
6 4357123 Plate, Evaporator
Mount
7 4390932 Drain Pan
8 Gasket, Cover
Evaporator
4390663 Right
4390664 Left
9 4390783 Bi−Metal Defrost
10 8210239 Capacitor
11 4357129 Bracket, Motor
12 4356943 Screw, Motor
13 4357110 Screw
14 8210240 Compressor
(Includes Items
15,16,17 & 19)
15 4356738 Relay
16 4357299 Drier
17 8210242 Cover
18 8210261 Block, Foam
19 8210241 Overload
20 4356846 Sleeve
21 4356335 Grommet,
Compressor
22 4356847 Washer
23 8210220 Screw, Compressor
24 8210300 Condenser
25 4357245 Heat, Exchanger
26 8210202 Compressor Pan
27 4357243 Screw
28 4356970 Screw
29 4357277 Screw
30 8210301 Harness, Unit
31 4390754 Roller
32 4390755 Axle
33 4356924 Shield, Heater
34 4357020 Grommet
35 4357128 Shield, Motor
REFRIGERANT CHARGE
4.107 oz.
(R−134A)
8
W10205358
Page 9
OPTIONAL PARTS (NOT INCLUDED)
For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01
(White) (Stainless Steel) (Satina)
Illus. Part
No. No. DESCRIPTION
Customer Touch−Up Material
350930 Enamel, White
(13 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
978941 Insulation
Fiberglass
(63−1/2" x 35−1/2
x 2−5/8")
505587 Sealer Mastic
(1 Qt.)
503695 Cork Sealer
(1/4 Pound)
W10205358
9
