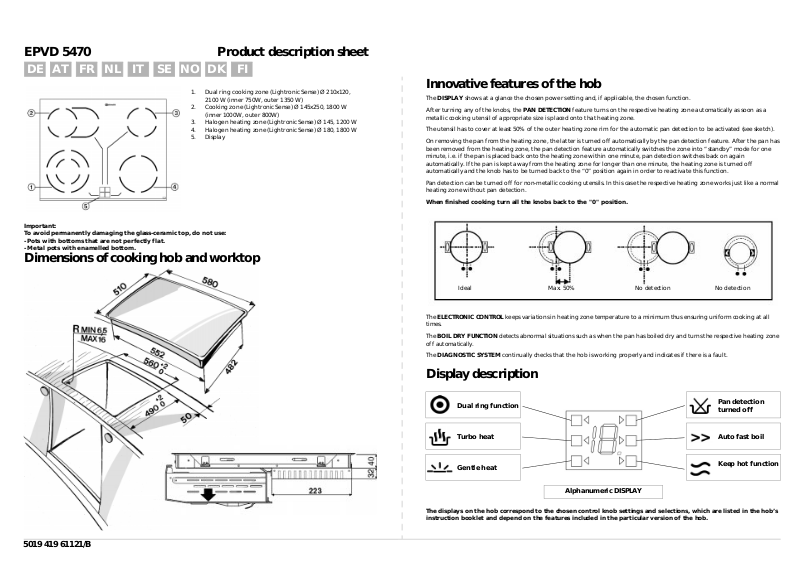

EPVD 5470 Product description sheet

DE AT FR NL IT SE NO DK FI

1. Dual ring cooking zone (Lightronic Sense) Ø 210 x120,
2100 W (inner 750W, outer 1350 W)

2. Cooking zone (Lightronic Sense) Ø 145x250, 1800 W
(inner 1000W, outer 800W)

3. Halogen heating zone (Lightronic Sense) Ø 145, 1200 W

4. Halogen heating zone (Lightronic Sense) Ø 180, 1800 W

5. Display

Important:
To avoid permanently damaging the glass-ceramic top, do not use:

- Pots with bottoms that are not perfectly flat.

- Metal pots with enamelled bottom.

Dimensions of cooking hob and worktop

Innovative features of the hob

The DISPLAY shows at a glance the chosen power setting and, if applicable, the chosen function.
After turning any of the knobs, the PAN DETECTION feature turns on the respective heating zone automatically as soon as a

metallic cooking utensil of appropriate size is placed onto that heating zone.
The utensil has to cover at least 50% of the outer heating zone rim for the automatic pan detection to be activated (see sketch).
On removing the pan from the heating zone, the latter is turned off automatically by the pan detection feature. After the pan has

been removed from the heating zone, the pan detection feature automatically switches the zone into “standby” mode for one
minute, i.e. if the pan is placed back onto the heating zone within one minute, pan detection switches back on again
automatically. If the pan is kept away from the heating zone for longer than one minute, the heating zone is turned off
automatically and the knob has to be turned back to the “0” position again in order to reactivate this function.

Pan detection can be turned off for non-metallic cooking utensils. In this case the respective heating zone works just like a normal
heating zone without pan detection.

When finished cooking turn all the knobs back to the "0" position.

Ideal

The ELECTRONIC CONTROL keeps variations in heating zone temperature to a minimum thus ensuring uniform cooking at all
times.

The BOIL DRY FUNCTION detects abnormal situations such as when the pan has boiled dry and turns the respective heating zone
off automatically.

The DIAGNOSTIC SYSTEM continually checks that the hob is working properly and indicates if there is a fault.

Max. 50%

No detection No detection

5019 419 61121/B

Display description

Dual ring function

Turbo heat Auto fast boil

Gentle heat

Alphanumeric DISPLAY

The displays on the hob correspond to the chosen control knob settings and selections, which are listed in the hob’s
instruction booklet and depend on the features included in the particular version of the hob.

Pan detection
turned off

Keep hot function

Possible user messages

Using the hob

Flashing indicator lamp: Special feature selected.
Indicator lamp on continuously: Special feature active.

“U that moves up and down”: When pan detection is

active this display indicates either that there is no cooking
utensil placed on the heating zone or the utensil is not
positioned properly.

With “U at a standstill” the heating zone has been turned off
by pan detection and the knob has to be turned back to the
“0” position to activate the zone again.

Heat level indicator: Each digit (from 1 to 10) corresponds to
a power setting selected via the control knob. If the display
digit flashes, boil dry detection is active.

Fine adjustment of the heat setting: An additional intermediate heat setting (1.5)
can be selected between control knob settings 1 and 2.

• Turn the knob (for the cooking zone to be used) clockwise to the desired power level or to the symbol corresponding to
the function required.

• To turn the cooking zone off, turn the knob until the mark is at position “0”.

• The hob functions (e.g. Turbo heat) are explained in the separate product description for the hob.

Whilst using the hob and/or the oven the cooling fan works continuously, adjusting its ventilation capacity according
to the heat setting selected.

After turning the hob and/or oven off, the cooling fan may continue running for a while in order to cool down the
appliances and adjacent kitchen fixtures.

“Turning pan detection on and off”

With this hob, pan detection is usually activated after turning on, although it can still be switched off manually if necessary.

Turning it off:

1. Turn the control knob for the relevant heating zone to the Gentle Heat function .

2. The function indicator lamp starts flashing.

3. Turn the control knob back to “0”, the function indicator lamp now stays on permanently. Now, within 5 seconds, turn the
control knob to the desired heat setting or function.

Turning it on:

1. To turn pan detection back on again, turn the control knob to the “0” position. After around 5-7 seconds pan detection is
activated once again automatically, the function indicator then goes off.

Please note:
The turning off or turning back on again, where necessary, has to be carried out for each separate heating zone.

Turbo heat: The booster function is turned on for fast boiling .

Hob still hot warning: The hot hob warning (“H”) stays on after the heating zone

has been turned off until the temperature has fallen to a safe level.

If any display readout shows an “F” message, please get in touch with after-sales service.
